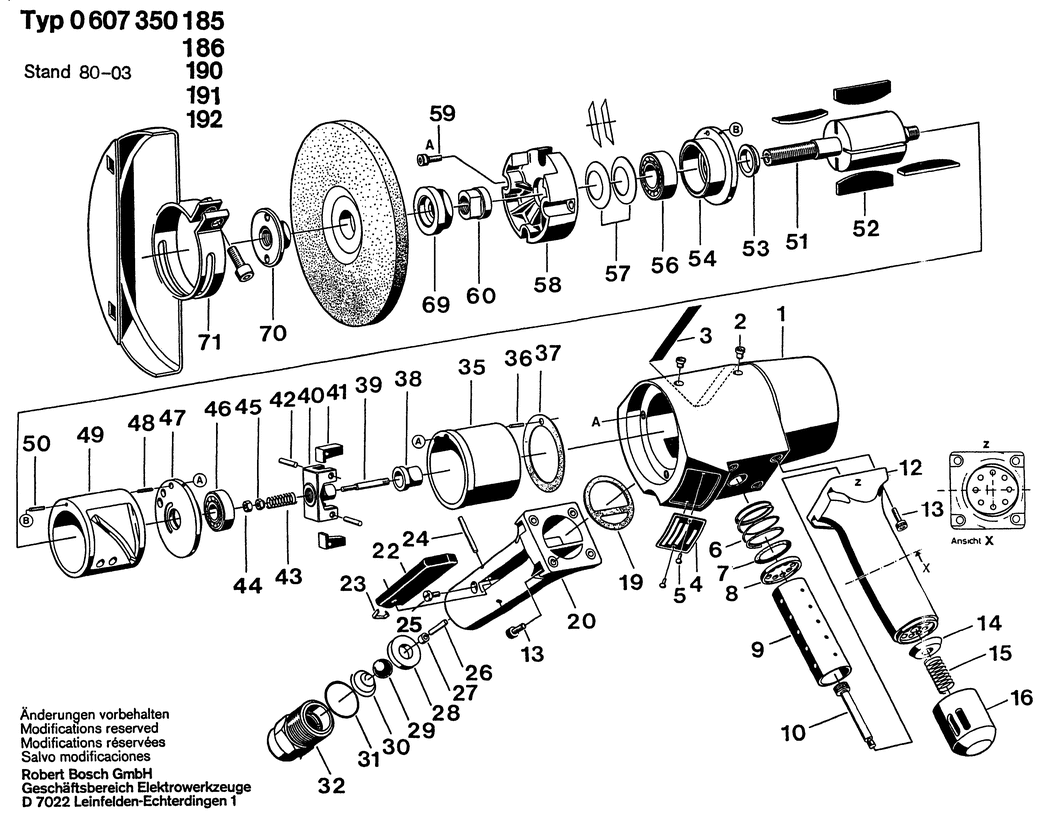

1 - MOTOR HOUSING
BSD-1609310256.A2
1609310256
|
-
|
|
|
2 - LUBRICATING NIPPLE
BSD-1609310104.A0
1609310104
|
-
|
|
|
3 - MANUFACTURER'S NAMEPLATE
BSD-1609310208.A8
1609310208
|
-
|
|
|
4 - NAMEPLATE
BSD-160111A3H5.A513
160111A3H5
|
£2.61
|
£3.13
|
|
5 - CTSK-HEAD GROOVED PIN
BSD-1609310136.A0
1609310136
|
-
|
|
|
6 - COMPRESSION SPRING
BSD-1609310192.A2
1609310192
|
-
|
|
|
7 - SEAL RING
BSD-1609310158.A5
1609310158
|
-
|
|
|
8 - PERFORATED PANEL
BSD-1609310280.A4
1609310280
|
-
|
|
|
9 - PVC TUBE
BSD-1609310283.A4
1609310283
|
-
|
|
|
10 - STOP BOLT
BSD-1609310135.A6
1609310135
|
-
|
|
|
12 - HANDLE
BSD-1609310251.A2
1609310251
|
-
|
|
|
12 - INSULATING PLATE
BSD-1609310323.A6
1609310323
|
-
|
|
|
13 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8
BSD-2910141158.A35
2910141158
|
£1.75
|
£2.10
|
|
14 - PLAIN WASHER
BSD-1609310282.A4
1609310282
|
-
|
|
|
15 - COMPRESSION SPRING
BSD-1609310188.A6
1609310188
|
-
|
|
|
16 - PROTECTIVE CAP
BSD-1609310275.A4
1609310275
|
-
|
|
|
19 - SEALING PLATE
BSD-1609310153.A8
1609310153
|
-
|
|
|
20 - HANDLE
BSD-1609310263.A6
1609310263
|
-
|
|
|
22 - CONTROL LEVER
BSD-1609310272.A8
1609310272
|
-
|
|
|
23 - STOP BRACKET
BSD-1609310267.A4
1609310267
|
-
|
|
|
24 - NEEDLE ROLLER DIN5402-A3.5x34.8-G2
BSD-1903201064.A4
1903201064
|
£3.72
|
£4.47
|
|
25 - SOCKET HEAD CAP SCREW DIN 84-AM5x8-8.8
BSD-2910021150.A9
2910021150
|
-
|
|
|
26 - NEEDLE ROLLER
BSD-1609310021.A10
1609310021
|
-
|
|
|
27 - GUIDE SLEEVE
BSD-1609310083.A2
1609310083
|
-
|
|
|
28 - PLAIN WASHER
BSD-1609310177.A8
1609310177
|
-
|
|
|
29 - BALL
BSD-1609310099.A12
1609310099
|
-
|
|
|
30 - COMPRESSION SPRING
BSD-1609310186.A6
1609310186
|
-
|
|
|
31 - SEAL RING
BSD-1609310157.A11
1609310157
|
-
|
|
|
32 - FITTING
BSD-1609310148.A6
1609310148
|
-
|
|
|
35 - STOP BUSHING
BSD-1609310253.A2
1609310253
|
-
|
|
|
36 - SLOTTED SPRING PIN 3x8 DIN 1481
BSD-2917760075.A13
2917760075
|
-
|
|
|
37 - SEALING DISK
BSD-1609310151.A5
1609310151
|
-
|
|
|
38 - GUIDE BUSHING
BSD-1609310247.A2
1609310247
|
-
|
|
|
39 - STUD BOLT
BSD-1609310144.A9
1609310144
|
-
|
|
|
40 - REGULATOR ARMATURE
BSD-1609310245.A3
1609310245
|
-
|
|
|
41 - FLYWEIGHT
BSD-1609310250.A3
1609310250
|
-
|
|
|
42 - NEEDLE ROLLER A 4x19.8 G2 DIN 5402
BSD-1903201056.A2
1903201056
|
-
|
|
|
43 - COMPRESSION SPRING
BSD-1609310190.A2
1609310190
|
-
|
|
|
44 - HEX NUT
BSD-1609310345.A8
1609310345
|
-
|
|
|
45 - HEX NUT
BSD-1609310345.A9
1609310345
|
-
|
|
|
46 - GROOVE BALL BEARING 6002-Z DIN 625
BSD-1900905102.A142
1900905102
|
-
|
|
|
47 - BEARING FLANGE
BSD-1609310242.A0
1609310242
|
-
|
|
|
48 - SLOTTED SPRING PIN 3x14 DIN 1481
BSD-2917760078.A6
2917760078
|
-
|
|
|
49 - STATOR
BSD-1609310226.A2
1609310226
|
-
|
|
|
50 - CLAMPING SLEEVE 3x10 DIN 1481
BSD-2917761076.A0
2917761076
|
-
|
|
|
51 - ROTOR
BSD-1609310221.A0
1609310221
|
-
|
|
|
52 - ROTOR LAMELLA
BSD-1609310231.A1
1609310231
|
-
|
|
|
53 - O-RING
BSD-1609310281.A2
1609310281
|
-
|
|
|
54 - BEARING FLANGE
BSD-1609310237.A0
1609310237
|
-
|
|
|
56 - ANG. CONTACT BALL BEARING 3203 DIN 628
BSD-1900900653.A9
1900900653
|
-
|
|
|
57 - DISC SPRING
BSD-1609310194.A8
1609310194
|
-
|
|
|
58 - BEARING FLANGE
BSD-1609310265.A0
1609310265
|
-
|
|
|
59 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x12-8.8
BSD-2910141154.A73
2910141154
|
£1.75
|
£2.10
|
|
60 - GUIDE BUSHING
BSD-1609310276.A2
1609310276
|
-
|
|
|
69 - ROUND NUT M14
BSD-2603345004.A300
2603345004
|
£6.52
|
£7.83
|
|
70 - CLAMPING-FLANGE dia45 MM
BSD-2600501006.A284
2600501006
|
£16.43
|
£19.72
|
|
71 - PROTECTIVE COVER dia230 MM
BSD-1605510198.A11
1605510198
|
-
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1409
3601119236
|
£3.72
|
£4.47
|
|
