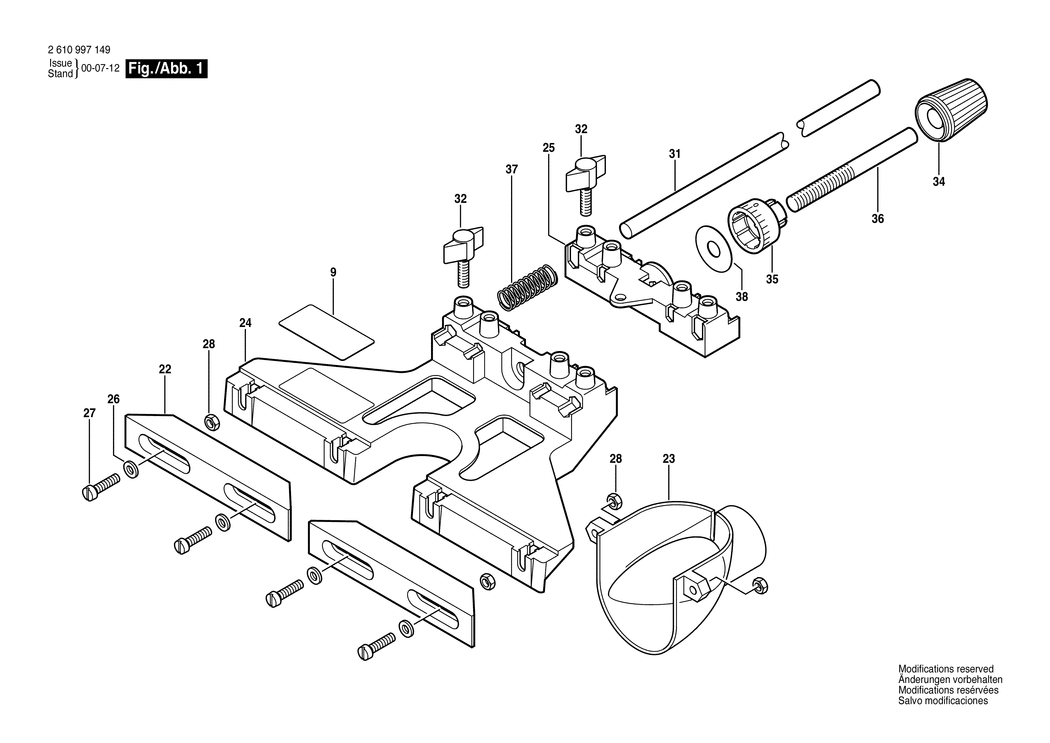

An exploded drawing and listing for the Bosch RA1054 / 2610997149 / ---
Ex VAT Inc VAT
9 - LABEL BSD-2610998883.A0 2610998883 -
22 - GUIDE PLATE BSD-3602386501.A14 3602386501 -
23 - VACUUM ADAPTER BSD-2610997123.A1 2610997123 £11.30 £13.56
24 - GUIDE BSD-2610997130.A0 2610997130 £23.86 £28.63
25 - SUPPORT BRACKET BSD-2610997124.A1 2610997124 £10.10 £12.12
26 - PLAIN WASHER DIN 125-A5.3-ST BSD-2916011012.A162 2916011012 £1.75 £2.10
27 - SCREW BSD-2610914401.A5 2610914401 £1.75 £2.10
28 - HEX NUT DIN 934-M 5-m-8 BSD-2915011006.A182 2915011006 -
31 - GUIDE ROD 10 MM BSD-3603001518.A2 3603001518 -
32 - WING SCREW M6x20 MM BSD-1613480008.A471 1613480008 £1.75 £2.10
34 - ADJUSTING DEVICE BSD-2610993576.A6 2610993576 -
35 - INDICATOR RING BSD-3600209500.A1 3600209500 £3.80 £4.56
36 - SHAFT BSD-2610997127.A0 2610997127 -
37 - SPRING BSD-2610997128.A2 2610997128 -
38 - WASHER BSD-2610913500.A1 2610913500 -
