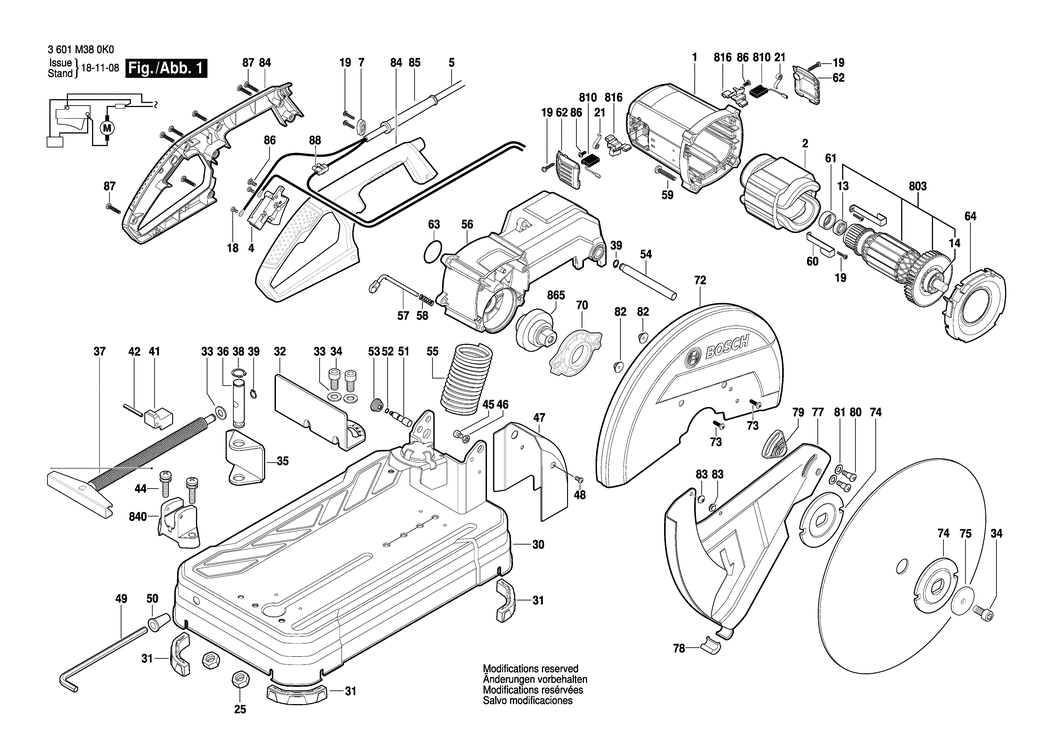

1 - MOTOR HOUSING
BSD-1609B03600.A2
1609B03600
|
£21.68
|
£26.01
|
|
|
2 - FIELD 230V
BSD-1609B00137.A0
1609B00137
|
£54.42
|
£65.30
|
|
|
4 - SWITCH
BSD-1609B02146.A0
1609B02146
|
£14.91
|
£17.89
|
|
|
5 - POWER SUPPLY CORD
BSD-1609B00492.A0
1609B00492
|
£14.91
|
£17.89
|
|
|
7 - CABLE CLIP
BSD-1609B02153.A1
1609B02153
|
-
|
|
|
|
13 - BEARING 608-2RS
BSD-1619P03850.A4
1619P03850
|
£5.30
|
£6.36
|
|
|
14 - BEARING
BSD-1609B00057.A3
1609B00057
|
£10.10
|
£12.12
|
|
|
18 - SCREW
BSD-1609B03644.A0
1609B03644
|
£1.75
|
£2.10
|
|
|
19 - SCREW ST3.5x15
BSD-1609B02357.A3
1609B02357
|
£1.75
|
£2.10
|
|
|
21 - SPIRAL SPRING
BSD-1604652019.A4
1604652019
|
£1.75
|
£2.10
|
|
|
25 - HEX NUT DIN 934-M8-8
BSD-1619P03831.A4
1619P03831
|
£1.75
|
£2.10
|
|
|
30 - BASE
BSD-1609B02358.A2
1609B02358
|
£63.50
|
£76.20
|
|
|
31 - SUPPORTING FOOT
BSD-1609B03594.A4
1609B03594
|
£1.75
|
£2.10
|
|
|
32 - STOP BRACKET
BSD-1609B03667.A3
1609B03667
|
£11.30
|
£13.56
|
|
|
33 - PLAIN WASHER
BSD-1609BP7045.A11
1609BP7045
|
£1.75
|
£2.10
|
|
|
34 - SCREW
BSD-1609B03630.A4
1609B03630
|
£1.75
|
£2.10
|
|
|
35 - CLAMP BRACKET
BSD-1609B03674.A1
1609B03674
|
£5.58
|
£6.70
|
|
|
36 - CONNECTING ROD
BSD-1609B03675.A3
1609B03675
|
£16.41
|
£19.69
|
|
|
37 - CLAMP SCREW
BSD-1609B03598.A1
1609B03598
|
£11.30
|
£13.56
|
|
|
38 - SPRING RETAINING RING DIN 471-18
BSD-1619P03755.A9
1619P03755
|
£1.75
|
£2.10
|
|
|
39 - CLIP
BSD-1609B03628.A4
1609B03628
|
£1.75
|
£2.10
|
|
|
41 - CLAMPING BLOCK
BSD-1609B03576.A4
1609B03576
|
£7.36
|
£8.83
|
|
|
42 - SPRING PIN ISO 13337-4x35
BSD-1619P03762.A6
1619P03762
|
£1.75
|
£2.10
|
|
|
44 - SCREW AND WASHER ASSEMBLY
BSD-1609B03629.A1
1609B03629
|
£1.75
|
£2.10
|
|
|
45 - SCREW
BSD-1609B03686.A0
1609B03686
|
£1.75
|
£2.10
|
|
|
46 - NUT
BSD-1609B01654.A14
1609B01654
|
£1.75
|
£2.10
|
|
|
47 - PROTECTIVE GUARD
BSD-1609B03605.A1
1609B03605
|
£11.30
|
£13.56
|
|
|
48 - THREAD-FORMING SCREW
BSD-1609B06426.A0
1609B06426
|
£1.75
|
£2.10
|
|
|
49 - HEXAGON SOCKET WRENCH
BSD-1609B03622.A4
1609B03622
|
£2.80
|
£3.36
|
|
|
50 - KEY HOLDER
BSD-1609B03617.A0
1609B03617
|
£1.75
|
£2.10
|
|
|
51 - SHAFT
BSD-1609B03623.A0
1609B03623
|
£1.75
|
£2.10
|
|
|
52 - O-RING 4.5x1.8
BSD-1619P03810.A6
1619P03810
|
£1.75
|
£2.10
|
|
|
53 - CAP
BSD-1609B03624.A5
1609B03624
|
£1.75
|
£2.10
|
|
|
54 - PIVOT SHAFT
BSD-1609B03618.A5
1609B03618
|
£2.61
|
£3.13
|
|
|
55 - CONTACT STRAP
BSD-1609B03619.A0
1609B03619
|
£11.30
|
£13.56
|
|
|
56 - ARM
BSD-1609B03591.A4
1609B03591
|
£54.42
|
£65.30
|
|
|
57 - LOCKING PIN
BSD-1609B03610.A4
1609B03610
|
£2.16
|
£2.59
|
|
|
58 - COMPRESSION SPRING
BSD-1619P03864.A3
1619P03864
|
£1.75
|
£2.10
|
|
|
59 - THREAD-FORMING TAP. SCREW DIN 7500 C-M6x35
BSD-1619P03835.A10
1619P03835
|
£1.75
|
£2.10
|
|
|
60 - PICKUP CLIP
BSD-1609B00055.A5
1609B00055
|
£1.75
|
£2.10
|
|
|
61 - RUBBER RING
BSD-1600206030.A416
1600206030
|
£1.75
|
£2.10
|
|
|
62 - END CAP
BSD-1609B03602.A1
1609B03602
|
£3.72
|
£4.47
|
|
|
63 - O-RING
BSD-1609B00068.A5
1609B00068
|
£1.75
|
£2.10
|
|
|
64 - AIR-DEFLECTOR RING
BSD-1609B03604.A1
1609B03604
|
£2.16
|
£2.59
|
|
|
70 - GEAR COVER
BSD-1609B03612.A1
1609B03612
|
£5.30
|
£6.36
|
|
|
72 - SAFETY GUARD
BSD-1609B06429.A0
1609B06429
|
£31.64
|
£37.97
|
|
|
73 - SCREW
BSD-1609B01483.A1
1609B01483
|
£1.75
|
£2.10
|
|
|
74 - FLANGE
BSD-1609B03592.A1
1609B03592
|
£7.36
|
£8.83
|
|
|
75 - PLAIN WASHER
BSD-1609B03625.A0
1609B03625
|
£1.75
|
£2.10
|
|
|
77 - FLAP GUARD
BSD-1609B03608.A1
1609B03608
|
£18.96
|
£22.75
|
|
|
78 - COVER
BSD-1609B03631.A1
1609B03631
|
£1.75
|
£2.10
|
|
|
79 - SUPPORTING PLATE
BSD-1609B03642.A5
1609B03642
|
£1.75
|
£2.10
|
|
|
80 - SHOULDER SCREW
BSD-1609B03641.A0
1609B03641
|
£1.75
|
£2.10
|
|
|
81 - WASHER
BSD-1609B03513.A4
1609B03513
|
£1.75
|
£2.10
|
|
|
82 - NUT
BSD-1609B06545.A1
1609B06545
|
-
|
|
|
|
83 - RUBBER GASKET
BSD-1619P03871.A5
1619P03871
|
£1.75
|
£2.10
|
|
|
84 - HANDLE
BSD-1609B03614.A4
1609B03614
|
£13.41
|
£16.09
|
|
|
85 - GROMMET
BSD-1609B02152.A1
1609B02152
|
£1.75
|
£2.10
|
|
|
86 - SCREW
BSD-1609B02356.A2
1609B02356
|
£1.75
|
£2.10
|
|
|
87 - SCREW
BSD-1609B02355.A3
1609B02355
|
£1.75
|
£2.10
|
|
|
88 - CONNECTION BLOCK
BSD-1609BP7059.A46
1609BP7059
|
£1.75
|
£2.10
|
|
|
803 - ARMATURE ASSEMBLY 240V
BSD-1609B03638.A1
1609B03638
|
£81.81
|
£98.17
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A235
1607014171
|
£14.91
|
£17.89
|
|
|
816 - BRUSH HOLDER
BSD-1604336053.A11
1604336053
|
£5.58
|
£6.70
|
|
|
840 - CLAMPING HOLDER
BSD-1609B03626.A4
1609B03626
|
£13.12
|
£15.75
|
|
|
865 - SET OF GEARS
BSD-1609B03640.A4
1609B03640
|
£27.23
|
£32.68
|
|
