Bosch GCM 10 J / 3601M20260 / GB 110 Volt Spare Parts

Home Details Reviews Delivery

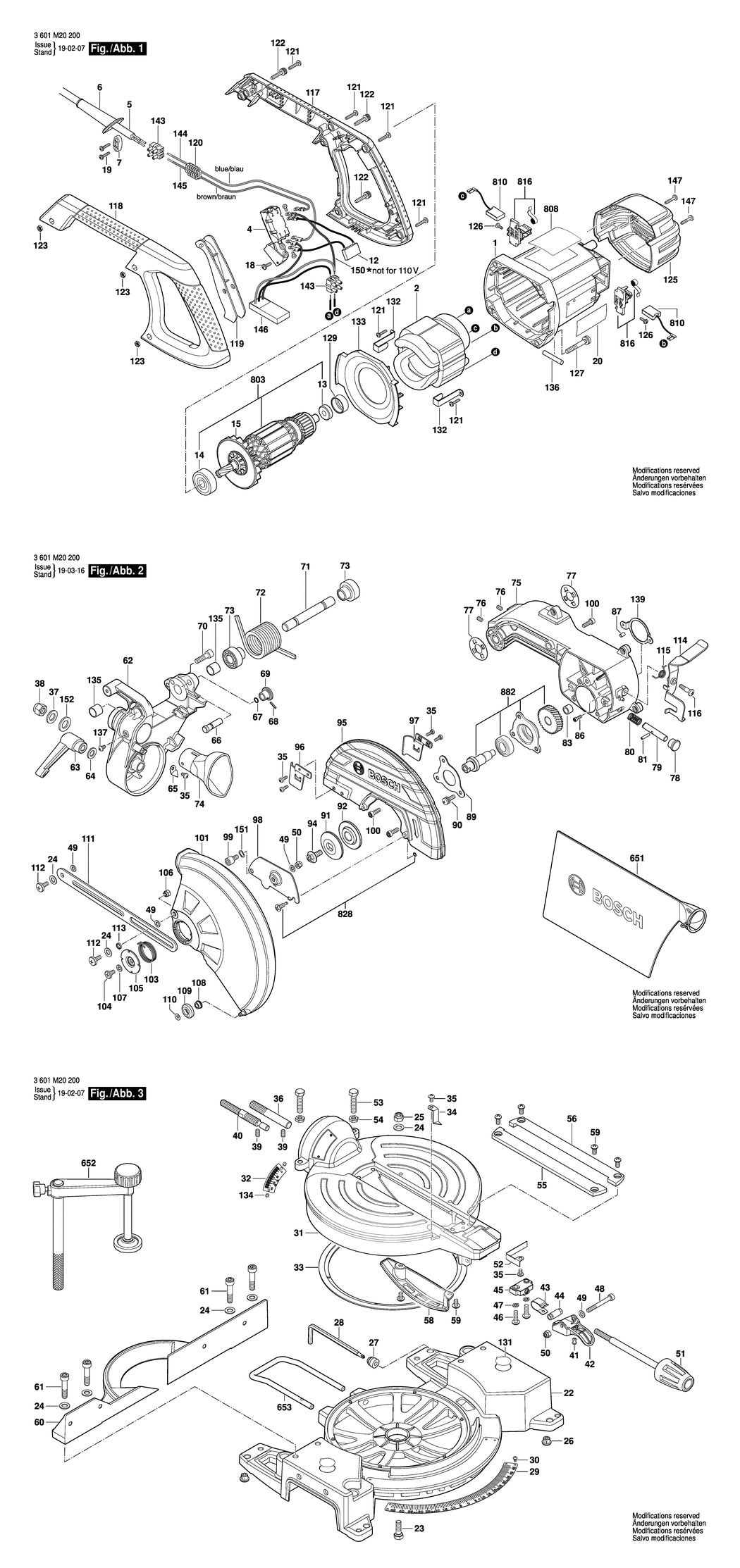

An exploded drawing and listing for the Bosch GCM 10 J / 3601M20260 / GB 110 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1609B00910.A1 1609B00910	£16.74	£20.09
2 - FIELD 110V BSD-1609B00113.A0 1609B00113	£46.82	£56.18
4 - ON-OFF SWITCH BSD-1609B00882.A1 1609B00882	£12.04	£14.45
5 - POWER SUPPLY CORD GB 3.5 2x1.5mm H05 RR-F BSD-1609B00379.A0 1609B00379	£59.53	£71.44
6 - GROMMET BSD-1609B00820.A1 1609B00820	£1.75	£2.10
7 - CABLE CLIP BSD-1619P03808.A7 1619P03808	£1.75	£2.10
12 - SUPPRESSION CAPACITOR BSD-1609B00749.A4 1609B00749	£2.80	£3.36
13 - BEARING BSD-1609B00812.A3 1609B00812	£5.58	£6.70
14 - BEARING BSD-1609B00835.A3 1609B00835	£8.49	£10.19
15 - FAN BSD-1609B00105.A1 1609B00105	£5.30	£6.36
18 - RAISED CTSUNK HEAD TAP SC BSD-1619P03837.A7 1619P03837	£1.75	£2.10
19 - SCREW ECO-SYN St 3.5x16 BSD-1619P03833.A22 1619P03833	£1.75	£2.10
20 - WARNING PLATE BSD-1609B00911.A3 1609B00911	£2.61	£3.13
22 - BASE BSD-1609B00700.A4 1609B00700	£103.14	£123.77
23 - SCREW BSD-1609B00702.A0 1609B00702	£1.75	£2.10
24 - PLAIN WASHER BSD-1609B00703.A4 1609B00703	£1.75	£2.10
25 - LOCK NUT BSD-1609B00704.A13 1609B00704	£1.75	£2.10
26 - RUBBER BUSHING BSD-1609B00705.A14 1609B00705	£1.75	£2.10
27 - RUBBER BUSHING BSD-1609B00706.A0 1609B00706	£1.75	£2.10
28 - OFFSET SCREWDRIVER BSD-1609B00707.A4 1609B00707	£3.34	£4.01
29 - SCALE BSD-1609B00709.A3 1609B00709	£6.52	£7.83
30 - SCREW BSD-1609B00710.A1 1609B00710	£1.75	£2.10
31 - TABLE BSD-1609B00711.A3 1609B00711	£135.25	£162.30
32 - SCALE BSD-1609B00713.A1 1609B00713	£1.75	£2.10
33 - SLIDING PLATE BSD-1609B00715.A1 1609B00715	£2.80	£3.36
34 - POINTER BSD-1609B00717.A1 1609B00717	£1.75	£2.10
35 - SCREW BSD-1609B00718.A3 1609B00718	£1.75	£2.10
36 - STUD BOLT BSD-1609B00719.A1 1609B00719	£1.75	£2.10
37 - PLAIN WASHER BSD-1609B00720.A3 1609B00720	£1.75	£2.10
38 - LOCK NUT BSD-1609B00721.A1 1609B00721	£1.75	£2.10
39 - SCREW BSD-1609B00722.A3 1609B00722	£1.32	£1.58
40 - STUD BOLT BSD-1609B00723.A1 1609B00723	£1.95	£2.34
41 - RIVET BSD-1609B00724.A4 1609B00724	£1.75	£2.10
42 - LOCKING LEVER BSD-1609B00725.A1 1609B00725	£2.52	£3.02
43 - SPRING BSD-1609B00726.A3 1609B00726	£1.75	£2.10
44 - TUBE BSD-1609B00727.A1 1609B00727	£1.75	£2.10
45 - BLOCK BSD-1609B00728.A3 1609B00728	£2.80	£3.36
46 - SCREW BSD-1609B00729.A1 1609B00729	£1.32	£1.58
47 - SPRING WASHER BSD-1609B00731.A0 1609B00731	£1.32	£1.58
48 - SCREW BSD-1609B00732.A4 1609B00732	£1.75	£2.10
49 - PLAIN WASHER BSD-1609B00733.A0 1609B00733	£1.75	£2.10
50 - LOCK NUT BSD-1609B00734.A4 1609B00734	£1.32	£1.58
51 - KNOB BSD-1609B00735.A0 1609B00735	£7.36	£8.83
52 - PRESSURE PLATE BSD-1609B00736.A4 1609B00736	£1.75	£2.10
53 - SCREW BSD-1609B00740.A1 1609B00740	£1.75	£2.10
54 - NUT BSD-1609B00741.A3 1609B00741	-
55 - PLASTIC INSERT BSD-1609B00742.A1 1609B00742	£1.95	£2.34
56 - PLASTIC INSERT BSD-1609B00754.A1 1609B00754	£2.16	£2.59
58 - SAFETY COVER BSD-1609B00744.A0 1609B00744	£2.61	£3.13
59 - SCREW BSD-1609B00745.A4 1609B00745	£1.75	£2.10
60 - MITRE FENCE BSD-1609B00985.A0 1609B00985	£31.64	£37.97
61 - SCREW BSD-1609B00748.A0 1609B00748	£1.32	£1.58
62 - PIVOT BSD-1609B00751.A4 1609B00751	£54.42	£65.30
63 - LEVER BSD-1609B00753.A0 1609B00753	£5.30	£6.36
64 - PLAIN WASHER BSD-1609B00757.A0 1609B00757	£1.75	£2.10
65 - POINTER BSD-1609B00758.A4 1609B00758	£1.75	£2.10
66 - DETENT PIN BSD-1609B00760.A0 1609B00760	£2.80	£3.36
67 - O-RING BSD-1609B00714.A0 1609B00714	£1.75	£2.10
68 - SPRING PIN BSD-1609B00761.A4 1609B00761	£1.75	£2.10
69 - KNOB BSD-1609B00762.A0 1609B00762	£1.75	£2.10
70 - SCREW BSD-1609B00763.A4 1609B00763	£1.32	£1.58
71 - PIVOT SHAFT BSD-1609B00764.A0 1609B00764	£6.52	£7.83
72 - TORSION SPRING BSD-1609B00765.A4 1609B00765	£13.41	£16.09
73 - SLEEVE BSD-1609B00766.A4 1609B00766	£1.75	£2.10
74 - DUST SEPARATOR BSD-1609B00767.A4 1609B00767	£6.52	£7.83
75 - ARM BSD-1609B00769.A0 1609B00769	£72.18	£86.62
76 - SCREW BSD-1609B00771.A4 1609B00771	£1.75	£2.10
77 - WEAR PLATE BSD-1609B00772.A0 1609B00772	£1.66	£1.99
78 - KNOB BSD-1609B00773.A4 1609B00773	£1.66	£1.99
79 - LOCKING PIN BSD-1609B00774.A0 1609B00774	£8.67	£10.41
80 - COMPRESSION SPRING BSD-1609B00775.A4 1609B00775	£1.75	£2.10
81 - SPRING PIN BSD-1609B00716.A0 1609B00716	£1.75	£2.10
83 - NEEDLE-ROLLER BEARING BSD-1609B00777.A0 1609B00777	£5.30	£6.36
86 - SCREW BSD-1609B00780.A1 1609B00780	£1.75	£2.10
87 - PIN BSD-1609B00781.A3 1609B00781	£1.75	£2.10
89 - COVER PLATE BSD-1609B00784.A1 1609B00784	£1.95	£2.34
90 - SCREW BSD-1609B00785.A3 1609B00785	£1.32	£1.58
91 - FLANGE BSD-1609B00786.A1 1609B00786	£7.78	£9.33
92 - INNER DISC BSD-1609B00925.A3 1609B00925	£11.30	£13.56
94 - FLANGE BOLT BSD-1609B00960.A0 1609B00960	£4.26	£5.11
95 - SAFETY COVER BSD-1609B00986.A4 1609B00986	£45.67	£54.80
96 - CHIP DEFLECTOR BSD-1609B00918.A3 1609B00918	£3.34	£4.01
97 - CHIP DEFLECTOR BSD-1609B00919.A1 1609B00919	£3.34	£4.01
98 - GUARD PLATE BSD-1609B00920.A3 1609B00920	£7.36	£8.83
99 - SHOULDER SCREW BSD-1609B00930.A0 1609B00930	£1.75	£2.10
100 - SCREW BSD-1609B00798.A1 1609B00798	£1.75	£2.10
101 - PROTECTIVE COVER BSD-1609B00987.A0 1609B00987	£21.52	£25.83
103 - TORSION SPRING BSD-1609B00802.A3 1609B00802	£1.75	£2.10
104 - SCREW BSD-1609B00803.A1 1609B00803	£1.75	£2.10
105 - TABLE TOP BSD-1609B00804.A3 1609B00804	£1.95	£2.34
106 - LOCK NUT BSD-1609B00730.A0 1609B00730	£1.75	£2.10
107 - WASHER BSD-1609B00738.A3 1609B00738	£1.66	£1.99
108 - ROLLER BSD-1609B00806.A1 1609B00806	£1.75	£2.10
109 - IMPELLER BSD-1609B00807.A3 1609B00807	£1.75	£2.10
110 - RETAINING SNAP RING BSD-1609B00750.A0 1609B00750	£1.75	£2.10
111 - LINKAGE BSD-1609B00917.A1 1609B00917	£4.26	£5.11
112 - SCREW BSD-1609B00810.A1 1609B00810	£1.75	£2.10
113 - ROLLER BSD-1609B00811.A3 1609B00811	-
114 - LEVER BSD-1609B00990.A4 1609B00990	£5.30	£6.36
115 - TORSION SPRING BSD-1609B00815.A1 1609B00815	£1.75	£2.10
116 - SCREW BSD-1609B00816.A3 1609B00816	£1.75	£2.10
117 - HANDLE BSD-1609B00988.A4 1609B00988	£18.96	£22.75
118 - HANDLE COVER BSD-1609B00989.A0 1609B00989	£18.96	£22.75
119 - TRIGGER BSD-1609B00822.A1 1609B00822	£2.80	£3.36
120 - RING BSD-1609B00813.A11 1609B00813	£1.75	£2.10
121 - RAISED CTSUNK HEAD TAP SC BSD-1619P03824.A4 1619P03824	£1.75	£2.10
122 - SCREW BSD-1609B00823.A3 1609B00823	£1.75	£2.10
123 - LOCK NUT BSD-1609B00824.A1 1609B00824	£1.75	£2.10
125 - HOUSING COVER BSD-1609B00992.A3 1609B00992	£10.82	£12.99
126 - SCREW ECO-SYN St3.5x10 BSD-1619P03834.A1 1619P03834	£1.75	£2.10
127 - SCREW BSD-1609B00828.A3 1609B00828	£1.75	£2.10
129 - RUBBER RING BSD-1600206030.A409 1600206030	£1.75	£2.10
131 - WARNING PLATE BSD-1609B00708.A5 1609B00708	£1.75	£2.10
132 - PICKUP CLIP BSD-1619P03823.A6 1619P03823	£2.16	£2.59
133 - AIR-DEFLECTOR RING BSD-1609B00838.A2 1609B00838	£3.72	£4.47
134 - RIVET BSD-1609B00739.A2 1609B00739	£1.75	£2.10
135 - BUSHING BSD-1609B00800.A1 1609B00800	£1.32	£1.58
136 - BUSHING BSD-1609B00799.A14 1609B00799	£1.75	£2.10
137 - SCREW BSD-1609B00829.A1 1609B00829	£1.75	£2.10
139 - HOLDER BSD-1609B00872.A3 1609B00872	£1.75	£2.10
143 - CONNECTION BLOCK BSD-1609BP7059.A28 1609BP7059	£1.75	£2.10
144 - CONNECTING CABLE BSD-1609B00958.A0 1609B00958	£1.32	£1.58
145 - CONNECTING CABLE BSD-1609B00959.A0 1609B00959	£1.32	£1.58
146 - SOFT START-UP MODULE BSD-1609B00941.A0 1609B00941	£33.45	£40.14
151 - SPRING WASHER BSD-1609B00929.A4 1609B00929	£1.75	£2.10
152 - ANTI-FRICTION WASHER BSD-1609B00950.A0 1609B00950	£1.75	£2.10
147 - SPECIAL SCREW BSD-1609B00921.A2 1609B00921	£1.75	£2.10
651 - DUST BAG BSD-1609B00840.A2 1609B00840	£6.52	£7.83
652 - CLAMP BSD-1609B00839.A2 1609B00839	£14.91	£17.89
653 - EXTENSION STAND BSD-1609B00797.A3 1609B00797	£11.30	£13.56
803 - ARMATURE 110V BSD-1609B00994.A0 1609B00994	£93.88	£112.65
808 - NAMEPLATE BSD-1609B00945.A0 1609B00945	£2.33	£2.80
810 - CARBON-BRUSH SET BSD-1609B00948.A0 1609B00948	£14.91	£17.89
816 - BRUSH HOLDER BSD-1604336048.A9 1604336048	£7.36	£8.83
828 - SPECIAL SCREW BSD-1609B00983.A2 1609B00983	£1.75	£2.10
882 - DRIVE SHAFT BSD-1609B00982.A2 1609B00982	£40.80	£48.96

Attribute Name	Value
Brand	Bosch
