Bosch GCM 10 SD / 0601B22541 / --- 110 Volt Spare Parts

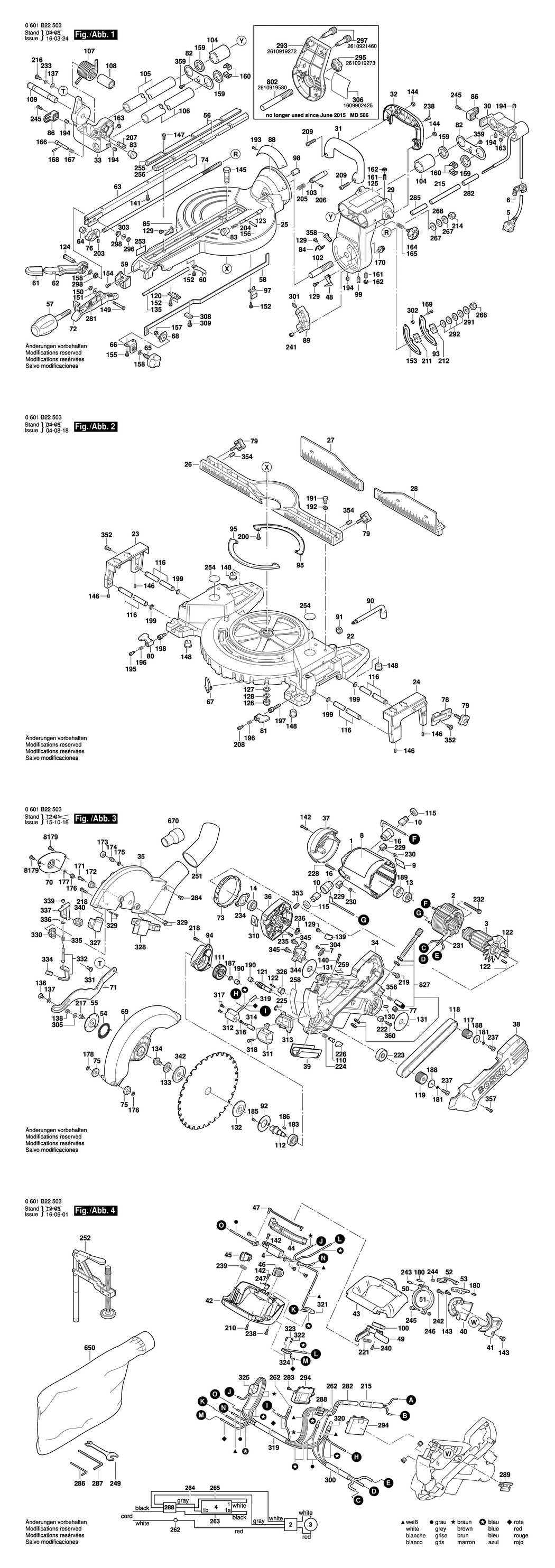

An exploded drawing and listing for the Bosch GCM 10 SD / 0601B22541 / --- 110 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2610915750.A7 2610915750	£45.67	£54.80
2 - FIELD 110V BSD-1609902397.A0 1609902397	£48.38	£58.06
3 - ARMATURE 110V BSD-1619P03781.A1 1619P03781	£93.88	£112.65
4 - SWITCH BSD-2610950336.A25 2610950336	£18.96	£22.75
5 - POWER SUPPLY CORD BSD-160446071H.A0 160446071H	£45.67	£54.80
6 - CORD GUARD BSD-2610915755.A2 2610915755	£1.75	£2.10
7 - FASTENING CLAMP BSD-2610921465.A1 2610921465	£1.75	£2.10
8 - NAMEPLATE BSD-1619PB1093.A0 1619PB1093	£2.61	£3.13
9 - MANUFACTURER'S NAMEPLATE BSD-1609902483.A1 1609902483	£3.80	£4.56
10 - CARBON-BRUSH SET BSD-2610997207.A0 2610997207	£14.91	£17.89
13 - BALL BEARING BSD-2610911928.A10 2610911928	£12.04	£14.45
14 - BALL BEARING BSD-2610911927.A8 2610911927	£23.86	£28.63
16 - BRUSH HOLDER BSD-2610915761.A3 2610915761	-
22 - BASE BSD-1609902500.A2 1609902500	£156.22	£187.46
23 - EXTENSION STAND BSD-2610919261.A0 2610919261	£23.86	£28.63
24 - EXTENSION STAND BSD-2610919262.A3 2610919262	£31.64	£37.97
25 - SAW TABLE BSD-2610919260.A3 2610919260	£179.37	£215.24
26 - MITRE FENCE BSD-2610022497.A3 2610022497	£68.42	£82.10
27 - PARALLEL-GUIDE BSD-2610022498.A0 2610022498	£33.74	£40.49
28 - PARALLEL-GUIDE BSD-2610022499.A3 2610022499	£33.74	£40.49
29 - BEARING PEDESTAL BSD-2610919266.A0 2610919266	£102.57	£123.08
30 - END CAP BSD-2610919267.A3 2610919267	£21.42	£25.71
31 - HANDLE BSD-2610915772.A7 2610915772	£13.12	£15.75
32 - HANDLE BSD-2610915727.A2 2610915727	£13.12	£15.75
33 - BEARING PEDESTAL BSD-1609902705.A3 1609902705	£45.67	£54.80
34 - GEAR HOUSING BSD-1609902405.A0 1609902405	£93.88	£112.65
35 - SAFETY COVER BSD-1609902406.A0 1609902406	£63.50	£76.20
36 - INTERMEDIATE LAYER BSD-2610915731.A6 2610915731	£33.74	£40.49
37 - HOUSING COVER BSD-2610915732.A0 2610915732	£10.10	£12.12
38 - HOUSING COVER BSD-2610919275.A3 2610919275	£21.52	£25.83
39 - HANDLE COVER BSD-2610915734.A4 2610915734	£14.91	£17.89
40 - BEARING PEDESTAL BSD-2610915735.A5 2610915735	£12.04	£14.45
41 - BEARING PEDESTAL BSD-2610915736.A4 2610915736	£13.12	£15.75
42 - BEARING PEDESTAL BSD-2610915737.A5 2610915737	£18.96	£22.75
43 - BEARING PEDESTAL BSD-2610915738.A4 2610915738	£18.96	£22.75
44 - TRIGGER BSD-2610915739.A5 2610915739	£5.58	£6.70
45 - BUTTON BSD-1609902407.A3 1609902407	£3.72	£4.47
46 - BUTTON BSD-1609902408.A0 1609902408	£3.72	£4.47
47 - LINKAGE PART BSD-1609902409.A3 1609902409	£2.61	£3.13
48 - POINTER BSD-2610919289.A3 2610919289	£2.61	£3.13
49 - RELEASE LEVER BSD-2610915744.A4 2610915744	£9.49	£11.39
50 - COLLAR BSD-2610915745.A5 2610915745	£10.10	£12.12
51 - COLLAR BSD-2610915746.A4 2610915746	£10.10	£12.12
52 - LATCH BSD-1609902676.A1 1609902676	-
53 - LATCH BSD-1609902677.A2 1609902677	-
54 - TORSION SPRING BSD-2610911853.A8 2610911853	£4.26	£5.11
55 - PLATE BSD-2610915704.A1 2610915704	£4.26	£5.11
56 - SUPPORT PLATE BSD-1609902410.A0 1609902410	£6.52	£7.83
57 - KNOB BSD-2610915706.A8 2610915706	-
58 - LINKAGE BSD-2610919285.A0 2610919285	£5.58	£6.70
59 - HOLDING FIXTURE BSD-2610915708.A6 2610915708	£6.52	£7.83
60 - LEAF SPRING BSD-2610919569.A3 2610919569	£2.16	£2.59
61 - COVER BSD-1609902231.A2 1609902231	£4.26	£5.11
62 - LEVER BSD-2610915711.A9 2610915711	£11.30	£13.56
63 - BRACKET BSD-2610919291.A3 2610919291	£16.41	£19.69
64 - CAM BSD-2610919270.A0 2610919270	£1.75	£2.10
65 - KNOB BSD-1609902412.A3 1609902412	£4.75	£5.70
66 - BRACKET BSD-2610915715.A6 2610915715	£1.75	£2.10
67 - CABLE CLIP BSD-2610919570.A0 2610919570	£1.75	£2.10
68 - BRACKET BSD-1609902675.A2 1609902675	£2.61	£3.13
69 - WHEEL GUARD BSD-2610919277.A3 2610919277	-
70 - PLATE BSD-2610915719.A4 2610915719	£5.30	£6.36
71 - LINKAGE BSD-1619P05645.A3 1619P05645	£14.91	£17.89
72 - LOCKING LEVER BSD-2610919274.A0 2610919274	£16.41	£19.69
73 - BAFFLE BSD-2610915722.A5 2610915722	£2.80	£3.36
74 - ROD BSD-2610919290.A0 2610919290	£14.91	£17.89
75 - ROLLER BSD-2610915724.A9 2610915724	£2.16	£2.59
76 - CAM RING BSD-2610919271.A3 2610919271	£7.78	£9.33
77 - PUSH-BUTTON BSD-2610915726.A6 2610915726	£6.52	£7.83
78 - STOP PLATE BSD-1609902518.A1 1609902518	£4.26	£5.11
79 - KNOB BSD-2610915687.A9 2610915687	£6.52	£7.83
80 - LOCKING LEVER BSD-1609902506.A2 1609902506	£6.52	£7.83
81 - LOCKING LEVER BSD-1609902507.A1 1609902507	-
82 - RETAINING PLATE BSD-2610915690.A1 2610915690	£1.95	£2.34
83 - COVER BSD-2610915691.A8 2610915691	£1.75	£2.10
84 - POINTER BSD-2610919288.A0 2610919288	£2.16	£2.59
85 - POINTER BSD-2610919283.A3 2610919283	£1.75	£2.10
86 - CABLE CLEAT BSD-2610915694.A1 2610915694	£10.10	£12.12
88 - SCALE PLATE BSD-2610921478.A1 2610921478	£2.33	£2.80
89 - STOP BLOCK BSD-2610919574.A0 2610919574	£18.96	£22.75
90 - WRENCH SOCKET BSD-2610915698.A9 2610915698	£7.36	£8.83
91 - RUBBER BUSHING BSD-2610915699.A0 2610915699	£7.36	£8.83
92 - BEARING COVER PLATE BSD-2610915700.A9 2610915700	£1.75	£2.10
93 - RETAINING PLATE BSD-1609902673.A2 1609902673	£5.30	£6.36
94 - GEAR COVER BSD-1609902674.A1 1609902674	£18.96	£22.75
95 - SLIDING PLATE BSD-2610911863.A8 2610911863	£7.36	£8.83
97 - GUIDE BRACKET BSD-2610916459.A3 2610916459	£1.66	£1.99
98 - BUSHING BSD-2610916460.A6 2610916460	£1.75	£2.10
99 - SCREW BSD-1609902548.A1 1609902548	£1.75	£2.10
100 - DETENT PIN BSD-2610916462.A3 2610916462	£2.80	£3.36
102 - SHAFT L=105mm BSD-2610915756.A7 2610915756	£6.52	£7.83
103 - DETENT PIN BSD-2610915759.A2 2610915759	£4.26	£5.11
104 - SLIDING BEARING BSD-1609902519.A2 1609902519	£59.53	£71.44
105 - SLIDING RAIL BSD-2610916792.A1 2610916792	£54.42	£65.30
106 - SLIDING RAIL BSD-2610916793.A8 2610916793	£63.50	£76.20
107 - TORSION SPRING BSD-2610922577.A1 2610922577	£13.12	£15.75
108 - SLEEVE BSD-2610916795.A7 2610916795	£2.61	£3.13
109 - SHAFT BSD-2610916796.A2 2610916796	£6.52	£7.83
110 - LOCKING PIN BSD-2610919577.A3 2610919577	£11.30	£13.56
111 - TOOTHED GEAR BSD-2610916798.A2 2610916798	£23.86	£28.63
112 - SPINDLE BSD-1609902654.A1 1609902654	£16.41	£19.69
115 - BRUSH-COVER dia 22mm BSD-2610916802.A11 2610916802	-
116 - EXTENSION SHAFT BSD-2610916803.A2 2610916803	£8.67	£10.41
117 - DRIVE DISK BSD-2610916804.A7 2610916804	£2.80	£3.36
118 - WIDE V-BELT BSD-2610921197.A3 2610921197	-
119 - PULLEY BSD-2610919294.A0 2610919294	£14.91	£17.89
120 - GUIDE PLATE BSD-1609902521.A1 1609902521	£1.75	£2.10
121 - COUNTER SHAFT BSD-2610933125.A2 2610933125	£33.74	£40.49
122 - WEDGE BSD-2610916809.A2 2610916809	£1.75	£2.10
123 - DETENT PIN BSD-2610916810.A7 2610916810	£4.26	£5.11
124 - LEVER SHAFT BSD-1609902678.A1 1609902678	£6.61	£7.93
125 - LABEL BSD-1609902235.A2 1609902235	£3.72	£4.47
126 - SELF-LOCKING NUT BSD-2610911886.A8 2610911886	£1.75	£2.10
127 - PLAIN WASHER BSD-2610911887.A6 2610911887	£1.75	£2.10
128 - SPRING WASHER BSD-2610911868.A1 2610911868	£1.75	£2.10
129 - SCREW AND WASHER ASSEMBLY BSD-2610911907.A5 2610911907	£1.75	£2.10
130 - SET SCREW BSD-2610911908.A9 2610911908	£1.75	£2.10
131 - SHIM BSD-2610911937.A6 2610911937	£3.72	£4.47
132 - FLANGE BSD-1609902415.A0 1609902415	£8.67	£10.41
133 - PLAIN WASHER BSD-2610911870.A8 2610911870	£2.61	£3.13
134 - SCREW BSD-2610911871.A6 2610911871	£2.16	£2.59
135 - ROD BSD-2610921469.A1 2610921469	£5.01	£6.01
136 - SHOULDER SCREW BSD-2610911598.A1 2610911598	£1.75	£2.10
137 - PLAIN WASHER BSD-2610911599.A8 2610911599	£1.75	£2.10
138 - BUSHING BSD-2610018780.A1 2610018780	£1.75	£2.10
139 - CABLE CLIP BSD-1609902345.A1 1609902345	£1.75	£2.10
140 - SCREW BSD-2610911458.A18 2610911458	£1.97	£2.36
141 - SCREW BSD-1619PA6363.A8 1619PA6363	£1.75	£2.10
142 - SCREW BSD-2610318846.A0 2610318846	£1.75	£2.10
143 - SCREW BSD-1609902523.A2 1609902523	£1.75	£2.10
144 - NUT BSD-1609902689.A8 1609902689	£1.75	£2.10
145 - HEX SCREW BSD-2610911861.A6 2610911861	£3.72	£4.47
146 - SET SCREW BSD-2610356437.A4 2610356437	£1.75	£2.10
147 - SCREW BSD-2610911899.A1 2610911899	£1.75	£2.10
148 - RUBBER BUSHING BSD-2610358846.A24 2610358846	£1.75	£2.10
149 - SCREW BSD-2610911918.A8 2610911918	£2.61	£3.13
150 - SELF-LOCKING NUT BSD-2610911901.A5 2610911901	£1.75	£2.10
151 - PLAIN WASHER BSD-2610347092.A1 2610347092	£1.75	£2.10
152 - SCREW BSD-2610911897.A8 2610911897	-
153 - RETAINING PLATE BSD-2610919287.A3 2610919287	£4.26	£5.11
154 - SCREW BSD-2610911900.A8 2610911900	£1.75	£2.10
155 - WASHER BSD-1609902701.A3 1609902701	£1.75	£2.10
156 - PIN BSD-2610997274.A24 2610997274	£1.75	£2.10
157 - SQUARE NUT BSD-2610355332.A0 2610355332	-
158 - WASHER BSD-2610358801.A8 2610358801	£1.66	£1.99
159 - FELT WASHER BSD-2610911589.A8 2610911589	£8.67	£10.41
160 - CLAMPING BLOCK BSD-2610919102.A2 2610919102	£5.58	£6.70
161 - SET SCREW BSD-1609902416.A2 1609902416	£1.75	£2.10
162 - NUT BSD-2610328618.A13 2610328618	£1.75	£2.10
163 - RUBBER PAD BSD-2610911584.A6 2610911584	£1.75	£2.10
164 - KNOB BSD-2610911583.A8 2610911583	£7.36	£8.83
165 - SPRING BSD-2610911582.A6 2610911582	£1.75	£2.10
166 - DETENT PIN BSD-2610911575.A3 2610911575	£2.16	£2.59
167 - COMPRESSION SPRING BSD-2610911576.A6 2610911576	£2.16	£2.59
168 - RETAINING PIN BSD-2610911577.A8 2610911577	£1.75	£2.10
169 - SCREW BSD-1609902525.A1 1609902525	£1.75	£2.10
170 - SCREW 18.9 MM BSD-2610327859.A6 2610327859	£1.75	£2.10
171 - SHOULDER SCREW BSD-2610911911.A5 2610911911	£1.75	£2.10
172 - ROUND RUBBER BSD-2610911921.A11 2610911921	£1.75	£2.10
173 - BALL BEARING BSD-2610911938.A3 2610911938	£14.91	£17.89
174 - SHOULDER SCREW BSD-2610018779.A3 2610018779	£2.16	£2.59
175 - WASHER BSD-2610911906.A3 2610911906	£1.75	£2.10
176 - HEX NUT BSD-2610911570.A1 2610911570	£1.75	£2.10
177 - PLAIN WASHER BSD-1609902565.A1 1609902565	£1.75	£2.10
178 - SPRING RETAINING RING BSD-2610990521.A11 2610990521	£1.75	£2.10
180 - BOLT BSD-2610358812.A6 2610358812	£1.95	£2.34
181 - SPRING WASHER BSD-2610355325.A40 2610355325	£1.75	£2.10
183 - BALL BEARING BSD-2610327846.A3 2610327846	£16.41	£19.69
185 - TAPPING SCREW BSD-2610317505.A1 2610317505	£1.75	£2.10
186 - WOODRUFF KEY BSD-2610993102.A30 2610993102	£2.16	£2.59
187 - SPRING RETAINING RING BSD-2610997281.A37 2610997281	£1.75	£2.10
188 - WASHER BSD-2610029674.A0 2610029674	£1.75	£2.10
189 - RUBBER RING BSD-2610996948.A42 2610996948	£1.75	£2.10
190 - NEEDLE-ROLLER BEARING BSD-2610358922.A0 2610358922	£12.04	£14.45
191 - BOLT BSD-2610906037.A6 2610906037	£1.75	£2.10
192 - SPRING WASHER BSD-2610906041.A3 2610906041	£1.75	£2.10
193 - SCREW BSD-2610913862.A0 2610913862	£1.75	£2.10
194 - SET SCREW BSD-1609902702.A0 1609902702	£1.75	£2.10
195 - SHOULDER SCREW BSD-2610919060.A8 2610919060	£1.75	£2.10
196 - COMPRESSION SPRING BSD-2610919061.A1 2610919061	£1.75	£2.10
197 - LOCK SCREW BSD-1609902526.A2 1609902526	£3.72	£4.47
198 - LOCK SCREW BSD-1609902527.A1 1609902527	£2.80	£3.36
199 - RETAINING SNAP RING BSD-2610912556.A8 2610912556	£1.75	£2.10
200 - COMPRESSION SPRING BSD-1609902566.A2 1609902566	£1.75	£2.10
203 - SCREW BSD-2610355295.A0 2610355295	£2.16	£2.59
204 - COMPRESSION SPRING BSD-2610919067.A8 2610919067	£1.75	£2.10
205 - COMPRESSION SPRING BSD-2610919068.A1 2610919068	£1.75	£2.10
206 - SPRING PIN BSD-2610919069.A8 2610919069	£1.75	£2.10
207 - SCREW BSD-1609902311.A8 1609902311	£1.75	£2.10
208 - SHOULDER SCREW BSD-2610919070.A1 2610919070	£1.75	£2.10
209 - STOP SCREW BSD-2610919071.A8 2610919071	£2.16	£2.59
210 - SCREW BSD-2610320304.A3 2610320304	£1.75	£2.10
211 - BRAKE PLATE BSD-2610919072.A1 2610919072	£2.61	£3.13
212 - BRAKE PLATE BSD-2610919073.A15 2610919073	£8.67	£10.41
214 - NUT BSD-2615297331.A9 2615297331	£1.75	£2.10
215 - PVC TUBE BSD-1609902567.A0 1609902567	£2.61	£3.13
216 - SHOULDER SCREW BSD-1609902706.A0 1609902706	£1.75	£2.10
217 - SHOULDER SCREW BSD-2610919076.A2 2610919076	£1.75	£2.10
218 - SCREW BSD-2610327867.A3 2610327867	£1.75	£2.10
219 - SCREW BSD-2610998575.A25 2610998575	£1.75	£2.10
221 - COMPRESSION SPRING BSD-2610919077.A2 2610919077	£1.75	£2.10
222 - PAD BSD-2610919078.A7 2610919078	£1.75	£2.10
223 - BALL BEARING BSD-2610919079.A2 2610919079	£18.96	£22.75
224 - COMPRESSION SPRING BSD-1609902529.A2 1609902529	£1.75	£2.10
225 - RETAINING SNAP RING BSD-2610358869.A19 2610358869	£1.75	£2.10
226 - PUSH-BUTTON BSD-1619P03313.A1 1619P03313	£1.75	£2.10
228 - SCREW BSD-2610358928.A13 2610358928	£1.66	£1.99
229 - INSERT BSD-2610911569.A8 2610911569	£2.61	£3.13
230 - NUT BSD-2610327868.A32 2610327868	£1.75	£2.10
231 - PVC TUBE BSD-2610919082.A2 2610919082	£2.16	£2.59
232 - SCREW BSD-2610911929.A8 2610911929	£1.75	£2.10
233 - PLAIN WASHER BSD-1609902513.A1 1609902513	£1.75	£2.10
234 - BEARING COVER BSD-2610911566.A5 2610911566	£2.80	£3.36
235 - SCREW BSD-2610318812.A3 2610318812	£2.80	£3.36
236 - RETAINING SNAP RING BSD-2610919083.A2 2610919083	£1.75	£2.10
237 - SCREW BSD-2610919084.A7 2610919084	£2.61	£3.13
238 - SCREW BSD-2610320330.A0 2610320330	£1.75	£2.10
239 - COMPRESSION SPRING BSD-2610919085.A2 2610919085	£1.75	£2.10
240 - SCREW BSD-2610915162.A11 2610915162	£1.75	£2.10
241 - HEX SCREW BSD-2610351178.A9 2610351178	£1.75	£2.10
242 - SCREW BSD-2610914401.A3 2610914401	£1.75	£2.10
243 - PIN BSD-2610919086.A7 2610919086	£2.16	£2.59
244 - SET SCREW BSD-2610919087.A2 2610919087	£2.16	£2.59
245 - SCREW BSD-1609902698.A5 1609902698	£1.66	£1.99
246 - HEX NUT BSD-2610358521.A9 2610358521	£1.75	£2.10
247 - STOP PLATE BSD-2610916061.A7 2610916061	£5.30	£6.36
249 - ADJUSTING WRENCH BSD-2610917658.A1 2610917658	£10.10	£12.12
251 - SUCTION TUBE BSD-2610919280.A0 2610919280	£4.75	£5.70
252 - QUICK-CLAMPING DEVICE BSD-2610919089.A7 2610919089	£40.80	£48.96
253 - LABEL BSD-1609902276.A8 1609902276	£3.72	£4.47
254 - WARNING PLATE BSD-2610911658.A6 2610911658	£2.33	£2.80
255 - LABEL BSD-1609902278.A0 1609902278	£2.16	£2.59
256 - LABEL BSD-1609902279.A3 1609902279	£2.16	£2.59
258 - LABEL BSD-1609902421.A0 1609902421	£3.72	£4.47
259 - LABEL BSD-1609902492.A7 1609902492	£4.26	£5.11
262 - CABLE CLIP BSD-1609902281.A0 1609902281	£2.16	£2.59
266 - NUT BSD-1609902514.A2 1609902514	£3.72	£4.47
267 - WASHER BSD-2610910792.A2 2610910792	£1.75	£2.10
268 - PLAIN WASHER BSD-2610068894.A3 2610068894	£1.75	£2.10
281 - SPRING BSD-2610921477.A2 2610921477	£1.75	£2.10
282 - PVC TUBE BSD-1609902568.A0 1609902568	£2.16	£2.59
283 - SCREW BSD-2610921480.A2 2610921480	£4.26	£5.11
284 - SCREW BSD-2610921481.A1 2610921481	£1.75	£2.10
286 - DOUBLE HEAD ENGIN WRENCH BSD-2610921512.A2 2610921512	£4.26	£5.11
287 - HEXAGON SOCKET WRENCH BSD-2610921483.A2 2610921483	£5.30	£6.36
288 - CABLE CLIP BSD-1609902348.A1 1609902348	£1.32	£1.58
289 - SHIM BSD-2610921487.A1 2610921487	£1.75	£2.10
291 - PLAIN WASHER BSD-2610919282.A0 2610919282	£1.75	£2.10
292 - WASHER BSD-2610919281.A3 2610919281	£3.72	£4.47
293 - HOUSING COVER old BSD-2610919272.A0 2610919272	£30.28	£36.33
294 - HOUSING COVER BSD-1609902569.A0 1609902569	£2.80	£3.36
295 - NUT old BSD-2610919273.A3 2610919273	£3.72	£4.47
296 - NUT BSD-2610921459.A0 2610921459	£1.75	£2.10
297 - KNOB old BSD-2610921460.A3 2610921460	£4.26	£5.11
298 - BUSHING BSD-2610919572.A3 2610919572	£1.75	£2.10
300 - SLEEVE BSD-2610921464.A0 2610921464	£1.75	£2.10
301 - SCREW BSD-2610921466.A1 2610921466	£1.75	£2.10
302 - SPACER BSD-2610921467.A2 2610921467	£1.75	£2.10
303 - PLAIN WASHER BSD-2610358815.A3 2610358815	£1.75	£2.10
304 - SCREW BSD-2610919276.A0 2610919276	-
305 - PLAIN WASHER BSD-2610913099.A7 2610913099	-
306 - LABEL old BSD-1609902425.A1 1609902425	£3.72	£4.47
308 - NUT BSD-1609902426.A2 1609902426	£1.75	£2.10
309 - SCREW BSD-1609902427.A1 1609902427	-
310 - SHIM BSD-1609902428.A2 1609902428	£1.75	£2.10
311 - BEARING PEDESTAL BSD-1609902429.A1 1609902429	£5.30	£6.36
312 - SOLENOID BSD-1609902430.A0 1609902430	£37.27	£44.72
313 - BASE BSD-1609902484.A1 1609902484	£3.72	£4.47
314 - COUNTER SHAFT BSD-1609902432.A2 1609902432	£2.80	£3.36
316 - SCREW BSD-1609902571.A2 1609902571	£1.75	£2.10
317 - SCREW BSD-1609902435.A0 1609902435	£1.75	£2.10
318 - SCREW BSD-1609902436.A3 1609902436	£1.75	£2.10
319 - SLEEVE BSD-1609902437.A0 1609902437	£1.75	£2.10
320 - CABLE CLIP BSD-1609902438.A3 1609902438	£1.75	£2.10
321 - CONDENSER BSD-1609902573.A0 1609902573	£7.78	£9.33
322 - DETENT PIN BSD-1609902440.A3 1609902440	£1.66	£1.99
323 - DETENT PIN BSD-1609902441.A0 1609902441	£1.66	£1.99
324 - ON-OFF SWITCH BSD-1609902442.A3 1609902442	£12.04	£14.45
325 - FERRITE CORE BSD-1609902443.A0 1609902443	£13.12	£15.75
326 - SHIM BSD-1609902444.A3 1609902444	£1.75	£2.10
327 - GUARD PLATE BSD-1609902445.A0 1609902445	£8.67	£10.41
328 - GUARD PLATE BSD-1609902446.A3 1609902446	£6.52	£7.83
329 - SCREW BSD-1609902694.A3 1609902694	£1.95	£2.34
330 - BEARING PEDESTAL BSD-1609902448.A0 1609902448	£2.80	£3.36
331 - SCREW BSD-1609902449.A3 1609902449	£1.66	£1.99
332 - LOCKING LEVER BSD-1619PA2558.A0 1619PA2558	£10.10	£12.12
334 - DEVICE CAP BSD-1609902452.A0 1609902452	-
335 - SPRING BSD-1609902453.A3 1609902453	£13.12	£15.75
336 - RETAINING SNAP RING BSD-1609902454.A0 1609902454	£1.75	£2.10
337 - LEVER BSD-1609902455.A3 1609902455	£5.58	£6.70
339 - HEX NUT BSD-1609902457.A0 1609902457	£1.75	£2.10
340 - BUTTON BSD-1609902458.A3 1609902458	£2.80	£3.36
342 - FLANGE BSD-1609902460.A0 1609902460	£8.67	£10.41
344 - CABLE COVER BSD-1609902467.A3 1609902467	£3.72	£4.47
345 - SCREW BSD-1609902577.A2 1609902577	£1.75	£2.10
352 - SCREW BSD-1609902260.A6 1609902260	£1.75	£2.10
353 - SCREW BSD-1609902134.A0 1609902134	£1.75	£2.10
354 - SCREW BSD-1609902386.A2 1609902386	£1.75	£2.10
356 - SPRING BSD-1609902420.A8 1609902420	£1.75	£2.10
357 - SCREW BSD-1609902574.A0 1609902574	£1.75	£2.10
358 - SCREW BSD-1609902575.A3 1609902575	£1.75	£2.10
359 - SCREW BSD-1609902576.A0 1609902576	£1.32	£1.58
360 - SCREW BSD-1609902549.A2 1609902549	£1.75	£2.10
650 - DUST CONTAINER BSD-1609902509.A2 1609902509	£31.64	£37.97
670 - FITTING BSD-2610919255.A8 2610919255	-
802 - SHAFT old L=127mm BSD-2610919580.A0 2610919580	£12.04	£14.45
827 - ASSEMBLY OF SERVICE PARTS BSD-1619P03312.A3 1619P03312	£7.36	£8.83
847 - SERVICE KIT BSD-2610018774.A0 2610018774	£19.45	£23.34
8179 - SCREW BSD-1619PA9158.A0 1619PA9158	£2.61	£3.13

Attribute Name	Value
Brand	Bosch

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Bosch GCM 10 SD / 0601B22541 / --- 110 Volt Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Bosch GCM 10 SD / 0601B22541 / --- 110 Volt Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Bosch GCM 10 SD / 0601B22541 / --- 110 Volt Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
