Bosch GCM 12 / 0601B21032 / CH 230 Volt Spare Parts

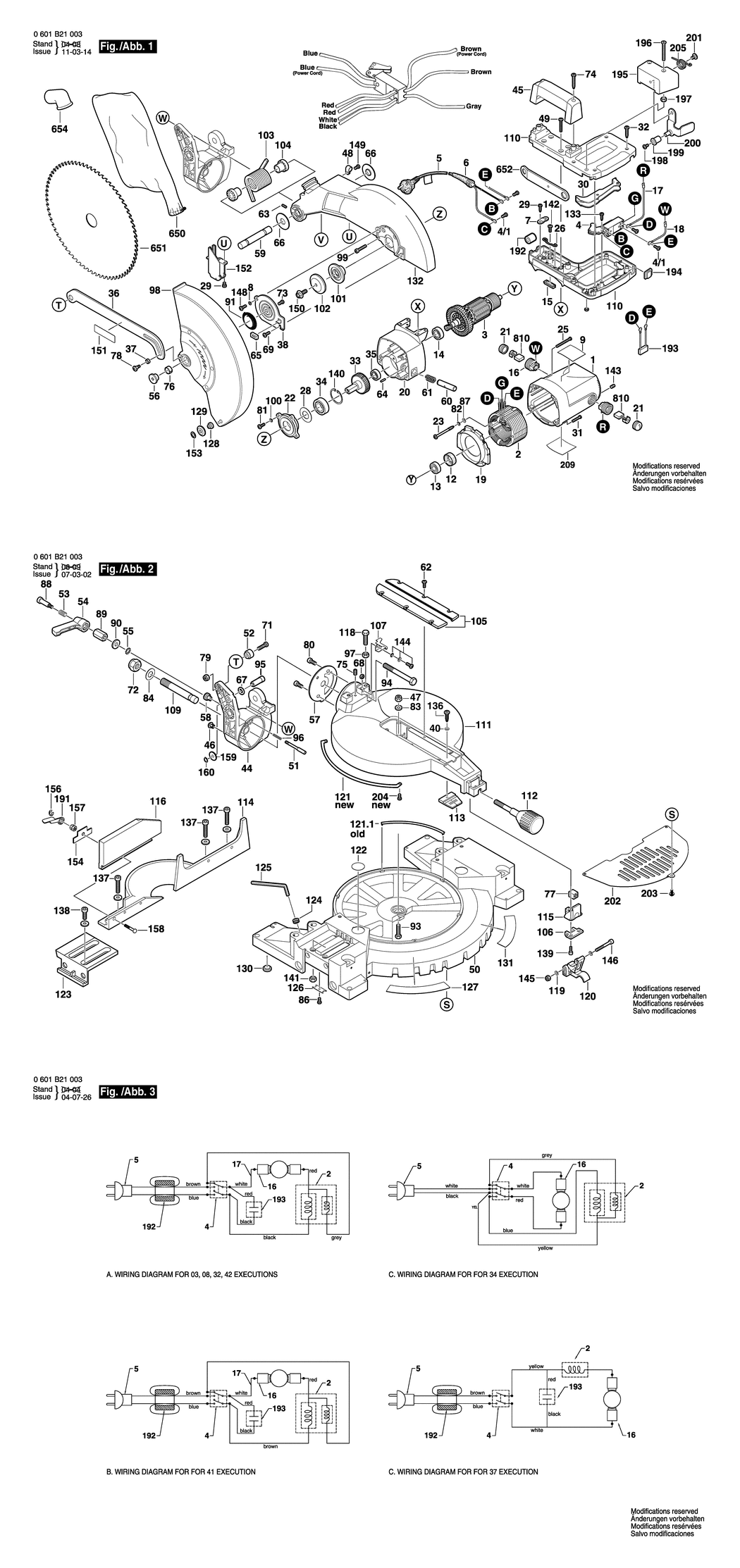

An exploded drawing and listing for the Bosch GCM 12 / 0601B21032 / CH 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2610967440.A3 2610967440	£33.74	£40.49
2 - STATOR BSD-2610020976.A2 2610020976	£120.11	£144.13
3 - ROTOR BSD-2610020934.A1 2610020934	£251.67	£302.00
4 - ON-OFF SWITCH BSD-1609902612.A3 1609902612	£30.28	£36.33
4/1 - SCREW BSD-2610358901.A0 2610358901	£1.75	£2.10
5 - POWER SUPPLY CORD BSD-1609203H15.A0 1609203H15	-
6 - GROMMET BSD-2610911464.A3 2610911464	£2.80	£3.36
7 - CABLE CLIP BSD-2610910756.A0 2610910756	£1.75	£2.10
8 - WASHER BSD-2610911450.A1 2610911450	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1609902621.A3 1609902621	£2.16	£2.59
12 - BEARING SLEEVE BSD-2610911485.A3 2610911485	£1.95	£2.34
13 - GROOVE BALL BEARING 6200-2Z DIN 625 BSD-1900905232.A101 1900905232	£21.68	£26.01
14 - GROOVE BALL BEARING BSD-1609902600.A3 1609902600	£5.01	£6.01
15 - PROTRACTOR BSD-2610911486.A1 2610911486	£2.80	£3.36
16 - BRUSH HOLDER BSD-2610911488.A1 2610911488	£14.72	£17.67
17 - CABLE BSD-1609203H39.A0 1609203H39	£6.61	£7.93
18 - CABLE BSD-2610910780.A0 2610910780	£8.67	£10.41
19 - AIR-DEFLECTOR RING BSD-2610911477.A1 2610911477	£7.78	£9.33
20 - GEAR HOUSING BSD-2610911474.A3 2610911474	£30.28	£36.33
21 - COVER BSD-2610911487.A3 2610911487	£2.52	£3.02
22 - BEARING FLANGE BSD-2610911479.A3 2610911479	£14.72	£17.67
23 - SCREW BSD-2610911452.A1 2610911452	£1.75	£2.10
25 - SCREW BSD-2610910785.A4 2610910785	£1.75	£2.10
26 - SPRING WIRE BSD-2610910754.A3 2610910754	£1.75	£2.10
28 - SPRING WASHER BSD-2610910046.A3 2610910046	£1.75	£2.10
29 - SCREW BSD-2615296765.A7 2615296765	£1.75	£2.10
30 - SWITCH BUTTON BSD-2610910827.A0 2610910827	£8.49	£10.19
31 - SCREW BSD-2610355337.A0 2610355337	£3.72	£4.47
32 - SCREW BSD-2610911458.A11 2610911458	£1.97	£2.36
33 - TOOTHED GEAR BSD-1609203G68.A1 1609203G68	£46.82	£56.18
34 - BALL BEARING BSD-2610910789.A7 2610910789	£13.41	£16.09
35 - BALL BEARING BSD-2610910787.A7 2610910787	£11.78	£14.13
36 - LEVER BSD-2610990525.A3 2610990525	£9.49	£11.39
37 - COLLAR BSD-2610910849.A11 2610910849	£1.66	£1.99
38 - TAB WASHER BSD-2610910821.A0 2610910821	£5.87	£7.04
40 - WASHER BSD-2610908270.A21 2610908270	£1.75	£2.10
44 - ANGLE JOINT BSD-1609902604.A0 1609902604	£46.82	£56.18
45 - HANDLE BSD-2610967445.A0 2610967445	£16.41	£19.69
46 - COVER PIN BSD-2610910761.A1 2610910761	£3.72	£4.47
47 - SELF-LOCKING NUT BSD-1609203G71.A3 1609203G71	-
48 - CABLE CLIP BSD-2610990504.A4 2610990504	£1.75	£2.10
49 - SCREW BSD-2610355338.A4 2610355338	£3.34	£4.01
50 - BASE PLATE BSD-1609902605.A4 1609902605	£103.14	£123.77
51 - BAR BSD-2610910757.A3 2610910757	£7.78	£9.33
52 - RETAINING PIN BSD-2610910768.A3 2610910768	£4.26	£5.11
53 - COMPRESSION SPRING BSD-2610910765.A11 2610910765	£1.75	£2.10
54 - TENSIONING LEVER BSD-2610910838.A4 2610910838	-
55 - TOOTHED LOCK WASHER BSD-1609203G72.A1 1609203G72	-
56 - PIVOT BSD-2610910848.A0 2610910848	£1.95	£2.34
57 - INTERMEDIATE PLATE BSD-2610910837.A0 2610910837	£11.78	£14.13
58 - BOLT BSD-2610910769.A3 2610910769	£5.01	£6.01
59 - PIVOT BSD-2610910842.A4 2610910842	£6.61	£7.93
60 - LOCKING PIN BSD-2610911484.A0 2610911484	£8.49	£10.19
61 - SPRING BSD-2610910770.A1 2610910770	£1.75	£2.10
62 - SCREW BSD-2610910781.A3 2610910781	-
63 - SCREW BSD-1609203G73.A3 1609203G73	£1.75	£2.10
64 - BOLT BSD-2610910796.A23 2610910796	£2.80	£3.36
65 - END STOP BSD-2610910750.A1 2610910750	£1.66	£1.99
66 - WASHER BSD-2610911465.A0 2610911465	£1.95	£2.34
67 - O-RING BSD-2610910788.A0 2610910788	£1.75	£2.10
68 - NUT BSD-2610910783.A4 2610910783	-
69 - SCREW BSD-2615297323.A8 2615297323	£1.75	£2.10
71 - SCREW BSD-2610910790.A0 2610910790	£1.75	£2.10
72 - NUT BSD-2610910791.A10 2610910791	£3.72	£4.47
73 - SCREW BSD-2610911451.A10 2610911451	£1.75	£2.10
74 - SCREW BSD-2610911460.A3 2610911460	£1.75	£2.10
75 - SET SCREW BSD-2610910786.A0 2610910786	-
76 - SLEEVE BSD-2610910751.A8 2610910751	£3.80	£4.56
77 - NUT BSD-2610910760.A3 2610910760	£2.52	£3.02
78 - SCREW BSD-2610910797.A0 2610910797	£1.75	£2.10
79 - NUT BSD-1609203G74.A1 1609203G74	£1.75	£2.10
80 - SCREW BSD-1609203G75.A3 1609203G75	-
81 - SCREW BSD-2610910784.A0 2610910784	-
82 - SPRING WASHER BSD-2610911455.A3 2610911455	-
83 - WASHER BSD-2610910779.A13 2610910779	£1.75	£2.10
84 - WASHER BSD-1609902582.A4 1609902582	£1.32	£1.58
86 - SCREW M 8x0.8-10 BSD-2610911466.A17 2610911466	-
87 - PLAIN WASHER BSD-2610355304.A0 2610355304	-
88 - SCREW BSD-2610910762.A3 2610910762	£5.01	£6.01
89 - SLEEVE BSD-2610910766.A3 2610910766	£5.87	£7.04
90 - PLAIN WASHER BSD-2610355264.A14 2610355264	£3.34	£4.01
91 - SPRING LOCK WASHER BSD-2610910752.A3 2610910752	£1.32	£1.58
93 - STUD BOLT BSD-1609902584.A8 1609902584	£1.75	£2.10
94 - STUD BOLT BSD-1609902585.A4 1609902585	-
95 - STUD BOLT BSD-1609902586.A0 1609902586	£4.75	£5.70
96 - SPRING BSD-2610910758.A1 2610910758	£1.32	£1.58
97 - HEX NUT BSD-1609203G76.A1 1609203G76	-
98 - SAFETY COVER BSD-1609902606.A0 1609902606	£33.45	£40.14
99 - SCREW BSD-2610911461.A8 2610911461	-
100 - SPRING WASHER BSD-2610990503.A0 2610990503	£1.32	£1.58
101 - FLANGE BSD-1609203G77.A2 1609203G77	£11.78	£14.13
102 - FLANGE BSD-1609203G78.A4 1609203G78	-
103 - TORSION SPRING BSD-2610910755.A3 2610910755	-
104 - SLEEVE BSD-2610910753.A8 2610910753	£1.75	£2.10
105 - INSET PLATE BSD-1619P03783.A3 1619P03783	£6.52	£7.83
106 - END PLATE BSD-2610910833.A0 2610910833	£5.01	£6.01
107 - GUSSET PLATE BSD-2610910835.A4 2610910835	-
109 - PIVOT BSD-2610910839.A0 2610910839	-
110 - HANDLE BSD-1609203G79.A3 1609203G79	£37.72	£45.27
111 - SAW TABLE BSD-2610967449.A4 2610967449	£134.16	£160.99
112 - CLAMPING LEVER BSD-2610910822.A4 2610910822	£8.49	£10.19
113 - INDICATOR RAIL BSD-2610910831.A4 2610910831	£5.87	£7.04
114 - STOP RAIL BSD-1609902607.A4 1609902607	£51.22	£61.47
115 - PLATE BSD-2610916122.A4 2610916122	£4.75	£5.70
116 - STOP RAIL BSD-1609902608.A0 1609902608	£21.52	£25.83
118 - SOCKET HEAD CAP SCREW BSD-2610358055.A1 2610358055	£5.58	£6.70
119 - WASHER BSD-2610309996.A3 2610309996	£1.75	£2.10
120 - LEVER BSD-2610910775.A11 2610910775	-
121 - SLIDING PLATE BSD-2610910830.A0 2610910830	-
122 - WARNING PLATE BSD-2610911658.A12 2610911658	£2.33	£2.80
123 - MOUNTING BRACKET BSD-1609902609.A4 1609902609	£11.78	£14.13
124 - SET OF KEYS BSD-2610911470.A0 2610911470	£3.80	£4.56
125 - HEXAGON SOCKET WRENCH BSD-2610355577.A0 2610355577	£3.72	£4.47
126 - THREADED PLATE BSD-2610910844.A10 2610910844	£1.75	£2.10
128 - BEARING BSD-2610990522.A6 2610990522	£1.75	£2.10
129 - ROLLER BSD-2610990518.A0 2610990518	£1.75	£2.10
130 - RUBBER BUSHING BSD-1619P03548.A23 1619P03548	-
132 - PROTECTING COVER BSD-2610907783.A3 2610907783	£88.07	£105.68
133 - SCREW BSD-2610911459.A1 2610911459	£1.75	£2.10
136 - SCREW BSD-2610910777.A11 2610910777	£1.75	£2.10
137 - SCREW BSD-1609902588.A4 1609902588	£1.75	£2.10
138 - SCREW BSD-1609203G80.A1 1609203G80	£1.75	£2.10
139 - SCREW BSD-2610911469.A4 2610911469	£1.75	£2.10
140 - RETAINING SNAP RING BSD-2610355320.A4 2610355320	£5.58	£6.70
141 - HEX NUT BSD-2610910794.A2 2610910794	£1.75	£2.10
142 - SCREW BSD-2610320345.A2 2610320345	£1.75	£2.10
143 - SCREW BSD-2610911456.A1 2610911456	-
144 - SCREW BSD-2610910782.A13 2610910782	£1.75	£2.10
145 - NUT BSD-2610910774.A3 2610910774	£1.32	£1.58
146 - SCREW BSD-2610910776.A3 2610910776	£1.32	£1.58
148 - SCREW BSD-2610910799.A11 2610910799	£1.95	£2.34
149 - SCREW BSD-2610355293.A17 2610355293	£2.33	£2.80
150 - STUD BOLT BSD-2610911467.A0 2610911467	-
152 - PROTECTIVE COVER BSD-1609203G95.A1 1609203G95	£9.49	£11.39
153 - SPRING RETAINING RING BSD-2610990521.A6 2610990521	£1.75	£2.10
154 - CLAMPING PLATE BSD-2610967433.A5 2610967433	£3.80	£4.56
155 - PLAIN WASHER BSD-2610358439.A6 2610358439	£1.75	£2.10
156 - SPRING RETAINING RING BSD-2610967438.A9 2610967438	£1.75	£2.10
157 - NUT BSD-2610967439.A2 2610967439	£1.75	£2.10
158 - STUD BOLT BSD-2610992372.A3 2610992372	£1.75	£2.10
159 - SEAL BSD-2615303020.A2 2615303020	£1.75	£2.10
160 - RING BSD-2610992366.A1 2610992366	£1.32	£1.58
191 - CLAMP BSD-2610967432.A6 2610967432	£3.80	£4.56
192 - FERRITE CORE BSD-1609902592.A2 1609902592	£3.80	£4.56
193 - CONDENSER BSD-1609902610.A2 1609902610	£5.87	£7.04
194 - INSERT BSD-1609203G83.A3 1609203G83	£1.95	£2.34
195 - COVER BSD-1609203G84.A1 1609203G84	£14.72	£17.67
196 - SCREW BSD-1609203G86.A3 1609203G86	£1.32	£1.58
197 - HEX NUT BSD-1609902594.A2 1609902594	£1.75	£2.10
198 - SCREW BSD-1609902474.A2 1609902474	£1.32	£1.58
199 - ROLLER BSD-1609902475.A2 1609902475	£1.75	£2.10
200 - LOCKING LEVER BSD-1609902476.A2 1609902476	£7.78	£9.33
201 - BEARING BOLT BSD-1609203G91.A2 1609203G91	£1.75	£2.10
202 - COVER PLATE BSD-1609203G92.A9 1609203G92	£5.01	£6.01
203 - SCREW BSD-1609203G94.A3 1609203G94	-
204 - SCREW BSD-1609203H34.A0 1609203H34	-
205 - COILED SPRING BSD-1609203G93.A1 1609203G93	£1.95	£2.34
206 - PROTECTIVE COVER BSD-1609902377.A2 1609902377	-
207 - WASHER BSD-1609902477.A2 1609902477	-
208 - LOCK BOLT BSD-1609902478.A2 1609902478	-
209 - NAMEPLATE BSD-1609902648.A0 1609902648	-
650 - DUST BAG BSD-1609902596.A2 1609902596	-
652 - KEY BSD-2610910828.A1 2610910828	£8.49	£10.19
654 - SUCTION TUBE BSD-2610910845.A1 2610910845	£5.87	£7.04
670 - FITTING BSD-2610919256.A6 2610919256	-
810 - CARBON-BRUSH SET BSD-1619P04451.A24 1619P04451	-
