Bosch GCM 12 GDL / 3601M23660 / GB 110 Volt Spare Parts

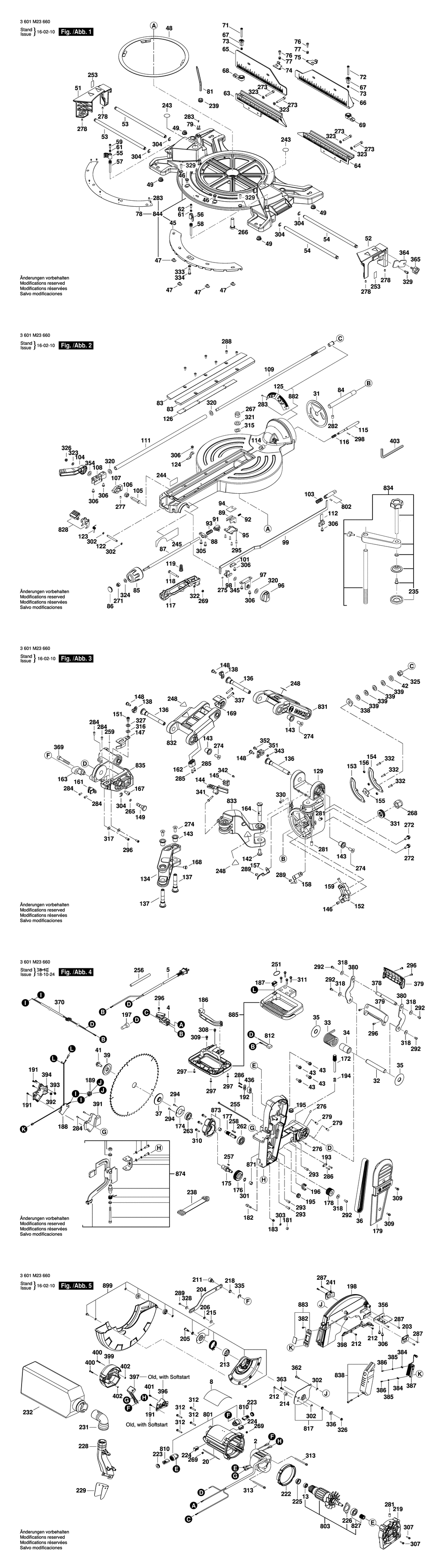

An exploded drawing and listing for the Bosch GCM 12 GDL / 3601M23660 / GB 110 Volt

	Ex VAT	Inc VAT
2 - FIELD old. only with softstartmodule BSD-1609B02483.A0 1609B02483	£93.88	£112.65
2 - FIELD 110V BSD-1609B00326.A0 1609B00326	£81.81	£98.17
4 - SWITCH BSD-2610950336.A0 2610950336	£18.96	£22.75
5 - POWER SUPPLY CORD GB 110V BSD-1609B02548.A0 1609B02548	-
8 - NAMEPLATE BSD-1609BN0177.A0 1609BN0177	£2.61	£3.13
13 - BEARING BSD-1609B00597.A17 1609B00597	£10.10	£12.12
20 - WARNING PLATE BSD-1609B02125.A3 1609B02125	£2.61	£3.13
31 - WEAR PLATE BSD-1609B00201.A2 1609B00201	£5.58	£6.70
32 - PIVOT BSD-1609B02384.A1 1609B02384	£8.67	£10.41
33 - TORSION SPRING BSD-1609B00204.A1 1609B00204	£13.12	£15.75
34 - BUSHING BSD-1609B00205.A3 1609B00205	£1.95	£2.34
35 - WEAR PLATE BSD-1609B00206.A0 1609B00206	£2.16	£2.59
36 - BELT BSD-1609B00207.A14 1609B00207	£27.23	£32.68
37 - FLANGE BSD-1609B02350.A2 1609B02350	£12.04	£14.45
39 - FLANGE BSD-1609B02352.A12 1609B02352	£11.30	£13.56
41 - FLANGE BOLT BSD-1609B00960.A5 1609B00960	£4.26	£5.11
42 - WASHER BSD-1609B00212.A2 1609B00212	£1.75	£2.10
43 - FLANGE BOLT BSD-1609B00213.A4 1609B00213	£1.75	£2.10
45 - SLIDING PLATE BSD-1609B00222.A1 1609B00222	£12.04	£14.45
46 - SCREW BSD-1609B00223.A3 1609B00223	£1.75	£2.10
47 - NUT BSD-1609B00225.A15 1609B00225	£3.72	£4.47
48 - SLIDING PLATE BSD-1609B00226.A2 1609B00226	£3.72	£4.47
49 - SUPPORTING FOOT BSD-1609B01431.A20 1609B01431	£2.16	£2.59
51 - EXTENSION STAND BSD-1609B00228.A2 1609B00228	£27.23	£32.68
52 - EXTENSION STAND BSD-1609B00229.A1 1609B00229	£23.86	£28.63
53 - EXTENSION SHAFT BSD-1609B00230.A2 1609B00230	£8.67	£10.41
54 - EXTENSION SHAFT BSD-1609B00231.A1 1609B00231	£8.67	£10.41
55 - LOCKING LEVER BSD-1609B00232.A3 1609B00232	£1.75	£2.10
56 - LOCKING LEVER BSD-1609B00233.A15 1609B00233	£1.75	£2.10
57 - SCREW BSD-1609B00234.A3 1609B00234	£4.26	£5.11
58 - SCREW BSD-1609B00235.A3 1609B00235	£4.26	£5.11
59 - SHOULDER SCREW BSD-1609B00236.A3 1609B00236	£1.75	£2.10
61 - COMPRESSION SPRING BSD-1609B00237.A19 1609B00237	£1.75	£2.10
62 - SHOULDER SCREW BSD-1609B00238.A3 1609B00238	£1.75	£2.10
63 - MITRE FENCE BSD-1609B02101.A1 1609B02101	£45.67	£54.80
64 - MITRE FENCE BSD-1609B02102.A2 1609B02102	-
65 - PARALLEL-GUIDE BSD-1609B02103.A1 1609B02103	£45.67	£54.80
66 - PARALLEL-GUIDE BSD-1609B02104.A2 1609B02104	£40.80	£48.96
67 - CLAMPING SLEEVE BSD-1609B00244.A3 1609B00244	£3.72	£4.47
68 - LOCKING LEVER BSD-1609B00245.A2 1609B00245	£2.16	£2.59
69 - LOCKING LEVER BSD-1609B00246.A1 1609B00246	£1.75	£2.10
71 - BOLT BSD-1609B00247.A2 1609B00247	£1.75	£2.10
72 - BOLT BSD-1609B00248.A1 1609B00248	£1.75	£2.10
73 - COMPRESSION SPRING BSD-1609B00249.A2 1609B00249	£1.75	£2.10
74 - PLATE BSD-1609B00250.A1 1609B00250	£1.75	£2.10
75 - PLATE BSD-1609B00251.A2 1609B00251	£1.66	£1.99
76 - SHOULDER SCREW BSD-1609B00252.A1 1609B00252	£1.75	£2.10
77 - COMPRESSION SPRING BSD-1609B00253.A4 1609B00253	£1.75	£2.10
78 - SCALE BSD-1609B00254.A2 1609B00254	£23.86	£28.63
79 - CLAMP SPRING BSD-1609B00255.A4 1609B00255	£1.75	£2.10
81 - WRENCH SOCKET BSD-1609B00256.A2 1609B00256	£2.16	£2.59
83 - SUPPORT PLATE BSD-1609B02375.A1 1609B02375	£8.67	£10.41
84 - SHAFT BSD-1609B00273.A3 1609B00273	£5.87	£7.04
85 - KNOB BSD-1609B02377.A2 1609B02377	£7.36	£8.83
86 - COVER BSD-1609B00275.A2 1609B00275	£2.61	£3.13
87 - ROD BSD-1609B00276.A1 1609B00276	£10.10	£12.12
88 - SUPPORT BRACKET BSD-1609B00277.A2 1609B00277	£2.61	£3.13
89 - SLIDING BLOCK BSD-1609B00278.A1 1609B00278	£5.30	£6.36
91 - SLIDING BLOCK BSD-1609B00279.A2 1609B00279	£11.30	£13.56
92 - COMPRESSION SPRING BSD-1609B00280.A1 1609B00280	£1.75	£2.10
93 - COMPRESSION SPRING BSD-1609B00281.A2 1609B00281	£1.75	£2.10
94 - SLIDING PLATE BSD-1609B00282.A1 1609B00282	£1.75	£2.10
95 - COVER BSD-1609B00283.A2 1609B00283	£1.75	£2.10
96 - KNOB BSD-1609B00284.A2 1609B00284	£2.61	£3.13
97 - SUPPORT BRACKET BSD-1609B00285.A4 1609B00285	£2.80	£3.36
98 - CAM BSD-1609B00286.A2 1609B00286	£6.52	£7.83
99 - LINKAGE BSD-1609B00287.A2 1609B00287	£11.30	£13.56
101 - GUIDE BRACKET BSD-1609B00289.A4 1609B00289	£1.75	£2.10
103 - COMPRESSION SPRING BSD-1609B00291.A2 1609B00291	£1.75	£2.10
104 - LOCKING LEVER BSD-1609B00292.A4 1609B00292	£12.04	£14.45
105 - LEVER SHAFT BSD-1609B00293.A2 1609B00293	£5.58	£6.70
106 - CAM BSD-1609B00294.A4 1609B00294	£1.75	£2.10
107 - SUPPORT BRACKET BSD-1609B00295.A2 1609B00295	£8.67	£10.41
108 - SUPPORT BRACKET BSD-1609B00296.A4 1609B00296	£5.58	£6.70
109 - TENSION ROD BSD-1609B00297.A2 1609B00297	£12.04	£14.45
111 - TUBE BSD-1609B00298.A4 1609B00298	£14.91	£17.89
112 - GUIDE BRACKET BSD-1609B00299.A2 1609B00299	£1.75	£2.10
114 - COVER BSD-1609B04380.A6 1609B04380	£1.75	£2.10
115 - DETENT PIN BSD-1609B00302.A4 1609B00302	£3.72	£4.47
116 - COMPRESSION SPRING BSD-1609B00303.A2 1609B00303	£1.75	£2.10
117 - LOCKING LEVER BSD-1609B00304.A2 1609B00304	£5.58	£6.70
118 - BOLT BSD-1609B00305.A2 1609B00305	£2.61	£3.13
119 - COMPRESSION SPRING BSD-1609B00306.A4 1609B00306	£1.75	£2.10
122 - PIN BSD-1609B00308.A1 1609B00308	£1.75	£2.10
123 - TORSION SPRING BSD-1609B00309.A2 1609B00309	£1.75	£2.10
124 - POINTER BSD-1609B00310.A1 1609B00310	£2.16	£2.59
125 - SCALE BSD-1609B00311.A2 1609B00311	£2.52	£3.02
126 - PLATE BSD-1609B00312.A3 1609B00312	£2.61	£3.13
129 - HINGE BSD-1609B00331.A1 1609B00331	£102.57	£123.08
134 - HINGE BSD-1609B00335.A5 1609B00335	£45.67	£54.80
136 - SHAFT BSD-1609B00337.A1 1609B00337	£12.04	£14.45
137 - SHAFT BSD-1609B00338.A5 1609B00338	£11.30	£13.56
138 - CABLE CLIP BSD-1609B00339.A0 1609B00339	£2.16	£2.59
142 - BOLT BSD-1609B00342.A5 1609B00342	£2.61	£3.13
143 - BUSHING BSD-1609B00343.A1 1609B00343	£5.30	£6.36
144 - LOCKING LEVER BSD-1609B00345.A0 1609B00345	£11.30	£13.56
145 - CLAMP SPRING BSD-1609B00346.A6 1609B00346	£1.75	£2.10
146 - ADJUSTING BOLT BSD-1609B00347.A0 1609B00347	£1.75	£2.10
147 - PLATE BSD-1609B00348.A6 1609B00348	£3.72	£4.47
148 - SHOULDER SCREW BSD-1609B00349.A0 1609B00349	£1.75	£2.10
149 - KNOB BSD-1609B00350.A9 1609B00350	£1.75	£2.10
151 - SHOULDER SCREW BSD-1609B00351.A0 1609B00351	£1.75	£2.10
152 - DETENT BSD-1609B02371.A4 1609B02371	£21.52	£25.83
153 - RETAINING PLATE BSD-1609B00353.A6 1609B00353	£1.75	£2.10
154 - RETAINING PLATE BSD-1609B00354.A0 1609B00354	£1.75	£2.10
155 - BRAKE PLATE BSD-1609B00355.A6 1609B00355	£1.75	£2.10
156 - SPACER BSD-1609B00356.A0 1609B00356	£1.75	£2.10
157 - POINTER BSD-1609B00357.A6 1609B00357	£2.16	£2.59
158 - POINTER BSD-1609B00358.A0 1609B00358	£2.16	£2.59
159 - ADJUSTING BOLT BSD-1609B00359.A6 1609B00359	£2.16	£2.59
161 - SUPPORT BRACKET BSD-1609B00361.A0 1609B00361	£1.75	£2.10
162 - BUMPER BSD-1609B00362.A6 1609B00362	£2.16	£2.59
163 - SOCKET-OUTLET ADAPTOR BSD-1609B02428.A3 1609B02428	£14.91	£17.89
164 - SHAFT BSD-1609B00364.A0 1609B00364	£7.36	£8.83
167 - SCREW BSD-1609B00367.A6 1609B00367	£2.16	£2.59
168 - RUBBER PLUG BSD-1609B00368.A0 1609B00368	£1.75	£2.10
169 - RUBBER PLUG BSD-1609B00369.A6 1609B00369	£1.75	£2.10
172 - KNOB BSD-1609B00382.A18 1609B00382	£5.30	£6.36
174 - GEAR COVER BSD-1609B00384.A1 1609B00384	£2.16	£2.59
175 - OUTPUT SHAFT BSD-1609B00385.A5 1609B00385	£12.04	£14.45
176 - GEAR BSD-1609B00386.A1 1609B00386	£23.86	£28.63
177 - PINION BSD-1609B00387.A5 1609B00387	£18.96	£22.75
178 - PULLEY BSD-1609B00388.A1 1609B00388	£12.04	£14.45
179 - BELT COVER BSD-1609B00389.A2 1609B00389	£21.52	£25.83
181 - BUTTON BSD-1609B00390.A1 1609B00390	£1.75	£2.10
182 - LOCKING PIN BSD-1609B00391.A5 1609B00391	£2.16	£2.59
183 - COMPRESSION SPRING BSD-1609B00392.A1 1609B00392	£1.75	£2.10
186 - TRIGGER BSD-1609B02399.A2 1609B02399	£2.80	£3.36
187 - SWITCH BSD-1609B05392.A19 1609B05392	£4.26	£5.11
188 - CABLE BSD-1609B02558.A0 1609B02558	£18.96	£22.75
189 - CABLE CLIP BSD-1609B02408.A1 1609B02408	£1.66	£1.99
191 - SCREW old. only with softstartmodule BSD-1609B02183.A1 1609B02183	£1.75	£2.10
192 - CLAMP BSD-1609B02413.A5 1609B02413	£1.75	£2.10
193 - CLAMP BSD-1609B00405.A3 1609B00405	-
194 - COMPRESSION SPRING BSD-1609B00417.A9 1609B00417	£1.75	£2.10
195 - SLEEVE BSD-1609B00418.A9 1609B00418	£1.75	£2.10
196 - RUBBER PAD BSD-1609B00419.A6 1609B00419	£1.75	£2.10
197 - CONNECTOR BSD-1609B02406.A3 1609B02406	£1.75	£2.10
198 - SAFETY COVER BSD-1609B02425.A0 1609B02425	£54.42	£65.30
203 - SAFETY COVER BSD-1609B02427.A0 1609B02427	£2.61	£3.13
204 - LINKAGE BSD-1609B02465.A0 1609B02465	£11.30	£13.56
205 - SHOULDER SCREW BSD-1609B00448.A4 1609B00448	£2.80	£3.36
206 - BUSHING BSD-1609B00449.A5 1609B00449	£1.75	£2.10
211 - SCREW BSD-1609B00453.A6 1609B00453	£4.26	£5.11
212 - SCREW BSD-1609B00454.A0 1609B00454	£1.75	£2.10
213 - BUSHING BSD-1609B00455.A6 1609B00455	£1.75	£2.10
214 - BUMPER BSD-1609B02467.A10 1609B02467	£1.75	£2.10
215 - WASHER BSD-1609B00457.A0 1609B00457	£1.75	£2.10
218 - BUSHING BSD-1609B00460.A4 1609B00460	£1.75	£2.10
219 - MOUNTING PLATE BSD-1609B00471.A1 1609B00471	£27.23	£32.68
222 - BAFFLE BSD-1609B00476.A4 1609B00476	£3.72	£4.47
223 - BRUSH-COVER BSD-1609B00478.A5 1609B00478	£1.75	£2.10
224 - INSERT BSD-1609B00479.A4 1609B00479	£1.75	£2.10
225 - RUBBER BUSHING BSD-1609B00480.A3 1609B00480	£2.16	£2.59
226 - BEARING PLATE BSD-1609B00483.A3 1609B00483	-
228 - CHUTE BSD-1609B00501.A0 1609B00501	£12.04	£14.45
229 - RUBBER PLATE BSD-1609B00502.A6 1609B00502	£4.26	£5.11
231 - CONNECTOR BSD-1609B00505.A2 1609B00505	£10.10	£12.12
232 - DUST BAG BSD-1609B00506.A1 1609B00506	£12.04	£14.45
235 - RUBBER PAD BSD-1609B00523.A9 1609B00523	£2.61	£3.13
238 - CABLE TAPE BSD-1609B01538.A41 1609B01538	£1.75	£2.10
239 - RUBBER BUSHING BSD-1609B00533.A12 1609B00533	£1.75	£2.10
241 - SAFETY COVER BSD-1609B02426.A6 1609B02426	£4.26	£5.11
243 - WARNING PLATE BSD-1609B00543.A5 1609B00543	£2.61	£3.13
244 - STICKER BSD-1609B02120.A3 1609B02120	£2.33	£2.80
245 - STICKER BSD-1609B02119.A3 1609B02119	£2.33	£2.80
248 - WARNING PLATE BSD-1609B00549.A1 1609B00549	£2.61	£3.13
251 - STICKER BSD-1609B02123.A1 1609B02123	£2.80	£3.36
253 - STICKER BSD-1609B02122.A3 1609B02122	£2.61	£3.13
255 - CLIP BSD-1609B00582.A4 1609B00582	£1.75	£2.10
256 - SHRINKABLE TUBE BSD-1609B00583.A2 1609B00583	£1.75	£2.10
257 - KEY BSD-1609B00592.A16 1609B00592	£1.75	£2.10
258 - KEY BSD-1609B00593.A2 1609B00593	£1.75	£2.10
259 - BALL BSD-1609B00594.A4 1609B00594	£1.75	£2.10
262 - BEARING BSD-1609B00599.A1 1609B00599	£13.12	£15.75
263 - BEARING BSD-1609B00596.A1 1609B00596	£13.12	£15.75
265 - O-RING BSD-1609B00601.A18 1609B00601	£1.75	£2.10
266 - BOLT BSD-1609B00602.A2 1609B00602	£1.75	£2.10
267 - LOCK NUT BSD-1609B00603.A18 1609B00603	£1.75	£2.10
268 - LOCK NUT BSD-1609B00604.A2 1609B00604	£1.75	£2.10
269 - LOCK NUT BSD-1609B00605.A7 1609B00605	£1.75	£2.10
271 - LOCK NUT BSD-1609B00608.A1 1609B00608	£1.75	£2.10
272 - BOLT BSD-1609B00609.A4 1609B00609	£1.75	£2.10
273 - SCREW BSD-1609B00610.A2 1609B00610	£1.75	£2.10
274 - SCREW BSD-1609B00612.A4 1609B00612	£1.75	£2.10
275 - SET SCREW BSD-1609B00614.A2 1609B00614	£1.75	£2.10
276 - SET SCREW BSD-1609B00615.A4 1609B00615	£2.16	£2.59
277 - SET SCREW BSD-1609B00616.A2 1609B00616	£1.75	£2.10
278 - SET SCREW BSD-1609B00617.A5 1609B00617	£1.75	£2.10
279 - SET SCREW BSD-1609B00618.A1 1609B00618	£1.75	£2.10
281 - SET SCREW BSD-1609B00620.A5 1609B00620	£1.75	£2.10
282 - SET SCREW BSD-1609B00621.A1 1609B00621	£1.75	£2.10
283 - RIVET BSD-1609B00622.A9 1609B00622	£1.75	£2.10
284 - SCREW BSD-1609B00623.A1 1609B00623	£1.75	£2.10
285 - SCREW BSD-1609B00624.A5 1609B00624	£1.75	£2.10
286 - SCREW BSD-1609B00625.A1 1609B00625	£1.75	£2.10
287 - SCREW BSD-1609B00628.A1 1609B00628	£1.75	£2.10
288 - SCREW BSD-1609B00627.A8 1609B00627	£2.16	£2.59
289 - SCREW BSD-1609B00630.A8 1609B00630	£1.75	£2.10
292 - SCREW BSD-1609B00631.A1 1609B00631	£2.61	£3.13
293 - SCREW BSD-1609B00632.A5 1609B00632	£1.75	£2.10
294 - SCREW BSD-1609B00633.A1 1609B00633	£1.75	£2.10
295 - SCREW BSD-1609B00634.A6 1609B00634	£1.75	£2.10
296 - TAPPING SCREW BSD-1609B00636.A1 1609B00636	£2.61	£3.13
297 - TAPPING SCREW BSD-1609B00637.A28 1609B00637	£1.75	£2.10
298 - SPRING PIN BSD-1609B00638.A1 1609B00638	£1.75	£2.10
301 - RETAINING RING BSD-1609B00641.A8 1609B00641	£1.75	£2.10
302 - RETAINING RING BSD-1609B00642.A1 1609B00642	£1.75	£2.10
303 - RETAINING RING BSD-1609B00643.A8 1609B00643	£1.75	£2.10
304 - RETAINING RING BSD-1609B00644.A12 1609B00644	£2.16	£2.59
305 - SCREW BSD-1609B00645.A2 1609B00645	£1.75	£2.10
306 - SCREW BSD-1609B00647.A1 1609B00647	£1.75	£2.10
307 - SCREW BSD-1609B00649.A14 1609B00649	£1.75	£2.10
308 - SCREW BSD-1609B00650.A1 1609B00650	£1.75	£2.10
309 - SCREW BSD-1609B00652.A17 1609B00652	£1.75	£2.10
310 - SCREW BSD-1609B00653.A1 1609B00653	£1.75	£2.10
311 - SCREW BSD-1609B00654.A19 1609B00654	£1.75	£2.10
312 - SCREW BSD-1609B00655.A1 1609B00655	£1.75	£2.10
313 - SCREW BSD-1609B00656.A5 1609B00656	£1.75	£2.10
315 - SPRING WASHER BSD-1609B00658.A1 1609B00658	£1.75	£2.10
316 - WASHER BSD-1609BP7042.A2 1609BP7042	£1.75	£2.10
317 - WASHER BSD-1609B00661.A2 1609B00661	£1.75	£2.10
318 - WASHER BSD-1609B00662.A7 1609B00662	£1.75	£2.10
320 - WASHER BSD-1609B00664.A2 1609B00664	£1.75	£2.10
321 - WASHER BSD-1609B00665.A7 1609B00665	£1.75	£2.10
322 - WASHER BSD-1609B00667.A13 1609B00667	£1.75	£2.10
323 - WASHER BSD-1609B00669.A7 1609B00669	£1.75	£2.10
324 - WASHER BSD-1609B00670.A24 1609B00670	£1.75	£2.10
325 - LOCK NUT BSD-1609B00672.A3 1609B00672	£1.75	£2.10
326 - LOCK NUT BSD-1609B00673.A3 1609B00673	£1.75	£2.10
327 - WASHER BSD-1609B00674.A15 1609B00674	£1.75	£2.10
328 - WASHER BSD-1609B02105.A2 1609B02105	£1.75	£2.10
329 - SCREW BSD-1609B00678.A2 1609B00678	£1.75	£2.10
330 - SCREW BSD-1609B00680.A4 1609B00680	£1.75	£2.10
331 - THRUST BEARING BSD-1609B00681.A2 1609B00681	£5.58	£6.70
332 - SCREW BSD-1609B00682.A4 1609B00682	£1.75	£2.10
333 - NUT BSD-1609B00685.A1 1609B00685	£1.32	£1.58
334 - SUPPORTING FOOT BSD-1609B02367.A1 1609B02367	£1.75	£2.10
335 - RETAINING RING BSD-1609B00687.A4 1609B00687	£1.75	£2.10
336 - WASHER BSD-1609B00688.A2 1609B00688	£1.75	£2.10
337 - SCREW BSD-1609B00689.A4 1609B00689	£1.75	£2.10
338 - BRAKE PLATE BSD-2610919073.A7 2610919073	£8.67	£10.41
339 - WASHER BSD-2610919281.A9 2610919281	£3.72	£4.47
341 - SHAFT BSD-1609B00370.A0 1609B00370	£1.75	£2.10
342 - RETAINING RING BSD-1609B00690.A2 1609B00690	£1.75	£2.10
343 - NUT BSD-1609B00691.A25 1609B00691	£2.16	£2.59
345 - WASHER BSD-1609B00288.A2 1609B00288	£1.75	£2.10
351 - CLAMPING BAND BSD-1609B00344.A4 1609B00344	£2.61	£3.13
352 - SHOULDER SCREW BSD-1609B00371.A6 1609B00371	£2.80	£3.36
354 - WASHER BSD-1609B00676.A4 1609B00676	£1.75	£2.10
356 - CORD GUARD BSD-1609B00446.A1 1609B00446	£3.72	£4.47
362 - SCREW BSD-1609B02429.A0 1609B02429	£1.75	£2.10
363 - SCREW BSD-1609B02430.A6 1609B02430	£1.75	£2.10
364 - STOP PLATE BSD-1609B02365.A14 1609B02365	£2.29	£2.75
365 - SCREW BSD-1609B00263.A5 1609B00263	£2.16	£2.59
369 - SCREW BSD-1609B02174.A3 1609B02174	£1.75	£2.10
370 - CABLE BSD-1609B02565.A3 1609B02565	£6.52	£7.83
378 - SHAFT BSD-1609B02383.A1 1609B02383	£6.52	£7.83
379 - CARRYING HANDLE BSD-1609B02380.A1 1609B02380	£5.30	£6.36
380 - HANDLE PLATE BSD-1609B02381.A2 1609B02381	£6.52	£7.83
382 - SCREW BSD-1609B02437.A7 1609B02437	£1.75	£2.10
384 - GROOVED WASHER BSD-1609B02438.A0 1609B02438	£1.75	£2.10
385 - WASHER BSD-1609B02191.A7 1609B02191	£2.61	£3.13
386 - SCREW BSD-1609B02192.A4 1609B02192	£1.75	£2.10
387 - LASER BSD-1609B02439.A3 1609B02439	£63.50	£76.20
391 - TERMINAL BOX BSD-1609B02392.A3 1609B02392	£2.61	£3.13
392 - CABLE SLEEVE BSD-1609B02415.A0 1609B02415	£1.75	£2.10
393 - CABLE SLEEVE BSD-1609B02416.A5 1609B02416	£1.75	£2.10
394 - TERMINAL BOX BSD-1609B02391.A3 1609B02391	£1.75	£2.10
396 - HOUSING COVER old. only with softstartmodule BSD-1609B02481.A0 1609B02481	£1.32	£1.58
397 - SOFT START-UP MODULE old. only with softstartmodule BSD-2610233021.A0 2610233021	£18.96	£22.75
398 - CABLE COVER BSD-1609B02432.A5 1609B02432	£3.72	£4.47
399 - HOUSING COVER BSD-1609B02482.A3 1609B02482	£7.78	£9.33
400 - TAPPING SCREW BSD-1609B00637.A29 1609B00637	£1.75	£2.10
401 - SCREW BSD-1609B02189.A3 1609B02189	£1.75	£2.10
402 - O-RING BSD-1609B00956.A3 1609B00956	-
403 - WRENCH SOCKET BSD-1609B02490.A5 1609B02490	£1.32	£1.58
436 - CLAMP BSD-1609B02412.A1 1609B02412	£1.75	£2.10
801 - MOTOR HOUSING BSD-1609B02302.A2 1609B02302	£45.67	£54.80
802 - DETENT PIN BSD-1609B02310.A2 1609B02310	£5.87	£7.04
803 - ARMATURE 115V BSD-1609B02313.A0 1609B02313	£135.25	£162.30
810 - CARBON-BRUSH SET BSD-2610021310.A2 2610021310	-
812 - SUPPRESSION CAPACITOR BSD-1609B02405.A1 1609B02405	£2.61	£3.13
817 - PLATE BSD-1609B02598.A2 1609B02598	£10.10	£12.12
827 - BEARING BSD-1609B02316.A14 1609B02316	£16.41	£19.69
828 - BUTTON BSD-1609B02593.A2 1609B02593	£2.61	£3.13
831 - HINGE BSD-1609B02303.A5 1609B02303	£72.18	£86.62
832 - HINGE BSD-1609B02304.A1 1609B02304	£63.50	£76.20
833 - HINGE BSD-1609B02305.A5 1609B02305	£68.42	£82.10
834 - ADJUSTABLE SCREW CLAMP BSD-1609B06203.A4 1609B06203	£14.99	£17.99
835 - BEARING BLOCK BSD-1609B02592.A1 1609B02592	£31.64	£37.97
838 - COVER UNIT BSD-1609B02431.A0 1609B02431	£5.30	£6.36
844 - BASE BSD-1609B02591.A2 1609B02591	£102.57	£123.08
871 - ARM BSD-1609B02594.A1 1609B02594	£156.22	£187.46
873 - GEAR BOX BSD-1609B02307.A1 1609B02307	£31.64	£37.97
874 - LOCKING LEVER BSD-1609B02499.A0 1609B02499	£21.52	£25.83
882 - TABLE BSD-1609B02309.A2 1609B02309	£208.91	£250.69
883 - SUPPORT PLATE BSD-1609B02434.A1 1609B02434	£16.41	£19.69
885 - HANDLE BSD-1609B02552.A1 1609B02552	£21.52	£25.83
899 - PROTECTIVE COVER BSD-1609B02597.A2 1609B02597	£27.23	£32.68

Attribute Name	Value
Brand	Bosch

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Bosch GCM 12 GDL / 3601M23660 / GB 110 Volt Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
