Bosch GCM 8 SJ / 3601L16200 / EU 230 Volt Spare Parts

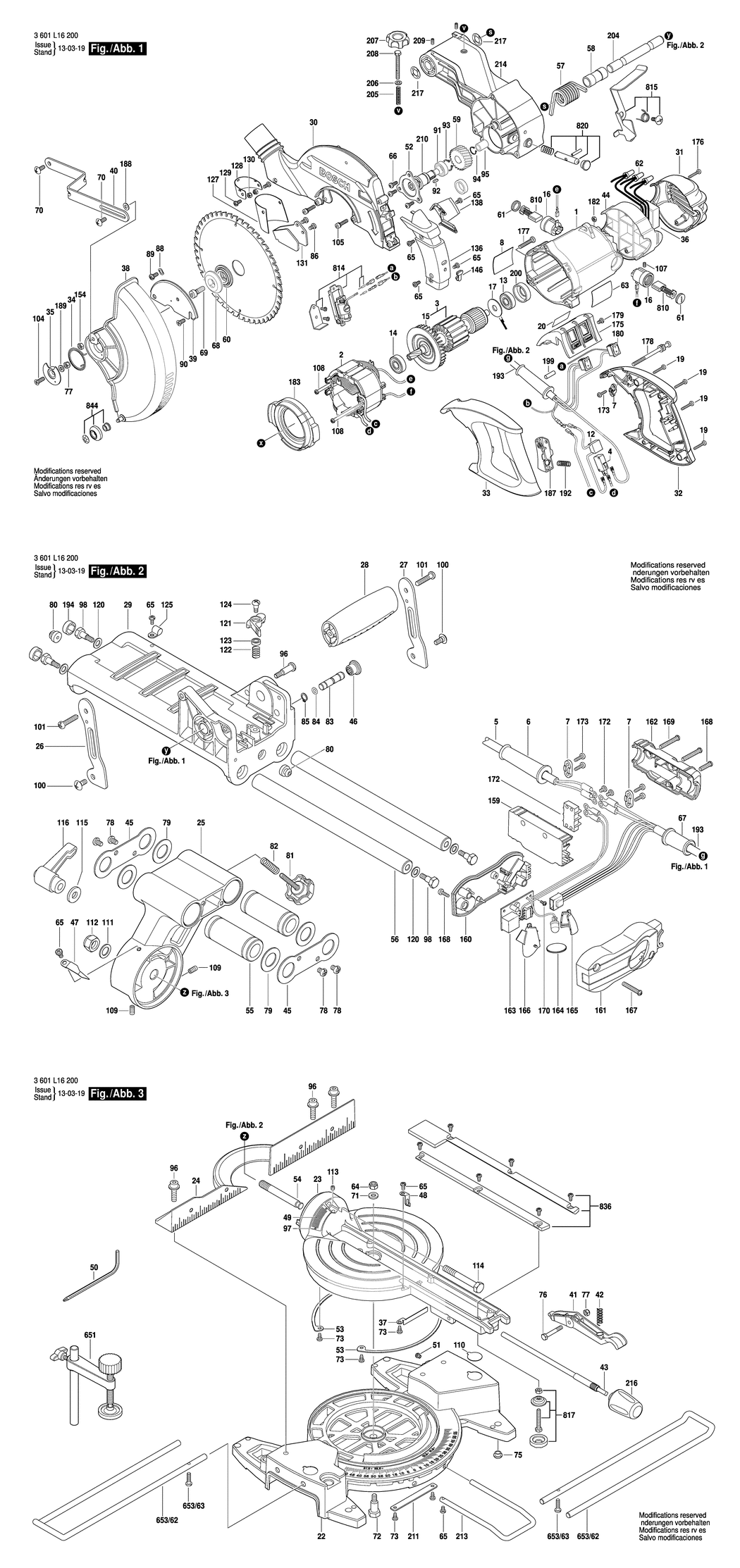

An exploded drawing and listing for the Bosch GCM 8 SJ / 3601L16200 / EU 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1619P03493.A2 1619P03493	£21.42	£25.71
2 - FIELD 230V BSD-2610013485.A1 2610013485	£52.15	£62.58
3 - ARMATURE 230V BSD-1619P03495.A2 1619P03495	-
4 - SWITCH BSD-1619P03496.A8 1619P03496	£10.82	£12.99
5 - POWER SUPPLY CORD BSD-1619P03497.A0 1619P03497	£31.64	£37.97
6 - GROMMET BSD-1619P03498.A2 1619P03498	£1.66	£1.99
7 - CLAMP BSD-1619P03499.A6 1619P03499	£2.52	£3.02
8 - NAMEPLATE BSD-2610011859.A0 2610011859	£2.33	£2.80
12 - MOTOR CAPACITOR BSD-1619P03501.A4 1619P03501	£5.87	£7.04
13 - BEARING BSD-1619P03502.A7 1619P03502	-
14 - BEARING BSD-1619P03503.A4 1619P03503	-
15 - FAN BSD-1619P03504.A7 1619P03504	£8.49	£10.19
16 - BRUSH HOLDER BSD-1619P03505.A4 1619P03505	-
17 - WASHER BSD-1619P04814.A6 1619P04814	-
19 - SCREW BSD-1619P03506.A7 1619P03506	£1.32	£1.58
20 - WARNING LABEL BSD-2610013583.A1 2610013583	-
22 - BASE BSD-1619P03508.A6 1619P03508	£218.41	£262.09
23 - TABLE BSD-1619P03509.A5 1619P03509	£134.16	£160.99
24 - MITRE FENCE BSD-1619P03510.A6 1619P03510	-
25 - PIVOT BSD-1619P03511.A5 1619P03511	£68.42	£82.10
26 - HANDLE BSD-1619P03512.A6 1619P03512	-
27 - HANDLE BSD-1619P03513.A5 1619P03513	-
28 - HANDLE BSD-1619P03514.A6 1619P03514	£12.04	£14.45
29 - SUPPORT PLATE BSD-1619P03515.A5 1619P03515	£70.24	£84.29
30 - SAFETY COVER BSD-1619P03516.A6 1619P03516	-
31 - HOUSING COVER BSD-1619P03517.A5 1619P03517	-
32 - HANDLE BSD-1619P03518.A6 1619P03518	£14.72	£17.67
33 - HANDLE COVER BSD-1619P03519.A5 1619P03519	£14.72	£17.67
34 - TORSION SPRING BSD-1619P03520.A6 1619P03520	£2.33	£2.80
35 - PLATE BSD-1619P03521.A5 1619P03521	£4.75	£5.70
36 - SOFT START-UP MODULE BSD-1607233421.A1 1607233421	£36.63	£43.96
37 - PRESSURE PLATE BSD-1619P03522.A6 1619P03522	£1.32	£1.58
38 - PROTECTIVE COVER BSD-1619P03523.A5 1619P03523	-
39 - PLATE BSD-1619P03524.A6 1619P03524	£6.61	£7.93
40 - LINKAGE BSD-1619P03525.A5 1619P03525	-
41 - LOCKING LEVER BSD-1619P03526.A6 1619P03526	-
42 - CONTACT STRAP BSD-1619P03527.A5 1619P03527	£1.66	£1.99
43 - TENSION ROD BSD-1619P03528.A6 1619P03528	-
44 - HOUSING BSD-2610011867.A3 2610011867	£11.30	£13.56
45 - RETAINING PLATE BSD-1619P03530.A5 1619P03530	£7.78	£9.33
46 - KNOB BSD-1619P05009.A7 1619P05009	-
47 - POINTER BSD-1619P03532.A6 1619P03532	£2.33	£2.80
48 - POINTER BSD-1619P03533.A5 1619P03533	£2.33	£2.80
49 - SCALE BSD-1619P03534.A6 1619P03534	£1.75	£2.10
50 - OFFSET SCREWDRIVER BSD-1619P03535.A5 1619P03535	£5.01	£6.01
51 - RUBBER BUSHING BSD-1619P03536.A6 1619P03536	£1.75	£2.10
52 - BEARING COVER PLATE BSD-1619P03537.A5 1619P03537	-
53 - SLIDING PLATE BSD-1619P03538.A6 1619P03538	£6.61	£7.93
54 - SHAFT BSD-1619P03539.A5 1619P03539	£5.87	£7.04
55 - BALL BEARING BSD-1619P03540.A6 1619P03540	-
56 - SLIDING RAIL BSD-1619P03541.A5 1619P03541	-
57 - TORSION SPRING BSD-1619P03542.A6 1619P03542	-
58 - SLEEVE BSD-1619P03543.A5 1619P03543	£3.80	£4.56
59 - TOOTHED GEAR BSD-1609203J19.A9 1609203J19	£24.45	£29.34
60 - INNER DISC BSD-1619P03544.A7 1619P03544	-
61 - BRUSH-COVER BSD-1619P03545.A7 1619P03545	-
62 - CONNECTOR BSD-2610013458.A1 2610013458	£1.32	£1.58
63 - LABEL GCM 8SJ BSD-2610013582.A2 2610013582	£2.33	£2.80
64 - SELF-LOCKING NUT BSD-1619P03587.A4 1619P03587	£1.75	£2.10
65 - SCREW BSD-1619P03605.A4 1619P03605	£1.75	£2.10
66 - SCREW BSD-1619P03606.A7 1619P03606	-
67 - GROMMET BSD-2610013487.A3 2610013487	£2.16	£2.59
68 - FLANGE BSD-1619P03481.A8 1619P03481	-
69 - BOLT BSD-1619P03482.A3 1619P03482	£2.41	£2.89
70 - SCREW BSD-1619P03608.A4 1619P03608	-
71 - WASHER BSD-1619P03609.A7 1619P03609	£1.75	£2.10
72 - HEX SCREW BSD-1619P03547.A4 1619P03547	£5.01	£6.01
73 - SCREW BSD-1619P03610.A4 1619P03610	£1.75	£2.10
75 - RUBBER BUSHING BSD-1619P03548.A7 1619P03548	-
76 - SCREW BSD-1619P03612.A7 1619P03612	£1.75	£2.10
77 - SELF-LOCKING NUT BSD-1619P03613.A4 1619P03613	£1.32	£1.58
78 - SCREW BSD-1619P03614.A7 1619P03614	£1.32	£1.58
79 - SEAL BSD-1619P03549.A4 1619P03549	-
80 - RUBBER PAD BSD-1619P03550.A7 1619P03550	£6.61	£7.93
81 - KNOB BSD-1609B03755.A32 1609B03755	£1.75	£2.10
82 - CONTACT STRAP BSD-1619P03552.A4 1619P03552	-
83 - DETENT PIN BSD-1619P03553.A7 1619P03553	-
84 - RETAINING PIN BSD-1619P03554.A4 1619P03554	-
85 - SPRING RETAINING RING BSD-1619P03555.A7 1619P03555	£1.32	£1.58
86 - SCREW BSD-1619P03615.A4 1619P03615	£1.32	£1.58
88 - WASHER BSD-1619P03617.A7 1619P03617	£1.75	£2.10
89 - SCREW BSD-1619P03618.A4 1619P03618	-
90 - SCREW BSD-1619P03619.A7 1619P03619	-
91 - BALL BEARING BSD-1619P03556.A4 1619P03556	£9.49	£11.39
92 - KEY BSD-1619P03557.A7 1619P03557	£1.75	£2.10
93 - SPRING RETAINING RING BSD-1619P03620.A4 1619P03620	£1.95	£2.34
94 - SPRING RETAINING RING BSD-1619P03621.A7 1619P03621	£3.34	£4.01
95 - NEEDLE-ROLLER BEARING BSD-1619P03558.A4 1619P03558	-
96 - SCREW BSD-1619P03622.A4 1619P03622	£1.75	£2.10
97 - SCREW BSD-1619P03623.A7 1619P03623	£1.75	£2.10
98 - SCREW BSD-1619P03559.A7 1619P03559	£1.75	£2.10
100 - SCREW BSD-1619P03625.A4 1619P03625	£1.75	£2.10
101 - SCREW BSD-1619P03626.A7 1619P03626	£1.75	£2.10
104 - SCREW BSD-1619P03629.A4 1619P03629	£1.75	£2.10
105 - SCREW BSD-1619P03630.A7 1619P03630	£1.75	£2.10
107 - SCREW BSD-1619P03631.A4 1619P03631	£1.75	£2.10
108 - SCREW BSD-1619P03632.A7 1619P03632	£1.66	£1.99
109 - SCREW BSD-1619P03633.A4 1619P03633	£1.75	£2.10
110 - WARNING LABEL BSD-2610909006.A12 2610909006	£3.72	£4.47
111 - WASHER BSD-1619P03634.A7 1619P03634	£1.75	£2.10
112 - SELF-LOCKING NUT BSD-1619P03635.A4 1619P03635	£1.75	£2.10
113 - SCREW BSD-1619P03636.A7 1619P03636	-
114 - BOLT BSD-1619P03564.A7 1619P03564	£2.52	£3.02
115 - WASHER BSD-1619P03637.A4 1619P03637	£1.75	£2.10
116 - LEVER BSD-1619P03565.A4 1619P03565	-
120 - WASHER BSD-1619P03638.A7 1619P03638	£1.66	£1.99
121 - TOGGLE BSD-1619P03569.A7 1619P03569	£3.34	£4.01
122 - CONTACT STRAP BSD-1619P03570.A4 1619P03570	£1.32	£1.58
123 - BALL BEARING BSD-1619P03571.A7 1619P03571	£1.32	£1.58
124 - SCREW BSD-1619P03639.A4 1619P03639	£1.75	£2.10
125 - CLAMPING PIECE BSD-1619P03640.A3 1619P03640	£1.75	£2.10
127 - COVER BSD-1619P03572.A4 1619P03572	-
128 - PLATE BSD-1619P03573.A7 1619P03573	-
129 - SCREW BSD-1619P03642.A4 1619P03642	-
130 - SELF-LOCKING NUT BSD-1619P03643.A7 1619P03643	£1.75	£2.10
131 - PLATE BSD-1619P03574.A4 1619P03574	£5.87	£7.04
136 - COVER BSD-1619P03577.A3 1619P03577	£7.78	£9.33
138 - COVER BSD-1619P03578.A4 1619P03578	£7.78	£9.33
146 - COVER BSD-1619P03583.A3 1619P03583	£2.80	£3.36
154 - NUT BSD-1619P03654.A4 1619P03654	£1.75	£2.10
159 - HOUSING BSD-1619P03588.A3 1619P03588	£5.87	£7.04
160 - HOUSING BSD-1619P03589.A3 1619P03589	£6.61	£7.93
161 - HOUSING BSD-1619P03590.A3 1619P03590	-
162 - HOUSING BSD-1619P03656.A4 1619P03656	£5.01	£6.01
163 - PRINTED CIRCUIT BOARD BSD-1619P04801.A0 1619P04801	£24.45	£29.34
164 - LENS BSD-1619P03592.A3 1619P03592	£1.75	£2.10
165 - REFLECTOR BSD-1619P03602.A3 1619P03602	£1.75	£2.10
166 - REFLECTOR BSD-1619P03603.A4 1619P03603	£1.75	£2.10
167 - SCREW BSD-1619P03657.A3 1619P03657	-
168 - SCREW BSD-1619P03658.A4 1619P03658	£1.75	£2.10
169 - SCREW BSD-1619P03659.A7 1619P03659	£1.75	£2.10
170 - SCREW BSD-1619P03660.A4 1619P03660	£1.75	£2.10
172 - JUNCTION BOX BSD-1619P03661.A4 1619P03661	£3.72	£4.47
173 - SCREW BSD-1619P03662.A13 1619P03662	£1.75	£2.10
175 - HOUSING BSD-1619P03594.A4 1619P03594	£7.78	£9.33
176 - SCREW M4x55 BSD-2610013457.A3 2610013457	£1.75	£2.10
177 - SCREW BSD-1619P03665.A4 1619P03665	£1.75	£2.10
178 - SCREW BSD-1619P03666.A7 1619P03666	£1.75	£2.10
179 - SCREW BSD-1619P03667.A4 1619P03667	£1.75	£2.10
180 - ON-OFF SWITCH BSD-1619P03669.A6 1619P03669	£21.52	£25.83
182 - NUT BSD-1619P03671.A1 1619P03671	£1.75	£2.10
183 - AIR-DEFLECTOR RING BSD-1619P03595.A4 1619P03595	£3.80	£4.56
187 - ON-OFF SWITCH BSD-1619P03597.A7 1619P03597	£3.34	£4.01
188 - WASHER BSD-1619P03689.A12 1619P03689	-
189 - PLAIN WASHER BSD-1619P03690.A2 1619P03690	£1.75	£2.10
192 - SPRING BSD-1619P03598.A3 1619P03598	£1.75	£2.10
193 - CABLE SET BSD-1619P03599.A3 1619P03599	£37.27	£44.72
194 - COVER BSD-1619P03693.A9 1619P03693	£1.75	£2.10
199 - INSULATING SLEEVE BSD-1619P03715.A6 1619P03715	-
200 - BEARING COVER BSD-1619P03716.A1 1619P03716	£2.33	£2.80
204 - PIVOT SHAFT BSD-1619P03694.A2 1619P03694	£10.82	£12.99
205 - COMPRESSION SPRING BSD-1619P03695.A9 1619P03695	£1.75	£2.10
206 - PLAIN WASHER BSD-1619P03696.A2 1619P03696	£1.75	£2.10
207 - KNOB BSD-1619P03697.A9 1619P03697	£3.34	£4.01
208 - BOLT BSD-1619P03698.A2 1619P03698	£3.80	£4.56
209 - HEADLESS SCREW BSD-1619P03699.A9 1619P03699	£1.75	£2.10
210 - SHAFT BSD-1619P03700.A2 1619P03700	-
211 - PLATE BSD-1619P03701.A9 1619P03701	£1.75	£2.10
213 - ROD BSD-1619P03703.A2 1619P03703	£13.12	£15.75
214 - ARM BSD-1619P03712.A2 1619P03712	£70.24	£84.29
216 - KNOB BSD-1619P03720.A10 1619P03720	-
217 - WEAR PLATE BSD-1619P03971.A5 1619P03971	-
651 - CLAMP BSD-1619P05772.A7 1619P05772	-
653/62 - LENGTHENING PIECE BSD-1619P03546.A7 1619P03546	-
653/63 - SCREW BSD-1619P03563.A4 1619P03563	£1.75	£2.10
810 - CARBON-BRUSH SET BSD-1619P04451.A12 1619P04451	-
814 - LASER BSD-1619P04816.A4 1619P04816	£33.45	£40.14
815 - LEVER BSD-1619P03706.A9 1619P03706	£11.78	£14.13
817 - ADJUSTABLE FOOT BSD-1619P03707.A2 1619P03707	-
820 - LOCKING PIN BSD-1619P03708.A9 1619P03708	£7.78	£9.33
836 - INSERT BSD-1619P03709.A2 1619P03709	-
844 - ROLLER BSD-1619P03710.A9 1619P03710	-
