Bosch BM 7.2 VE / 0603921223 / EU 7.2 Volt Spare Parts

Home Details Reviews Delivery

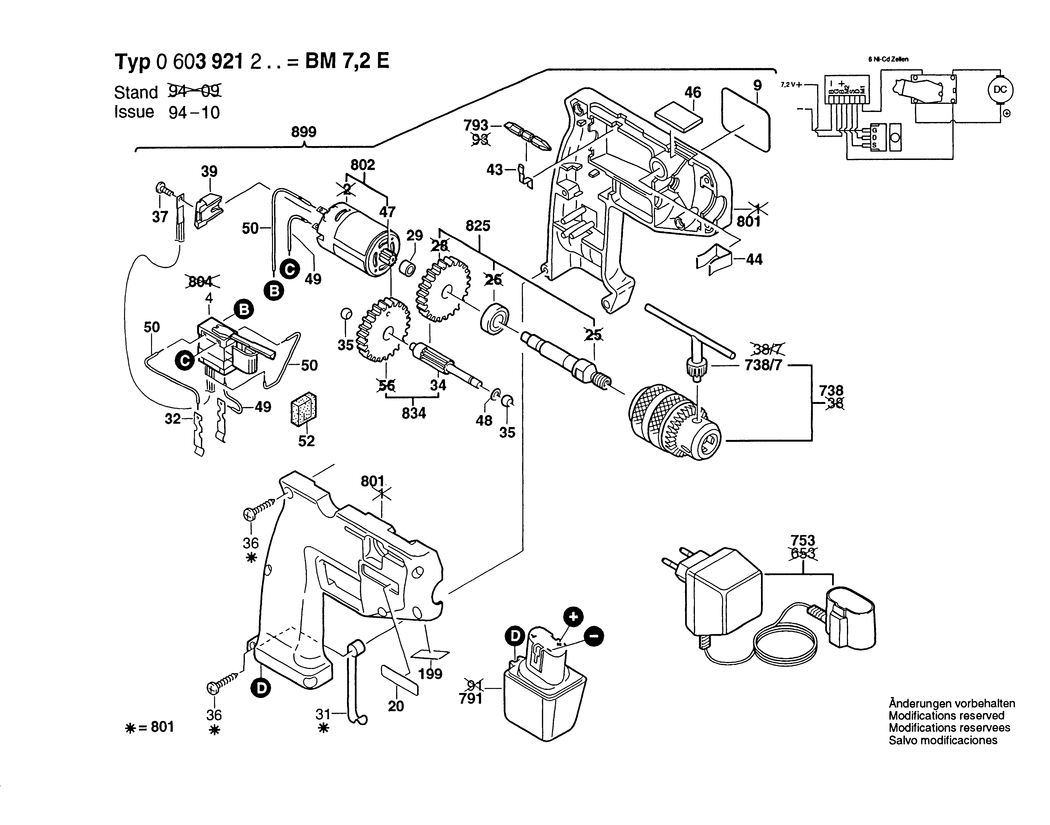

An exploded drawing and listing for the Bosch BM 7.2 VE / 0603921223 / EU 7.2 Volt

	Ex VAT	Inc VAT
4 - ON-OFF SWITCH BSD-2607200302.A89 2607200302	£45.67	£54.80
9 - MANUFACTURER'S NAMEPLATE BSD-2601118745.A0 2601118745	-
20 - REFERENCE PLATE BSD-2601118561.A4 2601118561	-
26 - GROOVE BALL BEARING 10x26x8 BSD-1900905120.A172 1900905120	-
29 - SINTERED-METAL BUSHING BSD-2600301011.A397 2600301011	£1.75	£2.10
31 - HOLDING SPRING dia8.7 MM BSD-2601251002.A9 2601251002	-
32 - CONTACT SPRING BSD-2601324012.A57 2601324012	£1.75	£2.10
35 - SINTERED-METAL BUSHING BSD-2600302002.A335 2600302002	£1.75	£2.10
36 - SCREW 4x16 BSD-2603490022.A411 2603490022	£1.75	£2.10
37 - OVAL-HEAD SCREW DIN 7985-M3x8-4.8 BSD-2910641050.A125 2910641050	£1.75	£2.10
39 - HEAT SINK BSD-2605715000.A33 2605715000	-
43 - HOLDING SPRING BSD-2601250002.A91 2601250002	£1.32	£1.58
44 - CLAMP SPRING BSD-2601250003.A64 2601250003	-
46 - COVER BSD-2601099057.A0 2601099057	-
48 - SHIM 0.3 MM BSD-2600100636.A163 2600100636	-
49 - CABLE L=52 MM BSD-2604413005.A14 2604413005	-
50 - CABLE L=79 MM BSD-2604413004.A167 2604413004	-
52 - DUST PROTECTION BSD-2601010038.A178 2601010038	-
738 - KEY CHUCK dia1-10 MM. 3/8 BSD-1608571066.A36 1608571066	-
738/7 - CHUCK WRENCH SG 1. dia4x60 MM BSD-1607950042.A63 1607950042	£3.49	£4.19
753 - BATTERY CHARGER EU 230/7.2V. 3h BSD-2607224028.A1 2607224028	-
791 - SLIDE-IN ACCU PACKAGE 7.2V. 1.4Ah. NiCd BSD-2607300001.A21 2607300001	-
793 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A67 1609200147	£3.72	£4.47
801 - HOUSING SECTION BSD-2605104998.A9 2605104998	-
802 - DC MOTOR 9.6V BSD-2607022902.A1 2607022902	-
825 - DRILLING SPINDLE 3/8. SW 11 BSD-2606135925.A5 2606135925	-
834 - SPINDLE WITH GEAR Z=12/81 BSD-2606308920.A1 2606308920	-
899 - BATT-OPER DRILL 7.2V BSD-0603921223.A1 0603921223	-
