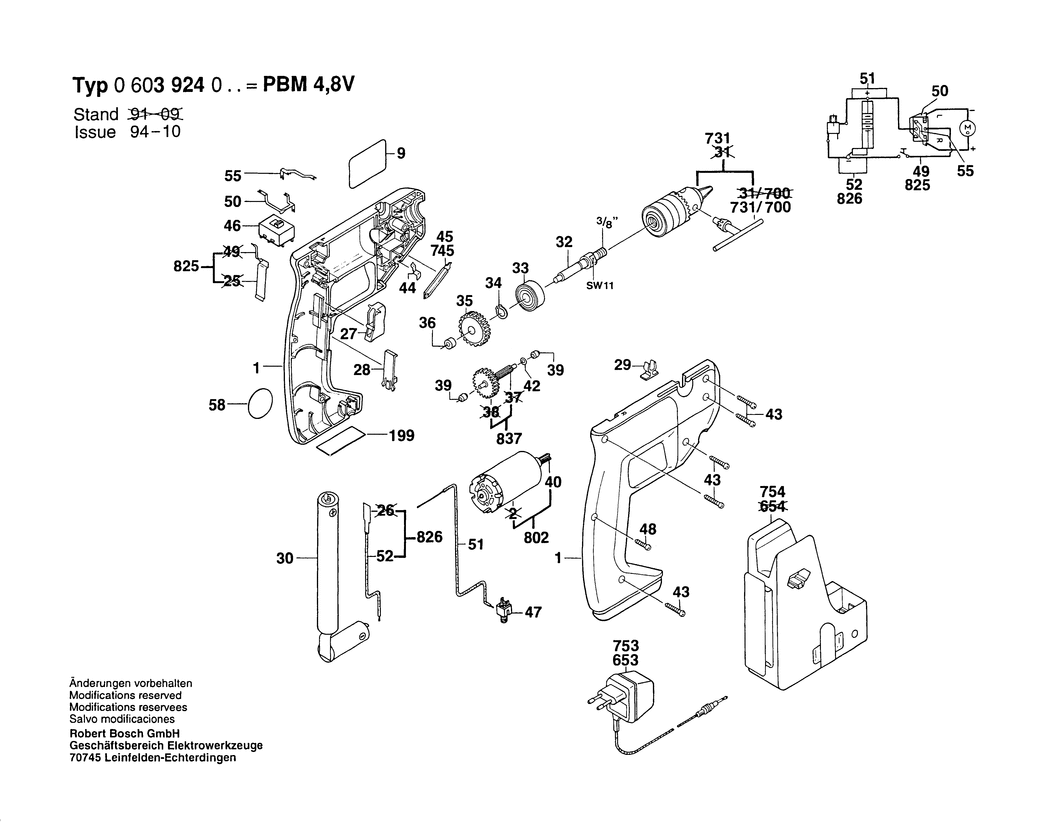

1 - HOUSING SECTION
BSD-2605104253.A10
2605104253
|
-
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118255.A2
2601118255
|
-
|
|
|
27 - CONTROL LEVER
BSD-2603231012.A4
2603231012
|
-
|
|
|
28 - REJECTION SLIDE
BSD-2601099010.A8
2601099010
|
-
|
|
|
29 - KEY HOLDER
BSD-2608040029.A10
2608040029
|
-
|
|
|
30 - ACCUMULATOR BATTERY 4.8V. 1.2Ah. NiCd
BSD-2607335006.A1
2607335006
|
-
|
|
|
32 - DRILLING SPINDLE 3/8. SW 11
BSD-2606135022.A3
2606135022
|
£7.78
|
£9.33
|
|
33 - GROOVE BALL BEARING 10x26x8
BSD-1900905120.A179
1900905120
|
-
|
|
|
34 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A561
2916650001
|
£2.61
|
£3.13
|
|
35 - CYLINDRICAL GEAR Z=64
BSD-2606316114.A7
2606316114
|
-
|
|
|
36 - SINTERED-METAL BUSHING
BSD-2600301011.A405
2600301011
|
£1.75
|
£2.10
|
|
39 - SINTERED-METAL BUSHING
BSD-2600302002.A327
2600302002
|
£1.75
|
£2.10
|
|
40 - PINION Z=11
BSD-2606316112.A97
2606316112
|
£4.26
|
£5.11
|
|
42 - SHIM 0.3 MM
BSD-2600100636.A156
2600100636
|
-
|
|
|
43 - CROSS RECESSED-HEAD SCREW 3x17 MM
BSD-2603435023.A7
2603435023
|
-
|
|
|
44 - HOLDING SPRING
BSD-2601250002.A99
2601250002
|
£1.32
|
£1.58
|
|
46 - CHANGE-OVER SWITCH
BSD-2607200214.A2
2607200214
|
-
|
|
|
47 - SOCKET
BSD-2604483001.A4
2604483001
|
-
|
|
|
48 - TAPPING SCREW DIN7981-ST2.9x13-C-Z
BSD-2912401006.A22
2912401006
|
£1.75
|
£2.10
|
|
50 - BUS BAR
BSD-2601390000.A4
2601390000
|
-
|
|
|
51 - CABLE L=173 MM
BSD-2604413014.A6
2604413014
|
-
|
|
|
55 - BUS BAR
BSD-2601390001.A8
2601390001
|
-
|
|
|
58 - STICKER
BSD-2601110999.A3
2601110999
|
£1.75
|
£2.10
|
|
731 - KEY CHUCK dia1-10 MM. 3/8
BSD-1608571066.A41
1608571066
|
-
|
|
|
731/700 - CHUCK WRENCH SG 1. dia4x60 MM
BSD-1607950042.A70
1607950042
|
£3.49
|
£4.19
|
|
745 - SCREWDRIVER BLADE 6 MM
BSD-1609200147.A61
1609200147
|
£3.72
|
£4.47
|
|
753 - BATTERY CHARGER GB 240/2.4-4.8V. 2h
BSD-2607224160.A0
2607224160
|
-
|
|
|
754 - DRIVE-MACHINE HOLDER
BSD-2608005030.A3
2608005030
|
-
|
|
|
802 - DC MOTOR 4.8V
BSD-2607022905.A2
2607022905
|
-
|
|
|
825 - CONNECTING CABLE
BSD-2604449037.A1
2604449037
|
-
|
|
|
826 - CONNECTING CABLE
BSD-2604449049.A2
2604449049
|
-
|
|
|
837 - TOOTHED SHAFT Z=58/11
BSD-2606100913.A1
2606100913
|
-
|
|
|
899 - CORDLESS DRILL 4.8V
BSD-0603924403.A2
0603924403
|
-
|
|
|
