Bosch PBM 7.2 V / 0603921142 / GB 7.2 Volt Spare Parts

Bosch PBM 7.2 V / 0603921142 / GB 7.2 Volt Spare Parts

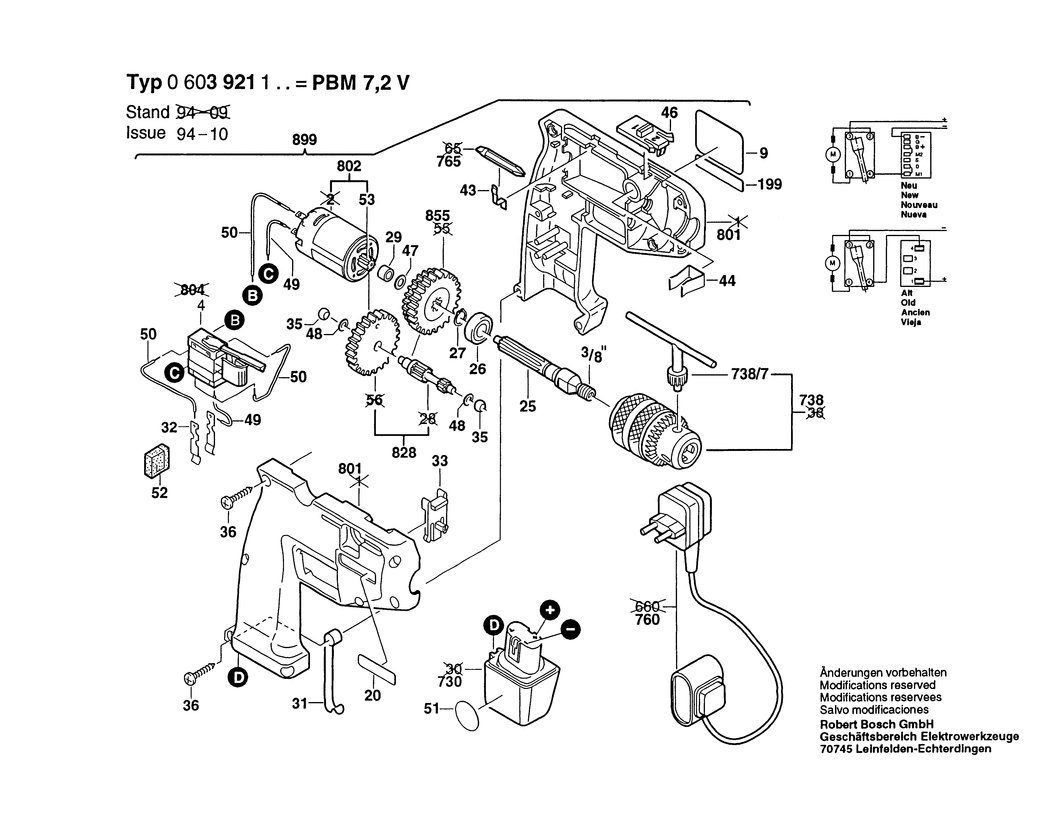

An exploded drawing and listing for the Bosch PBM 7.2 V / 0603921142 / GB 7.2 Volt
Ex VAT Inc VAT
4 - ON-OFF SWITCH BSD-2607200294.A30 2607200294 £14.91 £17.89
9 - MANUFACTURER'S NAMEPLATE BSD-2601110657.A2 2601110657 -
20 - STICKER BSD-2601110606.A95 2601110606 £1.75 £2.10
25 - DRILLING SPINDLE 3/8 BSD-2606135018.A41 2606135018 -
26 - GROOVE BALL BEARING 10x26x8 BSD-1900905120.A190 1900905120 -
27 - SPRING RETAINING RING DIN 471-10x1MM-FSt BSD-2916650001.A570 2916650001 £2.61 £3.13
29 - SINTERED-METAL BUSHING BSD-2600301011.A416 2600301011 £1.75 £2.10
31 - HOLDING SPRING dia8.7 MM BSD-2601251002.A18 2601251002 -
32 - CONTACT SPRING BSD-2601324012.A65 2601324012 £1.75 £2.10
33 - LOCKING LEVER 36.5 MM BSD-2601099026.A91 2601099026 -
35 - SINTERED-METAL BUSHING BSD-2600302002.A316 2600302002 £1.75 £2.10
36 - SCREW 4x16 BSD-2603490022.A400 2603490022 £1.75 £2.10
43 - HOLDING SPRING BSD-2601250002.A107 2601250002 £1.32 £1.58
44 - CLAMP SPRING BSD-2601250003.A55 2601250003 -
46 - ADJUSTING SLIDE BSD-2601099027.A4 2601099027 -
48 - SHIM 0.3 MM BSD-2600100636.A168 2600100636 -
49 - CABLE L=52 MM BSD-2604413005.A1 2604413005 -
50 - CABLE L=79 MM BSD-2604413004.A179 2604413004 -
51 - STICKER BSD-1601110265.A83 1601110265 -
52 - DUST PROTECTION BSD-2601010038.A188 2601010038 -
53 - PINION Z=11 BSD-2606316112.A103 2606316112 £4.26 £5.11
730 - SLIDE-IN ACCU PACKAGE 7.2V. 1.4Ah. NiCd BSD-2607300001.A29 2607300001 -
738 - KEY CHUCK dia1-10 MM. 3/8 BSD-1608571066.A49 1608571066 -
738/7 - CHUCK WRENCH SG1. dia5x80 MM BSD-1607950053.A49 1607950053 £3.49 £4.19
738/7 - CHUCK WRENCH SG 1. dia4x60 MM BSD-1607950042.A55 1607950042 £3.49 £4.19
760 - BATTERY CHARGER EU 220/9.6V. 3h BSD-2607224030.A0 2607224030 -
765 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A53 1609200147 £3.72 £4.47
801 - HOUSING SECTION BSD-2605104998.A8 2605104998 -
802 - DC MOTOR 7.2V BSD-1609340003.A47 1609340003 -
828 - TOOTHED SHAFT Z=10/19/81 BSD-1609340005.A10 1609340005 £16.74 £20.09
855 - SET OF GEARS Z=58/67 BSD-1609340007.A284 1609340007 £14.91 £17.89
899 - CORDLESS SCREW DRIVER 7.2V BSD-0603936703.A8 0603936703 -
