Bosch PSS 9.6 V / 0603923027 / EU 9.6 Volt Spare Parts

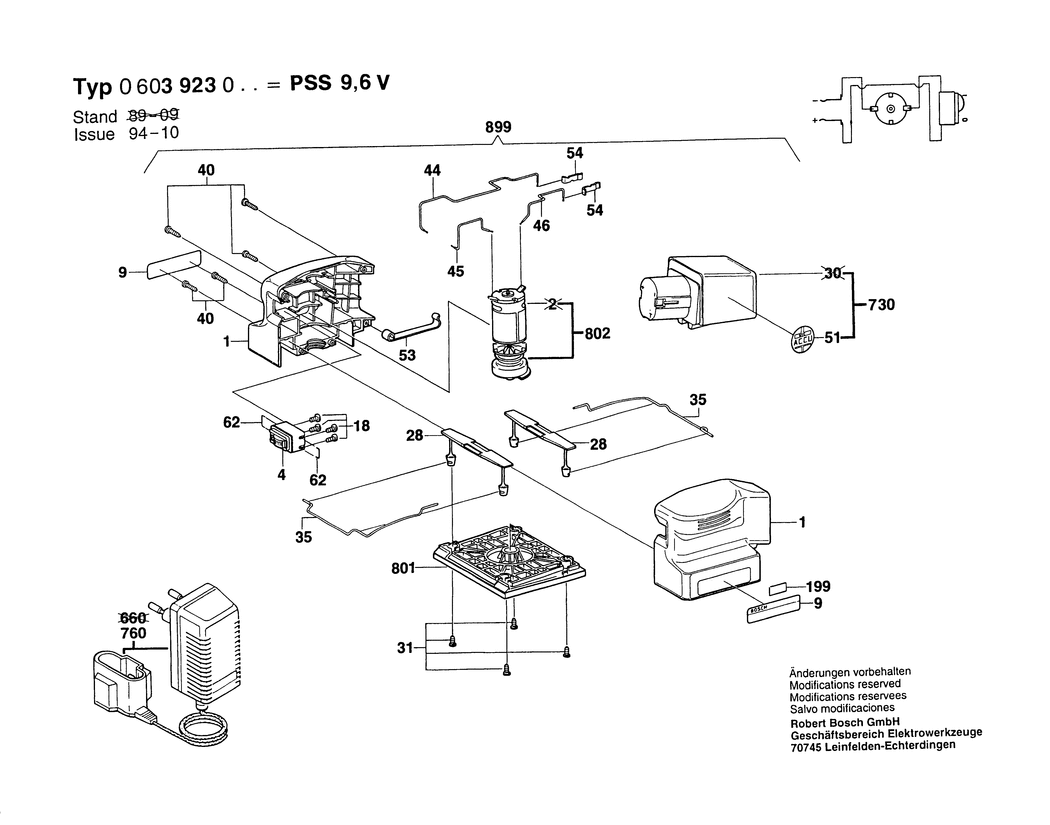

An exploded drawing and listing for the Bosch PSS 9.6 V / 0603923027 / EU 9.6 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104327.A1 2605104327	-
4 - SWITCH BSD-2607200199.A3 2607200199	-
9 - STICKER BSD-2601118005.A0 2601118005	-
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1356 2603410001	£1.75	£2.10
28 - SUPPORT BSD-2608005019.A1 2608005019	-
31 - TAPPING SCREW DIN 7981-B 3.9x9.5 BSD-2910611017.A1 2910611017	-
35 - CLAMPING SADDLE BSD-2608045004.A6 2608045004	-
40 - TAPPING SCREW DIN 7981-ST3.9x16-C-H BSD-2910611019.A263 2910611019	£2.80	£3.36
44 - CABLE BSD-2604413006.A7 2604413006	-
45 - CABLE BSD-2604413007.A0 2604413007	-
46 - CABLE BSD-2604413008.A7 2604413008	-
51 - STICKER BSD-2601110999.A6 2601110999	£1.75	£2.10
53 - HOLDING SPRING dia8.7 MM BSD-2601251003.A23 2601251003	-
54 - CONTACT SPRING BSD-2601324013.A6 2601324013	-
62 - PLUG-IN STRAP BSD-2604425006.A5 2604425006	-
199 - STICKER BSD-1601110265.A98 1601110265	-
700 - SET OF SANDING PAPERS KORN 60 BSD-2607018062.A6 2607018062	-
700 - SET OF SANDING PAPERS KORN 80 BSD-2607018063.A1 2607018063	-
700 - SET OF SANDING PAPERS KORN 120 BSD-2607018064.A6 2607018064	-
700 - SET OF SANDING PAPERS KORN 180 BSD-2607018065.A1 2607018065	-
700 - SET OF SANDING PAPERS KORN 240 BSD-2607018066.A6 2607018066	-
730 - BATTERY SET 9.6V. 1.2Ah. NiCd BSD-2607335012.A6 2607335012	-
760 - FAST CHARGER GB 230/14.4V. 3-5h BSD-2607225013.A2 2607225013	-
801 - BASE PLATE BSD-2608000901.A1 2608000901	-
802 - DC MOTOR 9.6V BSD-2607022900.A6 2607022900	-
899 - . 9.6V BSD-0603923027.A1 0603923027	-
