Bosch PSR 12 VE / 0603937542 / GB 12 Volt Spare Parts

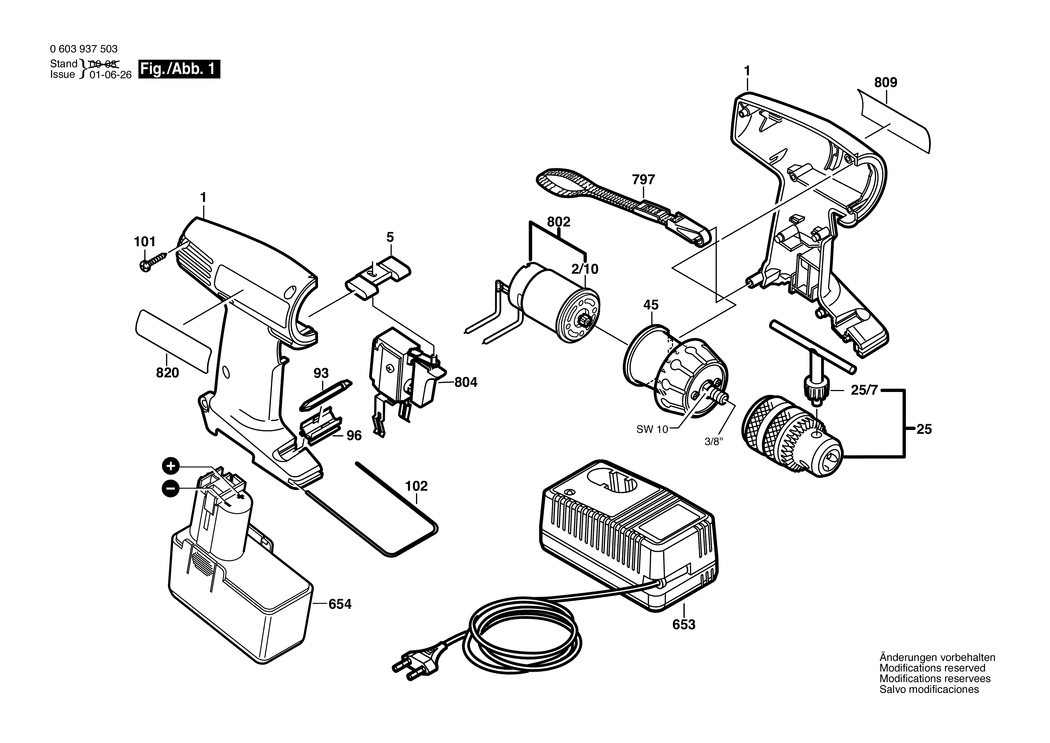

An exploded drawing and listing for the Bosch PSR 12 VE / 0603937542 / GB 12 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104566.A7 2605104566	-
2/10 - PINION Z=9 BSD-2606316164.A15 2606316164	£4.26	£5.11
5 - ADJUSTING SLIDE BSD-2601099055.A117 2601099055	-
25 - KEY CHUCK dia 1-10 MM. 3/8 BSD-1608571047.A23 1608571047	-
25/7 - CHUCK WRENCH SG1. 80 MM BSD-1607950055.A16 1607950055	-
45 - PLANETARY GEAR TRAIN BSD-2606200054.A6 2606200054	-
93 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A297 1609200147	£3.72	£4.47
96 - SUPPORT BSD-2608040079.A6 2608040079	£1.75	£2.10
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A664 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A98 2601329041	£2.33	£2.80
653 - BATTERY CHARGER GB 230/12V. 3h BSD-2607224331.A1 2607224331	-
654 - SLIDE-IN ACCU PACKAGE 12V. 1.5Ah. NiCd BSD-2607336145.A11 2607336145	-
797 - CARRYING LOOP BSD-2601398009.A176 2601398009	-
802 - DC MOTOR 12V BSD-2607022954.A0 2607022954	-
804 - ON-OFF SWITCH BSD-2607200353.A3 2607200353	-
809 - MANUFACTURER'S NAMEPLATE BSD-2601119104.A0 2601119104	-
820 - REFERENCE PLATE BSD-2601119105.A3 2601119105	-
899 - CORDLESS SCREW DRIVER BSD-0603937520.A1 0603937520	-
