Bosch PSR 12 VES-2 / 0603936542 / GB 12 Volt Spare Parts

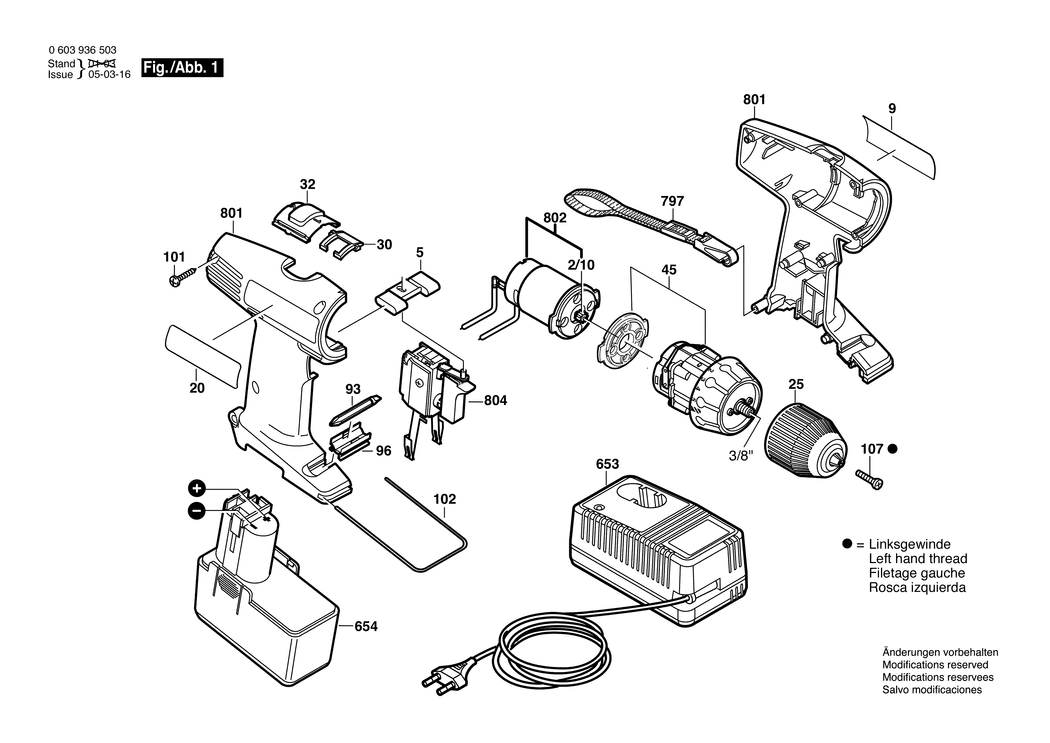

An exploded drawing and listing for the Bosch PSR 12 VES-2 / 0603936542 / GB 12 Volt

	Ex VAT	Inc VAT
2/10 - PINION Z=12 BSD-2606316161.A12 2606316161	-
5 - ADJUSTING SLIDE BSD-2601099055.A103 2601099055	-
9 - MANUFACTURER'S NAMEPLATE BSD-2601118833.A4 2601118833	-
20 - REFERENCE PLATE BSD-2601118834.A0 2601118834	-
25 - KEYLESS CHUCK BSD-2608572214.A9 2608572214	£45.67	£54.80
30 - CONTROL LEVER BSD-2602033008.A23 2602033008	-
32 - ADJUSTING SLIDE BSD-2601099060.A7 2601099060	£1.75	£2.10
45 - PLANETARY GEAR TRAIN BSD-2606200047.A10 2606200047	-
93 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A316 1609200147	£3.72	£4.47
96 - SUPPORT BSD-2608040079.A21 2608040079	£1.75	£2.10
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A649 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A90 2601329041	£2.33	£2.80
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A35 2609110721	£2.16	£2.59
653 - FAST CHARGER GB 230/7.2-14.4V. 1h BSD-2607224393.A8 2607224393	-
654 - SLIDE-IN ACCU PACKAGE 12V.1.4Ah.NiCd BSD-2607335054.A1 2607335054	£61.98	£74.38
797 - CARRYING LOOP BSD-2601398009.A185 2601398009	-
801 - HOUSING SECTION BSD-2605104511.A1 2605104511	-
802 - DC MOTOR 7.2-12V BSD-2607022941.A1 2607022941	-
804 - ON-OFF SWITCH BSD-2607200353.A9 2607200353	-
899 - CORDLESS SCREW DRIVER BSD-0603936520.A1 0603936520	-
