Bosch PSR 14.4 VES 2 / 0603936442 / GB 14.4 Volt Spare Parts

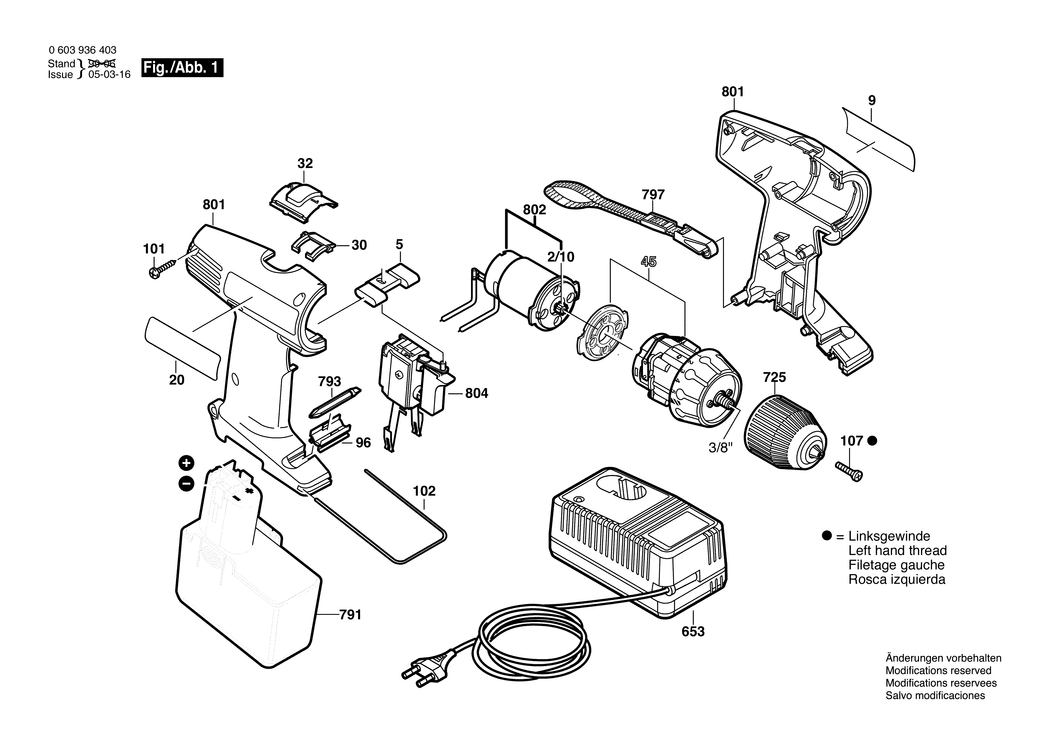

An exploded drawing and listing for the Bosch PSR 14.4 VES 2 / 0603936442 / GB 14.4 Volt

	Ex VAT	Inc VAT
2/10 - PINION Z=12 BSD-2606316161.A5 2606316161	-
5 - ADJUSTING SLIDE BSD-2601099055.A98 2601099055	-
9 - MANUFACTURER'S NAMEPLATE BSD-2601119156.A2 2601119156	-
20 - REFERENCE PLATE BSD-2601119157.A2 2601119157	-
30 - CONTROL LEVER BSD-2602033008.A17 2602033008	-
32 - ADJUSTING SLIDE BSD-2601099060.A2 2601099060	£1.75	£2.10
45 - PLANETARY GEAR TRAIN BSD-2606200047.A6 2606200047	-
96 - SUPPORT BSD-2608040079.A18 2608040079	£1.75	£2.10
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A644 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A84 2601329041	£2.33	£2.80
107 - COUNTERSUNK-HEAD SCREW M5x20 BSD-2609110721.A42 2609110721	£2.16	£2.59
653 - FAST CHARGER GB 230/7.2-24V. 1h BSD-2607224427.A244 2607224427	£103.14	£123.77
653 - FAST CHARGER GB 230/7.2-14.4V. 30 MIN. BSD-2607224703.A121 2607224703	£116.15	£139.38
725 - KEYLESS CHUCK BSD-2608572214.A1 2608572214	£45.67	£54.80
791 - SLIDE-IN ACCU PACKAGE 14.4V.1.4Ah.NiCd BSD-2607335160.A1 2607335160	-
793 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A312 1609200147	£3.72	£4.47
797 - CARRYING LOOP BSD-2601398009.A191 2601398009	-
801 - HOUSING SECTION BSD-2605104577.A3 2605104577	-
802 - DC MOTOR 14.4V BSD-2607022953.A4 2607022953	-
804 - ON-OFF SWITCH BSD-2607200353.A4 2607200353	-
899 - CORDLESS SCREW DRIVER BSD-0603936420.A1 0603936420	-
