Bosch PSR 18 VE-2 / 0603940320 / EU 18 Volt Spare Parts

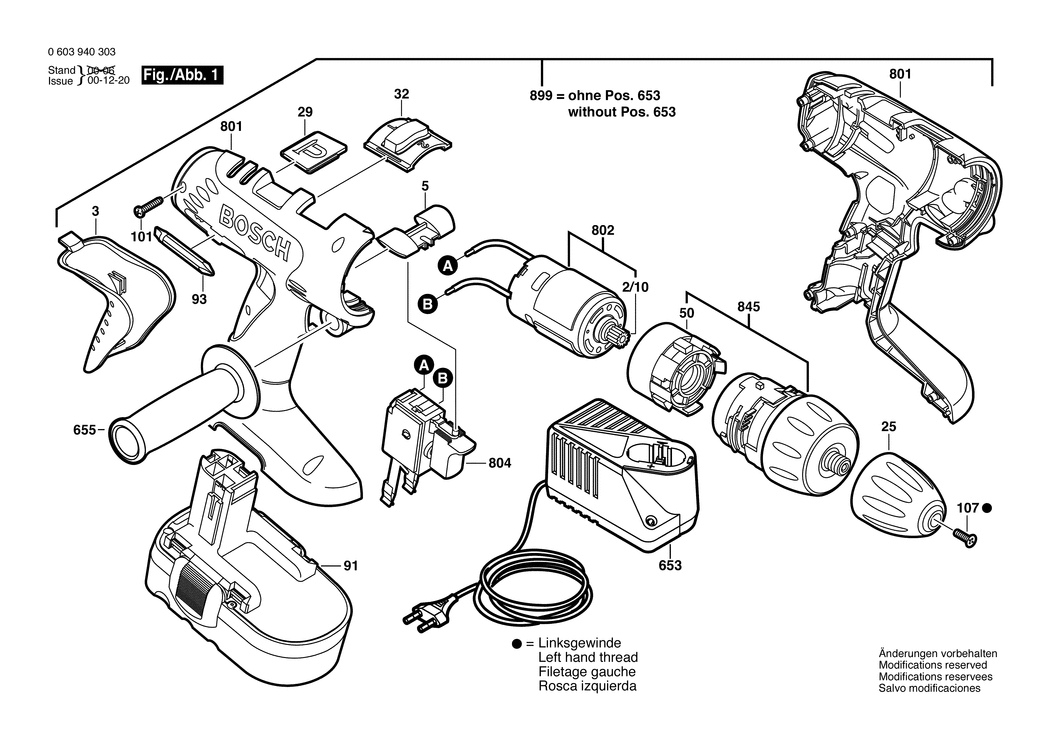

An exploded drawing and listing for the Bosch PSR 18 VE-2 / 0603940320 / EU 18 Volt

	Ex VAT	Inc VAT
2/10 - PINION BSD-2606316196.A3 2606316196	-
3 - HANDLE COVER BSD-2608040154.A1 2608040154	£3.34	£4.01
5 - ADJUSTING SLIDE BSD-2601099096.A0 2601099096	£2.16	£2.59
25 - KEYLESS CHUCK BSD-2608572225.A8 2608572225	£37.72	£45.27
29 - MAGNET DISK BSD-2600290043.A0 2600290043	-
32 - ADJUSTING SLIDE BSD-2601099098.A16 2601099098	£1.75	£2.10
50 - INTERMEDIATE FLANGE BSD-2605719027.A5 2605719027	£2.61	£3.13
91 - SLIDE-IN ACCU PACKAGE 18V. 1.25Ah. NiCd BSD-2607335277.A6 2607335277	-
93 - SCREWDRIVER BLADE 6 MM BSD-1609200147.A342 1609200147	£3.72	£4.47
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A689 2603490018	£1.75	£2.10
107 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A302 2603421229	£1.75	£2.10
653 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A22 2607224425	£88.07	£105.68
655 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A189 160202509T	£3.72	£4.47
801 - HOUSING SECTION BSD-2605104812.A0 2605104812	-
802 - DC MOTOR 18V BSD-2607022989.A1 2607022989	-
804 - ON-OFF SWITCH BSD-2607200483.A1 2607200483	£41.62	£49.95
845 - PLANETARY GEAR TRAIN BSD-2606200920.A7 2606200920	-
899 - CORDLESS SCREW DRIVER 18V BSD-0603940320.A1 0603940320	-

Attribute Name	Value
Brand	Bosch
