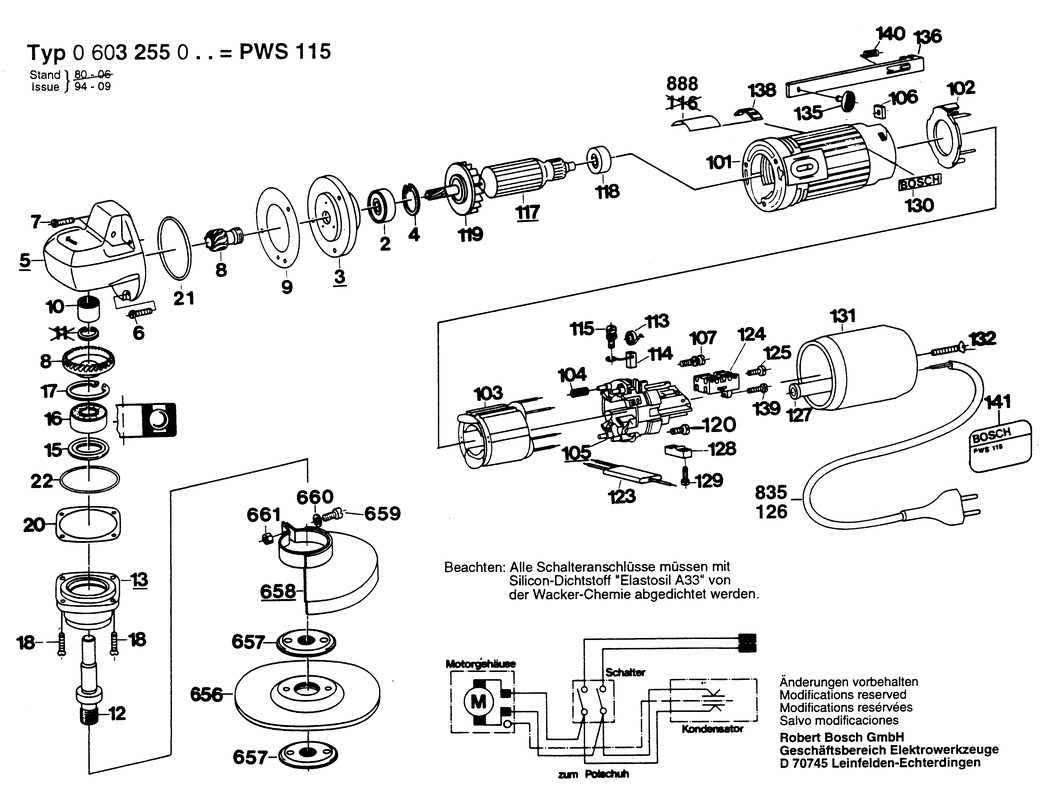

2 - GROOVE BALL BEARING 10 MM DIN 625
BSD-2600905007.A1
2600905007
|
-
|
|
|
|
3 - FLANGED BEARING
BSD-2605700918.A4
2605700918
|
-
|
|
|
|
4 - SPRING RETAINING RING DIN 472-26x1.2 MM
BSD-2916660010.A108
2916660010
|
£1.75
|
£2.10
|
|
|
5 - GEAR HOUSING
BSD-2605806968.A1
2605806968
|
-
|
|
|
|
6 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A349
2910021122
|
£2.16
|
£2.59
|
|
|
7 - SOCKET HEAD CAP SCREW DIN 84-AM4x16-8.8
BSD-2910021126.A68
2910021126
|
£1.75
|
£2.10
|
|
|
8 - SET OF GEARS
BSD-2607016015.A9
2607016015
|
-
|
|
|
|
9 - SHIM 0.1 MM
BSD-2600134002.A11
2600134002
|
-
|
|
|
|
10 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A298
2600910001
|
£4.26
|
£5.11
|
|
|
12 - STUD BOLT M14
BSD-1603523065.A1
1603523065
|
-
|
|
|
|
13 - FLANGED BEARING
BSD-2605820900.A1
2605820900
|
-
|
|
|
|
15 - CUPPED WASHER
BSD-2600500033.A39
2600500033
|
£2.61
|
£3.13
|
|
|
16 - GROOVE BALL BEARING 12x32x10
BSD-1600905006.A220
1600905006
|
£12.04
|
£14.45
|
|
|
17 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A596
2916660013
|
£2.16
|
£2.59
|
|
|
18 - COUNTERSUNK-HEAD SCREW DIN 63-AM 4x15-5.8
BSD-2910501125.A36
2910501125
|
-
|
|
|
|
20 - SHIM 0.1 MM
BSD-2600136002.A62
2600136002
|
-
|
|
|
|
20 - SHIM 0.2 MM
BSD-2600136003.A3
2600136003
|
-
|
|
|
|
21 - O-RING 40.0x1.5 MM
BSD-2600210003.A33
2600210003
|
£2.61
|
£3.13
|
|
|
22 - O-RING 45.7x1.5 MM
BSD-2600210002.A12
2600210002
|
-
|
|
|
|
101 - HOUSING SECTION
BSD-2605108903.A4
2605108903
|
-
|
|
|
|
101 - MOTOR HOUSING
BSD-2605108902.A14
2605108902
|
-
|
|
|
|
102 - COVER DISC
BSD-2600522009.A63
2600522009
|
-
|
|
|
|
103 - FIELD 115V
BSD-2604220379.A1
2604220379
|
-
|
|
|
|
104 - COMPRESSION SPRING
BSD-2604611024.A51
2604611024
|
£2.16
|
£2.59
|
|
|
105 - COMMUTATOR END SHIELD
BSD-2605808910.A24
2605808910
|
-
|
|
|
|
106 - SQUARE NUT M4
BSD-2603320001.A174
2603320001
|
£1.75
|
£2.10
|
|
|
107 - LENS HEAD SCREW 3x10 ST
BSD-1613435034.A551
1613435034
|
£1.75
|
£2.10
|
|
|
113 - SPIRAL SPRING
BSD-2604652000.A244
2604652000
|
-
|
|
|
|
114 - CARBON-BRUSH SET
BSD-2604320902.A107
2604320902
|
-
|
|
|
|
115 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8
BSD-2914501011.A3
2914501011
|
£1.75
|
£2.10
|
|
|
117 - ARMATURE WITH FAN 220-230V
BSD-2604010549.A1
2604010549
|
-
|
|
|
|
118 - GROOVE BALL BEARING 6x19x6
BSD-1900905019.A276
1900905019
|
£14.91
|
£17.89
|
|
|
119 - FAN
BSD-2606610016.A25
2606610016
|
-
|
|
|
|
120 - TAPPING SCREW 2.2x6.5
BSD-2603435016.A4
2603435016
|
-
|
|
|
|
123 - SUPPRESSION CAPACITOR
BSD-2607329076.A14
2607329076
|
-
|
|
|
|
124 - SWITCH
BSD-2607200674.A204
2607200674
|
£16.41
|
£19.69
|
|
|
125 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1683
2603410001
|
£1.75
|
£2.10
|
|
|
126 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F
BSD-1604460427.A71
1604460427
|
£12.04
|
£14.45
|
|
|
127 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A460
2600703012
|
£2.80
|
£3.36
|
|
|
127 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A685
2600703013
|
£2.61
|
£3.13
|
|
|
127 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A729
2600703011
|
£2.80
|
£3.36
|
|
|
128 - CABLE CLIP
BSD-2601035001.A2170
2601035001
|
£1.75
|
£2.10
|
|
|
129 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1036
2910211019
|
£1.75
|
£2.10
|
|
|
130 - MANUFACTURER'S NAMEPLATE
BSD-1601110013.A270
1601110013
|
-
|
|
|
|
131 - HOUSING COVER
BSD-2600508034.A4
2600508034
|
-
|
|
|
|
131 - HOUSING COVER
BSD-2600508001.A1
2600508001
|
-
|
|
|
|
132 - REC CT-SUNK TAPPING SCREW BZ 3.9x19 DIN 7972
BSD-2910601020.A12
2910601020
|
-
|
|
|
|
135 - SWITCH HANDLE
BSD-2602026015.A68
2602026015
|
£1.75
|
£2.10
|
|
|
136 - ADJUSTING SLIDE
BSD-2602319004.A14
2602319004
|
-
|
|
|
|
138 - INTERMEDIATE PIECE
BSD-2600026002.A5
2600026002
|
-
|
|
|
|
138 - INTERMEDIATE PIECE
BSD-1600026000.A62
1600026000
|
£1.75
|
£2.10
|
|
|
139 - TAPPING SCREW DIN 7971-ST2.9x9.5-F
BSD-2910211005.A189
2910211005
|
£1.75
|
£2.10
|
|
|
141 - STICKER
BSD-2601110232.A1
2601110232
|
-
|
|
|
|
651 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A126
1907950007
|
£5.30
|
£6.36
|
|
|
657 - ROUND NUT
BSD-2603340013.A0
2603340013
|
-
|
|
|
|
658 - PROTECTIVE COVER dia 120 MM
BSD-2605510002.A10
2605510002
|
-
|
|
|
|
659 - SOCKET HEAD CAP SCREW DIN 84-AM5x10-5.8
BSD-2910011152.A4
2910011152
|
£1.75
|
£2.10
|
|
|
660 - PLAIN WASHER DIN 433-5.3-ST
BSD-2916011011.A3
2916011011
|
£1.75
|
£2.10
|
|
|
661 - HEX NUT DIN 934-M 5-m-8
BSD-2915011006.A149
2915011006
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4466
160111A3H3
|
£2.61
|
£3.13
|
|
