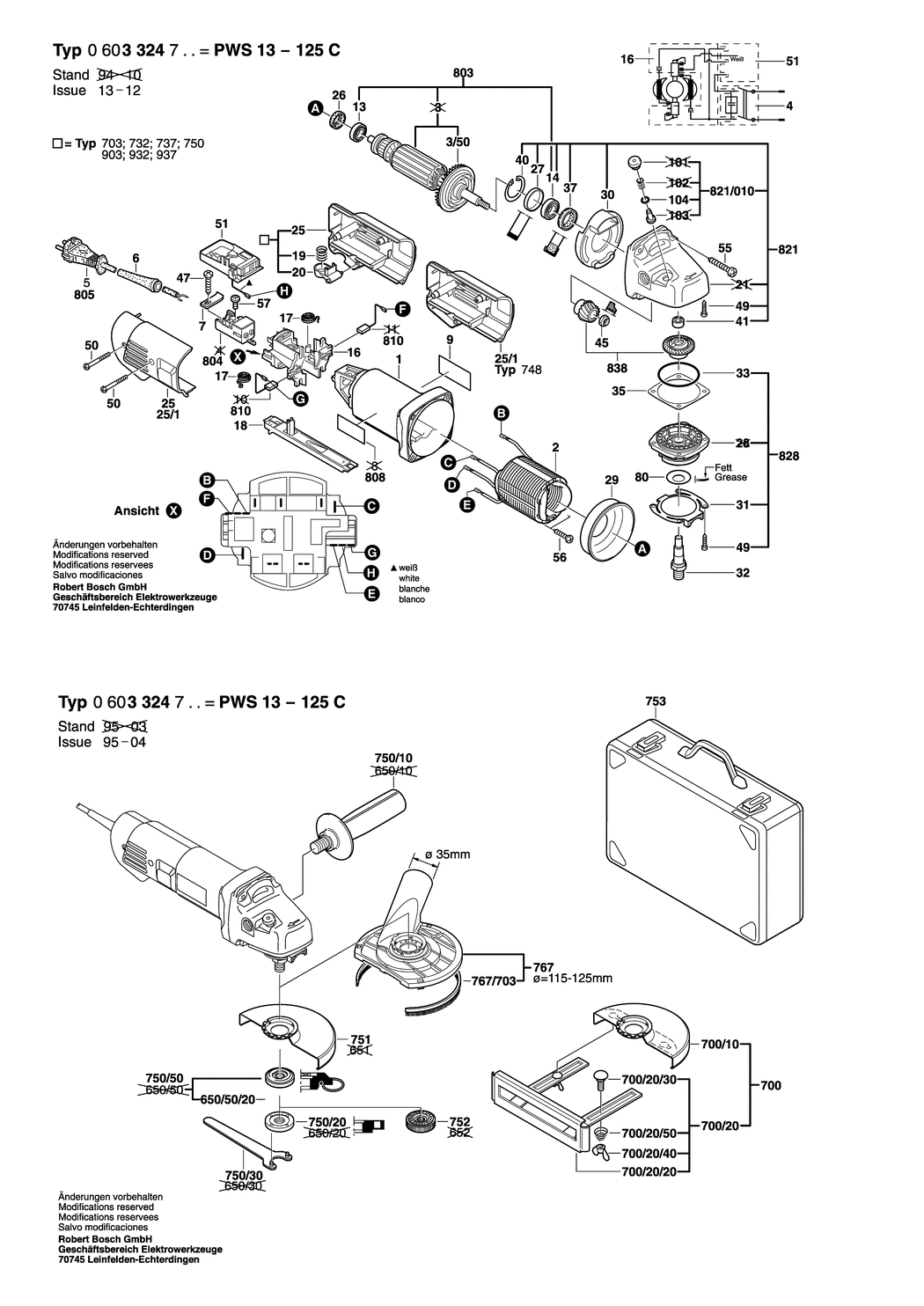

1 - MOTOR HOUSING
BSD-1605108169.A8
1605108169
|
-
|
|
|
|
2 - FIELD 220-230V
BSD-1604220284.A2
1604220284
|
£30.28
|
£36.33
|
|
|
3/50 - FAN
BSD-1606610132.A265
1606610132
|
£2.16
|
£2.59
|
|
|
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05VV-F
BSD-1604460430.A12
1604460430
|
£12.04
|
£14.45
|
|
|
6 - GROMMET dia6.4-dia7.2x67 MM
BSD-1600703030.A48
1600703030
|
£2.61
|
£3.13
|
|
|
6 - GROMMET dia7.3-dia8.6x67 MM
BSD-1600703031.A94
1600703031
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia8.7-dia9.5x67 MM
BSD-1600703032.A19
1600703032
|
£2.61
|
£3.13
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A4
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118127.A2
1601118127
|
-
|
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1504
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A639
1600905011
|
£5.58
|
£6.70
|
|
|
16 - BRUSH HOLDER
BSD-1604336031.A9
1604336031
|
-
|
|
|
|
17 - SPIRAL SPRING
BSD-1604652013.A253
1604652013
|
£1.75
|
£2.10
|
|
|
18 - SWITCH-PAWL
BSD-1602319013.A60
1602319013
|
£8.49
|
£10.19
|
|
|
19 - COMPRESSION SPRING
BSD-1604611024.A13
1604611024
|
£1.75
|
£2.10
|
|
|
20 - SHIFT-LEVER KNOB
BSD-1602319007.A67
1602319007
|
£1.75
|
£2.10
|
|
|
25 - HOUSING COVER
BSD-1605500184.A1
1605500184
|
-
|
|
|
|
25 - HOUSING COVER
BSD-1605500179.A8
1605500179
|
-
|
|
|
|
26 - RUBBER RING
BSD-1600206036.A357
1600206036
|
£1.75
|
£2.10
|
|
|
27 - RUBBER RING
BSD-1600206025.A274
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600591013.A50
1600591013
|
-
|
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591014.A81
1600591014
|
£2.61
|
£3.13
|
|
|
31 - CLAMPING SPRING
BSD-1601290007.A116
1601290007
|
£5.30
|
£6.36
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A756
1607000D6A
|
£7.36
|
£8.83
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-1600210035.A308
1600210035
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.1 MM
BSD-1600136013.A179
1600136013
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.15 MM
BSD-1600136020.A424
1600136020
|
£3.72
|
£4.47
|
|
|
35 - SHIM 0.2 MM
BSD-1600136014.A341
1600136014
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.3 MM
BSD-1600136015.A179
1600136015
|
£2.61
|
£3.13
|
|
|
37 - ROTARY SHAFT LIP SEAL
BSD-1600290016.A545
1600290016
|
£2.61
|
£3.13
|
|
|
40 - RETAINING CLIP
BSD-1600119011.A146
1600119011
|
£2.16
|
£2.59
|
|
|
41 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A95
1600910018
|
£5.30
|
£6.36
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A664
1603300016
|
£1.75
|
£2.10
|
|
|
47 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A662
1603435042
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW
BSD-1603435026.A199
1603435026
|
£2.16
|
£2.59
|
|
|
50 - PLASTIC-CUTTING SCREW
BSD-1603435037.A37
1603435037
|
£1.75
|
£2.10
|
|
|
51 - SPEED GOVERNOR 230V
BSD-1607233061.A2
1607233061
|
-
|
|
|
|
51 - SPEED GOVERNOR 230V
BSD-1607233056.A2
1607233056
|
-
|
|
|
|
55 - TAPPING SCREW DIN 7981-ST3.9x25-C-Z
BSD-2912401022.A11
2912401022
|
£1.75
|
£2.10
|
|
|
56 - PLASTIC-CUTTING SCREW
BSD-1603435044.A0
1603435044
|
-
|
|
|
|
57 - SOCKET HEAD CAP SCREW M3.5x7 MM
BSD-1603429002.A78
1603429002
|
£1.75
|
£2.10
|
|
|
80 - SEALING DISK
BSD-3600150021.A400
3600150021
|
£3.80
|
£4.56
|
|
|
104 - O-RING 4.5x1.0 MM
BSD-1600210044.A517
1600210044
|
£1.75
|
£2.10
|
|
|
650/50/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A1149
1600210039
|
£2.16
|
£2.59
|
|
|
700 - PARTS SET dia 125 MM
BSD-2607001188.A59
2607001188
|
-
|
|
|
|
700/10 - PROTECTIVE COVER dia 125MM
BSD-2605510101.A32
2605510101
|
£22.22
|
£26.67
|
|
|
700/20 - GUIDE BLOCK
BSD-1608135004.A166
1608135004
|
-
|
|
|
|
700/20/30 - ROUND-HEAD BOLT DIN 603-M 5x16
BSD-2910281158.A146
2910281158
|
-
|
|
|
|
700/20/40 - WING NUT M 5 DIN 315-G-5
BSD-2915191105.A88
2915191105
|
-
|
|
|
|
700/20/50 - COMPRESSION SPRING
BSD-1604643004.A158
1604643004
|
-
|
|
|
|
750/10 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A52
160202509T
|
£3.72
|
£4.47
|
|
|
750/20 - CLAMPING NUT M14
BSD-1603340040.A249
1603340040
|
£6.20
|
£7.44
|
|
|
750/30 - PIN-TYPE FACE-WRENCH
BSD-1607950043.A71
1607950043
|
£4.02
|
£4.83
|
|
|
750/50 - CLAMPING-FLANGE dia22.2x42 MM
BSD-1605703099.A3
1605703099
|
£7.45
|
£8.94
|
|
|
751 - PROTECTIVE COVER dia 125MM
BSD-2605510104.A64
2605510104
|
-
|
|
|
|
752 - FAST LOCKING FLANGE M14
BSD-1603340031.A25
1603340031
|
£20.12
|
£24.14
|
|
|
753 - CARRYING CASE
BSD-1605438089.A12
1605438089
|
-
|
|
|
|
767 - SUCTION HOOD dia115-125MM
BSD-2605510107.A44
2605510107
|
-
|
|
|
|
767/703 - BRUSH
BSD-2605730036.A69
2605730036
|
£21.53
|
£25.84
|
|
|
803 - ARMATURE WITH FAN 220-230V
BSD-1604010445.A3
1604010445
|
-
|
|
|
|
804 - SWITCH
BSD-1607200115.A101
1607200115
|
-
|
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A3376
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014176.A103
1607014176
|
£13.12
|
£15.75
|
|
|
821 - GEAR HOUSING
BSD-1605806451.A81
1605806451
|
£37.27
|
£44.72
|
|
|
821/010 - PUSH-BUTTON
BSD-1607000253.A329
1607000253
|
£2.49
|
£2.99
|
|
|
828 - BEARING FLANGE
BSD-1605805079.A69
1605805079
|
£18.96
|
£22.75
|
|
|
838 - GEAR UNIT
BSD-1607000D4Y.A106
1607000D4Y
|
£21.42
|
£25.71
|
|
