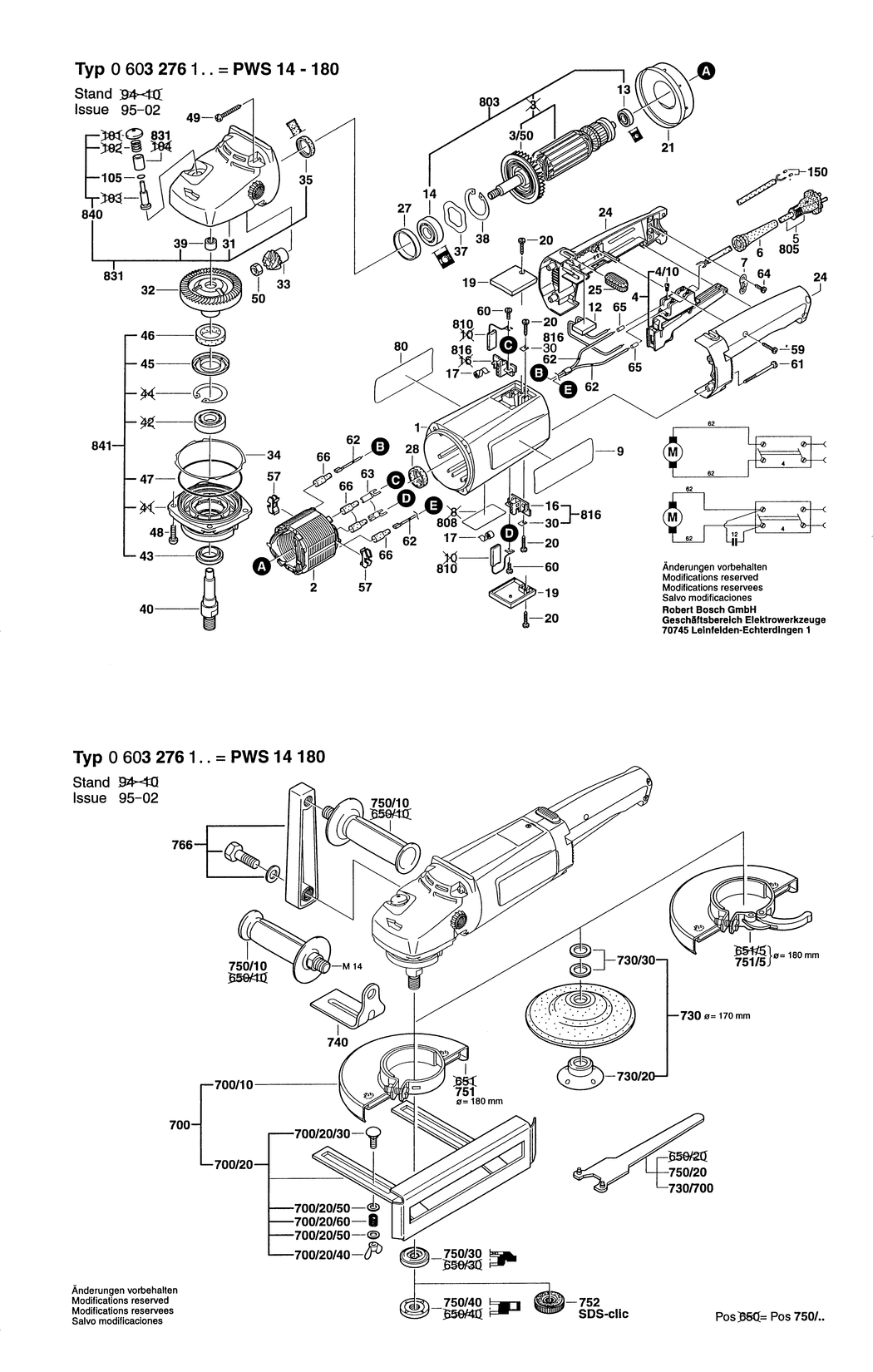

An exploded drawing and listing for the Bosch PWS 14-180 / 0603276142 / GB 240 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605108138.A4 3605108138 -
2 - FIELD 220-230V BSD-1604220354.A12 1604220354 £33.74 £40.49
3/50 - FAN BSD-1606610126.A13 1606610126 £7.36 £8.83
4 - SWITCH BSD-1607200074.A23 1607200074 £31.64 £37.97
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H07 RN-F BSD-1604460144.A40 1604460144 £37.27 £44.72
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A1295 3600703011 £2.80 £3.36
7 - FASTENING CLAMP BSD-1601302014.A658 1601302014 £2.61 £3.13
9 - MANUFACTURER'S NAMEPLATE BSD-3601110230.A4 3601110230 -
12 - SUPPRESSION FILTER BSD-1607328034.A356 1607328034 £4.26 £5.11
13 - BALL BEARING 7x19x6 BSD-2600905032.A1194 2600905032 £5.30 £6.36
14 - GROOVE BALL BEARING 9x26x8 BSD-3600905131.A88 3600905131 £11.30 £13.56
17 - SPIRAL SPRING BSD-1604652006.A3 1604652006 £1.75 £2.10
19 - SEALING CAP BSD-1605500109.A17 1605500109 -
20 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A2188 2910211019 £1.75 £2.10
21 - AIR-DEFLECTOR RING BSD-3600421002.A0 3600421002 £2.52 £3.02
24 - HANDLE BSD-1605132126.A4 1605132126 -
25 - STORAGE LEDGE BSD-1602388028.A13 1602388028 -
27 - INTERMEDIATE RING BSD-1600206026.A20 1600206026 £1.75 £2.10
28 - INTERMEDIATE RING BSD-1600502011.A143 1600502011 £2.61 £3.13
30 - TAB WASHER BSD-1601030022.A127 1601030022 £1.75 £2.10
32 - CROWN GEAR Z=53 BSD-3606333054.A0 3606333054 -
33 - BEVEL GEAR Z=12 BSD-3606333055.A4 3606333055 -
34 - SHIM 0.15 MM BSD-1600190020.A694 1600190020 £1.75 £2.10
34 - SHIM 0.3 MM BSD-1600190021.A133 1600190021 £2.61 £3.13
34 - SHIM 0.1 MM BSD-1600190022.A694 1600190022 £1.75 £2.10
35 - ROTARY SHAFT LIP SEAL BSD-1600290018.A2 1600290018 £4.26 £5.11
37 - SPRING WASHER BSD-1600150026.A13 1600150026 £2.80 £3.36
38 - SPRING RETAINING RING BSD-1600119009.A23 1600119009 £1.75 £2.10
39 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A690 2600910001 £4.26 £5.11
40 - GRINDING SPINDLE M14. SW17 BSD-1603523100.A92 1603523100 £14.91 £17.89
43 - SEAL RING BSD-1600290036.A46 1600290036 £2.16 £2.59
45 - RETAINING SNAP RING BSD-1600290019.A3 1600290019 £1.75 £2.10
46 - FELT WASHER BSD-1600205034.A622 1600205034 £1.75 £2.10
47 - O-RING 79.0x1.78 MM BSD-1600210033.A170 1600210033 £1.75 £2.10
48 - THREAD-FORMING TAP. SCREW TT M5x18 MM BSD-1603435023.A218 1603435023 £2.16 £2.59
49 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A575 2912401038 £1.75 £2.10
50 - HEX NUT BSD-1603300017.A19 1603300017 -
57 - WIRE GUIDE BSD-1601025001.A49 1601025001 £1.75 £2.10
59 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A949 2910211021 £1.75 £2.10
60 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1690 2910021118 £1.75 £2.10
61 - TAPPING SCREW DIN 7971-ST4.8x38-F BSD-2910211038.A115 2910211038 £1.75 £2.10
62 - CONNECTING CABLE L=235 MM BSD-3604438000.A10 3604438000 -
63 - BLADE TERMINAL BSD-1604477001.A127 1604477001 £1.75 £2.10
64 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A137 2910211018 £1.75 £2.10
65 - END SPLICE DIN 46 228-A2.5-7 BSD-1900452003.A147 1900452003 £2.61 £3.13
66 - SHRINKABLE TUBE BSD-3600707005.A10 3600707005 £3.72 £4.47
80 - REFERENCE PLATE BSD-3601110232.A0 3601110232 -
105 - O-RING 4.0x1.0 MM BSD-1600210034.A144 1600210034 £1.75 £2.10
650/30/20 - O-RING 20.35x1.78 MM BSD-1600210039.A976 1600210039 £2.16 £2.59
700 - PARTS SET dia180 MM BSD-1607000250.A38 1607000250 -
700/10 - PROTECTIVE COVER dia180 MM BSD-1605510222.A84 1605510222 -
700/20 - GUIDE BLOCK BSD-1608135003.A200 1608135003 -
700/20/30 - ROUND-HEAD BOLT DIN 603-M 8x25 BSD-2910281244.A229 2910281244 -
700/20/40 - WING NUT DIN 315-M8-GT-C BSD-2915191007.A135 2915191007 £3.72 £4.47
700/20/50 - PLAIN WASHER DIN 315-M8-GT-C BSD-2600100041.A39 2600100041 £1.75 £2.10
700/20/60 - COMPRESSION SPRING BSD-1604643003.A113 1604643003 £6.52 £7.83
730 - BACKING PAD dia180 MM BSD-1608601006.A81 1608601006 -
730/20 - ROUND NUT M14 BSD-1603345004.A147 1603345004 £7.87 £9.44
730/30 - PLAIN WASHER DIN 125-A15-ST BSD-2916011022.A129 2916011022 £1.75 £2.10
730/700 - PIN-TYPE FACE-WRENCH BSD-1607950048.A129 1607950048 £4.88 £5.86
750/10 - AUXILIARY HANDLE M14x1.5 MM BSD-2602025075.A21 2602025075 £10.30 £12.36
750/20 - PIN-TYPE FACE-WRENCH BSD-1607950048.A128 1607950048 £4.88 £5.86
750/30 - CLAMPING-FLANGE dia22.2x42 MM BSD-1605703099.A303 1605703099 £7.45 £8.94
750/40 - CLAMPING NUT M14 BSD-1603340040.A6 1603340040 £6.20 £7.44
751 - PROTECTIVE COVER dia180 MM BSD-1605510176.A31 1605510176 -
751 - PROTECTIVE COVER dia180 MM BSD-1605510222.A83 1605510222 -
752 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A866 1603340027 £46.82 £56.18
766 - PARTS SET BSD-2607001190.A6 2607001190 -
803 - ARMATURE 240V BSD-3607031328.A0 3607031328 -
808 - NAMEPLATE BSD-160111A3H3.A2549 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014106.A1 1607014106 £18.96 £22.75
816 - BRUSH HOLDER BSD-3604336012.A14 3604336012 £5.58 £6.70
831 - PARTS SET BSD-3607000077.A0 3607000077 -
840 - PUSH-BUTTON BSD-1607000206.A123 1607000206 £11.30 £13.56
841 - BEARING FLANGE dia180 MM BSD-1607000986.A51 1607000986 -
842 - GROOVE BALL BEARING BSD-3600905134.A81 3600905134 £11.30 £13.56
844 - RETAINING CLIP BSD-1600119010.A0 1600119010 £1.75 £2.10
