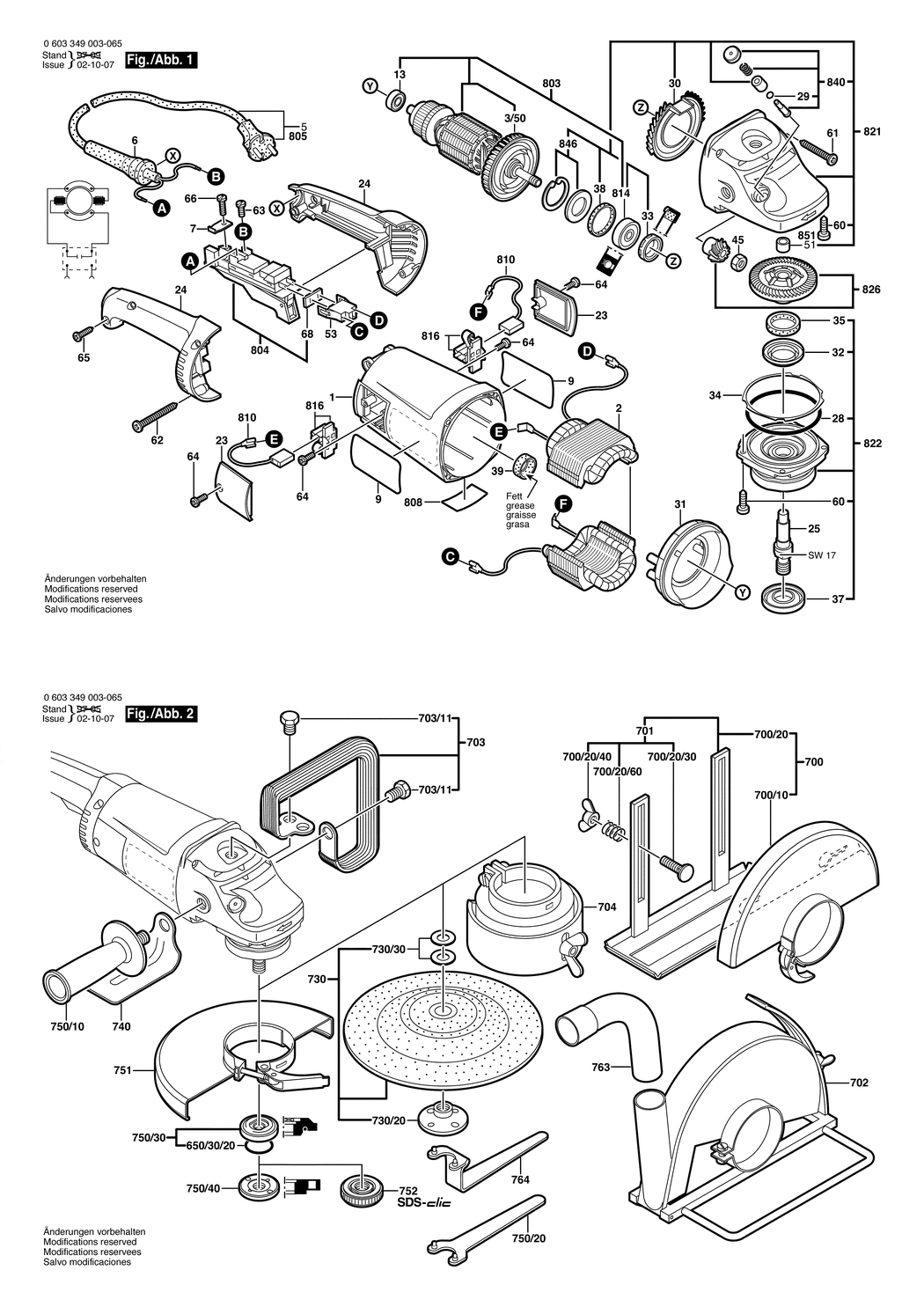

An exploded drawing and listing for the Bosch PWS 20-230 / 0603349042 / GB 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108196.A1 1605108196 -
2 - FIELD 220-240V BSD-1604220380.A24 1604220380 £33.74 £40.49
3/50 - FAN BSD-1600A00J93.A83 1600A00J93 £2.80 £3.36
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H07 RN-F BSD-1604460144.A41 1604460144 £37.27 £44.72
6 - GROMMET dia 10.5-dia11.0x100 MM BSD-1600703023.A370 1600703023 £2.61 £3.13
7 - FASTENING CLAMP BSD-1601302018.A0 1601302018 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118699.A1 1601118699 -
13 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A156 1600905011 £5.58 £6.70
23 - SEALING CAP BSD-1605500208.A2 1605500208 £2.61 £3.13
24 - HANDLE BSD-1605132132.A6 1605132132 -
25 - GRINDING SPINDLE BSD-160312305U.A266 160312305U £13.12 £15.75
28 - O-RING 79.0x1.78 MM BSD-1600210033.A135 1600210033 £1.75 £2.10
29 - O-RING 4.0x1.0 MM BSD-1600210034.A161 1600210034 £1.75 £2.10
30 - AIR DISTRIBUTOR BSD-1600591029.A20 1600591029 £2.61 £3.13
31 - AIR-DEFLECTOR RING BSD-1600591028.A351 1600591028 £2.33 £2.80
32 - RETAINING SNAP RING BSD-1600290019.A30 1600290019 £1.75 £2.10
33 - ROTARY SHAFT LIP SEAL 18.7 MM BSD-1600290013.A492 1600290013 £2.61 £3.13
33 - ROTARY SHAFT LIP SEAL 16 MM BSD-1600290064.A307 1600290064 £2.16 £2.59
34 - SHIM 0.15 MM BSD-1600190020.A712 1600190020 £1.75 £2.10
34 - SHIM 0.3 MM BSD-1600190021.A115 1600190021 £2.61 £3.13
34 - SHIM 0.1 MM BSD-1600190022.A712 1600190022 £1.75 £2.10
35 - FELT WASHER BSD-1600205034.A631 1600205034 £1.75 £2.10
37 - SEAL RING BSD-1600290036.A54 1600290036 £2.16 £2.59
38 - RUBBER RING 7 MM BSD-1600206020.A479 1600206020 £1.75 £2.10
39 - RUBBER RING BSD-1600206030.A248 1600206030 £1.75 £2.10
45 - HEX NUT M10. SW14 BSD-1603300019.A602 1603300019 £1.75 £2.10
51 - PLAIN BEARING dia14 MM BSD-1600200031.A415 1600200031 £2.80 £3.36
53 - SOCKET HOUSING BSD-1605190068.A9 1605190068 £1.75 £2.10
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM BSD-1603435023.A237 1603435023 £2.16 £2.59
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A558 2912401038 £1.75 £2.10
62 - TAPPING SCREW 4.8x55 BSD-1603435060.A1 1603435060 £1.75 £2.10
63 - PAN HEAD SCREW M4x10 MM BSD-1603410014.A631 1603410014 £1.75 £2.10
64 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A447 1603435042 £1.75 £2.10
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A501 2912401020 £2.16 £2.59
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A2233 2910211019 £1.75 £2.10
68 - SEALING PLATE BSD-1601006011.A367 1601006011 £2.61 £3.13
650/30/20 - O-RING 20.35x1.78 MM BSD-1600210039.A961 1600210039 £2.16 £2.59
700 - PARTS SET dia230 MM BSD-1607000251.A61 1607000251 -
700/10 - PROTECTIVE COVER dia230 MM BSD-1605510223.A127 1605510223 -
700/20 - GUIDE BLOCK BSD-1608135003.A211 1608135003 -
700/20/30 - ROUND-HEAD BOLT DIN 603-M 8x25 BSD-2910281244.A252 2910281244 -
700/20/40 - WING NUT DIN 315-M8-GT-C BSD-2915191007.A152 2915191007 £3.72 £4.47
700/20/60 - COMPRESSION SPRING BSD-1604643003.A139 1604643003 £6.52 £7.83
701 - GUIDE BLOCK BSD-1608135003.A210 1608135003 -
702 - PROTECTIVE COVER dia230 MM BSD-1605510180.A28 1605510180 £71.74 £86.09
703 - STRAP-SHAPED HANDLE BSD-1607000247.A109 1607000247 £50.82 £60.99
703/11 - HEX SCREW M14x16x1.5 MM BSD-2603450007.A13 2603450007 £5.58 £6.70
704 - PROTECTIVE COVER dia110 MM BSD-1605510181.A162 1605510181 -
730 - BACKING PAD dia230 MM BSD-1608601007.A31 1608601007 -
730/20 - ROUND NUT M14 BSD-1603345004.A125 1603345004 £7.87 £9.44
730/30 - PLAIN WASHER DIN 125-A15-ST BSD-2916011022.A141 2916011022 £1.75 £2.10
740 - PROTECTING COVER BSD-1601329013.A234 1601329013 £11.37 £13.64
750/10 - AUXILIARY HANDLE M14x1.5 MM BSD-2602025075.A19 2602025075 £10.30 £12.36
750/20 - PIN-TYPE FACE-WRENCH BSD-1607950048.A94 1607950048 £4.88 £5.86
750/30 - CLAMPING-FLANGE dia22.2x42 MM BSD-1605703099.A319 1605703099 £7.45 £8.94
750/40 - CLAMPING NUT M14 BSD-1603340040.A25 1603340040 £6.20 £7.44
751 - PROTECTIVE COVER dia230 MM BSD-1605510223.A128 1605510223 -
752 - FAST LOCKING FLANGE M14 BSD-1603340031.A8 1603340031 £20.12 £24.14
763 - SUCTION BEND dia 35 MM BSD-1600793007.A100 1600793007 £19.24 £23.09
764 - PIN-TYPE FACE-WRENCH BSD-1607950004.A85 1607950004 £8.33 £10.00
803 - ARMATURE 220-240V BSD-1604011930.A9 1604011930 £70.24 £84.29
804 - SWITCH BSD-1607000971.A1 1607000971 £21.68 £26.01
808 - NAMEPLATE BSD-160111A3H3.A2442 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014171.A63 1607014171 £14.91 £17.89
814 - GROOVE BALL BEARING 10x35x11 BSD-1600905023.A11 1600905023 £12.04 £14.45
816 - BRUSH HOLDER BSD-1604336048.A349 1604336048 £7.36 £8.83
821 - GEAR HOUSING BSD-1607000968.A41 1607000968 -
822 - BEARING FLANGE dia230 MM BSD-1607000985.A81 1607000985 £27.23 £32.68
826 - ASSEMBLY OF SERVICE PARTS BSD-1600A005BH.A75 1600A005BH £45.67 £54.80
840 - PUSH-BUTTON BSD-1607000206.A138 1607000206 £11.30 £13.56
846 - RETAINING WASHER BSD-1607000C3E.A158 1607000C3E £12.04 £14.45
851 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A666 2600910001 £4.26 £5.11
