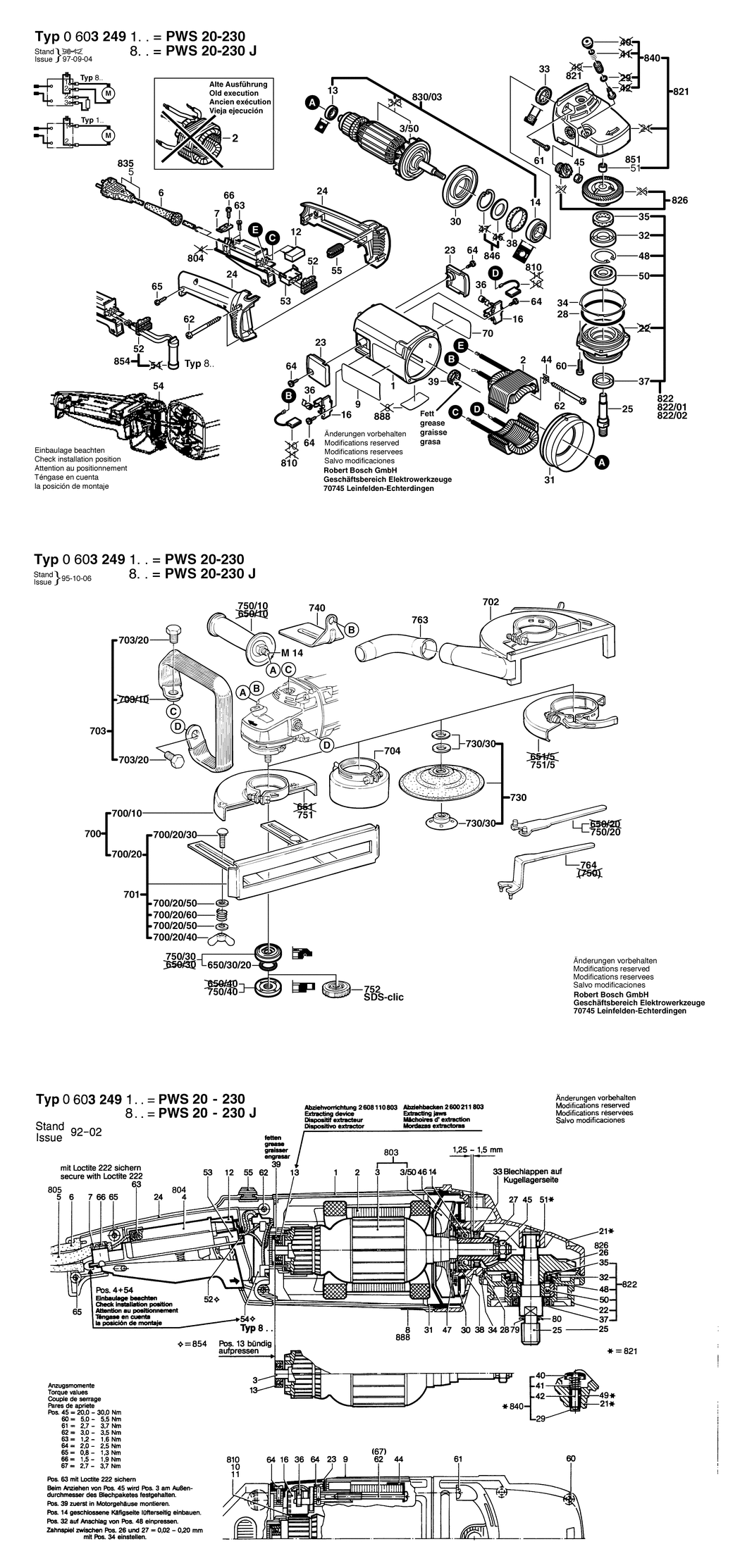

An exploded drawing and listing for the Bosch PWS 20-230 J / 0603249803 / EU 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108146.A1 1605108146 -
2 - FIELD 220-240V BSD-1604220380.A19 1604220380 £33.74 £40.49
3/50 - FAN BSD-1606610127.A6 1606610127 £2.80 £3.36
6 - GROMMET dia 10.5-dia11.0x100 MM BSD-1600703023.A360 1600703023 £2.61 £3.13
6 - GROMMET dia7.9-dia12.0x120 MM BSD-1600703022.A3 1600703022 £2.80 £3.36
6 - GROMMET dia8.8-dia9.0x70 MM BSD-1600703024.A3 1600703024 -
7 - FASTENING CLAMP BSD-1601302018.A32 1601302018 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118054.A0 1601118054 -
12 - SUPPRESSION FILTER BSD-1607328035.A42 1607328035 £4.26 £5.11
13 - BALL BEARING 7x22x7 BSD-1900905018.A996 1900905018 £18.96 £22.75
14 - GROOVE BALL BEARING 10x35x11 BSD-1600905025.A120 1600905025 -
16 - BRUSH HOLDER BSD-1604336021.A87 1604336021 £2.80 £3.36
23 - SEALING CAP BSD-1605500151.A8 1605500151 -
24 - HANDLE BSD-1605132118.A2 1605132118 -
25 - GRINDING SPINDLE M14. SW17 BSD-1603523100.A84 1603523100 £14.91 £17.89
28 - O-RING 79.0x1.78 MM BSD-1600210033.A157 1600210033 £1.75 £2.10
30 - AIR-DEFLECTOR RING BSD-1600591010.A4 1600591010 £2.16 £2.59
31 - AIR-DEFLECTOR RING BSD-1600591011.A174 1600591011 £1.75 £2.10
32 - RETAINING SNAP RING BSD-1600290019.A17 1600290019 £1.75 £2.10
33 - ROTARY SHAFT LIP SEAL 18.7 MM BSD-1600290013.A471 1600290013 £2.61 £3.13
33 - ROTARY SHAFT LIP SEAL 16 MM BSD-1600290064.A319 1600290064 £2.16 £2.59
34 - SHIM 0.15 MM BSD-1600190020.A701 1600190020 £1.75 £2.10
34 - SHIM 0.3 MM BSD-1600190021.A126 1600190021 £2.61 £3.13
34 - SHIM 0.1 MM BSD-1600190022.A701 1600190022 £1.75 £2.10
35 - FELT WASHER BSD-1600205034.A614 1600205034 £1.75 £2.10
36 - SPIRAL SPRING BSD-1604652015.A11 1604652015 £2.80 £3.36
37 - SEAL RING BSD-1600290036.A41 1600290036 £2.16 £2.59
38 - RUBBER RING 7 MM BSD-1600206020.A461 1600206020 £1.75 £2.10
39 - RUBBER RING BSD-1600206030.A237 1600206030 £1.75 £2.10
44 - HOLDING BRACKET BSD-1601334008.A177 1601334008 £2.61 £3.13
45 - HEX NUT M10. SW14 BSD-1603300019.A588 1603300019 £1.75 £2.10
48 - RETAINING CLIP BSD-1600119010.A12 1600119010 £1.75 £2.10
50 - GROOVE BALL BEARING BSD-3600905134.A88 3600905134 £11.30 £13.56
51 - PLAIN BEARING dia14 MM BSD-1600200031.A427 1600200031 £2.80 £3.36
52 - CABLE ROUTING BSD-1602388027.A78 1602388027 £2.61 £3.13
53 - SOCKET HOUSING BSD-1605190038.A161 1605190038 £1.75 £2.10
55 - STORAGE LEDGE BSD-1602388028.A10 1602388028 -
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM BSD-1603435023.A229 1603435023 £2.16 £2.59
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A586 2912401038 £1.75 £2.10
62 - TAPPING SCREW C4.8x63 MM BSD-1603435024.A100 1603435024 £1.75 £2.10
63 - PAN HEAD SCREW M4x10 MM BSD-1603410014.A635 1603410014 £1.75 £2.10
64 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A456 1603435042 £1.75 £2.10
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A521 2912401020 £2.16 £2.59
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A2210 2910211019 £1.75 £2.10
70 - MANUFACTURER'S NAMEPLATE BSD-1601110984.A13 1601110984 -
650/30/20 - O-RING 20.35x1.78 MM BSD-1600210039.A972 1600210039 £2.16 £2.59
700 - PARTS SET dia230 MM BSD-1607000251.A50 1607000251 -
700/10 - PROTECTIVE COVER dia230 MM BSD-1605510223.A105 1605510223 -
700/20 - GUIDE BLOCK BSD-1608135003.A192 1608135003 -
700/20/30 - ROUND-HEAD BOLT DIN 603-M 8x25 BSD-2910281244.A246 2910281244 -
700/20/40 - WING NUT DIN 315-M8-GT-C BSD-2915191007.A125 2915191007 £3.72 £4.47
700/20/50 - PLAIN WASHER DIN 315-M8-GT-C BSD-2600100041.A42 2600100041 £1.75 £2.10
700/20/60 - COMPRESSION SPRING BSD-1604643003.A126 1604643003 £6.52 £7.83
701 - GUIDE BLOCK BSD-1608135003.A193 1608135003 -
702 - PROTECTIVE COVER dia230 MM BSD-1605510180.A15 1605510180 £71.74 £86.09
703 - STRAP-SHAPED HANDLE BSD-1607000247.A100 1607000247 £50.82 £60.99
703/20 - HEX SCREW M14x16x1.5 MM BSD-2603450007.A12 2603450007 £5.58 £6.70
704 - PROTECTIVE COVER dia110 MM BSD-1605510181.A174 1605510181 -
730 - BACKING PAD dia180 MM BSD-1608601006.A73 1608601006 -
730/20 - ROUND NUT M14 BSD-1603345004.A135 1603345004 £7.87 £9.44
730/30 - PLAIN WASHER DIN 125-A15-ST BSD-2916011022.A139 2916011022 £1.75 £2.10
740 - PROTECTING COVER BSD-1601329013.A214 1601329013 £11.37 £13.64
750/10 - AUXILIARY HANDLE M14x1.5 MM BSD-2602025075.A31 2602025075 £10.30 £12.36
750/20 - PIN-TYPE FACE-WRENCH BSD-1607950048.A102 1607950048 £4.88 £5.86
750/30 - CLAMPING-FLANGE dia22.2x42 MM BSD-1605703099.A289 1605703099 £7.45 £8.94
750/40 - CLAMPING NUT M14 BSD-1603340040.A15 1603340040 £6.20 £7.44
751/5 - PROTECTIVE COVER dia230 MM BSD-1605510223.A103 1605510223 -
752 - FAST LOCKING FLANGE M14. SDS-CLIC BSD-1603340027.A879 1603340027 £46.82 £56.18
763 - SUCTION BEND dia 35 MM BSD-1600793007.A93 1600793007 £19.24 £23.09
764 - PIN-TYPE FACE-WRENCH BSD-1607950004.A99 1607950004 £8.33 £10.00
804 - SWITCH BSD-1607200105.A30 1607200105 £48.38 £58.06
810 - CARBON-BRUSH SET BSD-1607014171.A42 1607014171 £14.91 £17.89
821 - GEAR HOUSING BSD-1605805592.A112 1605805592 £72.18 £86.62
822 - BEARING FLANGE dia230 MM BSD-1607000985.A86 1607000985 £27.23 £32.68
822/01 - BEARING FLANGE dia230 MM BSD-1607000932.A32 1607000932 -
822/02 - BEARING FLANGE dia 230 MM BSD-1607000922.A18 1607000922 £45.67 £54.80
826 - ASSEMBLY OF SERVICE PARTS BSD-1600A005BH.A68 1600A005BH £45.67 £54.80
830/03 - ARMATURE 230-240V BSD-1604011148.A28 1604011148 £103.14 £123.77
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A319 1607000228 £23.86 £28.63
840 - PUSH-BUTTON BSD-1607000206.A127 1607000206 £11.30 £13.56
846 - RETAINING WASHER BSD-1607000C3E.A177 1607000C3E £12.04 £14.45
851 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A702 2600910001 £4.26 £5.11
854 - WIREWOUND RESISTOR BSD-1607000926.A15 1607000926 £16.41 £19.69
888 - NAMEPLATE BSD-160111A3H3.A2475 160111A3H3 £2.61 £3.13
