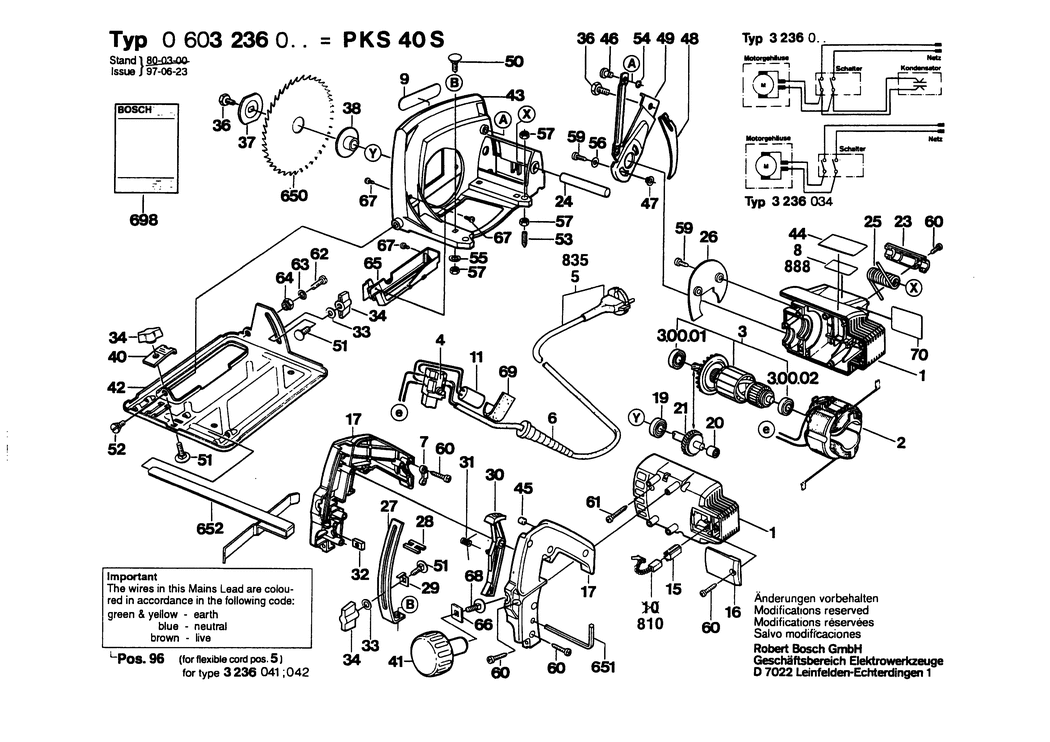

1 - MOTOR HOUSING
BSD-1609200783.A1
1609200783
|
-
|
|
|
|
2 - POLE SHOE 220V
BSD-1609200784.A2
1609200784
|
-
|
|
|
|
3 - ARMATURE 220V
BSD-1609200858.A0
1609200858
|
-
|
|
|
|
3/10 - GROOVE BALL BEARING 6 001 LLU C 3/3K DIN 625
BSD-1609200715.A68
1609200715
|
-
|
|
|
|
3/20 - GROOVE BALL BEARING 607 LLB C3/3K DIN 625
BSD-1609200716.A1
1609200716
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-1609200751.A3
1609200751
|
-
|
|
|
|
5 - POWER SUPPLY CORD
BSD-1604460013.A0
1604460013
|
-
|
|
|
|
6 - GROMMET dia9x90 MM
BSD-1609207001.A186
1609207001
|
-
|
|
|
|
7 - FASTENING CLAMP
BSD-1609213000.A92
1609213000
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110016.A2
1601110016
|
-
|
|
|
|
11 - SUPPRESSION CAPACITOR
BSD-1609200750.A62
1609200750
|
-
|
|
|
|
15 - BRUSH HOLDER
BSD-1609200032.A42
1609200032
|
-
|
|
|
|
16 - SEALING CAP
BSD-1609200527.A13
1609200527
|
-
|
|
|
|
17 - HANDLE
BSD-1609200786.A0
1609200786
|
-
|
|
|
|
19 - GROOVE BALL BEARING 6000-RS
BSD-1900905140.A6
1900905140
|
-
|
|
|
|
20 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A324
1600910018
|
£5.30
|
£6.36
|
|
|
21 - CYLINDRICAL GEAR Z=21
BSD-1609200860.A3
1609200860
|
-
|
|
|
|
23 - SEALING CAP
BSD-1609200789.A4
1609200789
|
-
|
|
|
|
24 - BEARING BOLT
BSD-1609200790.A0
1609200790
|
-
|
|
|
|
25 - COILED SPRING
BSD-1609200791.A4
1609200791
|
-
|
|
|
|
26 - COVER PLATE
BSD-1609200792.A0
1609200792
|
-
|
|
|
|
27 - GUIDE RAIL
BSD-1609200793.A4
1609200793
|
-
|
|
|
|
28 - END STOP
BSD-1609200794.A0
1609200794
|
-
|
|
|
|
29 - STOP PLATE
BSD-1609200795.A4
1609200795
|
-
|
|
|
|
30 - CONTROL LEVER
BSD-1609200796.A0
1609200796
|
-
|
|
|
|
31 - COILED SPRING
BSD-1604651008.A48
1604651008
|
-
|
|
|
|
32 - PERFORATED PANEL M6-20x10x5 MM
BSD-1601030025.A68
1601030025
|
-
|
|
|
|
33 - PLAIN WASHER dia6.4xdia16x2 MM
BSD-1609201082.A89
1609201082
|
-
|
|
|
|
34 - WING NUT M6
BSD-1609233000.A85
1609233000
|
-
|
|
|
|
36 - FASTENING CLAMP M 6x17 MM
BSD-1609200798.A4
1609200798
|
-
|
|
|
|
37 - CONICAL SPRING WASHER
BSD-1609200799.A0
1609200799
|
-
|
|
|
|
38 - INTERMEDIATE FLANGE
BSD-1609200800.A4
1609200800
|
-
|
|
|
|
40 - CLAMPING CLAW
BSD-1609200801.A0
1609200801
|
-
|
|
|
|
41 - BALL HANDLE
BSD-1609200637.A22
1609200637
|
-
|
|
|
|
42 - BASE PLATE 172x247 MM
BSD-1609200802.A4
1609200802
|
-
|
|
|
|
43 - PROTECTIVE COVER
BSD-1609200803.A0
1609200803
|
-
|
|
|
|
44 - REFERENCE PLATE
BSD-1601110079.A2
1601110079
|
-
|
|
|
|
45 - PLUG
BSD-1609200048.A26
1609200048
|
-
|
|
|
|
46 - RETAINING PIN
BSD-1609200804.A4
1609200804
|
-
|
|
|
|
47 - GUIDE BUSHING
BSD-1609200805.A0
1609200805
|
-
|
|
|
|
48 - RIVING KNIFE
BSD-1609200806.A4
1609200806
|
-
|
|
|
|
49 - MOUNTING PIECE
BSD-1609200807.A0
1609200807
|
-
|
|
|
|
50 - ROUND-HEAD BOLT M 6x10 MM
BSD-1609200808.A4
1609200808
|
-
|
|
|
|
51 - ROUND-HEAD BOLT M6x15 DIN 603
BSD-2910281196.A92
2910281196
|
-
|
|
|
|
52 - PAN HEAD SCREW M5x2.5MM
BSD-2910271656.A3
2910271656
|
-
|
|
|
|
53 - SET SCREW M 6x18-DIN 553-5.8
BSD-2912001199.A3
2912001199
|
-
|
|
|
|
54 - LOCKING WASHER DIN 6799-4-FSt
BSD-2916080007.A434
2916080007
|
£2.61
|
£3.13
|
|
|
55 - SPRING WASHER DIN 137-A 6-ST
BSD-2916060007.A1
2916060007
|
£1.75
|
£2.10
|
|
|
56 - PLAIN WASHER A 4.3 DIN 9021-ST
BSD-2916011882.A2
2916011882
|
-
|
|
|
|
57 - HEX NUT DIN 439-AM6-04
BSD-2915051106.A10
2915051106
|
£1.75
|
£2.10
|
|
|
59 - TAPPING SCREW DIN 7981-ST3.9x13-C-H
BSD-2910611018.A109
2910611018
|
-
|
|
|
|
60 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A212
2912401020
|
£2.16
|
£2.59
|
|
|
61 - TAPPING SCREW B 3.9x32 DIN 7981
BSD-2910611082.A66
2910611082
|
£1.75
|
£2.10
|
|
|
62 - SOCKET HEAD CAP SCREW AM 5x16 DIN 84-5.8
BSD-2910011158.A3
2910011158
|
£1.75
|
£2.10
|
|
|
63 - TOOTHED LOCK WASHER dia 5.1 MM
BSD-1609200817.A3
1609200817
|
-
|
|
|
|
64 - ECCENTRIC BUSHING
BSD-1609200818.A1
1609200818
|
-
|
|
|
|
65 - COVER STRIP
BSD-1609200820.A3
1609200820
|
-
|
|
|
|
66 - SLIDE PLATE
BSD-1601030026.A3
1601030026
|
-
|
|
|
|
67 - TAPPING SCREW BZ 2.9x6.5DIN7981-A2
BSD-2910611404.A7
2910611404
|
-
|
|
|
|
68 - ROUND-HEAD BOLT DIN 603-M6x20
BSD-2910281201.A27
2910281201
|
£1.75
|
£2.10
|
|
|
650 - SAW BLADE dia16 dia130x1.2 MM. Z=22
BSD-1609200861.A2
1609200861
|
-
|
|
|
|
651 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A941
1907950006
|
£4.26
|
£5.11
|
|
|
652 - END STOP
BSD-1601336004.A34
1601336004
|
-
|
|
|
|
700 - CIRCULAR SAW BLADE
BSD-2608640102.A1
2608640102
|
-
|
|
|
|
700 - CIRCULAR SAW BLADE
BSD-2608640106.A3
2608640106
|
-
|
|
|
|
704 - FITTING
BSD-1609200874.A4
1609200874
|
-
|
|
|
|
704 - FITTING
BSD-1609200899.A0
1609200899
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-1609202417.A37
1609202417
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4492
160111A3H3
|
£2.61
|
£3.13
|
|
