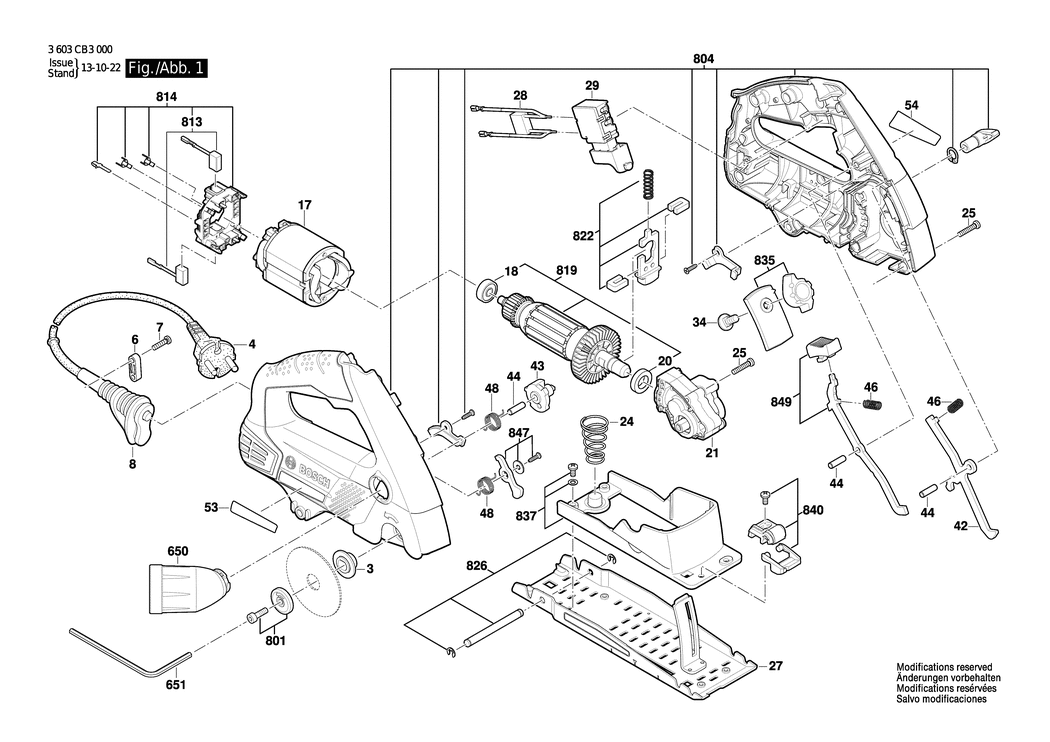

3 - CLAMPING-FLANGE
BSD-1600A001KY.A0
1600A001KY
|
£3.72
|
£4.47
|
|
|
4 - POWER SUPPLY CORD
BSD-160446010D.A0
160446010D
|
£13.12
|
£15.75
|
|
|
6 - CABLE CLIP
BSD-1609203Y53.A10
1609203Y53
|
£1.32
|
£1.58
|
|
|
7 - TAPPING SCREW
BSD-1600A001KZ.A2
1600A001KZ
|
£1.75
|
£2.10
|
|
|
8 - GROMMET
BSD-1600703045.A2
1600703045
|
£1.75
|
£2.10
|
|
|
17 - POLE SHOE 230V
BSD-1600A001L0.A0
1600A001L0
|
£21.68
|
£26.01
|
|
|
18 - BALL BEARING
BSD-160090003A.A2
160090003A
|
£4.26
|
£5.11
|
|
|
20 - BALL BEARING
BSD-160090003B.A0
160090003B
|
£6.52
|
£7.83
|
|
|
21 - GEAR UNIT
BSD-1600A001L1.A1
1600A001L1
|
£45.67
|
£54.80
|
|
|
24 - COMPRESSION SPRING
BSD-160461200B.A0
160461200B
|
£1.75
|
£2.10
|
|
|
25 - TAPPING SCREW
BSD-1600A001L4.A1
1600A001L4
|
£1.75
|
£2.10
|
|
|
27 - BASE PLATE
BSD-1600A001L5.A1
1600A001L5
|
£21.68
|
£26.01
|
|
|
28 - CABLE SET
BSD-1600A001L6.A1
1600A001L6
|
£2.16
|
£2.59
|
|
|
29 - SWITCH
BSD-1607200278.A2
1607200278
|
£12.04
|
£14.45
|
|
|
34 - BOLT
BSD-1600A001L8.A1
1600A001L8
|
£1.75
|
£2.10
|
|
|
42 - LOCKING LEVER
BSD-1600A001L9.A1
1600A001L9
|
£2.61
|
£3.13
|
|
|
43 - TURNTABLE
BSD-1600A001LA.A1
1600A001LA
|
£5.58
|
£6.70
|
|
|
44 - STRAIGHT PIN
BSD-1600A001LB.A1
1600A001LB
|
£1.75
|
£2.10
|
|
|
46 - COMPRESSION SPRING
BSD-160461200C.A0
160461200C
|
£1.75
|
£2.10
|
|
|
48 - TORSION SPRING
BSD-1600A001LC.A1
1600A001LC
|
£1.75
|
£2.10
|
|
|
53 - MANUFACTURER'S NAMEPLATE
BSD-1619PA8086.A0
1619PA8086
|
£2.33
|
£2.80
|
|
|
54 - NAMEPLATE
BSD-1619PA8074.A0
1619PA8074
|
-
|
|
|
|
650 - SUCTION SOCKET
BSD-1600A001LP.A1
1600A001LP
|
£2.16
|
£2.59
|
|
|
651 - HEXAGON SOCKET SCREW KEY
BSD-1600A000VD.A6
1600A000VD
|
£2.80
|
£3.36
|
|
|
801 - CLAMPING FLANGE
BSD-1607000C3F.A0
1607000C3F
|
£2.80
|
£3.36
|
|
|
804 - HOUSING SET
BSD-1600A001LD.A1
1600A001LD
|
£37.27
|
£44.72
|
|
|
813 - CARBON-BRUSH SET
BSD-1600A001LE.A1
1600A001LE
|
£11.30
|
£13.56
|
|
|
814 - BRUSH HOLDER
BSD-1600A001LF.A1
1600A001LF
|
£16.41
|
£19.69
|
|
|
819 - ARMATURE 230V
BSD-1600A001LG.A1
1600A001LG
|
£48.38
|
£58.06
|
|
|
822 - LOCKING DEVICE
BSD-1607000C37.A2
1607000C37
|
£3.72
|
£4.47
|
|
|
826 - SHAFT
BSD-1600A001LH.A1
1600A001LH
|
£2.16
|
£2.59
|
|
|
835 - DEPTH-GAUGE
BSD-1600A001LJ.A1
1600A001LJ
|
£5.30
|
£6.36
|
|
|
837 - PROTECTIVE COVER
BSD-1600A001LK.A1
1600A001LK
|
£8.67
|
£10.41
|
|
|
840 - POSITION INDICATOR
BSD-1600A001LL.A1
1600A001LL
|
£2.16
|
£2.59
|
|
|
847 - LOCKING DEVICE
BSD-1600A001LM.A1
1600A001LM
|
£1.75
|
£2.10
|
|
|
849 - RELEASE LEVER
BSD-1600A001LN.A1
1600A001LN
|
£2.80
|
£3.36
|
|
