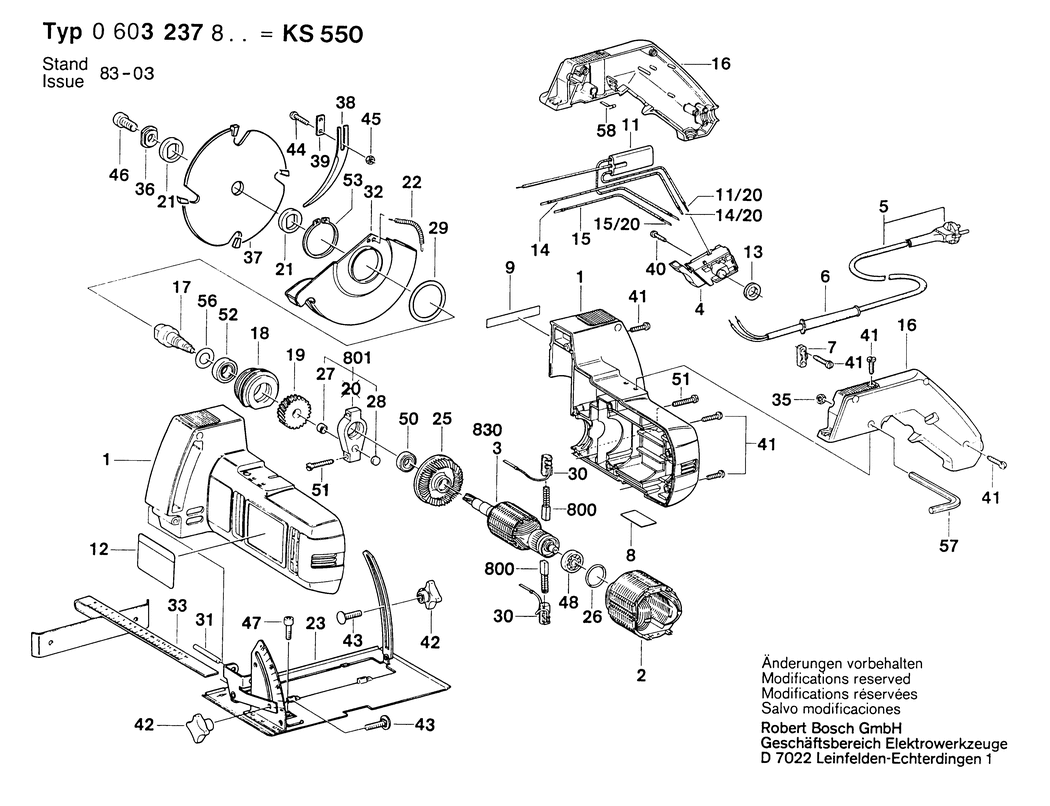

1 - MOTOR HOUSING
BSD-1605108108.A4
1605108108
|
-
|
|
|
|
1 - MOTOR HOUSING
BSD-1605108125.A10
1605108125
|
-
|
|
|
|
2 - FIELD 220-230V
BSD-2604220438.A10
2604220438
|
£27.23
|
£32.68
|
|
|
3 - ARMATURE 240V
BSD-1604010186.A3
1604010186
|
£48.38
|
£58.06
|
|
|
4 - ON-OFF SWITCH
BSD-2607200109.A21
2607200109
|
-
|
|
|
|
5 - POWER SUPPLY CORD
BSD-3607030489.A102
3607030489
|
£31.64
|
£37.97
|
|
|
6 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A160
1600703016
|
£1.75
|
£2.10
|
|
|
6 - GROMMET dia9.5 MM
BSD-2600703006.A66
2600703006
|
-
|
|
|
|
6 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A743
2600703011
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A448
2600703012
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A705
2600703013
|
£2.61
|
£3.13
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2111
2601035001
|
£1.75
|
£2.10
|
|
|
8 - NAMEPLATE
BSD-160111A3H3.A4510
160111A3H3
|
£2.61
|
£3.13
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A315
1601110481
|
£2.16
|
£2.59
|
|
|
11 - SUPPRESSION FILTER
BSD-1607328028.A299
1607328028
|
£5.30
|
£6.36
|
|
|
11/20 - BLADE TERMINAL
BSD-2601355007.A48
2601355007
|
-
|
|
|
|
12 - REFERENCE PLATE
BSD-1601110287.A4
1601110287
|
-
|
|
|
|
13 - SEAL RING
BSD-1600206023.A15
1600206023
|
-
|
|
|
|
14 - CABLE L=233 MM
BSD-1614431010.A74
1614431010
|
£3.72
|
£4.47
|
|
|
14/20 - BLADE TERMINAL
BSD-2601355007.A46
2601355007
|
-
|
|
|
|
15 - CONNECTING CABLE L=373 MM
BSD-1604448000.A16
1604448000
|
£2.16
|
£2.59
|
|
|
15/20 - BLADE TERMINAL
BSD-2601355007.A47
2601355007
|
-
|
|
|
|
16 - HANDLE
BSD-1605132090.A2
1605132090
|
-
|
|
|
|
16 - HANDLE
BSD-1605132095.A12
1605132095
|
-
|
|
|
|
17 - DRIVE SHAFT M8. dia16 MM
BSD-1603124103.A17
1603124103
|
-
|
|
|
|
18 - BEARING FLANGE
BSD-1605820222.A13
1605820222
|
-
|
|
|
|
19 - CYLINDRICAL GEAR Z=25
BSD-1606320075.A9
1606320075
|
-
|
|
|
|
21 - PLAIN WASHER dia16xdia26x5 MM
BSD-1600144000.A21
1600144000
|
-
|
|
|
|
22 - EXTENSION SPRING
BSD-1604650010.A10
1604650010
|
£1.75
|
£2.10
|
|
|
23 - BASE PLATE 120x214x2 MM
BSD-1608000064.A11
1608000064
|
-
|
|
|
|
25 - FAN
BSD-2606610049.A4
2606610049
|
£2.16
|
£2.59
|
|
|
26 - O-RING 20x2.5 MM
BSD-1900210119.A20
1900210119
|
-
|
|
|
|
27 - SINTERED-METAL BUSHING J6G7x10R6x6DIN1850
BSD-1900301007.A2
1900301007
|
£3.72
|
£4.47
|
|
|
28 - LUBRICATING FELT dia10x3 MM
BSD-1600005001.A21
1600005001
|
-
|
|
|
|
29 - SHIM WASHER 0.2 MM
BSD-1600102677.A5
1600102677
|
-
|
|
|
|
30 - CARBON BRUSH
BSD-1607014117.A88
1607014117
|
£10.10
|
£12.12
|
|
|
31 - SLOTTED SPRING PIN 6x36 DIN 7346
BSD-2917780157.A64
2917780157
|
£1.75
|
£2.10
|
|
|
32 - PROTECTIVE COVER
BSD-1605510120.A2
1605510120
|
-
|
|
|
|
33 - END STOP
BSD-2601336000.A12
2601336000
|
-
|
|
|
|
35 - HEX NUT DIN 934-M8-8-A
BSD-2915011009.A191
2915011009
|
£2.61
|
£3.13
|
|
|
36 - SEAL RING
BSD-1600290007.A10
1600290007
|
-
|
|
|
|
37 - CIRCULAR SAW BLADE
BSD-2608640102.A10
2608640102
|
-
|
|
|
|
38 - RIVING KNIFE
BSD-1600025010.A11
1600025010
|
-
|
|
|
|
39 - FIXING PLATE
BSD-1601034035.A15
1601034035
|
-
|
|
|
|
40 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1613
2603410001
|
£1.75
|
£2.10
|
|
|
41 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1051
2910211019
|
£1.75
|
£2.10
|
|
|
42 - WING NUT M6
BSD-1603339006.A225
1603339006
|
£2.52
|
£3.02
|
|
|
43 - ROUND-HEAD BOLT M6x15 DIN 603
BSD-2910281196.A109
2910281196
|
-
|
|
|
|
44 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8
BSD-2910011128.A101
2910011128
|
£1.75
|
£2.10
|
|
|
45 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A205
2915011005
|
£1.75
|
£2.10
|
|
|
46 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x16-8.8
BSD-2910141238.A18
2910141238
|
-
|
|
|
|
47 - HEX SOCKET HEAD CAP SCREW
BSD-1603414005.A12
1603414005
|
-
|
|
|
|
48 - BALL BEARING 7x22x7
BSD-1900905018.A50
1900905018
|
£18.96
|
£22.75
|
|
|
50 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A201
2600905021
|
£8.67
|
£10.41
|
|
|
51 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A526
2910211021
|
£1.75
|
£2.10
|
|
|
52 - GROOVE BALL BEARING 12x28x8
BSD-1900905121.A207
1900905121
|
£18.96
|
£22.75
|
|
|
53 - SPRING RETAINING RING 36x1.75 DIN 471
BSD-2916650037.A17
2916650037
|
-
|
|
|
|
56 - SEALING DISK 12x25.5x1.8
BSD-2916130004.A8
2916130004
|
-
|
|
|
|
57 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A107
1907950007
|
£5.30
|
£6.36
|
|
|
58 - LEAF SPRING
BSD-1601253007.A2
1601253007
|
-
|
|
|
|
800 - CARBON BRUSH
BSD-1607014117.A83
1607014117
|
£10.10
|
£12.12
|
|
|
801 - BEARING BRACKET
BSD-1605807012.A6
1605807012
|
-
|
|
|
|
830 - ARMATURE 240V
BSD-1604010227.A1
1604010227
|
-
|
|
|
