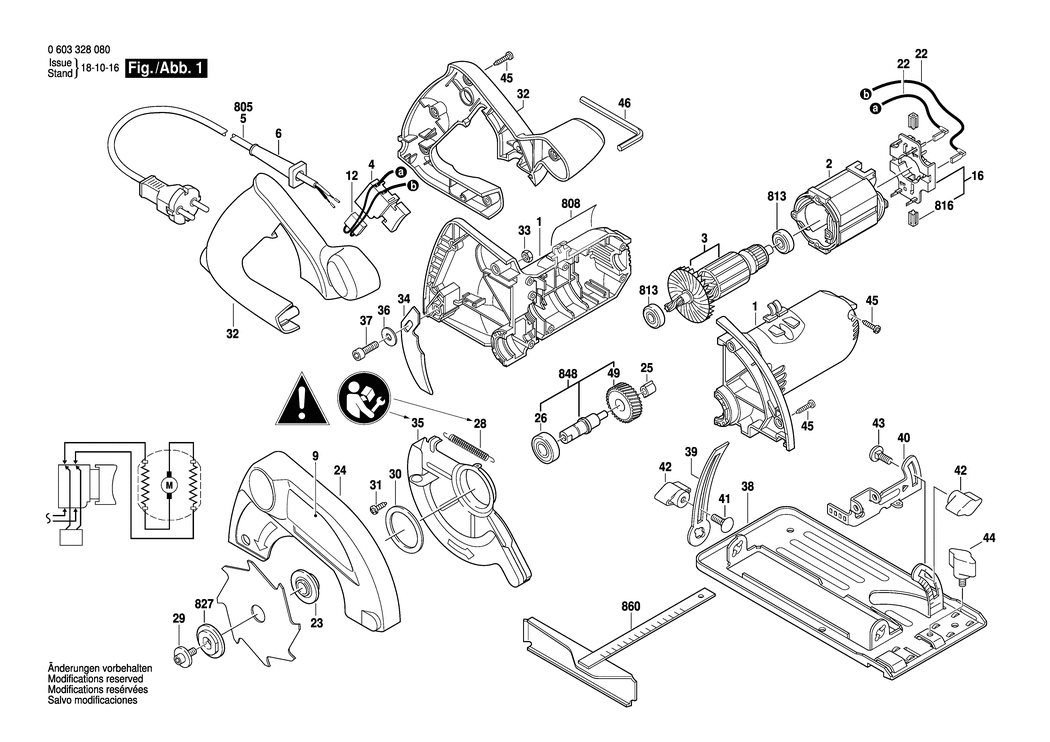

1 - HOUSING SET
BSD-2610387191.A0
2610387191
|
-
|
|
|
|
2 - FIELD 230V
BSD-2610387123.A29
2610387123
|
£10.10
|
£12.12
|
|
|
3 - ARMATURE 230V
BSD-2610386657.A24
2610386657
|
-
|
|
|
|
4 - SWITCH
BSD-1607503101.A15
1607503101
|
£7.36
|
£8.83
|
|
|
5 - POWER SUPPLY CORD CH 2.75m 2 x 1.0mm H05 VV-F
BSD-2610371799.A38
2610371799
|
£7.78
|
£9.33
|
|
|
6 - GROMMET
BSD-2610360176.A491
2610360176
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118764.A2
1601118764
|
-
|
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-2609004538.A100
2609004538
|
£3.72
|
£4.47
|
|
|
16 - BRUSH PLATE
BSD-2610391898.A91
2610391898
|
-
|
|
|
|
22 - CONNECTING CABLE
BSD-2610388956.A3
2610388956
|
-
|
|
|
|
23 - WASHER
BSD-2610386555.A23
2610386555
|
£2.80
|
£3.36
|
|
|
24 - PROTECTIVE COVER
BSD-2610387193.A1
2610387193
|
-
|
|
|
|
25 - BEARING
BSD-2610386569.A23
2610386569
|
£2.61
|
£3.13
|
|
|
26 - BALL BEARING
BSD-2610366402.A18
2610366402
|
£7.36
|
£8.83
|
|
|
28 - EXTENSION SPRING
BSD-2610386609.A38
2610386609
|
£2.61
|
£3.13
|
|
|
29 - HEX SOCKET HEAD CAP SCREW M6x14 MM
BSD-1603414007.A301
1603414007
|
£2.29
|
£2.75
|
|
|
30 - WASHER
BSD-2610386556.A19
2610386556
|
£1.75
|
£2.10
|
|
|
31 - TORX OVAL-HEAD SCREW 8x13
BSD-2610374913.A31
2610374913
|
£1.75
|
£2.10
|
|
|
32 - SET OF HANDLES
BSD-2610387192.A1
2610387192
|
-
|
|
|
|
33 - NUT M6
BSD-2610061550.A7
2610061550
|
£1.32
|
£1.58
|
|
|
34 - RIVING KNIFE
BSD-2610386554.A14
2610386554
|
£2.80
|
£3.36
|
|
|
35 - PROTECTIVE GUARD
BSD-2610386551.A15
2610386551
|
£10.10
|
£12.12
|
|
|
36 - WASHER DIN 9021-6.4x18x1.6
BSD-2610386712.A41
2610386712
|
£2.61
|
£3.13
|
|
|
37 - SCREW M6x22 MM
BSD-2610386933.A15
2610386933
|
£1.75
|
£2.10
|
|
|
38 - BASE
BSD-2610386840.A30
2610386840
|
£13.12
|
£15.75
|
|
|
39 - SUPPORT
BSD-2610386841.A1
2610386841
|
£2.16
|
£2.59
|
|
|
40 - HINGE
BSD-2610386842.A36
2610386842
|
£2.61
|
£3.13
|
|
|
41 - CARRYING BOLT M6x20 MM
BSD-2610386847.A1
2610386847
|
£1.75
|
£2.10
|
|
|
42 - HEX NUT
BSD-2610387875.A37
2610387875
|
£2.61
|
£3.13
|
|
|
43 - CARRYING BOLT
BSD-2609003647.A11
2609003647
|
£1.75
|
£2.10
|
|
|
44 - WING SCREW
BSD-2610387876.A13
2610387876
|
£1.75
|
£2.10
|
|
|
45 - TORX OVAL-HEAD SCREW T20-8x19 MM
BSD-2610374919.A51
2610374919
|
£1.75
|
£2.10
|
|
|
46 - HEXAGON SOCKET SCREW KEY 5 MM
BSD-2610364015.A1
2610364015
|
£3.72
|
£4.47
|
|
|
49 - TOOTHED GEAR
BSD-2610388427.A7
2610388427
|
£13.12
|
£15.75
|
|
|
808 - NAMEPLATE
BSD-2609000692.A0
2609000692
|
-
|
|
|
|
813 - GROOVE BALL BEARING 8x22x7
BSD-2600905052.A47
2600905052
|
£7.36
|
£8.83
|
|
|
816 - CARBON-BRUSH SET
BSD-2610386546.A89
2610386546
|
-
|
|
|
|
827 - CONICAL SPRING WASHER
BSD-1605703108.A79
1605703108
|
£2.80
|
£3.36
|
|
|
848 - GEAR SHAFT
BSD-2610387048.A21
2610387048
|
£21.68
|
£26.01
|
|
|
860 - PARALLEL-GUIDE
BSD-2608005036.A62
2608005036
|
£8.67
|
£10.41
|
|
