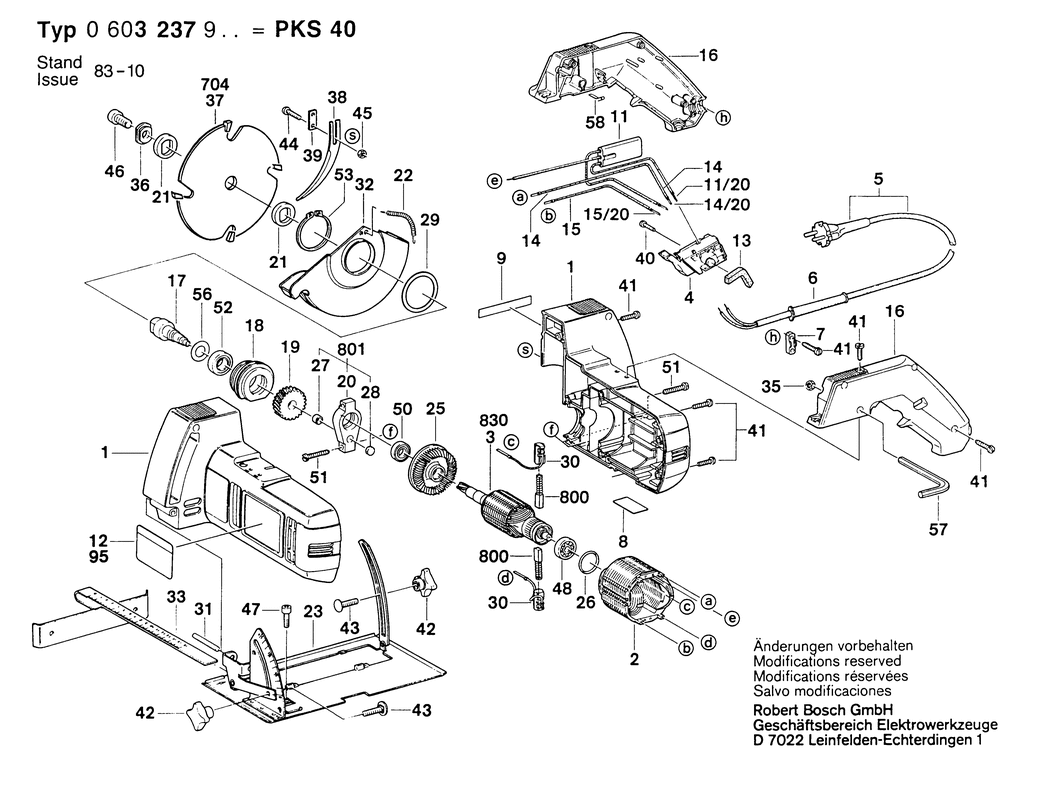

An exploded drawing and listing for the Bosch PKS 40 / 0603237948 / F 220 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605108108.A11 1605108108 -
1 - MOTOR HOUSING BSD-1605108125.A3 1605108125 -
2 - FIELD 240V BSD-1604220194.A12 1604220194 £23.86 £28.63
3 - ARMATURE 220V BSD-1604010183.A13 1604010183 £48.38 £58.06
4 - ON-OFF SWITCH BSD-2607200159.A4 2607200159 -
6 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A708 2600703013 £2.61 £3.13
7 - CABLE CLIP BSD-2601035001.A2098 2601035001 £1.75 £2.10
8 - NAMEPLATE BSD-160111A3H3.A4499 160111A3H3 £2.61 £3.13
9 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A322 1601110481 £2.16 £2.59
11 - SUPPRESSION FILTER BSD-1607328028.A309 1607328028 £5.30 £6.36
11/20 - BLADE TERMINAL BSD-2601355007.A53 2601355007 -
12 - STICKER BSD-1601110096.A0 1601110096 -
13 - SEAL RING BSD-1600206023.A13 1600206023 -
14 - CABLE L=233 MM BSD-1614431010.A72 1614431010 £3.72 £4.47
14/20 - BLADE TERMINAL BSD-2601355007.A52 2601355007 -
15 - CONNECTING CABLE L=373 MM BSD-1604448000.A20 1604448000 £2.16 £2.59
15/20 - BLADE TERMINAL BSD-2601355007.A54 2601355007 -
16 - HANDLE BSD-1605132090.A10 1605132090 -
16 - HANDLE BSD-1605132095.A4 1605132095 -
17 - DRIVE SHAFT M8. dia16 MM BSD-1603124103.A10 1603124103 -
18 - BEARING FLANGE BSD-1605820222.A9 1605820222 -
19 - CYLINDRICAL GEAR Z=25 BSD-1606320075.A13 1606320075 -
20 - BEARING BRACKET BSD-1605807011.A8 1605807011 -
21 - PLAIN WASHER dia16xdia26x5 MM BSD-1600144000.A12 1600144000 -
22 - EXTENSION SPRING BSD-1604650010.A2 1604650010 £1.75 £2.10
23 - BASE PLATE 120x214x2 MM BSD-1608000064.A0 1608000064 -
25 - FAN BSD-2606610049.A2 2606610049 £2.16 £2.59
26 - O-RING 20x2.5 MM BSD-1900210119.A11 1900210119 -
27 - SINTERED-METAL BUSHING J6G7x10R6x6DIN1850 BSD-1900301007.A11 1900301007 £3.72 £4.47
28 - LUBRICATING FELT dia10x3 MM BSD-1600005001.A30 1600005001 -
29 - SHIM WASHER 0.2 MM BSD-1600102677.A14 1600102677 -
30 - CARBON BRUSH BSD-1607014117.A68 1607014117 £10.10 £12.12
31 - SLOTTED SPRING PIN 6x36 DIN 7346 BSD-2917780157.A60 2917780157 £1.75 £2.10
32 - PROTECTIVE COVER BSD-1605510120.A11 1605510120 -
33 - END STOP BSD-2601336000.A9 2601336000 -
35 - HEX NUT DIN 934-M8-8-A BSD-2915011009.A195 2915011009 £2.61 £3.13
36 - SEAL RING BSD-1600290007.A13 1600290007 -
38 - RIVING KNIFE BSD-1600025010.A2 1600025010 -
39 - FIXING PLATE BSD-1601034035.A20 1601034035 -
40 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1608 2603410001 £1.75 £2.10
41 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A1055 2910211019 £1.75 £2.10
42 - WING NUT M6 BSD-1603339006.A233 1603339006 £2.52 £3.02
43 - ROUND-HEAD BOLT M6x15 DIN 603 BSD-2910281196.A113 2910281196 -
44 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A90 2910011128 £1.75 £2.10
45 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A201 2915011005 £1.75 £2.10
46 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x16-8.8 BSD-2910141238.A15 2910141238 -
47 - HEX SOCKET HEAD CAP SCREW BSD-1603414005.A4 1603414005 -
48 - BALL BEARING 7x22x7 BSD-1900905018.A56 1900905018 £18.96 £22.75
50 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A197 2600905021 £8.67 £10.41
51 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A522 2910211021 £1.75 £2.10
52 - GROOVE BALL BEARING 12x28x8 BSD-1900905121.A200 1900905121 £18.96 £22.75
53 - SPRING RETAINING RING 36x1.75 DIN 471 BSD-2916650037.A20 2916650037 -
56 - SEALING DISK 12x25.5x1.8 BSD-2916130004.A5 2916130004 -
57 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A113 1907950007 £5.30 £6.36
58 - LEAF SPRING BSD-1601253007.A10 1601253007 -
95 - STICKER BSD-1601110265.A204 1601110265 -
704 - CIRCULAR SAW BLADE BSD-2608640774.A6 2608640774 £17.02 £20.42
800 - CARBON BRUSH BSD-1607014117.A67 1607014117 £10.10 £12.12
801 - BEARING BRACKET BSD-1605807012.A11 1605807012 -
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A664 1607000227 £23.86 £28.63
830 - ARMATURE 220V BSD-1604010226.A11 1604010226 -
