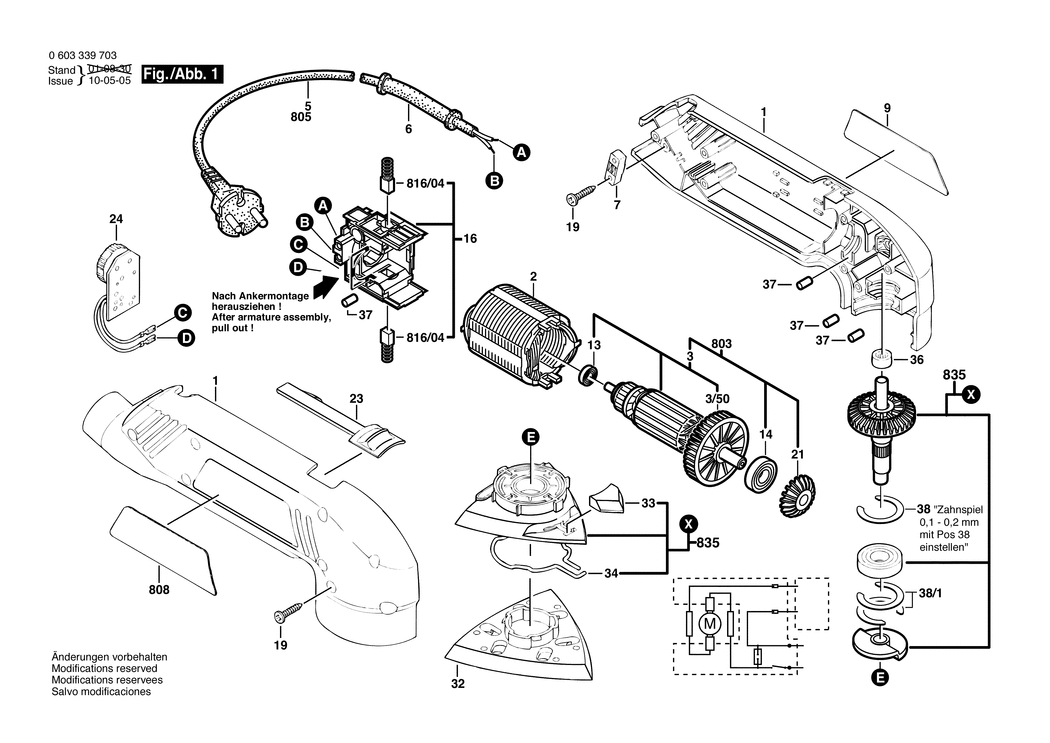

1 - HOUSING SECTION
BSD-2605104651.A2
2605104651
|
£21.52
|
£25.83
|
|
|
2 - FIELD 220-240V
BSD-2604220639.A11
2604220639
|
£18.96
|
£22.75
|
|
|
3 - ARMATURE 220-240V
BSD-2604010965.A5
2604010965
|
£33.74
|
£40.49
|
|
|
3/50 - FAN
BSD-2606610083.A23
2606610083
|
£5.30
|
£6.36
|
|
|
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F
BSD-1604460124.A109
1604460124
|
-
|
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A123
2600703012
|
£2.80
|
£3.36
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2256
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601119880.A4
2601119880
|
£3.72
|
£4.47
|
|
|
13 - GROOVE BALL BEARING 8x19x6
BSD-2600905046.A78
2600905046
|
£11.30
|
£13.56
|
|
|
14 - GROOVE BALL BEARING
BSD-2600905080.A2
2600905080
|
£4.26
|
£5.11
|
|
|
16 - BRUSH PLATE
BSD-2604337079.A0
2604337079
|
£21.68
|
£26.01
|
|
|
19 - SCREW 4x16
BSD-2603490022.A1615
2603490022
|
£1.75
|
£2.10
|
|
|
21 - PINION
BSD-2606333040.A7
2606333040
|
£4.26
|
£5.11
|
|
|
23 - SWITCH SLIDE
BSD-2602319021.A0
2602319021
|
£2.16
|
£2.59
|
|
|
24 - RPM ACTUATOR 220-240V
BSD-2607233053.A0
2607233053
|
£18.96
|
£22.75
|
|
|
32 - CLOSING PLATE
BSD-2608000174.A24
2608000174
|
£14.91
|
£17.89
|
|
|
33 - CATCH SLIDE
BSD-2608000173.A20
2608000173
|
£2.80
|
£3.36
|
|
|
34 - CLAMPING SPRING
BSD-2604680000.A20
2604680000
|
£2.80
|
£3.36
|
|
|
36 - NEEDLE BEARING
BSD-2600917002.A123
2600917002
|
£3.72
|
£4.47
|
|
|
37 - DAMPING RUBBER
BSD-2603100056.A7
2603100056
|
£1.75
|
£2.10
|
|
|
38 - SHIM 0.2 MM
BSD-2600101088.A17
2600101088
|
£1.75
|
£2.10
|
|
|
38/1 - SHIM 0.5 MM
BSD-2600101091.A33
2600101091
|
£2.16
|
£2.59
|
|
|
200 - REFERENCE PLATE
BSD-2601119998.A0
2601119998
|
-
|
|
|
|
803 - ARMATURE 220-240V
BSD-2604010962.A9
2604010962
|
£40.80
|
£48.96
|
|
|
808 - NAMEPLATE
BSD-2601119964.A0
2601119964
|
-
|
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2607014010.A21
2607014010
|
-
|
|
|
|
835 - TOOL HOLDING FIXTURE
BSD-2601098902.A7
2601098902
|
£21.68
|
£26.01
|
|
