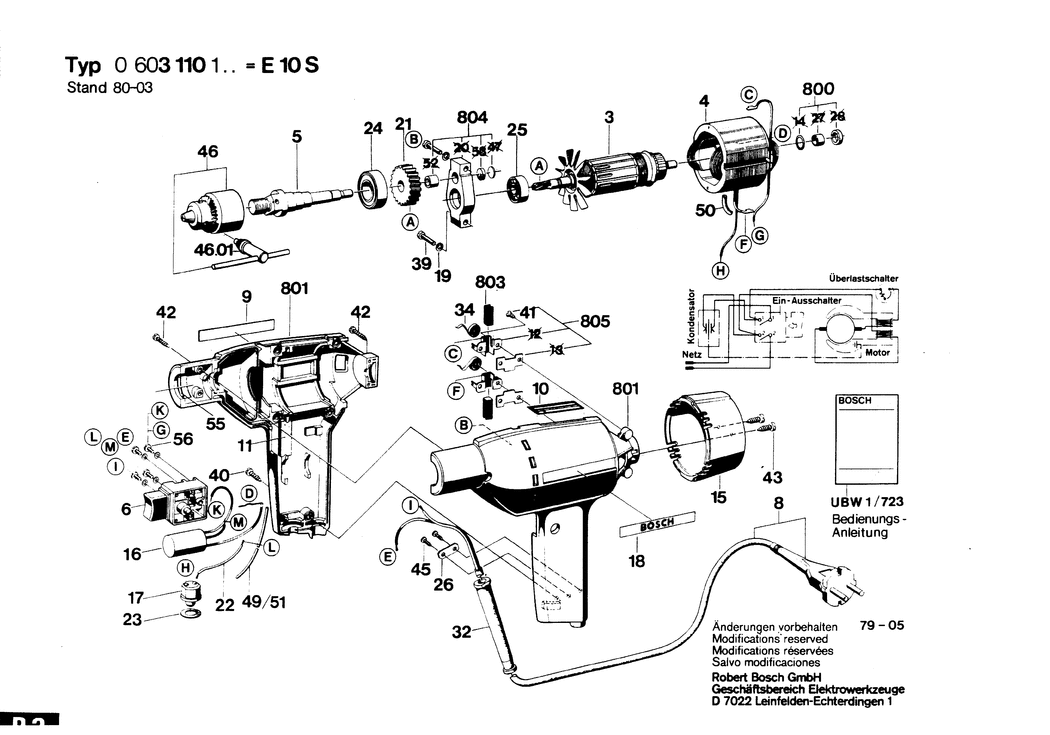

3 - ARMATURE 220V
BSD-1604010138.A2
1604010138
|
-
|
|
|
|
4 - POLE SHOE 220V
BSD-1604220116.A9
1604220116
|
-
|
|
|
|
5 - DRILLING SPINDLE 1/2-20 UNF 2A
BSD-1603523054.A20
1603523054
|
-
|
|
|
|
6 - ON-OFF SWITCH
BSD-1607200040.A101
1607200040
|
-
|
|
|
|
6 - ON-OFF SWITCH
BSD-1607200060.A69
1607200060
|
-
|
|
|
|
8 - POWER SUPPLY CORD
BSD-1604460083.A0
1604460083
|
-
|
|
|
|
9 - REFERENCE PLATE
BSD-1601110055.A4
1601110055
|
-
|
|
|
|
10 - NAMEPLATE
BSD-160111A3H3.A4669
160111A3H3
|
£2.61
|
£3.13
|
|
|
11 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A4
1602381001
|
-
|
|
|
|
15 - SEALING CAP
BSD-1605500066.A149
1605500066
|
-
|
|
|
|
16 - SUPPRESSION CAPACITOR
BSD-1607329014.A7
1607329014
|
-
|
|
|
|
17 - OVERLOAD SWITCH
BSD-1607202015.A1
1607202015
|
-
|
|
|
|
17 - THERMOSWITCH
BSD-1607202900.A4
1607202900
|
-
|
|
|
|
18 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A340
1601110481
|
£2.16
|
£2.59
|
|
|
19 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A1229
2916690003
|
£1.75
|
£2.10
|
|
|
21 - CYLINDRICAL GEAR Z=41
BSD-1606319011.A4
1606319011
|
-
|
|
|
|
22 - CONNECTING CABLE L=100 MM
BSD-1604412020.A1
1604412020
|
-
|
|
|
|
23 - SEALING DISK
BSD-1600109006.A14
1600109006
|
-
|
|
|
|
24 - GROOVE BALL BEARING 6002-Z DIN 625
BSD-1900905102.A74
1900905102
|
-
|
|
|
|
25 - BALL BEARING 7x22x7
BSD-1900905018.A10
1900905018
|
£18.96
|
£22.75
|
|
|
26 - FASTENING CLAMP
BSD-1601034026.A20
1601034026
|
-
|
|
|
|
32 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A182
1600703016
|
£1.75
|
£2.10
|
|
|
32 - GROMMET dia9.5 MM
BSD-2600703006.A31
2600703006
|
-
|
|
|
|
34 - SPIRAL SPRING
BSD-1604652004.A35
1604652004
|
£2.61
|
£3.13
|
|
|
39 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8
BSD-2910011128.A80
2910011128
|
£1.75
|
£2.10
|
|
|
40 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1072
2910211019
|
£1.75
|
£2.10
|
|
|
41 - TAPPING SCREW DIN 7972-BZ2.9x6.5
BSD-2910601004.A90
2910601004
|
-
|
|
|
|
42 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A397
2910211006
|
£1.75
|
£2.10
|
|
|
43 - TAPPING SCREW DIN 7971-BZ3.9x9.5
BSD-2910211017.A179
2910211017
|
-
|
|
|
|
45 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A300
2910211004
|
-
|
|
|
|
46 - KEY CHUCK dia0.8-10 MM. 1/2
BSD-1608571005.A48
1608571005
|
-
|
|
|
|
46 - KEY CHUCK dia1-10 MM. 1/2-24UNF
BSD-1608571054.A45
1608571054
|
-
|
|
|
|
46/01 - CHUCK WRENCH SG2
BSD-2607950007.A232
2607950007
|
£6.52
|
£7.83
|
|
|
55 - O-RING 17.0x3.0 MM
BSD-1610210121.A62
1610210121
|
£2.61
|
£3.13
|
|
|
56 - PAN HEAD SCREW DIN 85-4.8 3.5x5
BSD-2910091081.A0
2910091081
|
-
|
|
|
|
56 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1582
2603410001
|
£1.75
|
£2.10
|
|
|
800 - SINTERED-METAL BUSHING
BSD-1600301900.A170
1600301900
|
-
|
|
|
|
801 - MOTOR HOUSING
BSD-1605104917.A33
1605104917
|
-
|
|
|
|
803 - CARBON BRUSH
BSD-1604321900.A112
1604321900
|
-
|
|
|
|
804 - BEARING BRACKET
BSD-1605807901.A33
1605807901
|
-
|
|
|
|
805 - BRUSH HOLDER
BSD-1601323901.A52
1601323901
|
-
|
|
|
