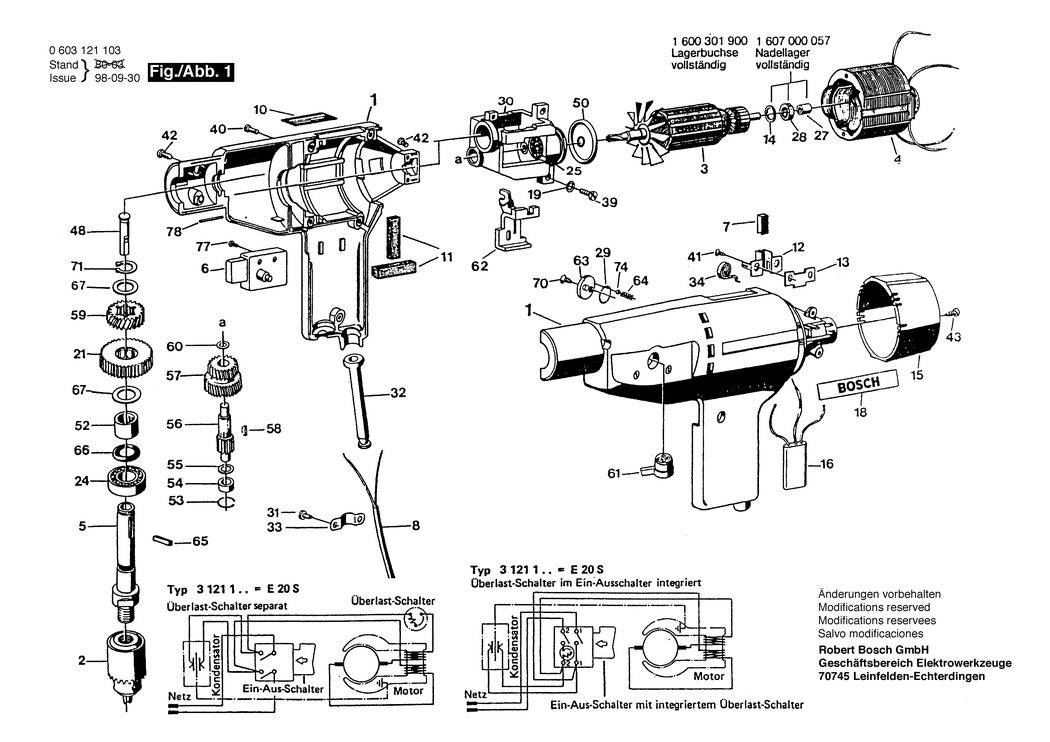

1 - ASSEMBLY OF SERVICE PARTS
BSD-1605104923.A0
1605104923
|
-
|
|
|
|
2 - KEY CHUCK dia0.8-10 MM. 1/2
BSD-1608571005.A58
1608571005
|
-
|
|
|
|
2 - CHUCK WRENCH
BSD-1607950027.A1
1607950027
|
-
|
|
|
|
3 - ARMATURE WITH FAN 220V
BSD-1604010134.A14
1604010134
|
-
|
|
|
|
4 - POLE SHOE 220V
BSD-1604220116.A13
1604220116
|
-
|
|
|
|
5 - DRILLING SPINDLE
BSD-1603523062.A2
1603523062
|
-
|
|
|
|
6 - ON-OFF SWITCH
BSD-1607200056.A11
1607200056
|
-
|
|
|
|
8 - POWER SUPPLY CORD
BSD-1604460073.A1
1604460073
|
-
|
|
|
|
10 - NAMEPLATE
BSD-2601105053.A4
2601105053
|
-
|
|
|
|
11 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A10
1602381001
|
-
|
|
|
|
12 - BRUSH HOLDER
BSD-1601323007.A15
1601323007
|
-
|
|
|
|
13 - BRUSH PLATE
BSD-1601034025.A18
1601034025
|
-
|
|
|
|
14 - O-RING 8.0x2.5 MM
BSD-1610210014.A220
1610210014
|
-
|
|
|
|
15 - SEALING CAP
BSD-1605500066.A156
1605500066
|
-
|
|
|
|
16 - SUPPRESSION CAPACITOR
BSD-2607329069.A64
2607329069
|
-
|
|
|
|
18 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A349
1601110481
|
£2.16
|
£2.59
|
|
|
19 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A1237
2916690003
|
£1.75
|
£2.10
|
|
|
21 - TOOTHED GEAR
BSD-2606317012.A23
2606317012
|
-
|
|
|
|
24 - GROOVE BALL BEARING 6002-Z DIN 625
BSD-1900905102.A78
1900905102
|
-
|
|
|
|
25 - GROOVE BALL BEARING 627 Y DIN 625
BSD-1900900235.A19
1900900235
|
-
|
|
|
|
27 - SINTERED-METAL BUSHING
BSD-1600301900.A175
1600301900
|
-
|
|
|
|
28 - FELT WASHER
BSD-1600205023.A171
1600205023
|
£1.32
|
£1.58
|
|
|
29 - O-RING 12.0x1.0 MM
BSD-1600210024.A51
1600210024
|
-
|
|
|
|
30 - ASSEMBLY OF SERVICE PARTS
BSD-1605807906.A2
1605807906
|
-
|
|
|
|
31 - TAPPING SCREW
BSD-2603435011.A43
2603435011
|
-
|
|
|
|
32 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A184
1600703016
|
£1.75
|
£2.10
|
|
|
33 - FASTENING CLAMP
BSD-1601302014.A478
1601302014
|
£2.61
|
£3.13
|
|
|
34 - SPIRAL SPRING
BSD-1604652004.A43
1604652004
|
£2.61
|
£3.13
|
|
|
39 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-5.8
BSD-2910011120.A19
2910011120
|
£1.75
|
£2.10
|
|
|
40 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1068
2910211019
|
£1.75
|
£2.10
|
|
|
41 - TAPPING SCREW DIN 7972-BZ2.9x6.5
BSD-2910601004.A100
2910601004
|
-
|
|
|
|
42 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A394
2910211006
|
£1.75
|
£2.10
|
|
|
43 - TAPPING SCREW DIN 7971-BZ3.9x9.5
BSD-2910211017.A182
2910211017
|
-
|
|
|
|
48 - CONTROL SHAFT
BSD-2603105011.A2
2603105011
|
-
|
|
|
|
49 - SEAL RING
BSD-1600108052.A1
1600108052
|
-
|
|
|
|
50 - O-RING
BSD-1600502008.A44
1600502008
|
-
|
|
|
|
52 - NEEDLE-ROLLER BEARING
BSD-1600910008.A44
1600910008
|
-
|
|
|
|
53 - RETAINING RING 14 DIN 9045
BSD-2916600008.A277
2916600008
|
£2.80
|
£3.36
|
|
|
54 - BUSHING dia8G7xdia14R6x6MM
BSD-2600301043.A3
2600301043
|
-
|
|
|
|
55 - PLAIN WASHER 0.3 MM
BSD-1230100633.A25
1230100633
|
-
|
|
|
|
56 - TOOTHED SHAFT
BSD-1606309058.A26
1606309058
|
-
|
|
|
|
57 - TOOTHED GEAR
BSD-1606328084.A4
1606328084
|
-
|
|
|
|
58 - WOODRUFF KEY DIN 6888-3x3.7-ST-60
BSD-1900023004.A3
1900023004
|
-
|
|
|
|
59 - CYLINDRICAL GEAR
BSD-1606320053.A22
1606320053
|
-
|
|
|
|
60 - SHIM 1.2 MM
BSD-1600100611.A71
1600100611
|
£1.75
|
£2.10
|
|
|
60 - SHIM 1.2 MM
BSD-1600100611.A72
1600100611
|
£1.75
|
£2.10
|
|
|
61 - CONTROL LEVER
BSD-1602026040.A44
1602026040
|
-
|
|
|
|
62 - CONTROL FORK
BSD-1601328001.A1
1601328001
|
-
|
|
|
|
63 - ECCENTRIC DISC
BSD-1600148005.A44
1600148005
|
-
|
|
|
|
64 - COMPRESSION SPRING
BSD-1604611016.A1
1604611016
|
-
|
|
|
|
65 - FLAT KEY
BSD-1602300017.A1
1602300017
|
-
|
|
|
|
66 - SEAL RING 13.0x4.0 MM
BSD-2600210025.A48
2600210025
|
-
|
|
|
|
67 - SHIM
BSD-2600101603.A50
2600101603
|
-
|
|
|
|
67 - SHIM dia14.5x21.5x0.5 MM
BSD-2000101600.A42
2000101600
|
-
|
|
|
|
67 - SHIM 0.3 MM
BSD-2600101604.A2
2600101604
|
-
|
|
|
|
70 - TAPPING SCREW DIN 7981-B 3.9x9.5
BSD-2910611017.A13
2910611017
|
-
|
|
|
|
71 - SPRING RETAINING RING 14x1 DIN 471
BSD-2916650005.A2
2916650005
|
-
|
|
|
|
74 - BALL 3 MM DIN 5401
BSD-1903230304.A3
1903230304
|
-
|
|
|
|
77 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1571
2603410001
|
£1.75
|
£2.10
|
|
|
79 - REFERENCE PLATE
BSD-2601110029.A5
2601110029
|
-
|
|
|
|
807 - CARBON BRUSH
BSD-1604321900.A116
1604321900
|
-
|
|
|
