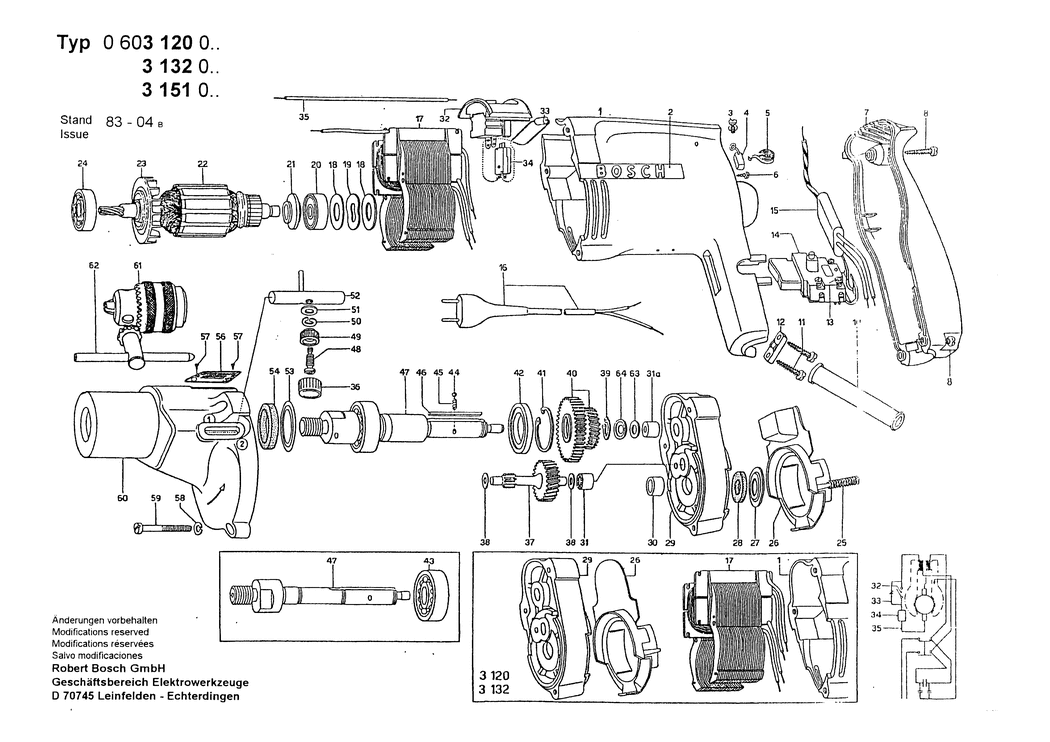

1 - MOTOR HOUSING
BSD-2605104907.A4
2605104907
|
-
|
|
|
|
2 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A121
2601007003
|
-
|
|
|
|
3 - SOCKET HEAD CAP SCREW
BSD-2603410010.A172
2603410010
|
-
|
|
|
|
4 - CARBON-BRUSH SET
BSD-2604320906.A133
2604320906
|
-
|
|
|
|
5 - SPIRAL SPRING
BSD-2604652002.A118
2604652002
|
-
|
|
|
|
6 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A313
2910211004
|
-
|
|
|
|
7 - HOUSING COVER
BSD-2605132031.A1
2605132031
|
-
|
|
|
|
8 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A940
2910211021
|
£1.75
|
£2.10
|
|
|
10 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A148
2600703011
|
£2.80
|
£3.36
|
|
|
10 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1458
2600703012
|
£2.80
|
£3.36
|
|
|
10 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A91
2600703013
|
£2.61
|
£3.13
|
|
|
11 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2152
2910211019
|
£1.75
|
£2.10
|
|
|
12 - CABLE CLIP
BSD-2601035001.A1517
2601035001
|
£1.75
|
£2.10
|
|
|
13 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A459
2603410023
|
-
|
|
|
|
14 - ON-OFF SWITCH
BSD-2607200043.A152
2607200043
|
-
|
|
|
|
15 - SUPPRESSION FILTER
BSD-2607329051.A167
2607329051
|
-
|
|
|
|
17 - POLE SHOE 250V
BSD-2604222268.A0
2604222268
|
-
|
|
|
|
18 - SHIM 0.2 MM
BSD-2600101022.A434
2600101022
|
£1.75
|
£2.10
|
|
|
18 - SHIM 0.3 MM
BSD-2600101023.A185
2600101023
|
£1.75
|
£2.10
|
|
|
18 - SHIM 0.5 MM
BSD-2600101020.A215
2600101020
|
£1.75
|
£2.10
|
|
|
19 - SHIM
BSD-2600150004.A463
2600150004
|
£2.16
|
£2.59
|
|
|
20 - BALL BEARING 7x22x7
BSD-1900905018.A991
1900905018
|
£18.96
|
£22.75
|
|
|
21 - ARMATURE PLATE
BSD-2600121002.A39
2600121002
|
-
|
|
|
|
22 - ARMATURE WITH FAN 110-115V
BSD-2604010441.A2
2604010441
|
-
|
|
|
|
22 - ARMATURE 220V
BSD-2604010442.A26
2604010442
|
-
|
|
|
|
22 - ARMATURE 240V
BSD-2604010443.A2
2604010443
|
-
|
|
|
|
23 - FAN
BSD-2606610032.A17
2606610032
|
-
|
|
|
|
24 - GROOVE BALL BEARING 10 MM DIN 625
BSD-2600905007.A234
2600905007
|
-
|
|
|
|
25 - COMPRESSION SPRING
BSD-2604611026.A197
2604611026
|
-
|
|
|
|
26 - COVER DISC
BSD-2601328023.A4
2601328023
|
-
|
|
|
|
27 - CUPPED WASHER
BSD-2600500008.A231
2600500008
|
-
|
|
|
|
28 - FELT DISC
BSD-2600108020.A122
2600108020
|
-
|
|
|
|
29 - INTERMEDIATE FLANGE
BSD-2605700906.A2
2605700906
|
-
|
|
|
|
30 - RECEPTACLE
BSD-2600400020.A104
2600400020
|
-
|
|
|
|
31 - NEEDLE BEARING
BSD-2600914004.A73
2600914004
|
£4.26
|
£5.11
|
|
|
32 - ON-OFF SWITCH
BSD-2607200053.A12
2607200053
|
-
|
|
|
|
33 - SILICON DIODE
BSD-2607320008.A42
2607320008
|
-
|
|
|
|
33 - SILICON DIODE
BSD-2607320008.A43
2607320008
|
-
|
|
|
|
34 - OVERLOAD SWITCH
BSD-2607202900.A4
2607202900
|
-
|
|
|
|
35 - CONNECTING CABLE
BSD-2604411519.A2
2604411519
|
-
|
|
|
|
35 - SUPPRESSOR BOX
BSD-2604465000.A14
2604465000
|
-
|
|
|
|
36 - SEALING CAP
BSD-2600508029.A32
2600508029
|
-
|
|
|
|
37 - TOOTHED SHAFT Z=27/9
BSD-2603160900.A3
2603160900
|
-
|
|
|
|
38 - SHIM 0.3 MM
BSD-2600100570.A205
2600100570
|
£1.75
|
£2.10
|
|
|
39 - SPRING RETAINING RING DIN 471-12x1-FSt
BSD-2916650003.A296
2916650003
|
£1.75
|
£2.10
|
|
|
40 - TOOTHED GEAR Z=46/27
BSD-2606328036.A14
2606328036
|
-
|
|
|
|
41 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A3
2916660013
|
£2.16
|
£2.59
|
|
|
42 - SHIM WASHER
BSD-2600114025.A4
2600114025
|
-
|
|
|
|
43 - GROOVE BALL BEARING 12x32x10
BSD-1900900302.A99
1900900302
|
-
|
|
|
|
44 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A475
1903230006
|
£2.16
|
£2.59
|
|
|
45 - COMPRESSION SPRING
BSD-2604611016.A66
2604611016
|
-
|
|
|
|
46 - FLAT KEY
BSD-2602300014.A31
2602300014
|
-
|
|
|
|
47 - DRILLING SPINDLE
BSD-2603122019.A15
2603122019
|
-
|
|
|
|
47 - DRILLING SPINDLE
BSD-2603122900.A1
2603122900
|
-
|
|
|
|
48 - PAN HEAD SCREW
BSD-2603413020.A19
2603413020
|
-
|
|
|
|
49 - SHIFT-LEVER KNOB
BSD-2603340015.A1
2603340015
|
-
|
|
|
|
50 - SPRING LOCK WASHER DIN 128-A5-FST
BSD-2916690004.A155
2916690004
|
£1.75
|
£2.10
|
|
|
51 - PLAIN WASHER DIN 433-5.3-ST
BSD-2916011011.A213
2916011011
|
£1.75
|
£2.10
|
|
|
52 - SWITCHING PIN
BSD-2603103017.A65
2603103017
|
-
|
|
|
|
53 - CUPPED WASHER
BSD-2600500033.A154
2600500033
|
£2.61
|
£3.13
|
|
|
54 - FELT WASHER
BSD-2600108033.A2
2600108033
|
£1.75
|
£2.10
|
|
|
55 - NEEDLE ROLLER DIN 5402-A3x11.8-G2
BSD-1903201042.A519
1903201042
|
£2.16
|
£2.59
|
|
|
56 - NAMEPLATE
BSD-2601100038.A36
2601100038
|
-
|
|
|
|
56 - NAMEPLATE
BSD-2601105006.A3
2601105006
|
-
|
|
|
|
57 - ROUND-HEAD GROOVED PIN 2x3 DIN 1476 ST
BSD-2917724031.A68
2917724031
|
-
|
|
|
|
58 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A452
2916690003
|
£1.75
|
£2.10
|
|
|
59 - PAN HEAD SCREW
BSD-2603410025.A31
2603410025
|
-
|
|
|
|
60 - GEAR HOUSING
BSD-2605806902.A13
2605806902
|
-
|
|
|
|
61 - CHUCK dia1.5-13 MM. 1/2
BSD-1608571069.A146
1608571069
|
£23.86
|
£28.63
|
|
|
62 - CHUCK WRENCH SG2
BSD-2607950007.A1211
2607950007
|
£6.52
|
£7.83
|
|
|
63 - SHIM
BSD-2600100565.A1
2600100565
|
-
|
|
|
|
64 - CUPPED WASHER
BSD-2600500001.A14
2600500001
|
-
|
|
|
