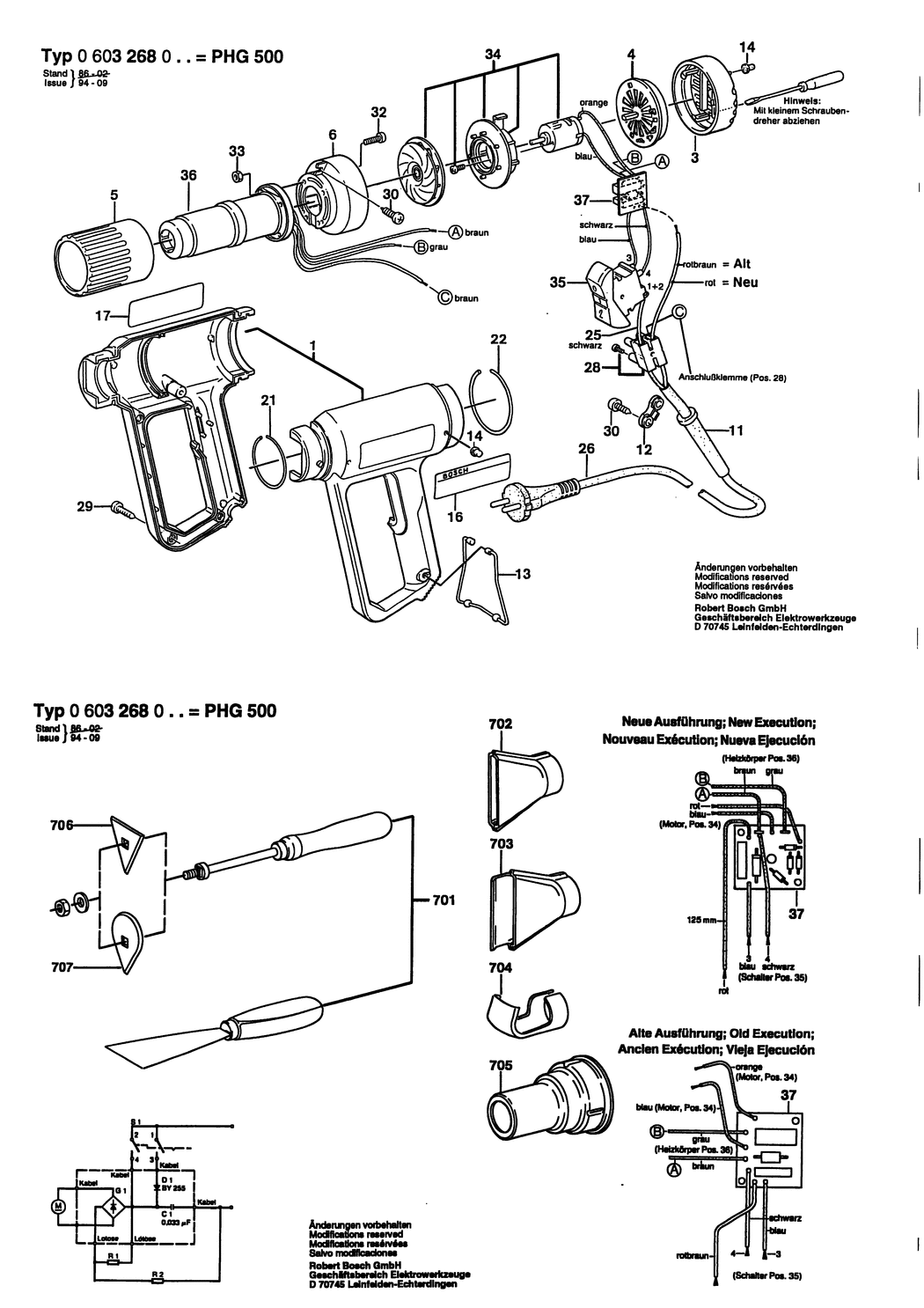

1 - MOTOR HOUSING
BSD-1609201481.A2
1609201481
|
-
|
|
|
|
3 - SEALING CAP
BSD-1609201482.A1
1609201482
|
-
|
|
|
|
4 - SLOTTED DISC
BSD-1609201483.A2
1609201483
|
-
|
|
|
|
5 - PROTECTIVE TUBE
BSD-1609201484.A12
1609201484
|
£10.10
|
£12.12
|
|
|
6 - FAN HOUSING
BSD-1609201485.A2
1609201485
|
-
|
|
|
|
11 - GROMMET
BSD-1609202793.A21
1609202793
|
£2.61
|
£3.13
|
|
|
12 - FASTENING CLAMP
BSD-1609201487.A1
1609201487
|
-
|
|
|
|
13 - TRANSPORT BRACKET
BSD-1609202794.A6
1609202794
|
£2.52
|
£3.02
|
|
|
14 - RUBBER BUFFER
BSD-1609201489.A8
1609201489
|
-
|
|
|
|
16 - STICKER
BSD-1601110325.A3
1601110325
|
-
|
|
|
|
17 - NAMEPLATE
BSD-1601110333.A0
1601110333
|
-
|
|
|
|
21 - RETAINING RING CA.dia2.3xdia47 MM
BSD-1609201490.A2
1609201490
|
£2.16
|
£2.59
|
|
|
22 - RETAINING RING CA.dia2.5xdia62 MM
BSD-1609201491.A12
1609201491
|
-
|
|
|
|
25 - CABLE
BSD-1609201492.A2
1609201492
|
-
|
|
|
|
26 - POWER SUPPLY CORD
BSD-1609201493.A13
1609201493
|
-
|
|
|
|
28 - CONNECTING TERMINAL
BSD-1609390042.A39
1609390042
|
£3.34
|
£4.01
|
|
|
29 - TAPPING SCREW DIN 7983-B2.9x16
BSD-2910615507.A17
2910615507
|
£1.32
|
£1.58
|
|
|
30 - TAPPING SCREW DIN 7981-ST 2.9x13-F-H
BSD-2910614406.A7
2910614406
|
£1.75
|
£2.10
|
|
|
32 - TAPPING SCREW DIN 7985-M3x10-4.8
BSD-2910644052.A6
2910644052
|
-
|
|
|
|
33 - HEX NUT DIN 934-M 3-m-8
BSD-2915011003.A71
2915011003
|
£1.75
|
£2.10
|
|
|
34 - DC MOTOR 115-240V
BSD-1609201572.A18
1609201572
|
£16.41
|
£19.69
|
|
|
35 - ON-OFF SWITCH
BSD-1609201500.A13
1609201500
|
£11.30
|
£13.56
|
|
|
36 - HEATING ELEMENT 220V
BSD-1609201501.A3
1609201501
|
-
|
|
|
|
37 - PRINTED-BOARD ASSEMBLY 220-240V
BSD-1609201505.A4
1609201505
|
-
|
|
|
|
701 - PARTS SET 75 MM
BSD-1609390450.A6
1609390450
|
-
|
|
|
|
702 - WIDE ANGLE NOZZLE 75 MM
BSD-1609390451.A24
1609390451
|
£10.49
|
£12.59
|
|
|
703 - FLAT-SPRAY NOZZLE 75 MM
BSD-1609390452.A6
1609390452
|
£8.47
|
£10.16
|
|
|
704 - CYLINDRICAL-SPRAY NOZZLE
BSD-1609390453.A24
1609390453
|
£8.74
|
£10.49
|
|
|
705 - REDUCTION SLEEVE dia 22/20 MM
BSD-1609201648.A13
1609201648
|
£6.99
|
£8.39
|
|
|
706 - BLADE
BSD-1609201745.A16
1609201745
|
-
|
|
|
|
707 - SCRAPER
BSD-1609201746.A14
1609201746
|
-
|
|
|
