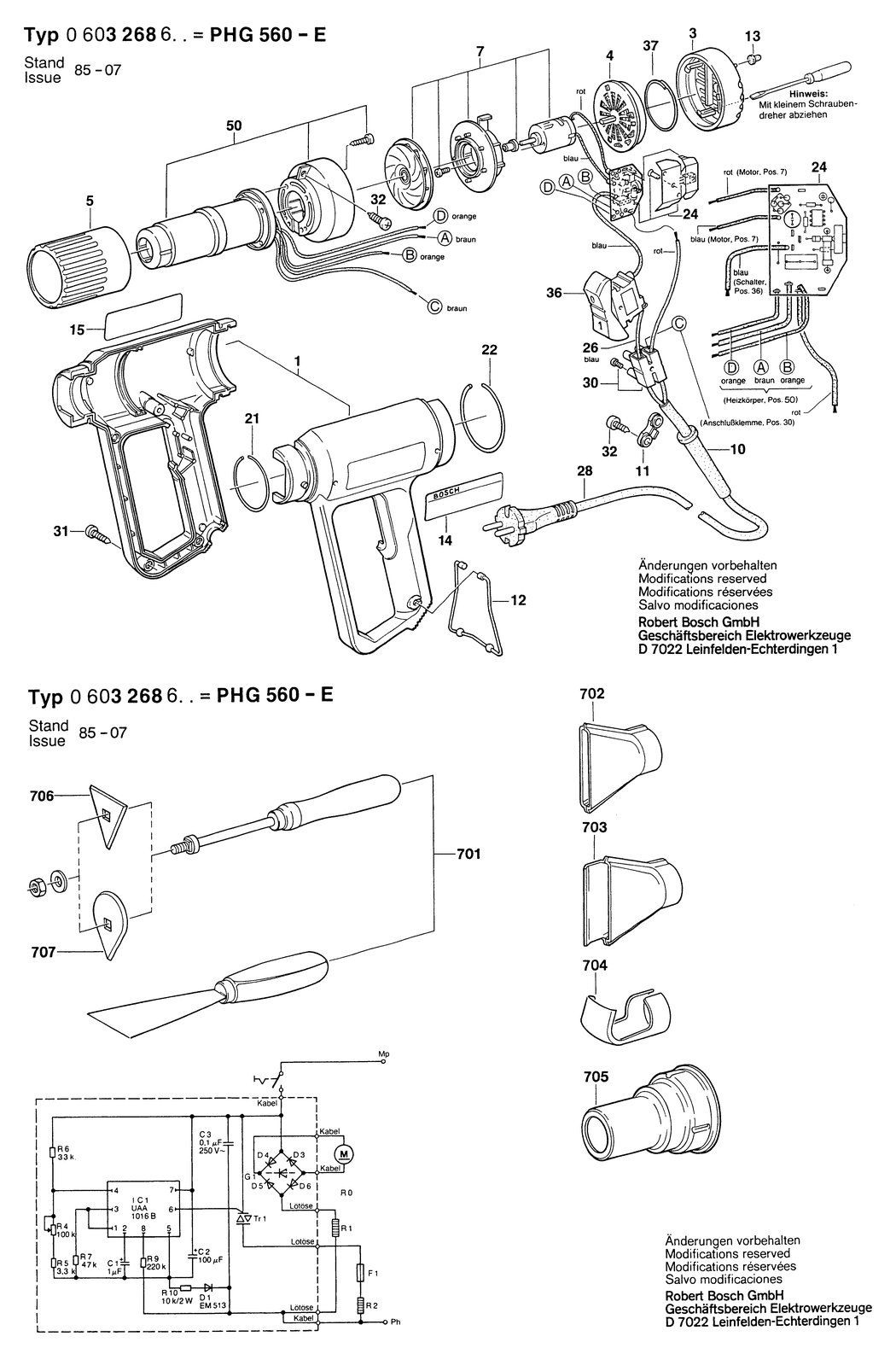

1 - MOTOR HOUSING
BSD-1609201481.A7
1609201481
|
-
|
|
|
|
3 - SEALING CAP
BSD-1609201765.A1
1609201765
|
-
|
|
|
|
4 - SLOTTED DISC
BSD-1609201483.A6
1609201483
|
-
|
|
|
|
5 - PROTECTIVE TUBE
BSD-1609201484.A8
1609201484
|
£10.10
|
£12.12
|
|
|
7 - DC MOTOR 115-240V
BSD-1609201572.A5
1609201572
|
£16.41
|
£19.69
|
|
|
10 - GROMMET
BSD-1609202793.A6
1609202793
|
£2.61
|
£3.13
|
|
|
11 - FASTENING CLAMP
BSD-1609201487.A13
1609201487
|
-
|
|
|
|
12 - TRANSPORT BRACKET
BSD-1609202794.A13
1609202794
|
£2.52
|
£3.02
|
|
|
13 - RUBBER BUFFER
BSD-1609201489.A3
1609201489
|
-
|
|
|
|
14 - MANUFACTURER'S NAMEPLATE
BSD-1601110416.A1
1601110416
|
-
|
|
|
|
15 - NAMEPLATE
BSD-1601110429.A0
1601110429
|
-
|
|
|
|
21 - RETAINING RING CA.dia2.3xdia47 MM
BSD-1609201490.A9
1609201490
|
£2.16
|
£2.59
|
|
|
22 - RETAINING RING CA.dia2.5xdia62 MM
BSD-1609201491.A9
1609201491
|
-
|
|
|
|
24 - PRINTED-BOARD ASSEMBLY 240V
BSD-1609201726.A0
1609201726
|
-
|
|
|
|
26 - CABLE
BSD-1609201492.A15
1609201492
|
-
|
|
|
|
28 - POWER SUPPLY CORD
BSD-1609201493.A6
1609201493
|
-
|
|
|
|
30 - CONNECTING TERMINAL
BSD-1609390042.A32
1609390042
|
£3.34
|
£4.01
|
|
|
31 - TAPPING SCREW DIN 7983-B2.9x16
BSD-2910615507.A10
2910615507
|
£1.32
|
£1.58
|
|
|
32 - TAPPING SCREW DIN 7981-ST 2.9x13-F-H
BSD-2910614406.A14
2910614406
|
£1.75
|
£2.10
|
|
|
36 - ON-OFF SWITCH
BSD-1609201728.A1
1609201728
|
-
|
|
|
|
37 - CLAMPING RING dia1.5xdia47 MM
BSD-1609201723.A2
1609201723
|
-
|
|
|
|
50 - HEATING ELEMENT 240V
BSD-1609201731.A0
1609201731
|
-
|
|
|
|
701 - PARTS SET 75 MM
BSD-1609390450.A13
1609390450
|
-
|
|
|
|
702 - WIDE ANGLE NOZZLE 75 MM
BSD-1609390451.A17
1609390451
|
£10.49
|
£12.59
|
|
|
703 - FLAT-SPRAY NOZZLE 75 MM
BSD-1609390452.A13
1609390452
|
£8.47
|
£10.16
|
|
|
704 - CYLINDRICAL-SPRAY NOZZLE
BSD-1609390453.A17
1609390453
|
£8.74
|
£10.49
|
|
|
705 - REDUCTION SLEEVE dia 22/20 MM
BSD-1609201648.A2
1609201648
|
£6.99
|
£8.39
|
|
|
706 - BLADE
BSD-1609201745.A0
1609201745
|
-
|
|
|
|
707 - SCRAPER
BSD-1609201746.A30
1609201746
|
-
|
|
|
|
708 - ANGULAR JET NOZZLE
BSD-1609201751.A0
1609201751
|
£12.24
|
£14.69
|
|
|
709 - EXTENSION CABLE
BSD-1609201752.A21
1609201752
|
-
|
|
|
|
710 - FLAT SUCTION NOZZLE 50 MM
BSD-1609201795.A13
1609201795
|
£12.24
|
£14.69
|
|
|
711 - FLAT-SPRAY NOZZLE 50 MM
BSD-1609201796.A9
1609201796
|
£12.24
|
£14.69
|
|
