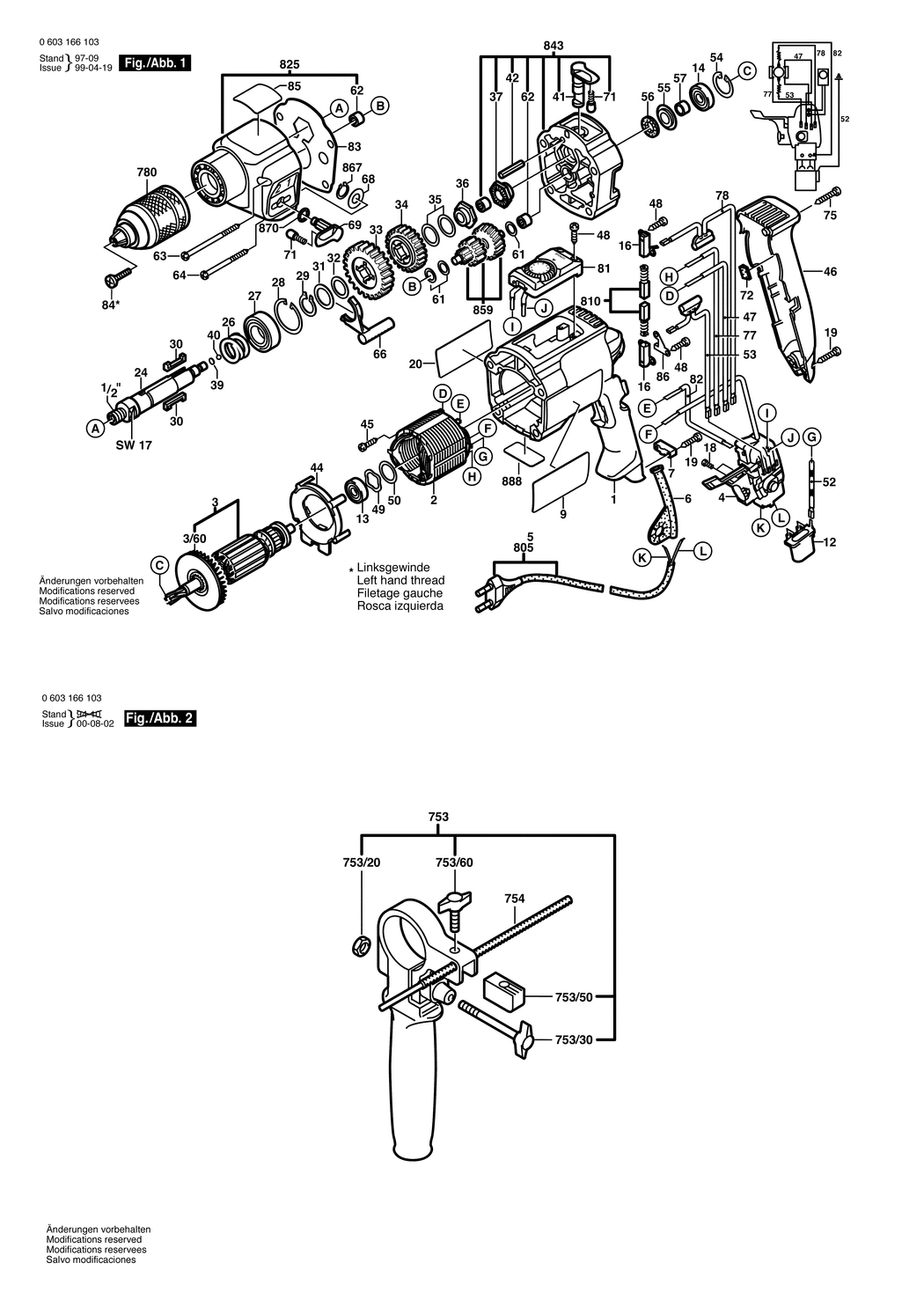

An exploded drawing and listing for the Bosch CSB 1000-2 RET / 0603166132 / CH 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-2605104296.A4 2605104296 -
2 - FIELD 220-240V BSD-2604220436.A56 2604220436 -
3 - ARMATURE 230-240V BSD-2604010865.A22 2604010865 -
3/60 - FAN BSD-2606610049.A113 2606610049 £2.16 £2.59
4 - ON-OFF SWITCH BSD-2607200238.A4 2607200238 -
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460432.A56 1604460432 £11.30 £13.56
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A840 2600703012 £2.80 £3.36
7 - CABLE CLIP BSD-2601035001.A2919 2601035001 £1.75 £2.10
9 - REFERENCE PLATE BSD-2601119418.A2 2601119418 -
12 - SUPPRESSION FILTER BSD-2607329114.A447 2607329114 -
13 - BALL BEARING 7x22x7 BSD-1900905018.A409 1900905018 £18.96 £22.75
14 - GROOVE BALL BEARING BSD-2600905050.A4 2600905050 -
16 - BRUSH HOLDER BSD-2604337016.A131 2604337016 £1.75 £2.10
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2250 2603410001 £1.75 £2.10
19 - SCREW 4x16 BSD-2603490022.A2674 2603490022 £1.75 £2.10
20 - REFERENCE PLATE BSD-2601119414.A1 2601119414 -
24 - DRILLING SPINDLE 1/2 BSD-2606135013.A44 2606135013 £21.42 £25.71
26 - COMPRESSION SPRING BSD-2604616002.A234 2604616002 £1.75 £2.10
27 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A105 1900905163 £11.30 £13.56
28 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A83 2916660014 £1.75 £2.10
29 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A7 2916650008 £1.75 £2.10
30 - FLAT KEY BSD-2602300028.A110 2602300028 -
31 - RETAINING WASHER BSD-2600101671.A76 2600101671 £1.75 £2.10
32 - SHIM 1.0 MM BSD-2600101515.A202 2600101515 £1.95 £2.34
33 - CYLINDRICAL GEAR Z=48 BSD-2606317045.A102 2606317045 £14.72 £17.67
34 - CYLINDRICAL GEAR Z=36 BSD-2606317037.A4 2606317037 -
35 - SHIM 0.5 MM BSD-2600101616.A76 2600101616 -
35 - SHIM 0.3 MM BSD-2600101617.A282 2600101617 £1.75 £2.10
36 - CATCH DISK BSD-2600190052.A84 2600190052 £7.78 £9.33
37 - CATCH DISK BSD-2600190057.A34 2600190057 -
39 - SHIM WASHER 0.2 MM BSD-2600000012.A127 2600000012 £1.75 £2.10
39 - SHIM WASHER 0.5 MM BSD-2600000014.A128 2600000014 £1.75 £2.10
39 - SHIM WASHER 1.35 MM BSD-2600000030.A6 2600000030 £1.75 £2.10
40 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A414 1903230010 £1.75 £2.10
41 - ROTARY KNOB BSD-2602026017.A174 2602026017 £7.36 £8.83
42 - SLOTTED SPRING PIN 4x30 MM DIN 7346 BSD-2917780105.A43 2917780105 £1.75 £2.10
44 - COVER DISC BSD-2601328033.A157 2601328033 -
45 - TAPPING SCREW BSD-2603435086.A177 2603435086 £1.75 £2.10
46 - HOUSING COVER BSD-2605132025.A2 2605132025 £7.36 £8.83
47 - CONNECTING CABLE L = 123 MM BSD-2604448145.A20 2604448145 -
48 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A279 2603490017 £2.16 £2.59
49 - SHIM BSD-2600150004.A590 2600150004 £2.16 £2.59
50 - SHIM WASHER 0.3 MM BSD-2600101027.A337 2600101027 £1.75 £2.10
50 - SHIM WASHER 0.2 MM BSD-2600101665.A1 2600101665 £1.75 £2.10
50 - SHIM WASHER 0.5 MM BSD-2600101667.A40 2600101667 £1.75 £2.10
52 - EARTH CONDUCTOR BSD-2604448103.A54 2604448103 -
53 - SUPPRESSION FILTER L=148 MM BSD-2604465086.A115 2604465086 £5.58 £6.70
54 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A66 2916660008 £2.16 £2.59
55 - CUPPED WASHER BSD-2600500002.A435 2600500002 £1.75 £2.10
56 - FELT WASHER BSD-2600108077.A400 2600108077 £1.75 £2.10
57 - RECEPTACLE BSD-2600400008.A721 2600400008 £1.75 £2.10
61 - SHIM 0.3 MM BSD-2600100607.A303 2600100607 £1.75 £2.10
62 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A354 2600914010 £2.80 £3.36
63 - HEADLESS SCREW BSD-2603435070.A84 2603435070 £2.16 £2.59
64 - HEADLESS SCREW 65 MM BSD-2603435071.A11 2603435071 -
66 - ADJUSTING SLIDE BSD-2602033006.A83 2602033006 £2.80 £3.36
68 - SHIM WASHER BSD-2600100618.A81 2600100618 £1.75 £2.10
69 - ROTARY KNOB BSD-2602026038.A27 2602026038 -
71 - RATCHET CAP BSD-2600590006.A479 2600590006 £1.75 £2.10
72 - INSERT BSD-2601010049.A3 2601010049 -
75 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A961 2603490024 £1.75 £2.10
77 - CONNECTING CABLE L=78 MM BSD-2604448137.A36 2604448137 -
78 - SUPPRESSION FILTER L= 156 MM BSD-2604465087.A12 2604465087 £5.01 £6.01
81 - TORQUE CONTROL 230V BSD-2607233006.A1 2607233006 -
82 - CONNECTING CABLE L=176 MM BSD-2604448004.A44 2604448004 £1.32 £1.58
83 - GASKET BSD-2601073012.A98 2601073012 £1.75 £2.10
85 - STICKER BSD-2601118187.A3 2601118187 -
86 - PLATE BSD-2600034003.A25 2600034003 -
753 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A112 1619P10682 £12.49 £14.99
753/20 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A267 2915011007 -
753/30 - WING SCREW M6x(15)55 BSD-1613480007.A57 1613480007 £1.75 £2.10
753/50 - CLAMPING PLATE M6 BSD-2608040014.A11 2608040014 -
753/60 - WING SCREW M6x20 MM BSD-1613480008.A374 1613480008 £1.75 £2.10
754 - DEPTH-GAUGE BSD-2603001019.A37 2603001019 £2.63 £3.16
780 - KEYLESS CHUCK dia 1.5-13 MM. 1/2 BSD-2608572106.A10 2608572106 £81.81 £98.17
810 - CARBON-BRUSH SET BSD-2604321905.A149 2604321905 £11.30 £13.56
825 - GEAR HOUSING BSD-2605806987.A32 2605806987 -
843 - INTERMEDIATE FLANGE BSD-2605700936.A110 2605700936 £46.82 £56.18
859 - TOOTHED SHAFT Z= 10/21/22 BSD-2606100914.A7 2606100914 -
865 - STICKER BSD-2601110076.A169 2601110076 -
867 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A516 2916080007 £2.61 £3.13
870 - PARTS SET BSD-2607010226.A23 2607010226 £2.33 £2.80
888 - NAMEPLATE BSD-160111A3H3.A3598 160111A3H3 £2.61 £3.13
