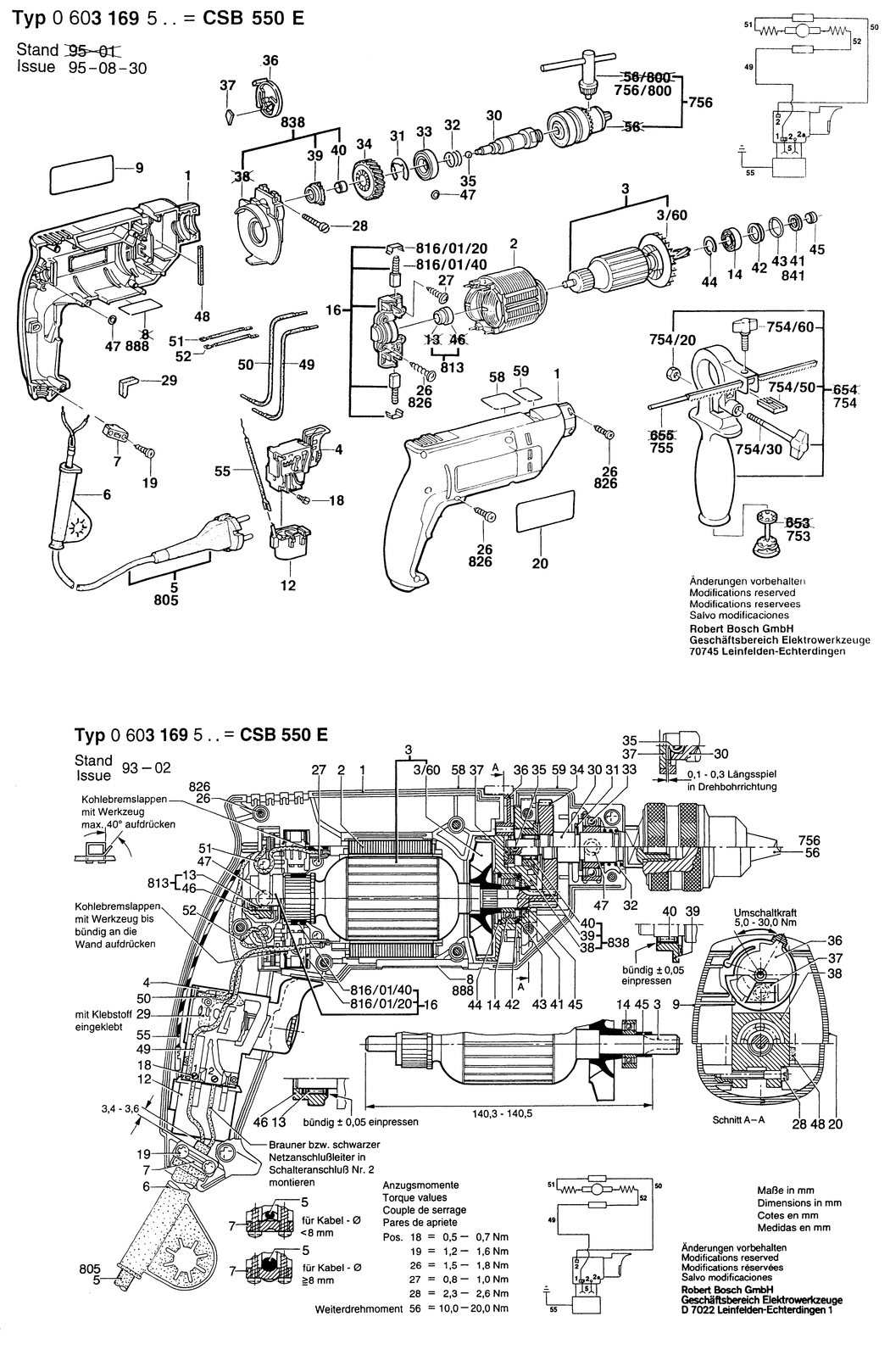

1 - HOUSING SECTION
BSD-2605104254.A5
2605104254
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220562.A14
2604220562
|
-
|
|
|
|
3 - ARMATURE 230-240V
BSD-2604010727.A8
2604010727
|
-
|
|
|
|
3/60 - FAN
BSD-2606610029.A126
2606610029
|
£2.61
|
£3.13
|
|
|
4 - SWITCH
BSD-2607200184.A78
2607200184
|
-
|
|
|
|
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460147.A30
2604460147
|
£16.41
|
£19.69
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A535
2600707059
|
£3.72
|
£4.47
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1455
2601035001
|
£1.75
|
£2.10
|
|
|
9 - STICKER
BSD-2601118388.A0
2601118388
|
-
|
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-2607329138.A77
2607329138
|
-
|
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905039.A99
2600905039
|
£12.04
|
£14.45
|
|
|
16 - BRUSH PLATE
BSD-2605807060.A129
2605807060
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1225
2603410001
|
£1.75
|
£2.10
|
|
|
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A186
2910611019
|
£2.80
|
£3.36
|
|
|
20 - REFERENCE PLATE
BSD-2601118668.A12
2601118668
|
-
|
|
|
|
27 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A125
2603490018
|
£1.75
|
£2.10
|
|
|
28 - SOCKET HEAD CAP SCREW DIN 84-BM4x30-8.8
BSD-2910021134.A25
2910021134
|
£1.75
|
£2.10
|
|
|
29 - DAMPING PLATE
BSD-2601022000.A657
2601022000
|
£1.75
|
£2.10
|
|
|
30 - DRILLING SPINDLE 1/2.M6
BSD-2606135034.A13
2606135034
|
-
|
|
|
|
31 - LOCKING WASHER 0.6 MM
BSD-2600118001.A62
2600118001
|
£1.75
|
£2.10
|
|
|
31 - LOCKING WASHER 0.3 MM
BSD-2600118006.A89
2600118006
|
-
|
|
|
|
31 - LOCKING WASHER 0.8 MM
BSD-2600118002.A138
2600118002
|
£1.75
|
£2.10
|
|
|
32 - COMPRESSION SPRING
BSD-2604617000.A225
2604617000
|
£2.61
|
£3.13
|
|
|
33 - GROOVE BALL BEARING 15x32x9
BSD-1900905122.A41
1900905122
|
£10.10
|
£12.12
|
|
|
34 - CYLINDRICAL GEAR Z=37
BSD-2606320051.A12
2606320051
|
-
|
|
|
|
35 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A688
1903230010
|
£1.75
|
£2.10
|
|
|
36 - INDEXING DISK
BSD-2601990001.A3
2601990001
|
£1.32
|
£1.58
|
|
|
37 - PRESSURE PLATE
BSD-2601074003.A3
2601074003
|
£1.75
|
£2.10
|
|
|
39 - SCREEN DISC
BSD-2606490056.A40
2606490056
|
-
|
|
|
|
41 - FELT WASHER
BSD-2600108014.A4
2600108014
|
-
|
|
|
|
42 - CUPPED WASHER
BSD-2600500014.A112
2600500014
|
-
|
|
|
|
43 - O-RING 18x3 MM
BSD-1900210117.A9
1900210117
|
£3.72
|
£4.47
|
|
|
44 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A994
2916660008
|
£2.16
|
£2.59
|
|
|
45 - RECEPTACLE
BSD-2600400008.A379
2600400008
|
£1.75
|
£2.10
|
|
|
47 - O-RING 5.0x1.75 MM
BSD-2600210036.A111
2600210036
|
-
|
|
|
|
48 - FELT STRIP
BSD-2601005011.A46
2601005011
|
-
|
|
|
|
49 - CABLE L=173 MM
BSD-2604448060.A103
2604448060
|
-
|
|
|
|
50 - CABLE L=98 MM
BSD-2604448045.A29
2604448045
|
-
|
|
|
|
51 - CONNECTING CABLE L=73 MM
BSD-2604448123.A84
2604448123
|
-
|
|
|
|
52 - CONNECTING CABLE L=88 MM
BSD-2604448130.A35
2604448130
|
£1.75
|
£2.10
|
|
|
55 - EARTH CONDUCTOR
BSD-2604448103.A109
2604448103
|
-
|
|
|
|
58 - MANUFACTURER'S NAMEPLATE
BSD-2601110389.A2
2601110389
|
-
|
|
|
|
59 - STICKER
BSD-2601110580.A61
2601110580
|
-
|
|
|
|
753 - DRILL HOLDER
BSD-2607000122.A215
2607000122
|
-
|
|
|
|
754 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A322
1619P10682
|
£12.49
|
£14.99
|
|
|
754/20 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A698
2915011007
|
-
|
|
|
|
754/30 - WING SCREW M6x(15)55
BSD-1613480007.A332
1613480007
|
£1.75
|
£2.10
|
|
|
754/50 - CLAMPING PLATE M6
BSD-2608040014.A278
2608040014
|
-
|
|
|
|
754/60 - WING SCREW M6x20 MM
BSD-1613480008.A78
1613480008
|
£1.75
|
£2.10
|
|
|
755 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001005.A41
1613001005
|
-
|
|
|
|
756 - KEY CHUCK dia1.5-13 MM
BSD-1608571080.A67
1608571080
|
£27.23
|
£32.68
|
|
|
756/800 - CHUCK WRENCH SG2
BSD-2607950007.A1130
2607950007
|
£6.52
|
£7.83
|
|
|
813 - NEEDLE BEARING
BSD-2600917902.A144
2600917902
|
-
|
|
|
|
816/01/20 - RATCHET CAP
BSD-2601322013.A179
2601322013
|
£1.75
|
£2.10
|
|
|
816/01/40 - CARBON-BRUSH SET
BSD-2604321905.A328
2604321905
|
£11.30
|
£13.56
|
|
|
826 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A610
2912401020
|
£2.16
|
£2.59
|
|
|
838 - BEARING BRACKET
BSD-2605807915.A36
2605807915
|
-
|
|
|
|
841 - FELT DISC
BSD-2600108000.A268
2600108000
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2680
160111A3H3
|
£2.61
|
£3.13
|
|
