Bosch CSB 650-2 RET / 0603161850 / I 230 Volt Spare Parts

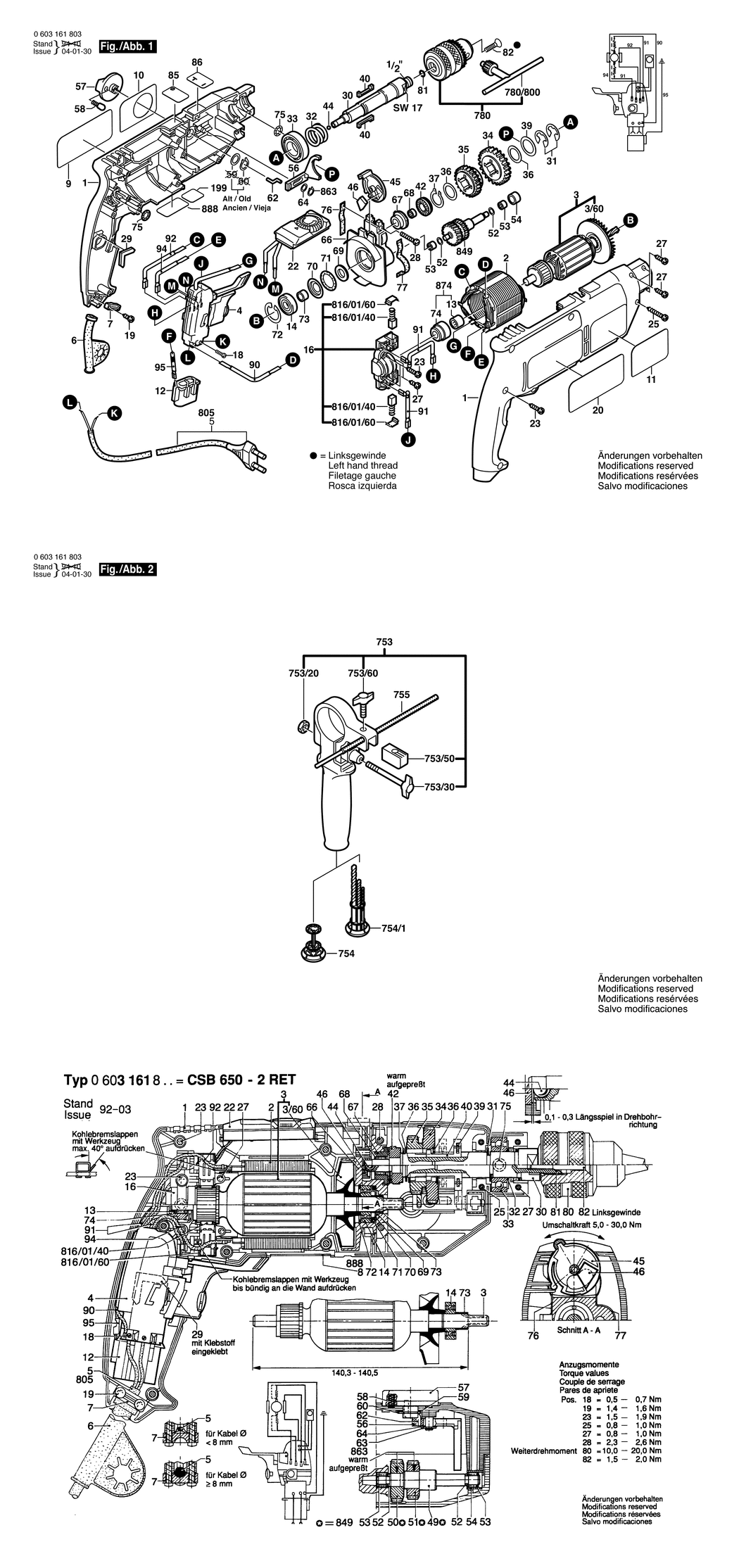

An exploded drawing and listing for the Bosch CSB 650-2 RET / 0603161850 / I 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2609994551.A5 2609994551	-
2 - FIELD 220-240V BSD-1604220254.A147 1604220254	£21.68	£26.01
3 - ARMATURE 230-240V BSD-2604010862.A22 2604010862	-
3/60 - FAN BSD-2606610029.A324 2606610029	£2.61	£3.13
4 - ON-OFF SWITCH BSD-2607200237.A20 2607200237	-
5 - POWER SUPPLY CORD I/BR 2.65m 2 x 1.0mm H05 VV-F BSD-2604460283.A18 2604460283	£12.04	£14.45
6 - GROMMET dia6.9 MM BSD-2600707059.A216 2600707059	£3.72	£4.47
7 - CABLE CLIP BSD-2601035001.A2044 2601035001	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2601118566.A4 2601118566	-
10 - MANUFACTURER'S NAMEPLATE BSD-2601118117.A0 2601118117	-
11 - MANUFACTURER'S NAMEPLATE BSD-2601118118.A8 2601118118	-
12 - SUPPRESSION FILTER BSD-2607329114.A277 2607329114	-
13 - NEEDLE BEARING BSD-2600917902.A20 2600917902	-
14 - GROOVE BALL BEARING 9x24x7 BSD-2600905039.A369 2600905039	£12.04	£14.45
16 - BRUSH PLATE BSD-2605807060.A48 2605807060	-
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1524 2603410001	£1.75	£2.10
19 - SCREW 4x16 BSD-2603490022.A1904 2603490022	£1.75	£2.10
20 - MANUFACTURER'S NAMEPLATE BSD-2601118563.A22 2601118563	-
22 - TORQUE CONTROL 230-240V BSD-2607233005.A16 2607233005	-
23 - TAPPING SCREW DIN7981-ST3.9x19-F-Z BSD-2912401420.A223 2912401420	£1.75	£2.10
25 - TORX OVAL-HEAD SCREW 3x30 BSD-2603490019.A29 2603490019	£1.75	£2.10
27 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A449 2603490018	£1.75	£2.10
28 - SOCKET HEAD CAP SCREW BSD-2603429005.A5 2603429005	£1.75	£2.10
29 - DAMPING PLATE BSD-2601022000.A370 2601022000	£1.75	£2.10
30 - DRILLING SPINDLE 1/2. SW 17 BSD-2606135044.A5 2606135044	-
31 - LOCKING WASHER 0.6 MM BSD-2600118001.A204 2600118001	£1.75	£2.10
31 - LOCKING WASHER 0.8 MM BSD-2600118002.A43 2600118002	£1.75	£2.10
31 - LOCKING WASHER 0.3 MM BSD-2600118006.A159 2600118006	-
32 - COMPRESSION SPRING BSD-2604616002.A169 2604616002	£1.75	£2.10
33 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A215 1900905163	£11.30	£13.56
34 - CYLINDRICAL GEAR Z=48 BSD-2606317045.A81 2606317045	£14.72	£17.67
35 - CYLINDRICAL GEAR Z=36 BSD-2606317037.A135 2606317037	-
36 - SHIM 1.0 MM BSD-2600101515.A133 2600101515	£1.95	£2.34
37 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A179 2916650006	£1.75	£2.10
39 - RETAINING WASHER BSD-2600101671.A130 2600101671	£1.75	£2.10
40 - FLAT KEY BSD-2602300028.A95 2602300028	-
42 - CATCH DISK BSD-2600190052.A69 2600190052	£7.78	£9.33
44 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A120 1903230010	£1.75	£2.10
45 - INDEXING DISK BSD-2601990001.A138 2601990001	£1.32	£1.58
46 - PRESSURE PLATE BSD-2601074003.A103 2601074003	£1.75	£2.10
52 - SHIM 0.3 MM BSD-2600100607.A38 2600100607	£1.75	£2.10
53 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A45 2600914010	£2.80	£3.36
54 - BEARING SLEEVE BSD-2600400027.A44 2600400027	£4.26	£5.11
56 - CONTROL FORK BSD-2602033005.A14 2602033005	-
57 - ROTARY HEAD BSD-2602026091.A85 2602026091	-
58 - RATCHET CAP BSD-2600590006.A200 2600590006	£1.75	£2.10
62 - DRIVER PIN BSD-2601335001.A87 2601335001	£2.16	£2.59
64 - SHIM WASHER BSD-2600100618.A41 2600100618	£1.75	£2.10
66 - BEARING BRACKET BSD-2605807928.A25 2605807928	-
67 - CATCH DISK BSD-2600190057.A1 2600190057	-
68 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A170 2600917003	£2.80	£3.36
69 - FELT DISC BSD-2600108000.A111 2600108000	-
70 - CUPPED WASHER BSD-2600500014.A58 2600500014	-
71 - O-RING 18x3 MM BSD-1900210117.A131 1900210117	£3.72	£4.47
72 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A261 2916660008	£2.16	£2.59
73 - RECEPTACLE BSD-2600400008.A602 2600400008	£1.75	£2.10
74 - BEARING SLEEVE BSD-2600222002.A55 2600222002	-
75 - O-RING 5.0x1.5 MM BSD-1900210000.A267 1900210000	£1.75	£2.10
76 - FELT STRIP BSD-2601005011.A133 2601005011	-
77 - FELT STRIP BSD-2601005016.A37 2601005016	£1.32	£1.58
81 - RETAINING RING BSD-2604601004.A303 2604601004	£1.75	£2.10
82 - COUNTERSUNK-HEAD SCREW M6x38/12(dia11) BSD-2603421208.A59 2603421208	-
85 - STICKER BSD-2601110842.A18 2601110842	£1.75	£2.10
86 - STICKER BSD-2601110580.A25 2601110580	-
90 - CONNECTING CABLE L=184 MM BSD-2604448001.A54 2604448001	£1.95	£2.34
91 - CONNECTING CABLE L=85 MM BSD-2604448147.A71 2604448147	£1.75	£2.10
92 - CONNECTING CABLE L=115MM BSD-2604448096.A89 2604448096	-
94 - CONNECTING CABLE L=88 MM BSD-2604448034.A111 2604448034	£1.75	£2.10
95 - EARTH CONDUCTOR BSD-2604448170.A108 2604448170	-
753 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A207 1619P10682	£12.49	£14.99
753/20 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A516 2915011007	-
753/30 - WING SCREW M6x(15)55 BSD-1613480007.A123 1613480007	£1.75	£2.10
753/50 - CLAMPING PLATE M6 BSD-2608040014.A118 2608040014	-
753/60 - WING SCREW M6x20 MM BSD-1613480008.A311 1613480008	£1.75	£2.10
754 - DRILL HOLDER BSD-2607000122.A10 2607000122	-
755 - DEPTH-GAUGE SW 6x210 MM BSD-1613001005.A180 1613001005	-
780 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A318 1608571069	£23.86	£28.63
780/800 - CHUCK WRENCH SG2 BSD-2607950007.A256 2607950007	£6.52	£7.83
816/01/40 - CARBON-BRUSH SET BSD-2604321905.A10 2604321905	£11.30	£13.56
816/01/60 - RATCHET CAP BSD-2601322013.A546 2601322013	£1.75	£2.10
849 - TOOTHED SHAFT Z= 10/29/22 BSD-2606309913.A22 2606309913	-
863 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A448 2916080007	£2.61	£3.13
888 - NAMEPLATE BSD-160111A3H3.A4551 160111A3H3	£2.61	£3.13
