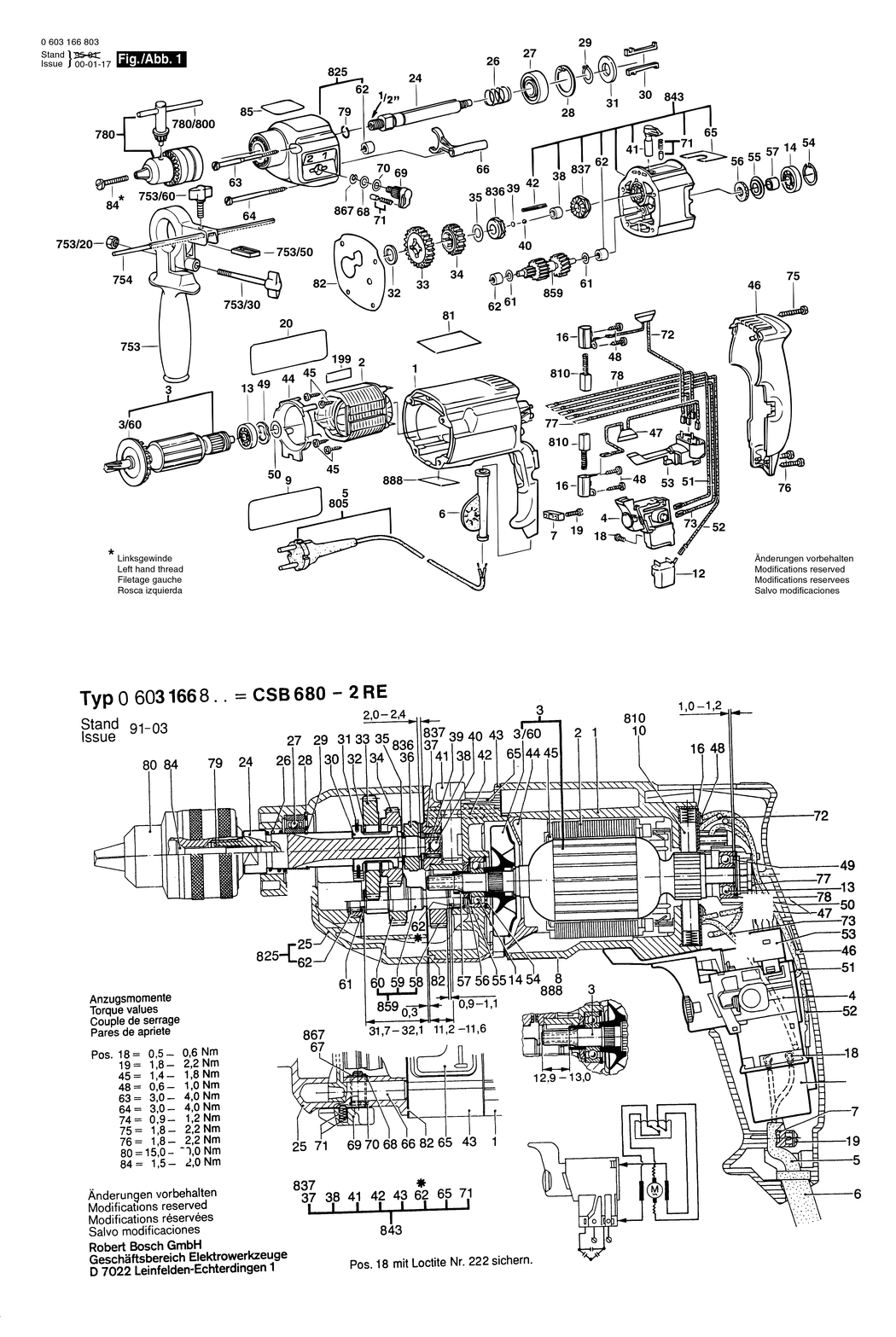

1 - MOTOR HOUSING
BSD-2605104295.A3
2605104295
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-1604220254.A22
1604220254
|
£21.68
|
£26.01
|
|
|
3 - ARMATURE 230-240V
BSD-2604010739.A34
2604010739
|
-
|
|
|
|
3/60 - FAN
BSD-2606610029.A215
2606610029
|
£2.61
|
£3.13
|
|
|
4 - SWITCH
BSD-2607200190.A9
2607200190
|
£54.42
|
£65.30
|
|
|
4 - ON-OFF SWITCH
BSD-2607200224.A12
2607200224
|
-
|
|
|
|
5 - POWER SUPPLY CORD I/BR 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460283.A88
2604460283
|
£12.04
|
£14.45
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A438
2600707059
|
£3.72
|
£4.47
|
|
|
7 - CABLE CLIP
BSD-2601035001.A632
2601035001
|
£1.75
|
£2.10
|
|
|
9 - STICKER
BSD-2601110827.A0
2601110827
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A185
2607329114
|
-
|
|
|
|
13 - BALL BEARING 7x22x7
BSD-1900905018.A687
1900905018
|
£18.96
|
£22.75
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A584
2600905021
|
£8.67
|
£10.41
|
|
|
16 - BRUSH HOLDER
BSD-2604337003.A276
2604337003
|
£2.16
|
£2.59
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A611
2603410001
|
£1.75
|
£2.10
|
|
|
19 - SCREW 4x16
BSD-2603490022.A1442
2603490022
|
£1.75
|
£2.10
|
|
|
20 - REFERENCE PLATE
BSD-2601119413.A1
2601119413
|
-
|
|
|
|
24 - DRILLING SPINDLE 1/2.SW 17
BSD-2606135032.A25
2606135032
|
-
|
|
|
|
26 - COMPRESSION SPRING
BSD-2604616002.A98
2604616002
|
£1.75
|
£2.10
|
|
|
27 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A538
1900905163
|
£11.30
|
£13.56
|
|
|
28 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A386
2916660014
|
£1.75
|
£2.10
|
|
|
29 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A408
2916650008
|
£1.75
|
£2.10
|
|
|
30 - FLAT KEY
BSD-2602300028.A22
2602300028
|
-
|
|
|
|
31 - RETAINING WASHER
BSD-2600101671.A268
2600101671
|
£1.75
|
£2.10
|
|
|
32 - SHIM 1.0 MM
BSD-2600101515.A82
2600101515
|
£1.95
|
£2.34
|
|
|
33 - CYLINDRICAL GEAR Z=48
BSD-2606317045.A38
2606317045
|
£14.72
|
£17.67
|
|
|
34 - CYLINDRICAL GEAR Z=36
BSD-2606317037.A167
2606317037
|
-
|
|
|
|
35 - SHIM 0.5 MM
BSD-2600101616.A354
2600101616
|
-
|
|
|
|
35 - SHIM 0.3 MM
BSD-2600101617.A61
2600101617
|
£1.75
|
£2.10
|
|
|
38 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A631
2600917003
|
£2.80
|
£3.36
|
|
|
39 - SHIM WASHER 0.2 MM
BSD-2600000012.A31
2600000012
|
£1.75
|
£2.10
|
|
|
39 - SHIM WASHER 0.5 MM
BSD-2600000014.A86
2600000014
|
£1.75
|
£2.10
|
|
|
40 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A546
1903230010
|
£1.75
|
£2.10
|
|
|
41 - ROTARY KNOB
BSD-2602026017.A97
2602026017
|
£7.36
|
£8.83
|
|
|
42 - SLOTTED SPRING PIN 4x30 MM DIN 7346
BSD-2917780105.A118
2917780105
|
£1.75
|
£2.10
|
|
|
44 - COVER DISC
BSD-2601328033.A24
2601328033
|
-
|
|
|
|
45 - TAPPING SCREW
BSD-2603435086.A215
2603435086
|
£1.75
|
£2.10
|
|
|
46 - HOUSING COVER
BSD-2605132048.A23
2605132048
|
-
|
|
|
|
48 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1138
2603490017
|
£2.16
|
£2.59
|
|
|
49 - SHIM
BSD-2600150004.A197
2600150004
|
£2.16
|
£2.59
|
|
|
50 - SHIM WASHER 0.3 MM
BSD-2600101027.A69
2600101027
|
£1.75
|
£2.10
|
|
|
50 - SHIM WASHER 0.5 MM
BSD-2600101667.A154
2600101667
|
£1.75
|
£2.10
|
|
|
51 - CABLE L=130 MM
BSD-2604448005.A332
2604448005
|
£1.75
|
£2.10
|
|
|
52 - EARTH CONDUCTOR
BSD-2604448097.A112
2604448097
|
£1.75
|
£2.10
|
|
|
53 - CHANGE-OVER SWITCH
BSD-2607200231.A192
2607200231
|
£16.41
|
£19.69
|
|
|
54 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A726
2916660008
|
£2.16
|
£2.59
|
|
|
55 - CUPPED WASHER
BSD-2600500002.A340
2600500002
|
£1.75
|
£2.10
|
|
|
56 - FELT WASHER
BSD-2600108077.A298
2600108077
|
£1.75
|
£2.10
|
|
|
57 - RECEPTACLE
BSD-2600400008.A137
2600400008
|
£1.75
|
£2.10
|
|
|
61 - SHIM 0.3 MM
BSD-2600100607.A738
2600100607
|
£1.75
|
£2.10
|
|
|
62 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A779
2600914010
|
£2.80
|
£3.36
|
|
|
63 - TAPPING SCREW 79 MM
BSD-2603435012.A161
2603435012
|
-
|
|
|
|
64 - HEADLESS SCREW 65 MM
BSD-2603435071.A83
2603435071
|
-
|
|
|
|
65 - STICKER
BSD-2601110076.A97
2601110076
|
-
|
|
|
|
66 - ADJUSTING SLIDE
BSD-2602033006.A44
2602033006
|
£2.80
|
£3.36
|
|
|
68 - SHIM WASHER
BSD-2600100618.A306
2600100618
|
£1.75
|
£2.10
|
|
|
69 - ROTARY KNOB
BSD-2602026038.A83
2602026038
|
-
|
|
|
|
70 - PARTS SET
BSD-2607010226.A102
2607010226
|
£2.33
|
£2.80
|
|
|
71 - RATCHET CAP
BSD-2600590006.A874
2600590006
|
£1.75
|
£2.10
|
|
|
72 - SUPPRESSION FILTER L=148 MM
BSD-2604465086.A94
2604465086
|
£5.58
|
£6.70
|
|
|
73 - CONNECTING CABLE L=110 MM
BSD-2604448146.A55
2604448146
|
£1.75
|
£2.10
|
|
|
75 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A413
2603490024
|
£1.75
|
£2.10
|
|
|
76 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A805
2603490023
|
£1.75
|
£2.10
|
|
|
77 - CONNECTING CABLE L=68 MM
BSD-2604448100.A18
2604448100
|
£1.75
|
£2.10
|
|
|
78 - CONNECTING CABLE L=98 MM
BSD-2604448074.A53
2604448074
|
£2.16
|
£2.59
|
|
|
79 - RETAINING RING
BSD-2604601004.A616
2604601004
|
£1.75
|
£2.10
|
|
|
81 - STICKER
BSD-2601110117.A28
2601110117
|
-
|
|
|
|
82 - GASKET
BSD-2601073012.A61
2601073012
|
£1.75
|
£2.10
|
|
|
84 - COUNTERSUNK-HEAD SCREW M6x38/12(dia11)
BSD-2603421208.A6
2603421208
|
-
|
|
|
|
753 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A456
1619P10682
|
£12.49
|
£14.99
|
|
|
753/20 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1334
2915011007
|
-
|
|
|
|
753/30 - WING SCREW M6x(15)55
BSD-1613480007.A238
1613480007
|
£1.75
|
£2.10
|
|
|
753/50 - CLAMPING PLATE M6
BSD-2608040014.A213
2608040014
|
-
|
|
|
|
753/60 - WING SCREW M6x20 MM
BSD-1613480008.A184
1613480008
|
£1.75
|
£2.10
|
|
|
754 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001005.A115
1613001005
|
-
|
|
|
|
756 - DRILL HOLDER
BSD-2607000122.A139
2607000122
|
-
|
|
|
|
780 - CHUCK dia1.5-13 MM. 1/2
BSD-1608571069.A12
1608571069
|
£23.86
|
£28.63
|
|
|
780/800 - CHUCK WRENCH SG2
BSD-2607950007.A1499
2607950007
|
£6.52
|
£7.83
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321905.A641
2604321905
|
£11.30
|
£13.56
|
|
|
825 - GEAR HOUSING
BSD-2605806987.A5
2605806987
|
-
|
|
|
|
836 - CATCH DISK
BSD-2600190052.A150
2600190052
|
£7.78
|
£9.33
|
|
|
837 - CATCH DISK
BSD-2600190051.A14
2600190051
|
-
|
|
|
|
843 - INTERMEDIATE FLANGE
BSD-2605700936.A24
2605700936
|
£46.82
|
£56.18
|
|
|
859 - TOOTHED SHAFT Z= 10/22/29
BSD-2606100903.A14
2606100903
|
-
|
|
|
|
867 - LOCKING WASHER DIN 6799-4-FSt
BSD-2916080007.A208
2916080007
|
£2.61
|
£3.13
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1493
160111A3H3
|
£2.61
|
£3.13
|
|
