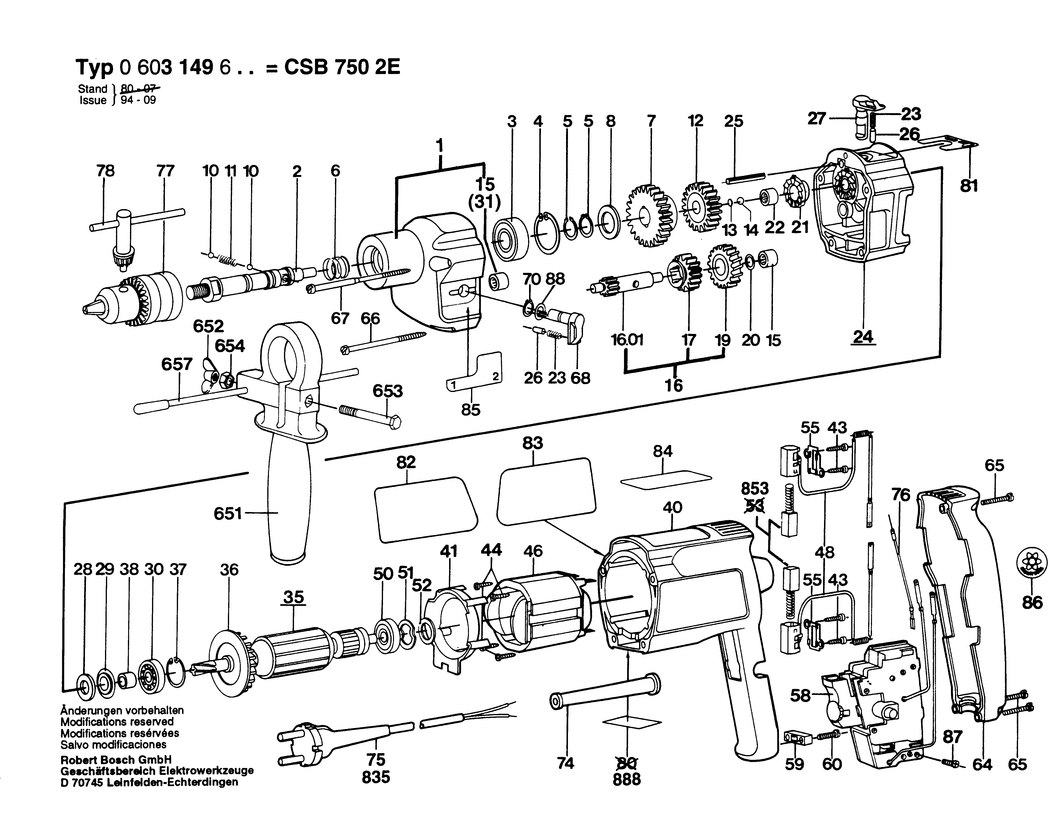

An exploded drawing and listing for the Bosch CSB 750-2 E / 0603149650 / I 220 Volt
Ex VAT Inc VAT
1 - GEAR HOUSING BSD-2605806951.A8 2605806951 -
1 - GEAR HOUSING BSD-2605806959.A15 2605806959 -
2 - DRILLING SPINDLE 1/2-UNF-2 BSD-2606135001.A23 2606135001 -
3 - GROOVE BALL BEARING 15x32x9 BSD-2600905014.A8 2600905014 -
4 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A10 2916660013 £2.16 £2.59
5 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A411 2916650006 £1.75 £2.10
6 - COMPRESSION SPRING BSD-2604617000.A192 2604617000 £2.61 £3.13
7 - CYLINDRICAL GEAR Z=48 BSD-2606317014.A62 2606317014 -
8 - SHIM 1.0 MM BSD-2600101515.A61 2600101515 £1.95 £2.34
10 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A95 1903230007 £1.75 £2.10
11 - COMPRESSION SPRING BSD-2604610007.A30 2604610007 -
12 - CYLINDRICAL GEAR Z=36 BSD-2606317025.A2 2606317025 -
13 - SHIM WASHER 0.2 MM BSD-2600000012.A61 2600000012 £1.75 £2.10
13 - SHIM WASHER 0.3 MM BSD-2600000013.A26 2600000013 -
13 - SHIM WASHER 0.5 MM BSD-2600000014.A20 2600000014 £1.75 £2.10
13 - SHIM WASHER 0.1 MM BSD-2600000018.A15 2600000018 -
14 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A717 1903230010 £1.75 £2.10
15 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A562 2600914010 £2.80 £3.36
16 - TOOTHED SHAFT Z=10/22/21 BSD-2606309902.A14 2606309902 -
16 - TOOTHED SHAFT Z=10 BSD-2606309004.A25 2606309004 -
17 - CYLINDRICAL GEAR Z=22 BSD-2606317026.A13 2606317026 -
19 - CYLINDRICAL GEAR Z=21 BSD-2606320006.A41 2606320006 -
20 - SHIM 0.3 MM BSD-2600100570.A223 2600100570 £1.75 £2.10
21 - LOCATING WASHER BSD-2606490031.A48 2606490031 -
22 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A346 2600917003 £2.80 £3.36
23 - RATCHET CAP BSD-2600590006.A1359 2600590006 £1.75 £2.10
24 - FLANGED BEARING BSD-2605700928.A22 2605700928 -
25 - SLOTTED SPRING PIN 4x30 MM DIN 7346 BSD-2917780105.A165 2917780105 £1.75 £2.10
26 - RATCHET CAP BSD-2600590006.A1358 2600590006 £1.75 £2.10
27 - ROTARY KNOB BSD-2602026017.A9 2602026017 £7.36 £8.83
28 - FELT WASHER BSD-2600108077.A178 2600108077 £1.75 £2.10
29 - CUPPED WASHER BSD-2600500002.A12 2600500002 £1.75 £2.10
30 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A757 2600905021 £8.67 £10.41
31 - NEEDLE BEARING dia6/12 MM BSD-2600914017.A10 2600914017 £11.30 £13.56
35 - ARMATURE 220-240V BSD-2604010541.A2 2604010541 -
35 - ARMATURE 220-240V BSD-2604010542.A2 2604010542 -
36 - FAN BSD-2606610049.A258 2606610049 £2.16 £2.59
37 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A957 2916660008 £2.16 £2.59
38 - RECEPTACLE BSD-2600400008.A442 2600400008 £1.75 £2.10
40 - MOTOR HOUSING BSD-2605104108.A9 2605104108 -
40 - MOTOR HOUSING BSD-2605104146.A12 2605104146 -
41 - COVER DISC BSD-2601328032.A11 2601328032 -
43 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1355 2603490017 £2.16 £2.59
44 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A108 2603435015 £2.16 £2.59
46 - POLE SHOE 220-240V BSD-2604220402.A3 2604220402 -
46 - POLE SHOE 220-240V BSD-2604220403.A1 2604220403 -
48 - SUPPRESSOR BOX BSD-2604465062.A41 2604465062 -
50 - BALL BEARING 7x22x7 BSD-1900905018.A979 1900905018 £18.96 £22.75
51 - SHIM BSD-2600150004.A441 2600150004 £2.16 £2.59
52 - SHIM 0.3 MM BSD-2600101023.A193 2600101023 £1.75 £2.10
52 - SHIM 0.2 MM BSD-2600101022.A426 2600101022 £1.75 £2.10
52 - SHIM 0.5 MM BSD-2600101020.A223 2600101020 £1.75 £2.10
55 - BRUSH PLATE BSD-2601015047.A177 2601015047 -
58 - ON-OFF SWITCH BSD-2607200916.A4 2607200916 -
59 - CABLE CLIP BSD-2601035001.A1535 2601035001 £1.75 £2.10
60 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A2169 2910211019 £1.75 £2.10
64 - HOUSING COVER BSD-2605132039.A7 2605132039 -
65 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A922 2910211021 £1.75 £2.10
66 - HEADLESS SCREW 65 MM BSD-2603435071.A164 2603435071 -
67 - TAPPING SCREW 79 MM BSD-2603435012.A111 2603435012 -
68 - ROTARY KNOB BSD-2602026018.A21 2602026018 -
70 - SPRING RETAINING RING DIN 471-10x1MM-FSt BSD-2916650001.A489 2916650001 £2.61 £3.13
74 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A1475 2600703012 £2.80 £3.36
74 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A139 2600703011 £2.80 £3.36
75 - POWER SUPPLY CORD BSD-2604460093.A9 2604460093 -
76 - EARTH CONDUCTOR dia0.35 MM BSD-2604448010.A14 2604448010 -
77 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A162 1608571069 £23.86 £28.63
78 - CHUCK WRENCH SG2 BSD-2607950007.A1223 2607950007 £6.52 £7.83
81 - STICKER BSD-2601110076.A10 2601110076 -
82 - STICKER BSD-2601110215.A2 2601110215 -
83 - STICKER BSD-2601110216.A2 2601110216 -
84 - STICKER BSD-2601110117.A2 2601110117 -
85 - STICKER BSD-2601110072.A22 2601110072 -
86 - STICKER BSD-2601110041.A190 2601110041 -
87 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1332 2603410001 £1.75 £2.10
88 - SHIM 0.2 MM BSD-2600100575.A127 2600100575 £2.16 £2.59
88 - SHIM 0.3 MM BSD-2600100576.A192 2600100576 -
88 - SHIM 0.5 MM BSD-2600100577.A130 2600100577 £1.75 £2.10
651 - AUXILIARY HANDLE BSD-2602025094.A111 2602025094 £7.36 £8.83
652 - WING NUT M6 DIN 315-G-GTW-40 BSD-2915191006.A67 2915191006 -
653 - HEX SCREW DIN 931-M6x75-8.8 BSD-2911001220.A17 2911001220 -
654 - CONICAL SPRING WASHER BSD-2601098001.A37 2601098001 -
655 - DEPTH-GAUGE BSD-2607010026.A8 2607010026 -
853 - CARBON-BRUSH SET BSD-2604321907.A24 2604321907 £14.91 £17.89
888 - NAMEPLATE BSD-160111A3H3.A2728 160111A3H3 £2.61 £3.13
