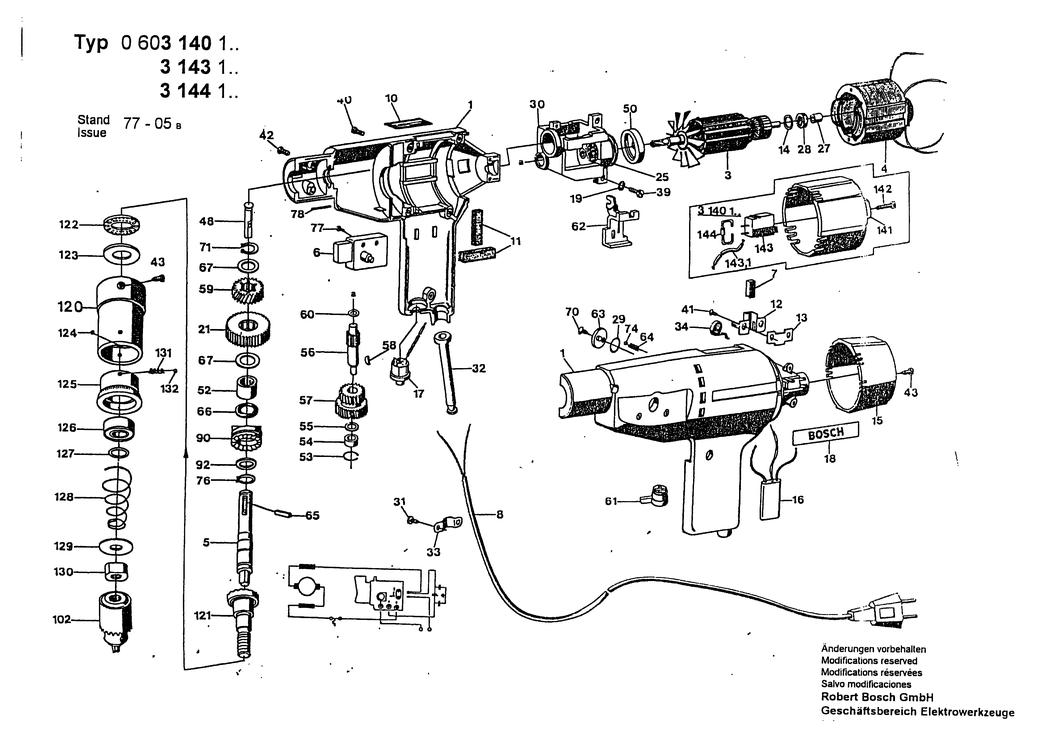

1 - HOUSING SECTION
BSD-1605104905.A10
1605104905
|
-
|
|
|
|
3 - ARMATURE WITH FAN 110V
BSD-1604010135.A6
1604010135
|
-
|
|
|
|
4 - POLE SHOE 110V
BSD-1604220117.A7
1604220117
|
-
|
|
|
|
5 - DRILLING SPINDLE
BSD-1603121018.A5
1603121018
|
-
|
|
|
|
6 - ON-OFF SWITCH
BSD-2607200055.A2
2607200055
|
-
|
|
|
|
7 - CARBON BRUSH
BSD-1604321900.A30
1604321900
|
-
|
|
|
|
10 - NAMEPLATE
BSD-160111A3H3.A3615
160111A3H3
|
£2.61
|
£3.13
|
|
|
11 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A114
1602381001
|
-
|
|
|
|
12 - BRUSH HOLDER
BSD-1601323007.A52
1601323007
|
-
|
|
|
|
13 - BRUSH PLATE
BSD-1601034025.A67
1601034025
|
-
|
|
|
|
14 - O-RING 8.0x2.5 MM
BSD-1610210014.A100
1610210014
|
-
|
|
|
|
15 - SEALING CAP
BSD-1605500066.A94
1605500066
|
-
|
|
|
|
16 - SUPPRESSION CAPACITOR
BSD-2607329069.A30
2607329069
|
-
|
|
|
|
17 - OVERLOAD SWITCH
BSD-1607202901.A3
1607202901
|
-
|
|
|
|
18 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A515
1601110481
|
£2.16
|
£2.59
|
|
|
19 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A849
2916690003
|
£1.75
|
£2.10
|
|
|
21 - TOOTHED GEAR
BSD-2606317012.A5
2606317012
|
-
|
|
|
|
25 - GROOVE BALL BEARING 627 Y DIN 625
BSD-1900900235.A143
1900900235
|
-
|
|
|
|
27 - SINTERED-METAL BUSHING
BSD-1600301900.A149
1600301900
|
-
|
|
|
|
28 - FELT WASHER
BSD-1600205023.A74
1600205023
|
£1.32
|
£1.58
|
|
|
29 - O-RING 12.0x1.0 MM
BSD-1600210024.A31
1600210024
|
-
|
|
|
|
30 - ASSEMBLY OF SERVICE PARTS
BSD-1605807906.A33
1605807906
|
-
|
|
|
|
31 - TAPPING SCREW
BSD-2603435011.A14
2603435011
|
-
|
|
|
|
32 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A8
1600703016
|
£1.75
|
£2.10
|
|
|
33 - FASTENING CLAMP
BSD-1601302014.A177
1601302014
|
£2.61
|
£3.13
|
|
|
34 - SPIRAL SPRING
BSD-1604652004.A149
1604652004
|
£2.61
|
£3.13
|
|
|
39 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-5.8
BSD-2910011120.A106
2910011120
|
£1.75
|
£2.10
|
|
|
40 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A428
2910211019
|
£1.75
|
£2.10
|
|
|
41 - TAPPING SCREW DIN 7972-BZ2.9x6.5
BSD-2910601004.A8
2910601004
|
-
|
|
|
|
42 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A258
2910211006
|
£1.75
|
£2.10
|
|
|
43 - TAPPING SCREW DIN 7971-BZ3.9x9.5
BSD-2910211017.A120
2910211017
|
-
|
|
|
|
48 - CONTROL SHAFT
BSD-2603105011.A38
2603105011
|
-
|
|
|
|
50 - O-RING
BSD-1600502008.A30
1600502008
|
-
|
|
|
|
52 - NEEDLE-ROLLER BEARING
BSD-1600910008.A12
1600910008
|
-
|
|
|
|
53 - RETAINING RING 14 DIN 9045
BSD-2916600008.A225
2916600008
|
£2.80
|
£3.36
|
|
|
54 - BUSHING dia8G7xdia14R6x6MM
BSD-2600301043.A15
2600301043
|
-
|
|
|
|
55 - PLAIN WASHER 0.3 MM
BSD-1230100633.A12
1230100633
|
-
|
|
|
|
56 - TOOTHED SHAFT
BSD-1606309058.A12
1606309058
|
-
|
|
|
|
57 - TOOTHED GEAR
BSD-1606328096.A9
1606328096
|
-
|
|
|
|
58 - WOODRUFF KEY DIN 6888-3x3.7-ST-60
BSD-1900023004.A34
1900023004
|
-
|
|
|
|
59 - TOOTHED GEAR
BSD-1606317069.A9
1606317069
|
-
|
|
|
|
60 - SHIM 1.2 MM
BSD-1600100611.A93
1600100611
|
£1.75
|
£2.10
|
|
|
60 - SHIM 1.2 MM
BSD-1600100611.A94
1600100611
|
£1.75
|
£2.10
|
|
|
61 - CONTROL LEVER
BSD-1602026040.A13
1602026040
|
-
|
|
|
|
62 - CONTROL FORK
BSD-1601328001.A32
1601328001
|
-
|
|
|
|
63 - ECCENTRIC DISC
BSD-1600148005.A12
1600148005
|
-
|
|
|
|
64 - COMPRESSION SPRING
BSD-1604611016.A33
1604611016
|
-
|
|
|
|
65 - FLAT KEY
BSD-1602300017.A32
1602300017
|
-
|
|
|
|
66 - SEAL RING 13.0x4.0 MM
BSD-2600210025.A35
2600210025
|
-
|
|
|
|
67 - SHIM dia14.5x21.5x0.5 MM
BSD-2000101600.A4
2000101600
|
-
|
|
|
|
67 - SHIM
BSD-2600101603.A38
2600101603
|
-
|
|
|
|
70 - TAPPING SCREW B 3.9x9.5 DIN 7972
BSD-2910600017.A9
2910600017
|
-
|
|
|
|
71 - SPRING RETAINING RING 14x1 DIN 471
BSD-2916650005.A16
2916650005
|
-
|
|
|
|
74 - BALL 3 MM DIN 5401
BSD-1903230304.A28
1903230304
|
-
|
|
|
|
76 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A37
2916650006
|
£1.75
|
£2.10
|
|
|
77 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A138
2603410023
|
-
|
|
|
|
78 - O-RING 17.0x3.0 MM
BSD-1610210121.A52
1610210121
|
£2.61
|
£3.13
|
|
|
90 - LOCATING WASHER
BSD-1606490013.A9
1606490013
|
-
|
|
|
|
92 - SHIM 0.5 MM
BSD-2600100695.A15
2600100695
|
£1.75
|
£2.10
|
|
|
92 - SHIM 0.3 MM
BSD-2600100693.A16
2600100693
|
-
|
|
|
|
92 - SHIM 0.2 MM
BSD-2600100692.A16
2600100692
|
-
|
|
|
|
102 - KEY CHUCK dia0.8-10 MM. 1/2
BSD-1608571005.A4
1608571005
|
-
|
|
|
|
102 - CHUCK WRENCH
BSD-1607950027.A14
1607950027
|
-
|
|
|
|
120 - IMPACT MECHANISM
BSD-1607020004.A5
1607020004
|
-
|
|
|
|
121 - DRILLING SPINDLE
BSD-1607031902.A13
1607031902
|
-
|
|
|
|
122 - THRUST NEEDLE RIM
BSD-1600920000.A23
1600920000
|
£5.30
|
£6.36
|
|
|
123 - THRUST BEARING DISC
BSD-1600102011.A18
1600102011
|
£2.80
|
£3.36
|
|
|
124 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A383
1903230010
|
£1.75
|
£2.10
|
|
|
125 - BUSHING
BSD-1605801022.A9
1605801022
|
-
|
|
|
|
126 - GROOVE BALL BEARING 6002-Z DIN 625
BSD-1900905102.A25
1900905102
|
-
|
|
|
|
127 - SHIM WASHER 0.4 MM
BSD-1600101600.A68
1600101600
|
£1.75
|
£2.10
|
|
|
128 - COMPRESSION SPRING
BSD-1604643002.A9
1604643002
|
-
|
|
|
|
129 - PLAIN WASHER
BSD-1600101017.A14
1600101017
|
-
|
|
|
|
130 - THREADED RING
BSD-1603343007.A12
1603343007
|
-
|
|
|
|
131 - COMPRESSION SPRING
BSD-1604610009.A9
1604610009
|
£1.75
|
£2.10
|
|
|
132 - BALL
BSD-1903230308.A14
1903230308
|
-
|
|
|
