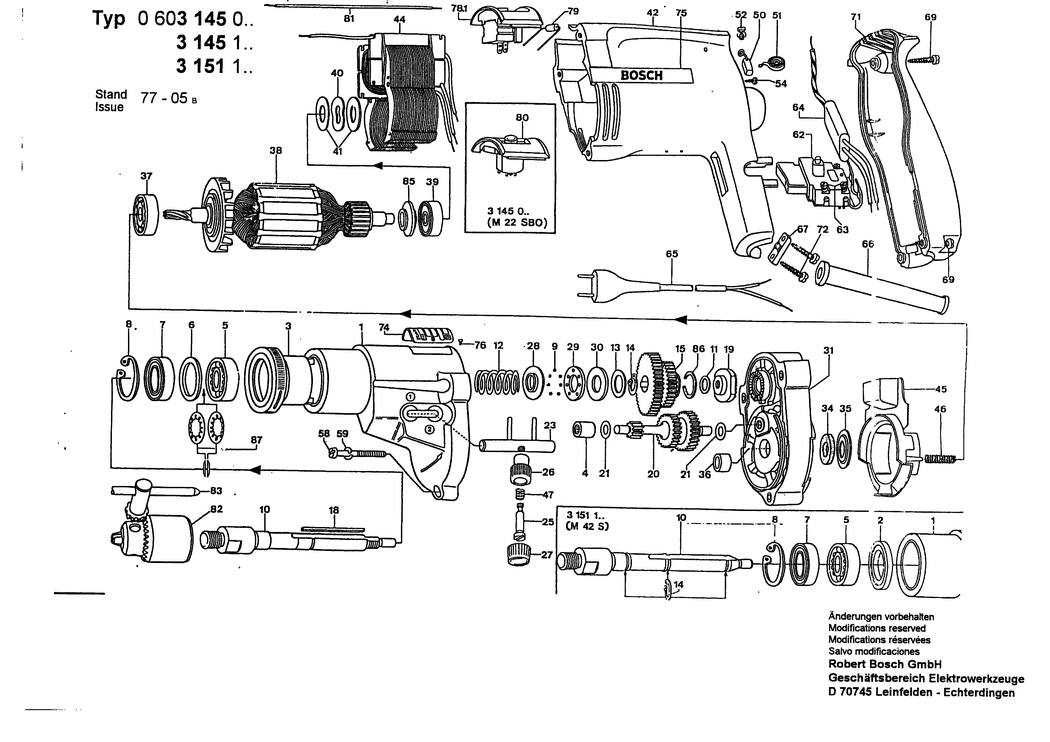

1 - GEAR HOUSING
BSD-2605806939.A0
2605806939
|
-
|
|
|
|
3 - SWITCHING BUSHING
BSD-2605801017.A1
2605801017
|
-
|
|
|
|
4 - NEEDLE BEARING
BSD-2600914004.A97
2600914004
|
£4.26
|
£5.11
|
|
|
5 - GROOVE BALL BEARING 6001 Y DIN 625 FD150
BSD-1900900271.A31
1900900271
|
-
|
|
|
|
6 - PLAIN WASHER
BSD-2600102003.A0
2600102003
|
-
|
|
|
|
7 - ROTARY SHAFT LIP SEAL
BSD-2600283009.A32
2600283009
|
-
|
|
|
|
8 - SPRING RETAINING RING DIN 472-28x1.2 MM
BSD-2916660011.A184
2916660011
|
£1.75
|
£2.10
|
|
|
9 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A301
1903230003
|
£2.61
|
£3.13
|
|
|
10 - DRILLING SPINDLE 1/2
BSD-2603523024.A6
2603523024
|
-
|
|
|
|
11 - SHIM 0.8 MM
BSD-2600100091.A1
2600100091
|
-
|
|
|
|
11 - SHIM 0.2 MM
BSD-2600100621.A29
2600100621
|
£1.75
|
£2.10
|
|
|
11 - PLAIN WASHER 0.3 MM
BSD-1230100633.A23
1230100633
|
-
|
|
|
|
11 - SHIM 0.5 MM
BSD-2600100623.A6
2600100623
|
-
|
|
|
|
12 - COMPRESSION SPRING
BSD-2604630002.A7
2604630002
|
£1.75
|
£2.10
|
|
|
13 - SHIM 0.1 MM
BSD-2600101660.A1
2600101660
|
-
|
|
|
|
13 - SHIM 0.2 MM
BSD-2600101661.A7
2600101661
|
-
|
|
|
|
13 - SHIM
BSD-2600101562.A1
2600101562
|
-
|
|
|
|
13 - SHIM 0.5 MM
BSD-2600101663.A8
2600101663
|
-
|
|
|
|
14 - SPRING RETAINING RING DIN 471 11x1MM
BSD-2916650002.A6
2916650002
|
-
|
|
|
|
18 - FLAT KEY
BSD-2602300004.A6
2602300004
|
-
|
|
|
|
19 - LOCATING WASHER
BSD-2600190013.A8
2600190013
|
-
|
|
|
|
20 - TOOTHED SHAFT Z=10/24/27
BSD-2606308906.A0
2606308906
|
-
|
|
|
|
21 - SHIM 0.3 MM
BSD-2600100570.A134
2600100570
|
£1.75
|
£2.10
|
|
|
23 - GUIDE ROD
BSD-2603103900.A8
2603103900
|
-
|
|
|
|
25 - PAN HEAD SCREW
BSD-2603413003.A7
2603413003
|
-
|
|
|
|
26 - ROUND NUT
BSD-2603340002.A0
2603340002
|
-
|
|
|
|
27 - SEALING CAP
BSD-2600508029.A7
2600508029
|
-
|
|
|
|
28 - SPRING DISK
BSD-2600220007.A1
2600220007
|
-
|
|
|
|
29 - BALL CAGE
BSD-2600138001.A7
2600138001
|
-
|
|
|
|
30 - PLAIN WASHER
BSD-2600101003.A9
2600101003
|
-
|
|
|
|
31 - INTERMEDIATE FLANGE
BSD-2605700915.A0
2605700915
|
-
|
|
|
|
34 - FELT DISC
BSD-2600108020.A26
2600108020
|
-
|
|
|
|
35 - CUPPED WASHER
BSD-2600500008.A40
2600500008
|
-
|
|
|
|
36 - RECEPTACLE
BSD-2600400020.A96
2600400020
|
-
|
|
|
|
37 - GROOVE BALL BEARING 10 MM DIN 625
BSD-2600905007.A135
2600905007
|
-
|
|
|
|
38 - ARMATURE 220V
BSD-2604010439.A6
2604010439
|
-
|
|
|
|
39 - BALL BEARING 7x22x7
BSD-1900905018.A396
1900905018
|
£18.96
|
£22.75
|
|
|
40 - SHIM
BSD-2600150004.A576
2600150004
|
£2.16
|
£2.59
|
|
|
41 - SHIM 0.5 MM
BSD-2600101020.A374
2600101020
|
£1.75
|
£2.10
|
|
|
41 - SHIM 0.2 MM
BSD-2600101022.A258
2600101022
|
£1.75
|
£2.10
|
|
|
41 - SHIM 0.3 MM
BSD-2600101023.A305
2600101023
|
£1.75
|
£2.10
|
|
|
42 - MOTOR HOUSING
BSD-2605104907.A6
2605104907
|
-
|
|
|
|
44 - POLE SHOE 220V
BSD-2604222098.A1
2604222098
|
-
|
|
|
|
45 - COVER DISC
BSD-2601328023.A1
2601328023
|
-
|
|
|
|
46 - COMPRESSION SPRING
BSD-2604611026.A163
2604611026
|
-
|
|
|
|
47 - COMPRESSION SPRING
BSD-2604610006.A0
2604610006
|
-
|
|
|
|
50 - CARBON-BRUSH SET
BSD-2604320906.A13
2604320906
|
-
|
|
|
|
51 - SPIRAL SPRING
BSD-2604652004.A11
2604652004
|
-
|
|
|
|
52 - SOCKET HEAD CAP SCREW
BSD-2603410010.A287
2603410010
|
-
|
|
|
|
54 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A138
2910211004
|
-
|
|
|
|
59 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A861
2916690003
|
£1.75
|
£2.10
|
|
|
62 - ON-OFF SWITCH
BSD-2607200043.A71
2607200043
|
-
|
|
|
|
63 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A145
2603410023
|
-
|
|
|
|
64 - SUPPRESSION CAPACITOR
BSD-2607329083.A0
2607329083
|
-
|
|
|
|
65 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A612
1607000386
|
£21.52
|
£25.83
|
|
|
66 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A438
2600703011
|
£2.80
|
£3.36
|
|
|
66 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A821
2600703012
|
£2.80
|
£3.36
|
|
|
66 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A400
2600703013
|
£2.61
|
£3.13
|
|
|
67 - CABLE CLIP
BSD-2601035001.A2932
2601035001
|
£1.75
|
£2.10
|
|
|
69 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A161
2910211021
|
£1.75
|
£2.10
|
|
|
71 - HOUSING COVER
BSD-2605132031.A6
2605132031
|
-
|
|
|
|
72 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A447
2910211019
|
£1.75
|
£2.10
|
|
|
74 - NAMEPLATE
BSD-160111A3H3.A3621
160111A3H3
|
£2.61
|
£3.13
|
|
|
75 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A133
2601007003
|
-
|
|
|
|
76 - ROUND-HEAD GROOVED PIN 2x3 DIN 1476 ST
BSD-2917724031.A37
2917724031
|
-
|
|
|
|
78/1 - ON-OFF SWITCH
BSD-2607200013.A0
2607200013
|
-
|
|
|
|
80 - OVERLOAD SWITCH
BSD-2607202900.A7
2607202900
|
-
|
|
|
|
81 - SUPPRESSOR BOX
BSD-2604465005.A1
2604465005
|
-
|
|
|
|
82 - KEY CHUCK dia1.5-13 MM. 1/2
BSD-1608571055.A14
1608571055
|
-
|
|
|
|
83 - CHUCK WRENCH
BSD-1607950027.A11
1607950027
|
-
|
|
|
|
86 - ARMATURE PLATE
BSD-2600121002.A113
2600121002
|
-
|
|
|
