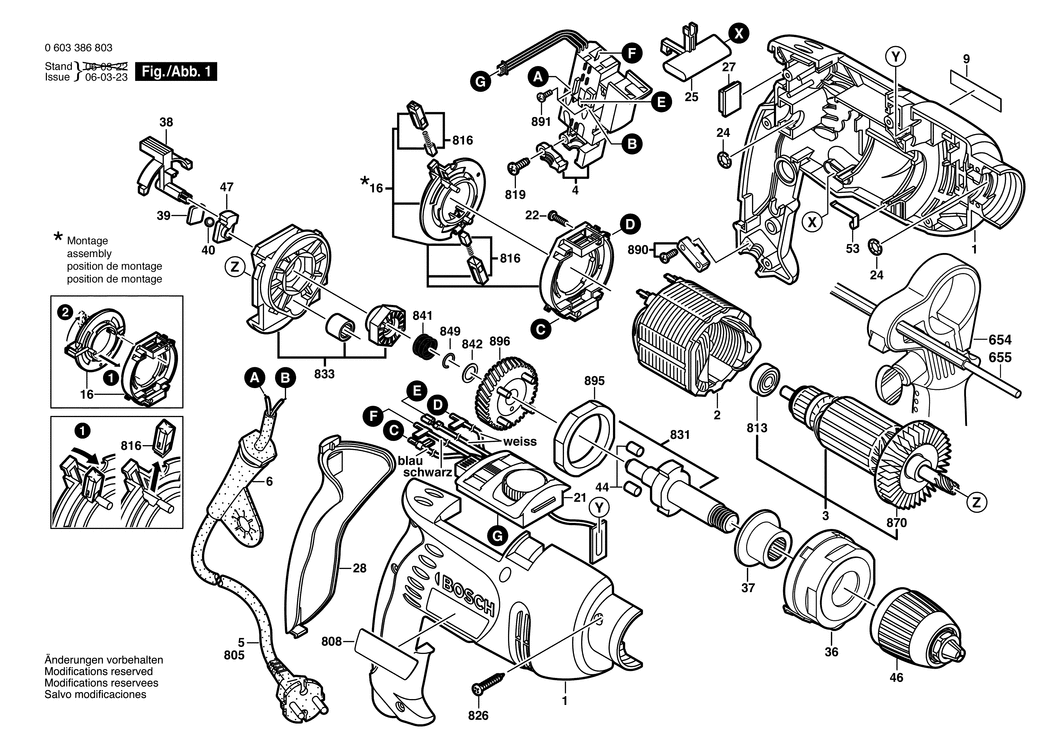

1 - HOUSING SECTION
BSD-2605104745.A2
2605104745
|
£14.75
|
£17.70
|
|
|
2 - FIELD 220-240V
BSD-2604220692.A10
2604220692
|
£19.45
|
£23.34
|
|
|
3 - ARMATURE 230-240V
BSD-2604011296.A0
2604011296
|
£46.82
|
£56.18
|
|
|
4 - SWITCH
BSD-2607200501.A17
2607200501
|
£10.82
|
£12.99
|
|
|
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460147.A20
2604460147
|
£16.41
|
£19.69
|
|
|
6 - GROMMET dia6.2-dia6.9x90 MM
BSD-2600707066.A76
2600707066
|
£2.48
|
£2.97
|
|
|
9 - MANUFACTURER'S NAMEPLATE PSB 1000 RPE
BSD-2601117835.A2
2601117835
|
£3.34
|
£4.01
|
|
|
9 - MANUFACTURER'S NAMEPLATE PSB 10000 RPE
BSD-2601116231.A2
2601116231
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE PSB 100 RPE
BSD-2601115230.A2
2601115230
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE PSB 1000 X-CEL
BSD-2601115576.A1
2601115576
|
£2.33
|
£2.80
|
|
|
16 - BRUSH PLATE
BSD-2604337104.A11
2604337104
|
£13.41
|
£16.09
|
|
|
21 - SPEED GOVERNOR
BSD-2607230073.A1
2607230073
|
£41.62
|
£49.95
|
|
|
22 - TAPPING SCREW DIN 7981-ST2.2x9.5-C-H
BSD-2910611002.A178
2910611002
|
£1.75
|
£2.10
|
|
|
24 - O-RING 5.0x1.5 MM
BSD-1900210000.A568
1900210000
|
£1.75
|
£2.10
|
|
|
25 - CHANGE-OVER SWITCH
BSD-2602098008.A145
2602098008
|
£1.75
|
£2.10
|
|
|
27 - DAMPING ELEMENT
BSD-2603239024.A17
2603239024
|
£1.75
|
£2.10
|
|
|
28 - HANDLE COVER
BSD-2608040177.A17
2608040177
|
£5.87
|
£7.04
|
|
|
36 - GEAR COVER
BSD-2605808084.A15
2605808084
|
£3.72
|
£4.47
|
|
|
37 - FLANGED BEARING
BSD-2605805009.A14
2605805009
|
-
|
|
|
|
38 - INDEXING DISK
BSD-2601990027.A19
2601990027
|
£1.75
|
£2.10
|
|
|
39 - PRESSURE PLATE
BSD-2601074004.A161
2601074004
|
£1.75
|
£2.10
|
|
|
40 - BALL DIN 5401-5 G28
BSD-1903230009.A69
1903230009
|
£1.75
|
£2.10
|
|
|
44 - ROLLER BODY
BSD-2602329038.A15
2602329038
|
£1.75
|
£2.10
|
|
|
46 - KEYLESS CHUCK
BSD-2608572173.A45
2608572173
|
-
|
|
|
|
47 - FRAME
BSD-2608040120.A62
2608040120
|
£2.61
|
£3.13
|
|
|
53 - CONTACT STRAP
BSD-2601329043.A95
2601329043
|
£1.32
|
£1.58
|
|
|
210 - REFERENCE PLATE
BSD-2601116284.A2
2601116284
|
£1.32
|
£1.58
|
|
|
654 - AUXILIARY HANDLE
BSD-2602025125.A121
2602025125
|
£10.10
|
£12.12
|
|
|
655 - DEPTH-GAUGE
BSD-2609005615.A166
2609005615
|
£4.26
|
£5.11
|
|
|
808 - MARKING PLATE
BSD-2601117897.A0
2601117897
|
£3.34
|
£4.01
|
|
|
813 - BALL BEARING 7x19x6
BSD-2600905032.A1126
2600905032
|
£5.30
|
£6.36
|
|
|
816 - BRUSH HOLDER
BSD-1607000CJ1.A58
1607000CJ1
|
£5.87
|
£7.04
|
|
|
819 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A206
2910611006
|
£1.75
|
£2.10
|
|
|
826 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A423
2910611020
|
£1.75
|
£2.10
|
|
|
831 - DRILLING SPINDLE 1/2
BSD-2606135931.A18
2606135931
|
-
|
|
|
|
833 - BEARING BRACKET
BSD-2605807937.A8
2605807937
|
£21.52
|
£25.83
|
|
|
841 - COMPRESSION SPRING
BSD-2604616006.A119
2604616006
|
£1.75
|
£2.10
|
|
|
842 - SHIM 0.3 MM
BSD-2600101047.A486
2600101047
|
£1.75
|
£2.10
|
|
|
849 - RETAINING RING DIN 7993-A8
BSD-2916540005.A11
2916540005
|
£1.75
|
£2.10
|
|
|
870 - FAN
BSD-2606610029.A98
2606610029
|
£2.61
|
£3.13
|
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A148
2607001305
|
£4.26
|
£5.11
|
|
|
891 - CROSS RECESSED-HEAD SCREW M3x5
BSD-2603410046.A218
2603410046
|
£2.16
|
£2.59
|
|
|
895 - RETAINING SNAP RING
BSD-2600290044.A10
2600290044
|
£3.80
|
£4.56
|
|
|
896 - CARRIER 1.0 M
BSD-2606320083.A1
2606320083
|
£14.91
|
£17.89
|
|
