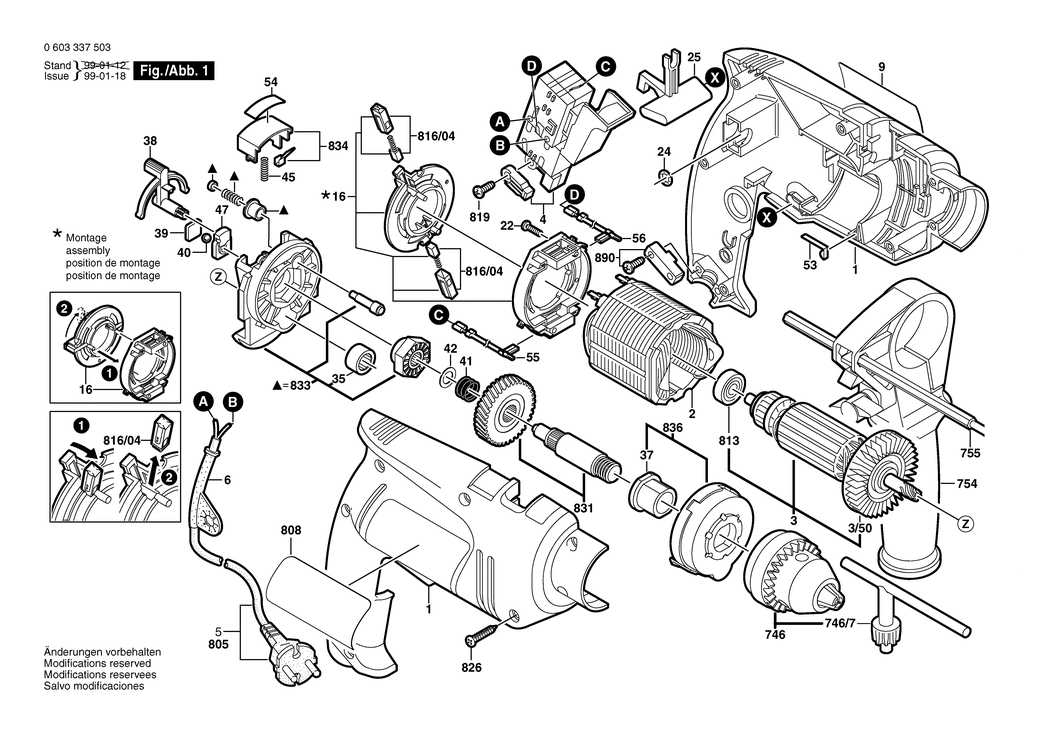

1 - HOUSING SECTION
BSD-2605104599.A16
2605104599
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220601.A26
2604220601
|
-
|
|
|
|
3 - ARMATURE 230-240V
BSD-2604011173.A20
2604011173
|
-
|
|
|
|
3/50 - FAN
BSD-1606610116.A57
1606610116
|
£2.52
|
£3.02
|
|
|
4 - ON-OFF SWITCH
BSD-2607200503.A1
2607200503
|
-
|
|
|
|
6 - GROMMET dia6.2-dia6.9x90 MM
BSD-2600707066.A103
2600707066
|
£2.48
|
£2.97
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601119550.A0
2601119550
|
-
|
|
|
|
16 - BRUSH PLATE
BSD-2604337059.A22
2604337059
|
£11.30
|
£13.56
|
|
|
22 - TAPPING SCREW DIN 7981-ST2.2x9.5-C-H
BSD-2910611002.A216
2910611002
|
£1.75
|
£2.10
|
|
|
24 - O-RING 5.0x1.5 MM
BSD-1900210000.A419
1900210000
|
£1.75
|
£2.10
|
|
|
25 - CHANGE-OVER SWITCH
BSD-2602098008.A104
2602098008
|
£1.75
|
£2.10
|
|
|
35 - NEEDLE BEARING
BSD-2600914019.A9
2600914019
|
£5.30
|
£6.36
|
|
|
37 - POROUS BEARING
BSD-2600301052.A53
2600301052
|
-
|
|
|
|
38 - INDEXING DISK
BSD-2601990010.A35
2601990010
|
-
|
|
|
|
39 - PRESSURE PLATE
BSD-2601074004.A105
2601074004
|
£1.75
|
£2.10
|
|
|
40 - BALL DIN 5401-5 G28
BSD-1903230009.A234
1903230009
|
£1.75
|
£2.10
|
|
|
41 - COMPRESSION SPRING
BSD-2604616006.A44
2604616006
|
£1.75
|
£2.10
|
|
|
42 - SHIM 0.3 MM
BSD-2600101047.A328
2600101047
|
£1.75
|
£2.10
|
|
|
45 - COMPRESSION SPRING
BSD-2604610047.A86
2604610047
|
£1.75
|
£2.10
|
|
|
47 - FRAME
BSD-2608040120.A19
2608040120
|
£2.61
|
£3.13
|
|
|
53 - CONTACT STRAP
BSD-2601329043.A7
2601329043
|
£1.32
|
£1.58
|
|
|
54 - REFERENCE PLATE
BSD-2601119602.A84
2601119602
|
£3.72
|
£4.47
|
|
|
55 - PVC-INSULATED CABLE L=95 MM
BSD-1614431025.A98
1614431025
|
£2.61
|
£3.13
|
|
|
56 - PVC-INSULATED CABLE L=120 MM
BSD-2604448228.A72
2604448228
|
£2.16
|
£2.59
|
|
|
746 - KEY CHUCK 1/2
BSD-2608571056.A11
2608571056
|
£17.49
|
£20.99
|
|
|
746/7 - CHUCK WRENCH SG2
BSD-2607950007.A1577
2607950007
|
£6.52
|
£7.83
|
|
|
805 - POWER SUPPLY CORD EU 2.65m 2 x 1.0mm H05 RN-F
BSD-1607000388.A38
1607000388
|
£12.04
|
£14.45
|
|
|
808 - NAMEPLATE
BSD-2601119675.A0
2601119675
|
-
|
|
|
|
813 - BALL BEARING 7x19x6
BSD-2600905032.A90
2600905032
|
£5.30
|
£6.36
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2607014013.A8
2607014013
|
£10.10
|
£12.12
|
|
|
819 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A75
2910611006
|
£1.75
|
£2.10
|
|
|
826 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A357
2910611020
|
£1.75
|
£2.10
|
|
|
831 - DRILLING SPINDLE 1/2
BSD-2606135929.A115
2606135929
|
-
|
|
|
|
833 - BEARING BRACKET
BSD-2605807932.A78
2605807932
|
-
|
|
|
|
834 - PUSH-BUTTON
BSD-2603231040.A46
2603231040
|
-
|
|
|
|
836 - GEAR COVER
BSD-2605808922.A39
2605808922
|
£10.82
|
£12.99
|
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A87
2607001305
|
£4.26
|
£5.11
|
|
