Bosch PSB 500 RE / 3603A26072 / GB 230 Volt Spare Parts

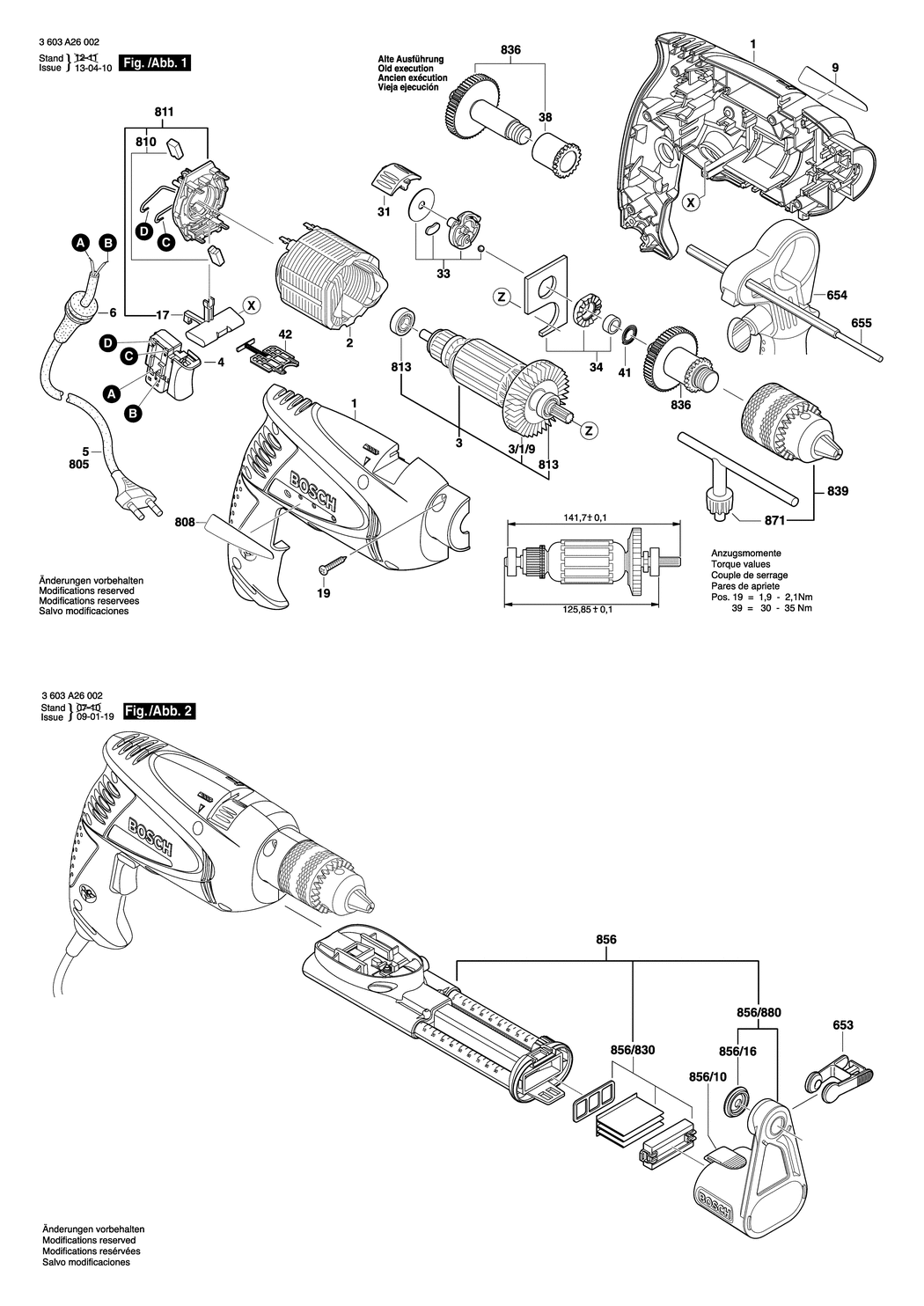

An exploded drawing and listing for the Bosch PSB 500 RE / 3603A26072 / GB 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609003793.A3 2609003793	-
2 - FIELD 220-240V BSD-2609003024.A14 2609003024	£13.12	£15.75
3 - ARMATURE 220-240V BSD-2609002170.A16 2609002170	£19.45	£23.34
3/1/9 - FAN BSD-2609002159.A16 2609002159	£2.16	£2.59
4 - SWITCH BSD-2607200655.A10 2607200655	£13.12	£15.75
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F BSD-2604460243.A31 2604460243	£13.12	£15.75
6 - GROMMET BSD-2609002019.A136 2609002019	£2.61	£3.13
9 - MANUFACTURER'S NAMEPLATE PSB 500 RE BSD-2609002341.A1 2609002341	£2.33	£2.80
17 - CHANGE-OVER SWITCH BSD-2609002160.A3 2609002160	£1.88	£2.26
19 - SCREW 4x16 BSD-2603490022.A769 2603490022	£1.75	£2.10
31 - CHANGE-OVER SWITCH BSD-2609000684.A27 2609000684	£2.16	£2.59
33 - INDEXING DISK BSD-2601901012.A43 2601901012	-
34 - BEARING BRACKET BSD-2609002255.A2 2609002255	£8.67	£10.41
38 - POROUS BEARING BSD-2609002157.A3 2609002157	£2.16	£2.59
41 - COMPRESSION SPRING BSD-2609002581.A8 2609002581	£1.75	£2.10
42 - SHUT-OFF VALVE BSD-2609002750.A10 2609002750	£1.75	£2.10
653 - LOCK BSD-2607030115.A24 2607030115	£2.16	£2.59
654 - AUXILIARY HANDLE BSD-2602025125.A102 2602025125	£10.10	£12.12
655 - DEPTH-GAUGE BSD-2609005615.A69 2609005615	£4.26	£5.11
808 - NAMEPLATE BSD-2609002486.A0 2609002486	£2.33	£2.80
810 - CARBON-BRUSH SET BSD-2610391290.A109 2610391290	£8.67	£10.41
811 - BRUSH HOLDER BSD-2609005889.A11 2609005889	£12.04	£14.45
813 - GROOVE BALL BEARING 8x22x7 608-2Z/C3 BSD-3130900020.A88 3130900020	£6.52	£7.83
836 - SPINDLE BSD-2609002442.A3 2609002442	£14.91	£17.89
839 - KEY CHUCK dia1.5-13 MM BSD-1608571080.A107 1608571080	£27.23	£32.68
856 - EXHAUSTER BSD-2609000636.A14 2609000636	£24.45	£29.34
856/10 - IMPULSE STARTING DEVICE BSD-2605510217.A25 2605510217	£1.75	£2.10
856/16 - FRICTION RING BSD-2600206003.A52 2600206003	£2.52	£3.02
856/830 - DUST BAG BSD-2605411902.A22 2605411902	£6.61	£7.93
856/880 - INTAKE MANIFOLD MODULE BSD-2605190920.A16 2605190920	£14.72	£17.67
871 - CHUCK WRENCH SG2 BSD-2607950007.A1662 2607950007	£6.52	£7.83
