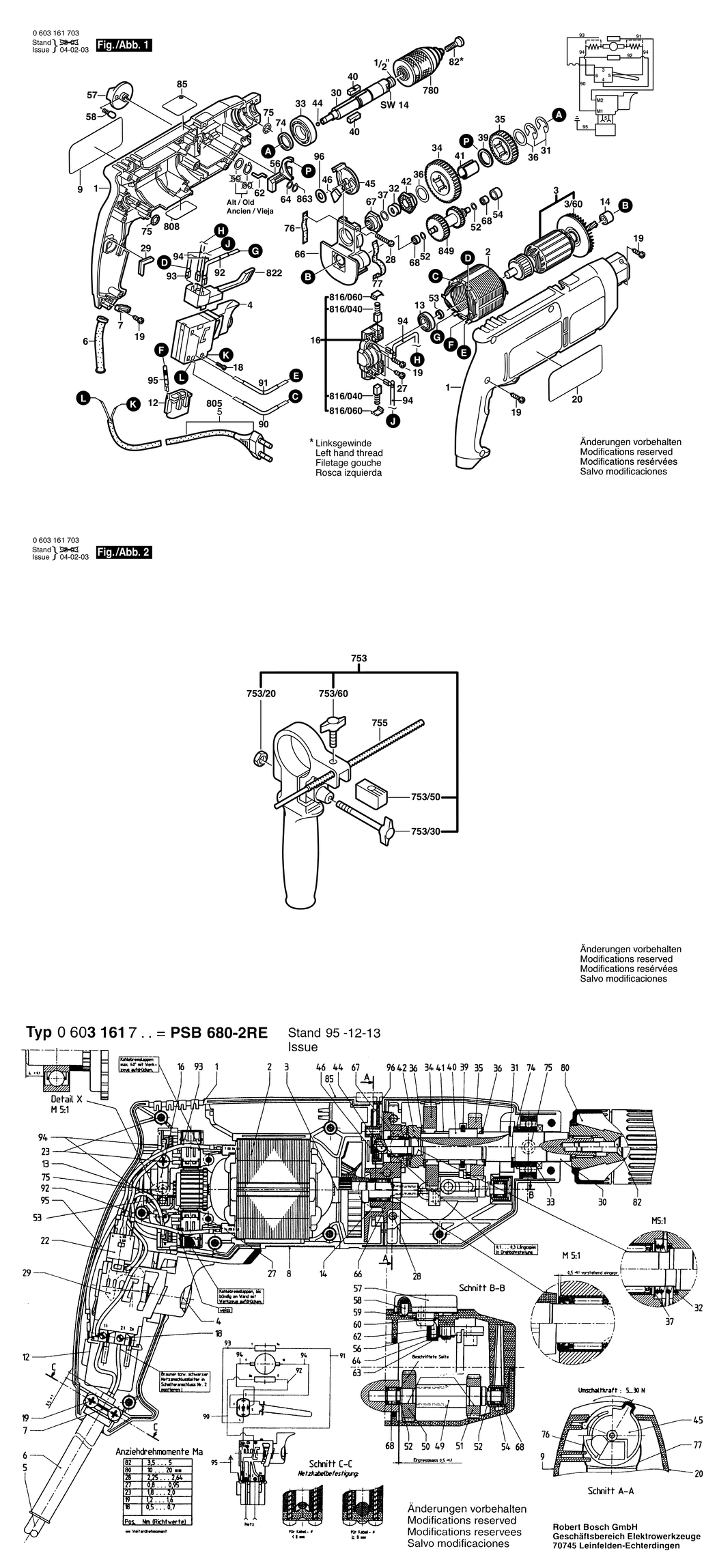

An exploded drawing and listing for the Bosch PSB 680-2 RE / 0603161703 / EU 230 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-2605104506.A5 2605104506 -
2 - FIELD 230V BSD-2604220647.A7 2604220647 £21.52 £25.83
3 - ARMATURE 230-240V BSD-2604011090.A5 2604011090 -
3/60 - FAN BSD-2606610029.A342 2606610029 £2.61 £3.13
4 - SWITCH BSD-2607200190.A33 2607200190 £54.42 £65.30
4 - ON-OFF SWITCH BSD-2607200224.A42 2607200224 -
6 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A416 2600703012 £2.80 £3.36
7 - CABLE CLIP BSD-2601035001.A2013 2601035001 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2601118844.A6 2601118844 -
12 - SUPPRESSION FILTER BSD-2607329114.A264 2607329114 -
13 - BALL BEARING 7x19x6 BSD-2600905032.A1909 2600905032 £5.30 £6.36
14 - NEEDLE BEARING BSD-2600914019.A120 2600914019 £5.30 £6.36
16 - BRUSH PLATE BSD-2605807060.A61 2605807060 -
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1554 2603410001 £1.75 £2.10
19 - SCREW 4x16 BSD-2603490022.A1901 2603490022 £1.75 £2.10
20 - MANUFACTURER'S NAMEPLATE BSD-2601118563.A21 2601118563 -
27 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A788 2603490017 £2.16 £2.59
28 - OVAL-HEAD SCREW BSD-2603429006.A50 2603429006 £1.32 £1.58
29 - DAMPING PLATE BSD-2601022000.A403 2601022000 £1.75 £2.10
30 - DRILLING SPINDLE 1/2 BSD-2606135072.A10 2606135072 -
31 - LOCKING WASHER 0.6 MM BSD-2600118001.A233 2600118001 £1.75 £2.10
31 - LOCKING WASHER 0.8 MM BSD-2600118002.A14 2600118002 £1.75 £2.10
31 - LOCKING WASHER 0.3 MM BSD-2600118006.A154 2600118006 -
32 - COMPRESSION SPRING BSD-2604616006.A244 2604616006 £1.75 £2.10
33 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A209 1900905163 £11.30 £13.56
34 - CYLINDRICAL GEAR BSD-2606317082.A49 2606317082 £13.12 £15.75
35 - CYLINDRICAL GEAR BSD-2606317083.A7 2606317083 £11.30 £13.56
36 - SHIM 1.0 MM BSD-2600101515.A153 2600101515 £1.95 £2.34
37 - SHIM 0.3 MM BSD-2600101047.A305 2600101047 £1.75 £2.10
39 - RETAINING WASHER BSD-2600101084.A15 2600101084 £1.75 £2.10
40 - FLAT KEY BSD-2602300034.A18 2602300034 -
41 - GUIDING PLATE BSD-2601098031.A3 2601098031 £1.75 £2.10
42 - CATCH DISK BSD-2600190070.A58 2600190070 £5.58 £6.70
44 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A146 1903230010 £1.75 £2.10
45 - INDEXING DISK BSD-2601990001.A173 2601990001 £1.32 £1.58
46 - PRESSURE PLATE BSD-2601074003.A129 2601074003 £1.75 £2.10
52 - SHIM 0.3 MM BSD-2600100607.A23 2600100607 £1.75 £2.10
53 - SPACER RING BSD-2600209012.A8 2600209012 £1.32 £1.58
54 - BEARING SLEEVE BSD-2600400027.A53 2600400027 £4.26 £5.11
56 - FORK LEVER BSD-2601990009.A15 2601990009 £2.29 £2.75
57 - ROTARY HEAD BSD-2602026091.A70 2602026091 -
58 - RATCHET CAP BSD-2600590006.A212 2600590006 £1.75 £2.10
62 - DRIVER PIN BSD-2601335001.A63 2601335001 £2.16 £2.59
64 - SHIM WASHER BSD-2600100618.A56 2600100618 £1.75 £2.10
66 - BEARING BRACKET BSD-2605807073.A5 2605807073 -
67 - CATCH DISK BSD-2600190071.A7 2600190071 £6.52 £7.83
68 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A32 2600914010 £2.80 £3.36
74 - SEAL RING BSD-2600400034.A2 2600400034 -
75 - O-RING 5.0x1.5 MM BSD-1900210000.A280 1900210000 £1.75 £2.10
76 - FELT STRIP BSD-2601005011.A112 2601005011 -
77 - FELT STRIP BSD-2601005016.A47 2601005016 £1.32 £1.58
82 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A387 2603421229 £1.75 £2.10
85 - STICKER BSD-2601110117.A46 2601110117 -
90 - CABLE L=173 MM BSD-2604448060.A254 2604448060 -
91 - CABLE L=98 MM BSD-2604448045.A145 2604448045 -
92 - CONNECTING CABLE L=88 MM BSD-2604448034.A102 2604448034 £1.75 £2.10
93 - CONNECTING CABLE L=103 MM BSD-2604448132.A67 2604448132 £1.75 £2.10
94 - CONNECTING CABLE L=73 MM BSD-2604448115.A50 2604448115 £1.75 £2.10
95 - EARTH CONDUCTOR BSD-2604448170.A88 2604448170 -
96 - PLAIN WASHER BSD-2600100066.A4 2600100066 £1.75 £2.10
753 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A227 1619P10682 £12.49 £14.99
753/20 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A496 2915011007 -
753/30 - WING SCREW M6x(15)55 BSD-1613480007.A137 1613480007 £1.75 £2.10
753/50 - CLAMPING PLATE M6 BSD-2608040014.A144 2608040014 -
753/60 - WING SCREW M6x20 MM BSD-1613480008.A297 1613480008 £1.75 £2.10
755 - DEPTH-GAUGE BSD-2603001019.A61 2603001019 £2.63 £3.16
780 - KEYLESS CHUCK dia 2-13 MM.1/2 BSD-2608572034.A28 2608572034 £30.62 £36.74
805 - POWER SUPPLY CORD EU 2.65m 2 x 1.0mm H05 RN-F BSD-1607000388.A197 1607000388 £12.04 £14.45
808 - NAMEPLATE BSD-160111A3H3.A4568 160111A3H3 £2.61 £3.13
816/040 - CARBON-BRUSH SET BSD-2604321916.A6 2604321916 -
816/060 - RATCHET CAP BSD-2601329051.A63 2601329051 £2.33 £2.80
816/060 - RATCHET CAP BSD-2601322013.A552 2601322013 £1.75 £2.10
822 - CHANGE-OVER SWITCH BSD-2607200231.A1 2607200231 £16.41 £19.69
849 - TOOTHED SHAFT Z= 10/29/22 BSD-2606309931.A3 2606309931 £16.74 £20.09
863 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A468 2916080007 £2.61 £3.13
