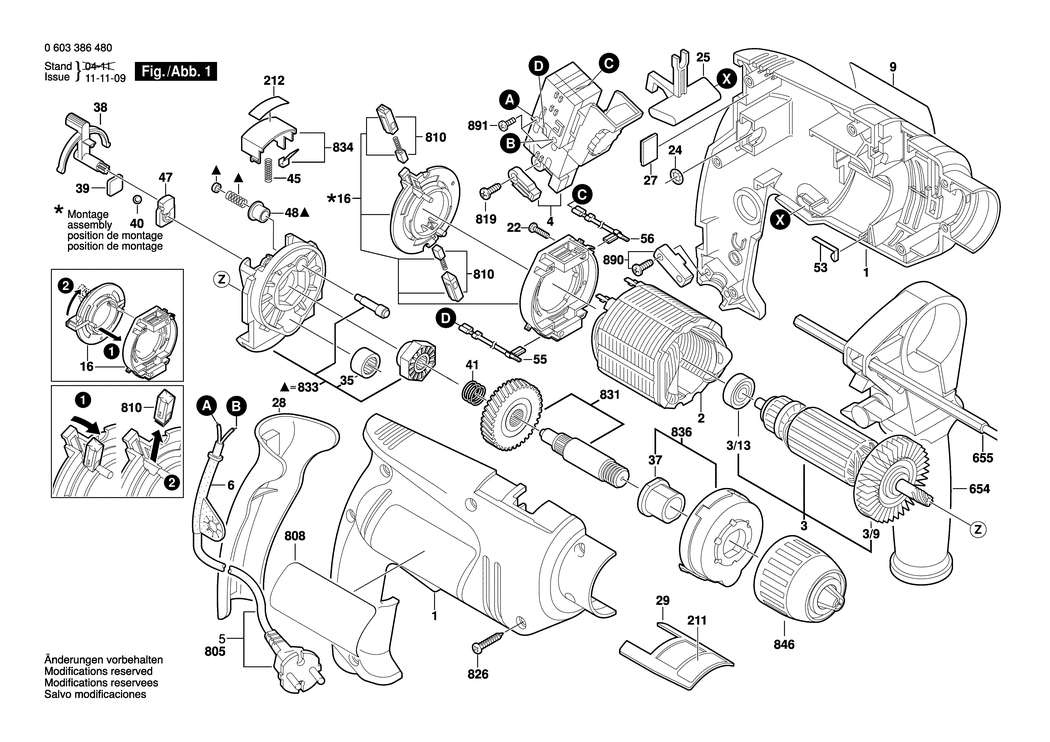

An exploded drawing and listing for the Bosch PSB 700 RE / 0603386482 / I 230 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-2605104561.A8 2605104561 £16.41 £19.69
2 - FIELD 230-240V BSD-2604220682.A21 2604220682 £21.52 £25.83
3 - ARMATURE 230-240V BSD-2604011295.A6 2604011295 £40.80 £48.96
3/9 - FAN BSD-2606610029.A68 2606610029 £2.61 £3.13
3/13 - GROOVE BALL BEARING 7x19x6 BSD-2600905103.A20 2600905103 £5.58 £6.70
4 - SWITCH BSD-2607200601.A14 2607200601 £19.45 £23.34
5 - POWER SUPPLY CORD I/BR 2.65m 2 x 1.0mm H05 VV-F BSD-2604460283.A68 2604460283 £12.04 £14.45
6 - GROMMET dia6.2-dia6.9x90 MM BSD-2600707066.A33 2600707066 £2.48 £2.97
9 - MANUFACTURER'S NAMEPLATE PSB 700 RE BSD-2601117823.A0 2601117823 £3.34 £4.01
16 - BRUSH PLATE BSD-2604337059.A35 2604337059 £11.30 £13.56
22 - TAPPING SCREW DIN 7981-ST2.2x9.5-C-H BSD-2910611002.A138 2910611002 £1.75 £2.10
24 - O-RING 5.0x1.5 MM BSD-1900210000.A541 1900210000 £1.75 £2.10
25 - CHANGE-OVER SWITCH BSD-2602098008.A183 2602098008 £1.75 £2.10
27 - DAMPING ELEMENT BSD-2603239024.A23 2603239024 £1.75 £2.10
28 - HANDLE COVER BSD-2608040109.A46 2608040109 £4.26 £5.11
29 - INSERT PIECE BSD-2605510160.A8 2605510160 -
35 - NEEDLE BEARING BSD-2600914019.A67 2600914019 £5.30 £6.36
37 - POROUS BEARING BSD-2600301052.A31 2600301052 -
38 - INDEXING DISK BSD-2601990010.A55 2601990010 -
39 - PRESSURE PLATE BSD-2601074004.A135 2601074004 £1.75 £2.10
40 - BALL DIN 5401-5 G28 BSD-1903230009.A57 1903230009 £1.75 £2.10
41 - COMPRESSION SPRING BSD-2604616006.A96 2604616006 £1.75 £2.10
45 - COMPRESSION SPRING BSD-2604610047.A110 2604610047 £1.75 £2.10
47 - FRAME BSD-2608040120.A47 2608040120 £2.61 £3.13
48 - SLEEVE BSD-2600390031.A20 2600390031 -
53 - CONTACT STRAP BSD-2601329043.A78 2601329043 £1.32 £1.58
55 - PVC-INSULATED CABLE L=95 MM BSD-1614431025.A21 1614431025 £2.61 £3.13
56 - PVC-INSULATED CABLE L=120 MM BSD-2604448228.A138 2604448228 £2.16 £2.59
211 - REFERENCE PLATE BSD-2601119419.A62 2601119419 £3.72 £4.47
212 - REFERENCE PLATE BSD-2601119602.A118 2601119602 £3.72 £4.47
654 - AUXILIARY HANDLE BSD-2602025125.A163 2602025125 £10.10 £12.12
655 - DEPTH-GAUGE BSD-2609005615.A208 2609005615 £4.26 £5.11
808 - NAMEPLATE BSD-2609000612.A0 2609000612 £2.33 £2.80
810 - CARBON-BRUSH SET BSD-2607014017.A6 2607014017 -
819 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A232 2910611006 £1.75 £2.10
826 - TAPPING SCREW DIN 7981-ST3.9x19-C-H BSD-2910611020.A397 2910611020 £1.75 £2.10
831 - DRILLING SPINDLE BSD-2606135934.A7 2606135934 £21.52 £25.83
833 - BEARING BRACKET BSD-2605807932.A121 2605807932 -
834 - PUSH-BUTTON BSD-2603231040.A21 2603231040 -
836 - GEAR COVER BSD-2605808922.A26 2605808922 £10.82 £12.99
846 - KEYLESS CHUCK BSD-2608572173.A72 2608572173 -
890 - FASTENING PARTS KIT BSD-2607001305.A189 2607001305 £4.26 £5.11
891 - CROSS RECESSED-HEAD SCREW M3x5 BSD-2603410046.A207 2603410046 £2.16 £2.59
