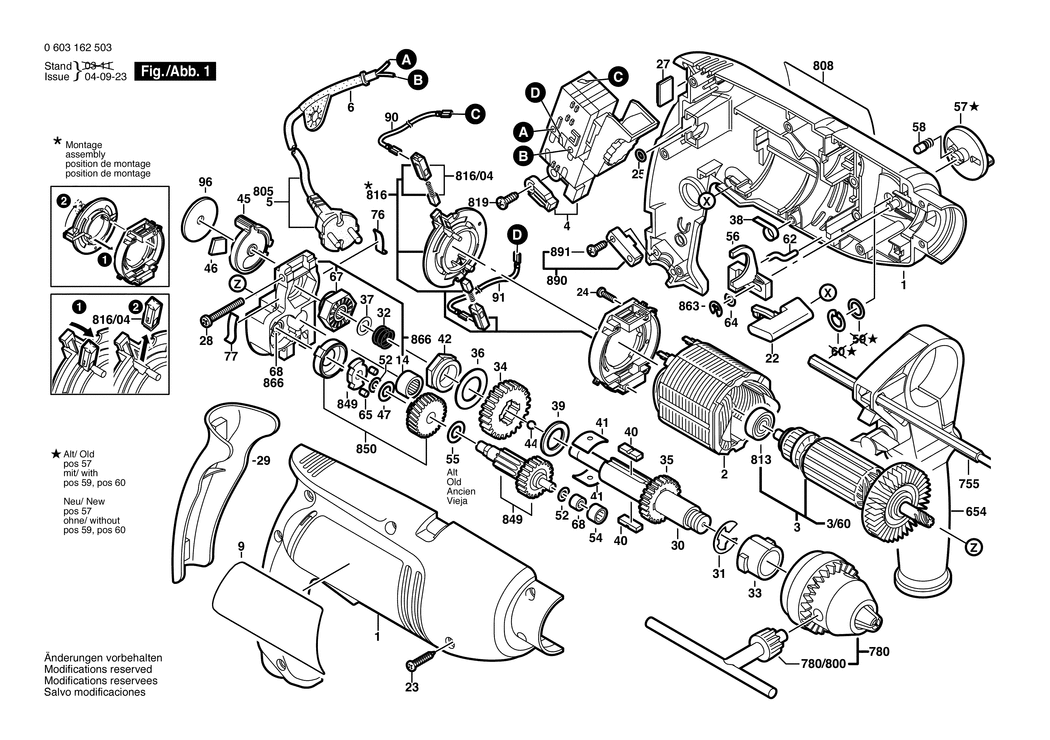

An exploded drawing and listing for the Bosch PSB 750-2 RE / 0603162532 / CH 230 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-2605104600.A1 2605104600 -
2 - FIELD 230V BSD-2604220647.A35 2604220647 £21.52 £25.83
3 - ARMATURE 230-240V BSD-2604011166.A13 2604011166 £45.67 £54.80
3/60 - FAN BSD-2606610029.A448 2606610029 £2.61 £3.13
4 - SWITCH BSD-2607200556.A122 2607200556 £27.23 £32.68
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460432.A63 1604460432 £11.30 £13.56
6 - GROMMET dia6.2-dia6.9x90 MM BSD-2600707066.A154 2600707066 £2.48 £2.97
9 - MANUFACTURER'S NAMEPLATE PSB 750-2 RE BSD-2601116715.A5 2601116715 -
14 - NEEDLE BEARING BSD-2600914019.A113 2600914019 £5.30 £6.36
22 - CHANGE-OVER SWITCH BSD-2602098008.A11 2602098008 £1.75 £2.10
23 - SCREW 4x16 BSD-2603490022.A2660 2603490022 £1.75 £2.10
24 - TAPPING SCREW DIN 7981-ST2.2x9.5-C-H BSD-2910611002.A0 2910611002 £1.75 £2.10
25 - O-RING 5.0x1.5 MM BSD-1900210000.A19 1900210000 £1.75 £2.10
27 - DAMPING ELEMENT BSD-2603239024.A56 2603239024 £1.75 £2.10
28 - OVAL-HEAD SCREW BSD-2603429006.A32 2603429006 £1.32 £1.58
29 - HANDLE COVER BSD-2608040109.A34 2608040109 £4.26 £5.11
30 - DRILLING SPINDLE 1/2 BSD-2606135093.A7 2606135093 -
31 - LOCKING WASHER 0.6 MM BSD-2600118001.A176 2600118001 £1.75 £2.10
31 - LOCKING WASHER 0.8 MM BSD-2600118002.A61 2600118002 £1.75 £2.10
31 - LOCKING WASHER 0.3 MM BSD-2600118006.A216 2600118006 -
32 - COMPRESSION SPRING BSD-2604616006.A169 2604616006 £1.75 £2.10
33 - SINTERED-METAL BUSHING BSD-2600301054.A10 2600301054 £2.33 £2.80
34 - CYLINDRICAL GEAR BSD-2606317082.A37 2606317082 £13.12 £15.75
35 - CYLINDRICAL GEAR BSD-2606317083.A19 2606317083 £11.30 £13.56
36 - SHIM 0.5 MM BSD-2600100695.A28 2600100695 £1.75 £2.10
37 - SHIM 0.3 MM BSD-2600101047.A2 2600101047 £1.75 £2.10
38 - CONTACT STRAP BSD-2601329072.A36 2601329072 -
39 - RETAINING WASHER BSD-2600101084.A9 2600101084 £1.75 £2.10
40 - FLAT KEY BSD-2602300034.A5 2602300034 -
41 - GUIDING PLATE BSD-2601098031.A25 2601098031 £1.75 £2.10
42 - CATCH DISK BSD-2600190070.A48 2600190070 £5.58 £6.70
44 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A399 1903230010 £1.75 £2.10
45 - INDEXING DISK BSD-2601990001.A90 2601990001 £1.32 £1.58
46 - PRESSURE PLATE BSD-2601074003.A156 2601074003 £1.75 £2.10
47 - SHIM 0.2 MM BSD-1600100632.A351 1600100632 £1.75 £2.10
52 - SHIM 0.3 MM BSD-2600100607.A287 2600100607 £1.75 £2.10
54 - BEARING SLEEVE BSD-2600400027.A9 2600400027 £4.26 £5.11
55 - SHIM 0.5 MM BSD-2600100637.A15 2600100637 £1.75 £2.10
56 - FORK LEVER BSD-2601990009.A2 2601990009 £2.29 £2.75
57 - ROTARY HEAD BSD-2602026091.A20 2602026091 -
58 - RATCHET CAP BSD-2600590006.A501 2600590006 £1.75 £2.10
62 - DRIVER PIN BSD-2601335001.A31 2601335001 £2.16 £2.59
64 - SHIM WASHER BSD-2600100618.A97 2600100618 £1.75 £2.10
65 - ROLLER BODY BSD-2609007376.A40 2609007376 £1.75 £2.10
67 - CATCH DISK BSD-2600190071.A18 2600190071 £6.52 £7.83
68 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A338 2600914010 £2.80 £3.36
76 - FELT STRIP BSD-2601005011.A177 2601005011 -
77 - FELT STRIP BSD-2601005021.A39 2601005021 £1.32 £1.58
90 - PVC-INSULATED CABLE L=120 MM BSD-2604448228.A5 2604448228 £2.16 £2.59
91 - PVC-INSULATED CABLE L=95 MM BSD-1614431025.A114 1614431025 £2.61 £3.13
96 - PLAIN WASHER BSD-2600100066.A27 2600100066 £1.75 £2.10
654 - AUXILIARY HANDLE BSD-2602025125.A199 2602025125 £10.10 £12.12
755 - DEPTH-GAUGE BSD-2603001019.A25 2603001019 £2.63 £3.16
780 - KEY CHUCK 1/2 BSD-2608571056.A54 2608571056 £17.49 £20.99
780/800 - CHUCK WRENCH SG2 BSD-2607950007.A868 2607950007 £6.52 £7.83
808 - NAMEPLATE BSD-2601119802.A0 2601119802 -
813 - GROOVE BALL BEARING 7x19x6 BSD-2600905103.A36 2600905103 £5.58 £6.70
816 - BRUSH PLATE BSD-2604337061.A6 2604337061 £14.91 £17.89
816/04 - BRUSH HOLDER BSD-1607000CJ1.A72 1607000CJ1 -
819 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A388 2910611006 £1.75 £2.10
828 - TAPPING SCREW DIN 7981-ST3.9x19-C-H BSD-2910611020.A61 2910611020 £1.75 £2.10
849 - TOOTHED SHAFT BSD-2606309936.A8 2606309936 -
850 - CARRIER BSD-2606440900.A17 2606440900 -
863 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A505 2916080007 £2.61 £3.13
866 - BEARING BRACKET BSD-2605807934.A38 2605807934 -
890 - FASTENING PARTS KIT BSD-2607001305.A303 2607001305 £4.26 £5.11
891 - CROSS RECESSED-HEAD SCREW M3x5 BSD-2603410046.A23 2603410046 £2.16 £2.59
