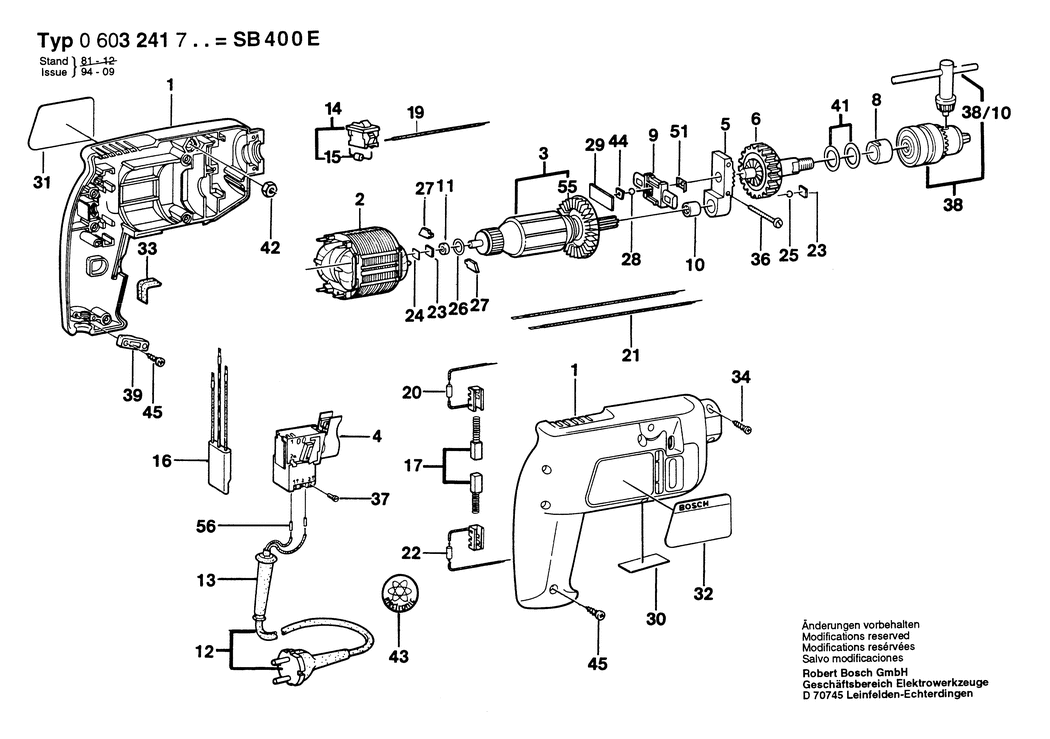

1 - HOUSING SECTION
BSD-2605104185.A8
2605104185
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220423.A15
2604220423
|
£24.45
|
£29.34
|
|
|
3 - ARMATURE 220-240V
BSD-2604010547.A1
2604010547
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200137.A71
2607200137
|
-
|
|
|
|
5 - BEARING BRACKET
BSD-2605807901.A36
2605807901
|
-
|
|
|
|
6 - DRILLING SPINDLE SW 10
BSD-2606135903.A9
2606135903
|
-
|
|
|
|
8 - SINTERED-METAL BUSHING
BSD-2600301021.A17
2600301021
|
-
|
|
|
|
9 - ADJUSTING SLIDE
BSD-2601020006.A8
2601020006
|
-
|
|
|
|
10 - NEEDLE BEARING dia8xdia12x10 MM
BSD-1610910057.A145
1610910057
|
£2.80
|
£3.36
|
|
|
11 - SINTERED-METAL BUSHING
BSD-1900301004.A26
1900301004
|
£13.41
|
£16.09
|
|
|
13 - GROMMET dia6.9 MM
BSD-2600707059.A583
2600707059
|
£3.72
|
£4.47
|
|
|
13 - GROMMET dia8.8 MM
BSD-2600707061.A285
2600707061
|
£2.80
|
£3.36
|
|
|
14 - ON-OFF SWITCH
BSD-2607200904.A23
2607200904
|
-
|
|
|
|
15 - SILICON DIODE
BSD-2607320008.A39
2607320008
|
-
|
|
|
|
16 - SUPPRESSION CAPACITOR
BSD-2607329095.A48
2607329095
|
-
|
|
|
|
19 - CABLE
BSD-2604448002.A5
2604448002
|
-
|
|
|
|
20 - CARB BRUSH HOLD W-SUPR
BSD-2604465081.A1
2604465081
|
-
|
|
|
|
21 - CONNECTING CABLE L=154 MM
BSD-2604448000.A13
2604448000
|
-
|
|
|
|
22 - SUPPRESSOR BOX
BSD-2604465099.A12
2604465099
|
-
|
|
|
|
23 - PRESSURE PLATE 1.5 MM
BSD-1601000013.A57
1601000013
|
-
|
|
|
|
24 - INTERMEDIATE PLATE 0.3 MM
BSD-2601000018.A71
2601000018
|
-
|
|
|
|
24 - INTERMEDIATE PLATE 0.3 MM
BSD-2601000018.A72
2601000018
|
-
|
|
|
|
25 - BALL DIN 5401-5 G28
BSD-1903230009.A20
1903230009
|
£1.75
|
£2.10
|
|
|
26 - O-RING 8.0x2.5 MM
BSD-1610210014.A379
1610210014
|
-
|
|
|
|
27 - LUBRICATING FELT
BSD-2601020005.A37
2601020005
|
-
|
|
|
|
28 - BALL DIN 5401-6 G28
BSD-1903230011.A30
1903230011
|
£2.61
|
£3.13
|
|
|
29 - INTERMEDIATE PLATE
BSD-2601000032.A15
2601000032
|
-
|
|
|
|
31 - REFERENCE PLATE
BSD-2601110112.A4
2601110112
|
-
|
|
|
|
31 - REFERENCE PLATE
BSD-2601110135.A4
2601110135
|
-
|
|
|
|
32 - REFERENCE PLATE
BSD-2601110113.A7
2601110113
|
-
|
|
|
|
32 - REFERENCE PLATE
BSD-2601110136.A7
2601110136
|
-
|
|
|
|
32 - STICKER
BSD-2601110236.A0
2601110236
|
-
|
|
|
|
33 - DAMPING PLATE
BSD-2601022000.A635
2601022000
|
£1.75
|
£2.10
|
|
|
34 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A100
2603490018
|
£1.75
|
£2.10
|
|
|
35 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A173
2910611019
|
£2.80
|
£3.36
|
|
|
36 - LENS HEAD SCREW 4x32
BSD-2603490026.A6
2603490026
|
£1.75
|
£2.10
|
|
|
37 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1205
2603410001
|
£1.75
|
£2.10
|
|
|
38 - KEY CHUCK dia1.5-10 MM. 3/8
BSD-1608571053.A74
1608571053
|
£20.99
|
£25.19
|
|
|
38/10 - CHUCK WRENCH SG2
BSD-2607950007.A1177
2607950007
|
£6.52
|
£7.83
|
|
|
39 - CABLE CLIP
BSD-2601035001.A1398
2601035001
|
£1.75
|
£2.10
|
|
|
40 - PRESSURE PLATE 0.5 MM
BSD-2601000019.A8
2601000019
|
-
|
|
|
|
41 - SHIM 0.3 MM
BSD-2600101604.A26
2600101604
|
-
|
|
|
|
41 - SHIM dia14.5x21.5x0.5 MM
BSD-2000101600.A67
2000101600
|
-
|
|
|
|
42 - STICKER
BSD-2601110041.A171
2601110041
|
-
|
|
|
|
42 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A766
2915011007
|
-
|
|
|
|
43 - STICKER
BSD-2601110041.A170
2601110041
|
-
|
|
|
|
44 - PRESSURE PLATE 1.5 MM
BSD-2601074001.A18
2601074001
|
-
|
|
|
|
45 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A570
2912401020
|
£2.16
|
£2.59
|
|
|
45 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A174
2910611019
|
£2.80
|
£3.36
|
|
|
49 - BRUSH HOLDER
BSD-2604330016.A46
2604330016
|
-
|
|
|
|
50 - CABLE
BSD-2604448003.A224
2604448003
|
-
|
|
|
|
51 - DISC SPRING
BSD-2601290014.A28
2601290014
|
£1.75
|
£2.10
|
|
|
52 - BALL 2 MM III DIN 5401 ST
BSD-1903230002.A11
1903230002
|
£2.16
|
£2.59
|
|
|
55 - FAN
BSD-2606610047.A43
2606610047
|
-
|
|
|
|
56 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A588
1900452012
|
£1.75
|
£2.10
|
|
|
653 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A765
2915011007
|
-
|
|
|
|
817 - CARBON-BRUSH SET
BSD-2604321904.A83
2604321904
|
£10.10
|
£12.12
|
|
|
835 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A72
1607000386
|
£21.52
|
£25.83
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2588
160111A3H3
|
£2.61
|
£3.13
|
|
