Bosch MST 500 / 0603229561 / CH 230 Volt Spare Parts

Bosch MST 500 / 0603229561 / CH 230 Volt Spare Parts

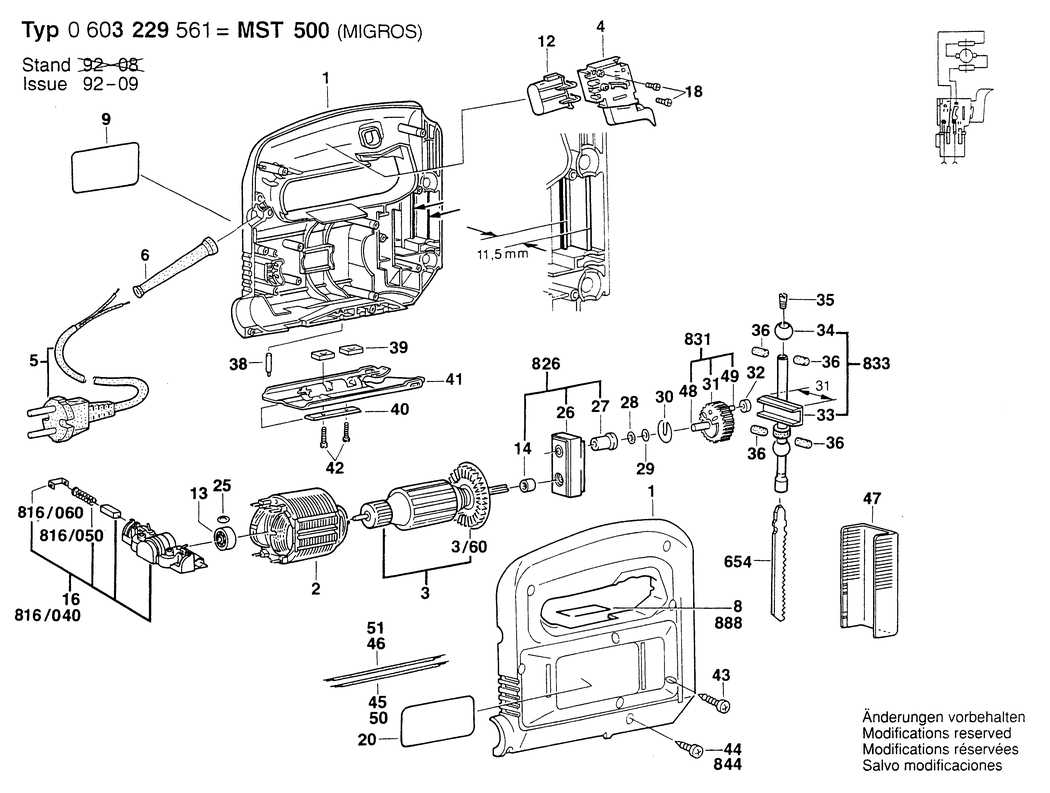

An exploded drawing and listing for the Bosch MST 500 / 0603229561 / CH 230 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-2605104417.A0 2605104417 -
2 - FIELD 220-240V BSD-2604220466.A7 2604220466 -
3 - ARMATURE 220V BSD-2604010736.A4 2604010736 -
3/60 - FAN BSD-1606610116.A198 1606610116 £2.52 £3.02
4 - SWITCH BSD-2607200260.A311 2607200260 £11.30 £13.56
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05VV-F BSD-2604460125.A39 2604460125 £8.49 £10.19
6 - GROMMET dia7 MM BSD-2600703007.A351 2600703007 -
9 - STICKER BSD-2601118363.A0 2601118363 -
12 - SUPPRESSION CAPACITOR BSD-2607329138.A31 2607329138 -
13 - BALL BEARING 7x19x6 BSD-2600905032.A1925 2600905032 £5.30 £6.36
14 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A201 2600917003 £2.80 £3.36
16 - BRUSH PLATE BSD-2604337118.A42 2604337118 £23.86 £28.63
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1502 2603410001 £1.75 £2.10
20 - STICKER BSD-2601118364.A0 2601118364 -
25 - O-RING 5.0x1.5 MM BSD-1900210000.A239 1900210000 £1.75 £2.10
27 - BUSHING BSD-2600322003.A27 2600322003 -
28 - SPRING WASHER BSD-2600190040.A11 2600190040 £1.32 £1.58
29 - SHIM 0.5 MM BSD-2600100505.A30 2600100505 £1.32 £1.58
30 - SHIM 0.6 MM BSD-2600040002.A8 2600040002 -
30 - SHIM 0.2 MM BSD-2600040001.A30 2600040001 -
32 - GUIDE ROLLER BSD-2600301014.A21 2600301014 -
34 - SINTERED-METAL BUSHING BSD-2600302008.A11 2600302008 -
35 - CLAMP SCREW BSD-2603400000.A156 2603400000 £4.26 £5.11
36 - LUBRICATING FELT BSD-2603239006.A15 2603239006 -
38 - DETENT PIN BSD-2603120037.A6 2603120037 -
39 - FIXING PLATE BSD-2601030006.A34 2601030006 -
40 - PROFILE BEADING BSD-2602317025.A48 2602317025 -
41 - BASE PLATE BSD-2601016012.A54 2601016012 £8.67 £10.41
42 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A332 2910021122 £2.16 £2.59
43 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A149 2603490021 £1.75 £2.10
44 - SCREW 4x16 BSD-2603490022.A1853 2603490022 £1.75 £2.10
45 - CONNECTING CABLE L=213 MM BSD-2604448118.A88 2604448118 £1.75 £2.10
46 - CONNECTING CABLE L=88 MM BSD-2604448130.A39 2604448130 £1.75 £2.10
47 - COVERING HOOD BSD-2605510052.A35 2605510052 -
50 - CONNECTING CABLE L=263MM BSD-2604448119.A43 2604448119 £1.32 £1.58
51 - CONNECTING CABLE L=73 MM BSD-2604448123.A40 2604448123 -
52 - PIN BSD-2603105051.A32 2603105051 £1.95 £2.34
816/040 - CARBON-BRUSH SET BSD-2604321917.A29 2604321917 -
816/050 - COMPRESSION SPRING BSD-2604610026.A50 2604610026 £2.61 £3.13
816/060 - RATCHET CAP BSD-2601322013.A511 2601322013 £1.75 £2.10
816/060 - RATCHET CAP BSD-2601329051.A47 2601329051 £2.33 £2.80
826 - BEARING BRACKET BSD-2605807918.A34 2605807918 -
831 - ECCENTRIC COG WHEEL Z=49 BSD-2606316900.A7 2606316900 -
833 - LIFTING ROD BSD-2600780065.A10 2600780065 -
888 - NAMEPLATE BSD-160111A3H3.A4603 160111A3H3 £2.61 £3.13
