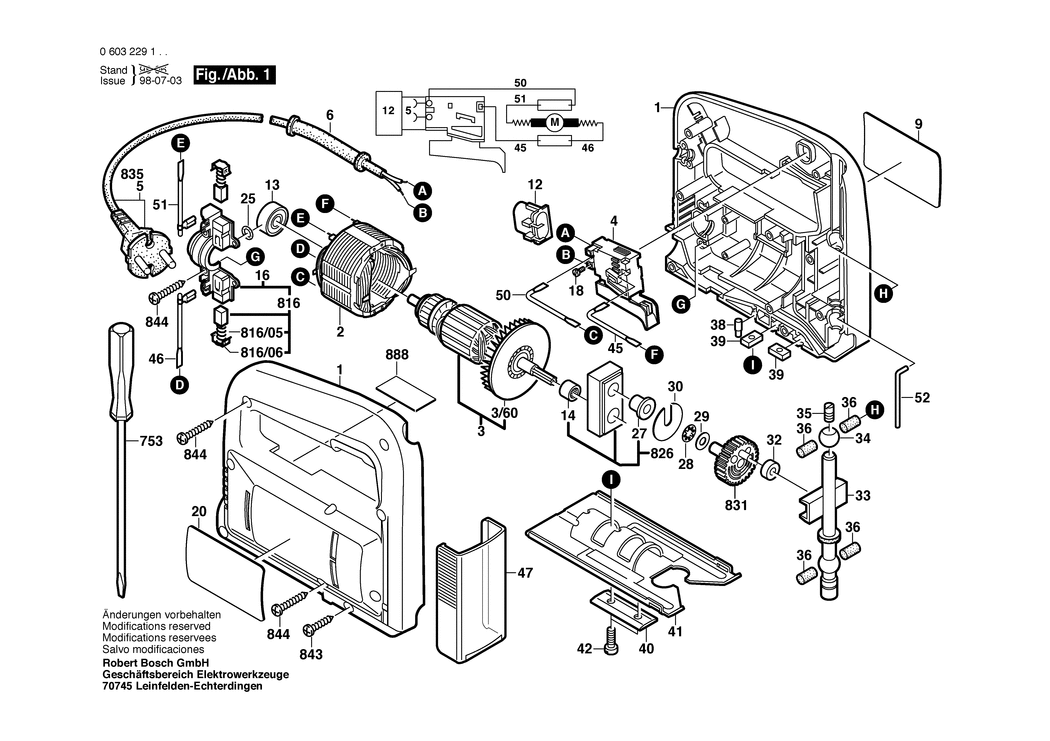

1 - HOUSING SECTION
BSD-2605104270.A7
2605104270
|
-
|
|
|
|
2 - FIELD 230-240V
BSD-2604220523.A7
2604220523
|
-
|
|
|
|
3 - ARMATURE 230-240V
BSD-2604011025.A7
2604011025
|
-
|
|
|
|
3/60 - FAN
BSD-1606610116.A187
1606610116
|
£2.52
|
£3.02
|
|
|
4 - ON-OFF SWITCH
BSD-2607200365.A10
2607200365
|
-
|
|
|
|
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05VV-F
BSD-2604460125.A33
2604460125
|
£8.49
|
£10.19
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A369
2600703007
|
-
|
|
|
|
9 - STICKER
BSD-2601110876.A5
2601110876
|
-
|
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-2607329138.A21
2607329138
|
-
|
|
|
|
13 - GROOVE BALL BEARING 8x19x6
BSD-2600905046.A114
2600905046
|
£11.30
|
£13.56
|
|
|
14 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A177
2600917003
|
£2.80
|
£3.36
|
|
|
16 - BRUSH PLATE
BSD-2604337118.A30
2604337118
|
£23.86
|
£28.63
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1464
2603410001
|
£1.75
|
£2.10
|
|
|
20 - STICKER
BSD-2601110877.A1
2601110877
|
-
|
|
|
|
25 - O-RING 5.0x1.5 MM
BSD-1900210000.A260
1900210000
|
£1.75
|
£2.10
|
|
|
27 - BUSHING
BSD-2600322003.A11
2600322003
|
-
|
|
|
|
28 - SPRING WASHER
BSD-2600190040.A32
2600190040
|
£1.32
|
£1.58
|
|
|
29 - SHIM 0.5 MM
BSD-2600100505.A11
2600100505
|
£1.32
|
£1.58
|
|
|
30 - SHIM 0.6 MM
BSD-2600040002.A27
2600040002
|
-
|
|
|
|
30 - SHIM 0.2 MM
BSD-2600040001.A11
2600040001
|
-
|
|
|
|
32 - GUIDE ROLLER
BSD-2600301014.A5
2600301014
|
-
|
|
|
|
33 - LIFTING ROD
BSD-2600780065.A1
2600780065
|
-
|
|
|
|
34 - SINTERED-METAL BUSHING
BSD-2600302008.A27
2600302008
|
-
|
|
|
|
35 - CLAMP SCREW
BSD-2603400000.A188
2603400000
|
£4.26
|
£5.11
|
|
|
36 - LUBRICATING FELT
BSD-2603239006.A22
2603239006
|
-
|
|
|
|
38 - DETENT PIN
BSD-2603120037.A31
2603120037
|
-
|
|
|
|
39 - FIXING PLATE
BSD-2601030006.A22
2601030006
|
-
|
|
|
|
40 - PROFILE BEADING
BSD-2602317025.A42
2602317025
|
-
|
|
|
|
41 - BASE PLATE
BSD-2601016074.A3
2601016074
|
-
|
|
|
|
42 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A344
2910021122
|
£2.16
|
£2.59
|
|
|
45 - CONNECTING CABLE L=213 MM
BSD-2604448118.A68
2604448118
|
£1.75
|
£2.10
|
|
|
46 - CONNECTING CABLE L=88 MM
BSD-2604448130.A42
2604448130
|
£1.75
|
£2.10
|
|
|
47 - COVERING HOOD
BSD-2605510052.A14
2605510052
|
-
|
|
|
|
50 - CONNECTING CABLE L=263MM
BSD-2604448119.A59
2604448119
|
£1.32
|
£1.58
|
|
|
51 - CONNECTING CABLE L=73 MM
BSD-2604448123.A29
2604448123
|
-
|
|
|
|
52 - PIN
BSD-2603105051.A6
2603105051
|
£1.95
|
£2.34
|
|
|
207 - CABLE CLIP
BSD-2601035001.A1949
2601035001
|
£1.75
|
£2.10
|
|
|
816 - CARBON-BRUSH SET
BSD-2604321917.A17
2604321917
|
-
|
|
|
|
816/05 - COMPRESSION SPRING
BSD-2604610026.A68
2604610026
|
£2.61
|
£3.13
|
|
|
816/06 - RATCHET CAP
BSD-2601322013.A522
2601322013
|
£1.75
|
£2.10
|
|
|
816/06 - RATCHET CAP
BSD-2601329051.A40
2601329051
|
£2.33
|
£2.80
|
|
|
826 - BEARING BRACKET
BSD-2605807918.A22
2605807918
|
-
|
|
|
|
831 - ECCENTRIC COG WHEEL Z=49
BSD-2606316900.A19
2606316900
|
-
|
|
|
|
843 - TAPPING SCREW DIN 7981-ST3.9x13-C-H
BSD-2910611018.A93
2910611018
|
-
|
|
|
|
844 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A146
2910611020
|
£1.75
|
£2.10
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4641
160111A3H3
|
£2.61
|
£3.13
|
|
