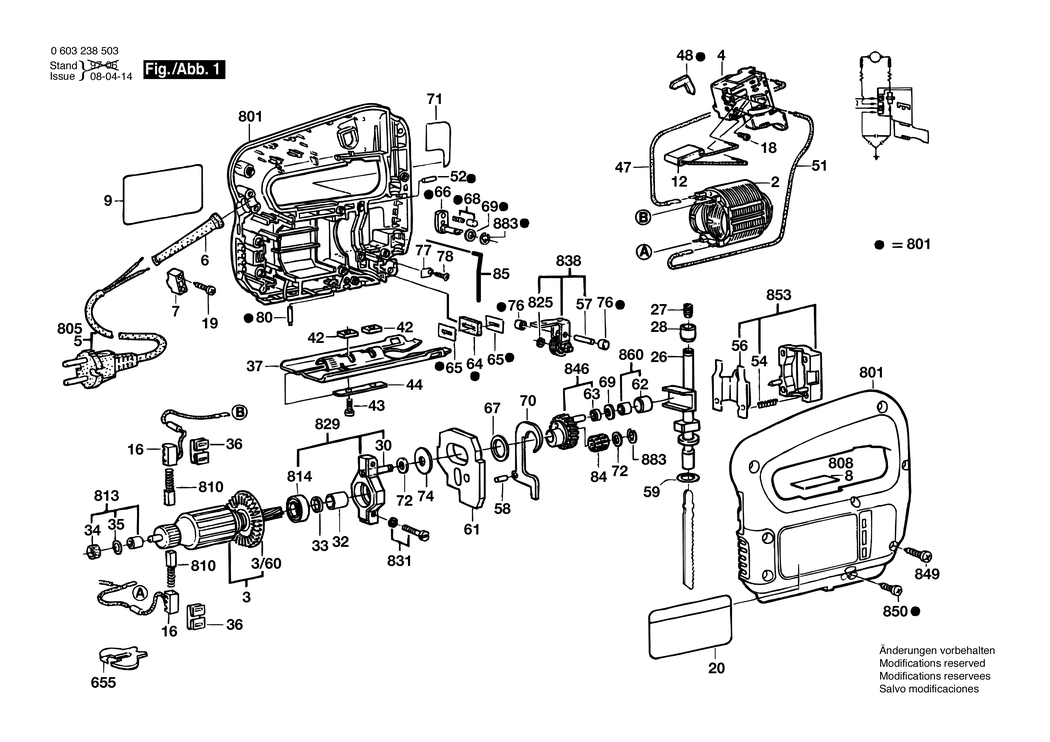

2 - FIELD 220-240V
BSD-2604220423.A218
2604220423
|
£24.45
|
£29.34
|
|
|
3 - ARMATURE 220-240V
BSD-2604010558.A6
2604010558
|
-
|
|
|
|
3/60 - FAN
BSD-2606610022.A43
2606610022
|
£4.26
|
£5.11
|
|
|
4 - SWITCH
BSD-2607200184.A41
2607200184
|
-
|
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A325
2600703007
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2113
2601035001
|
£1.75
|
£2.10
|
|
|
9 - STICKER
BSD-2601110848.A0
2601110848
|
-
|
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-2607329004.A11
2607329004
|
£2.33
|
£2.80
|
|
|
16 - BRUSH HOLDER
BSD-2604465077.A18
2604465077
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1628
2603410001
|
£1.75
|
£2.10
|
|
|
19 - SCREW 4x16
BSD-2603490022.A1756
2603490022
|
£1.75
|
£2.10
|
|
|
20 - STICKER
BSD-2601110849.A0
2601110849
|
-
|
|
|
|
26 - LIFTING ROD
BSD-2600780038.A6
2600780038
|
-
|
|
|
|
27 - CLAMP SCREW
BSD-2603400000.A122
2603400000
|
£4.26
|
£5.11
|
|
|
28 - SINTERED-METAL BUSHING
BSD-2600302006.A18
2600302006
|
-
|
|
|
|
30 - BEARING BOLT
BSD-2603105034.A3
2603105034
|
-
|
|
|
|
32 - GUIDE SLEEVE
BSD-2600400024.A76
2600400024
|
£2.80
|
£3.36
|
|
|
33 - SUPPORTING DISC
BSD-2600103013.A16
2600103013
|
£1.32
|
£1.58
|
|
|
34 - FELT WASHER
BSD-1600205023.A218
1600205023
|
£1.32
|
£1.58
|
|
|
35 - O-RING 8.0x2.5 MM
BSD-1610210014.A213
1610210014
|
-
|
|
|
|
36 - HOLDING SPRING
BSD-1619P09928.A35
1619P09928
|
£1.75
|
£2.10
|
|
|
37 - BASE PLATE
BSD-2601016012.A10
2601016012
|
£8.67
|
£10.41
|
|
|
42 - FIXING PLATE
BSD-2601030006.A88
2601030006
|
-
|
|
|
|
43 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A365
2910021122
|
£2.16
|
£2.59
|
|
|
44 - PROFILE BEADING
BSD-2602317025.A19
2602317025
|
-
|
|
|
|
47 - CONNECTING CABLE L=213 MM
BSD-2604448118.A107
2604448118
|
£1.75
|
£2.10
|
|
|
48 - DAMPING PLATE
BSD-2601022000.A274
2601022000
|
£1.75
|
£2.10
|
|
|
51 - CONNECTING CABLE L=263MM
BSD-2604448119.A19
2604448119
|
£1.32
|
£1.58
|
|
|
52 - BEARING BOLT
BSD-2603201020.A25
2603201020
|
£1.75
|
£2.10
|
|
|
54 - COMPRESSION SPRING
BSD-2604613000.A67
2604613000
|
£1.75
|
£2.10
|
|
|
56 - GUIDE BRACKET
BSD-2601322014.A5
2601322014
|
-
|
|
|
|
57 - STRAIGHT PIN
BSD-2609002725.A4
2609002725
|
£1.75
|
£2.10
|
|
|
58 - STRAIGHT PIN 4M6x12DIN6325
BSD-2917530095.A33
2917530095
|
-
|
|
|
|
59 - SHIM 0.5 MM
BSD-2600101612.A338
2600101612
|
£1.75
|
£2.10
|
|
|
59 - SHIM 0.3 MM
BSD-2600116012.A54
2600116012
|
-
|
|
|
|
61 - COUNTERWEIGHT
BSD-2601098005.A18
2601098005
|
£3.80
|
£4.56
|
|
|
62 - BEARING SLEEVE
BSD-2600400012.A59
2600400012
|
£4.26
|
£5.11
|
|
|
63 - SPACER SLEEVE
BSD-2600200022.A4
2600200022
|
£1.75
|
£2.10
|
|
|
64 - SEALING PLATE
BSD-2601015057.A12
2601015057
|
£3.80
|
£4.56
|
|
|
65 - FIXING PLATE 0.6 MM
BSD-2601015008.A0
2601015008
|
£2.16
|
£2.59
|
|
|
66 - SWITCH HANDLE
BSD-2602026035.A33
2602026035
|
-
|
|
|
|
67 - SHIM 0.3 MM
BSD-2600101083.A29
2600101083
|
-
|
|
|
|
68 - RATCHET CAP
BSD-2600590006.A254
2600590006
|
£1.75
|
£2.10
|
|
|
69 - SHIM 0.5 MM
BSD-2600100568.A11
2600100568
|
£1.75
|
£2.10
|
|
|
70 - FORK LEVER
BSD-2601923003.A0
2601923003
|
-
|
|
|
|
71 - STICKER
BSD-2601110573.A7
2601110573
|
-
|
|
|
|
72 - SHIM 0.3 MM
BSD-2600100570.A94
2600100570
|
£1.75
|
£2.10
|
|
|
74 - SHIM 0.5 MM
BSD-2600102014.A29
2600102014
|
-
|
|
|
|
76 - PRESS-IN SOCKET
BSD-2600506008.A0
2600506008
|
-
|
|
|
|
77 - SUPPORT PLATE
BSD-2601098006.A15
2601098006
|
£1.75
|
£2.10
|
|
|
78 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A824
2603490017
|
£2.16
|
£2.59
|
|
|
80 - DETENT PIN
BSD-2603120019.A37
2603120019
|
£1.75
|
£2.10
|
|
|
84 - NEEDLE-ROLLER ASSEMBLY
BSD-2600913002.A24
2600913002
|
-
|
|
|
|
85 - SPRING RETAINING RING
BSD-2603105050.A19
2603105050
|
-
|
|
|
|
655 - SPLINTERING PROTECTOR
BSD-2601016065.A126
2601016065
|
£5.30
|
£6.36
|
|
|
801 - HOUSING SECTION
BSD-2605104980.A2
2605104980
|
-
|
|
|
|
805 - POWER SUPPLY CORD EU 2.65m 2 x 1.0mm H05 RN-F
BSD-1607000388.A122
1607000388
|
£12.04
|
£14.45
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A4546
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321904.A206
2604321904
|
£10.10
|
£12.12
|
|
|
813 - SINTERED-METAL BUSHING
BSD-1600301900.A231
1600301900
|
-
|
|
|
|
814 - GROOVE BALL BEARING 9x24x7
BSD-2600905039.A359
2600905039
|
£12.04
|
£14.45
|
|
|
825 - LOCKING WASHER DIN 6799-3.2
BSD-2916080906.A38
2916080906
|
£1.75
|
£2.10
|
|
|
829 - BEARING BRACKET
BSD-2605807908.A0
2605807908
|
-
|
|
|
|
831 - SCREW AND WASHER ASSEMBLY DIN7985-M4x18Z1-4.8
BSD-2914500009.A56
2914500009
|
-
|
|
|
|
838 - ROLLER LEVER
BSD-2601321900.A29
2601321900
|
-
|
|
|
|
846 - ECCENTRIC COG WHEEL Z=39
BSD-2606319900.A4
2606319900
|
-
|
|
|
|
849 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A229
2912401020
|
£2.16
|
£2.59
|
|
|
850 - TAPPING SCREW DIN 7981-ST3.9x13-C-H
BSD-2910611018.A105
2910611018
|
-
|
|
|
|
853 - SUPPORT PLATE
BSD-2602316902.A8
2602316902
|
-
|
|
|
|
860 - NEEDLE BEARING
BSD-2600917900.A111
2600917900
|
£8.67
|
£10.41
|
|
|
883 - LOCKING WASHER DIN 6799-5-FSt
BSD-2916080008.A67
2916080008
|
-
|
|
|
