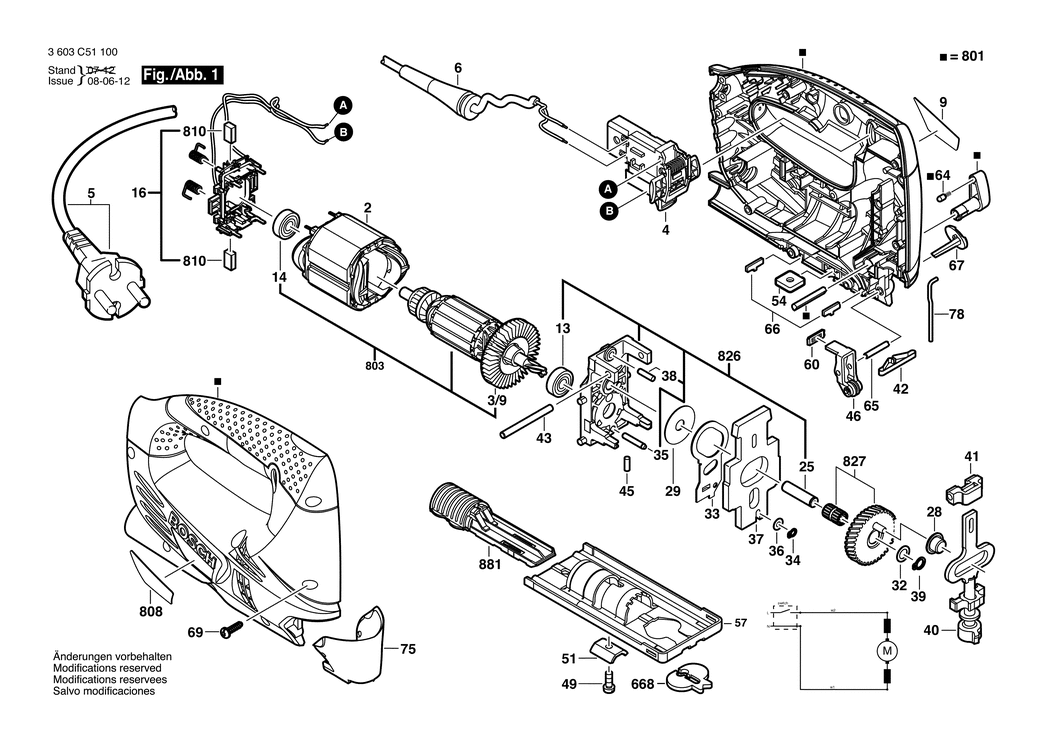

An exploded drawing and listing for the Bosch PST 700 PE / 3603C51170 / GB 230 Volt
Ex VAT Inc VAT
2 - FIELD 230-240V BSD-2604220682.A4 2604220682 £21.52 £25.83
3/9 - FAN BSD-2606610123.A29 2606610123 £2.61 £3.13
4 - SWITCH BSD-2607200636.A0 2607200636 -
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F BSD-2604460243.A54 2604460243 £13.12 £15.75
6 - GROMMET BSD-2609002019.A86 2609002019 £2.61 £3.13
9 - MANUFACTURER'S NAMEPLATE PST 700 PE BSD-2601115261.A0 2601115261 £2.61 £3.13
13 - GROOVE BALL BEARING 8x22x7 608-2Z/C3 BSD-3130900020.A61 3130900020 £6.52 £7.83
14 - GROOVE BALL BEARING 8x22x7 608-2Z/C3 BSD-3130900020.A62 3130900020 £6.52 £7.83
16 - BRUSH PLATE BSD-2604337110.A0 2604337110 £11.78 £14.13
25 - BEARING BOLT BSD-2603105080.A13 2603105080 £2.61 £3.13
28 - NEEDLE BEARING BSD-2600914022.A71 2600914022 £6.52 £7.83
29 - SHIM 0.5 MM BSD-2600101048.A24 2600101048 £1.75 £2.10
32 - SHIM 0.5 MM BSD-2600101077.A62 2600101077 £1.75 £2.10
33 - FORK LEVER BSD-2601923012.A13 2601923012 £4.26 £5.11
34 - SPRING RETAINING RING DIN 471-4x0.4-FSt BSD-2916640001.A47 2916640001 £1.75 £2.10
35 - BEARING BOLT BSD-2603105091.A24 2603105091 £2.61 £3.13
36 - SHIM 0.5 MM BSD-2600100588.A53 2600100588 £1.75 £2.10
37 - COUNTERWEIGHT BSD-2601098098.A7 2601098098 £10.10 £12.12
38 - NEEDLE ROLLER BSD-1903201055.A9 1903201055 -
39 - SPRING RETAINING RING 8x0.8 N31A MR7 BSD-2916640905.A6 2916640905 £1.75 £2.10
40 - LIFTING ROD BSD-2600780149.A8 2600780149 £24.45 £29.34
41 - PLAIN BEARING BSD-2605801038.A42 2605801038 £5.30 £6.36
42 - COMPRESSION SPRING BSD-160461201E.A23 160461201E £1.75 £2.10
43 - NEEDLE ROLLER BSD-2603201089.A17 2603201089 £5.58 £6.70
45 - BEARING BOLT BSD-2603105084.A30 2603105084 £2.16 £2.59
46 - ROLLER LEVER BSD-2609001608.A7 2609001608 £11.30 £13.56
49 - SOCKET HEAD CAP SCREW BSD-2603413034.A13 2603413034 £1.75 £2.10
51 - PROFILE BEADING BSD-2602317052.A4 2602317052 £2.16 £2.59
54 - FIXING PLATE BSD-2600040003.A19 2600040003 £2.16 £2.59
57 - BASE PLATE BSD-2601016088.A1 2601016088 -
60 - SEALING PLATE BSD-2601015077.A14 2601015077 £1.75 £2.10
64 - RATCHET CAP BSD-2600590006.A930 2600590006 £1.75 £2.10
65 - STRAIGHT PIN BSD-2609002725.A88 2609002725 £1.75 £2.10
66 - ADJUSTMENT ELEMENT BSD-2601030166.A6 2601030166 £1.75 £2.10
67 - SWITCH SLIDE BSD-2602026153.A1 2602026153 £2.16 £2.59
69 - SCREW 4x16 BSD-2603490022.A992 2603490022 £1.75 £2.10
75 - COVERING HOOD BSD-2605510253.A2 2605510253 -
78 - LOCKING PIN BSD-2603105088.A7 2603105088 £1.75 £2.10
668 - SPLINTERING PROTECTOR BSD-2601016065.A74 2601016065 £5.30 £6.36
801 - HOUSING SECTION BSD-2609001927.A1 2609001927 £19.45 £23.34
803 - ARMATURE 230-240V BSD-2609001928.A1 2609001928 £31.64 £37.97
808 - NAMEPLATE BSD-2609001765.A0 2609001765 £2.33 £2.80
810 - CARBON-BRUSH SET BSD-2610391290.A50 2610391290 £8.67 £10.41
826 - BEARING BRACKET BSD-2609001930.A7 2609001930 £19.45 £23.34
827 - ECCENTRIC COG WHEEL BSD-2609001931.A18 2609001931 £21.68 £26.01
881 - SAW BLADE DEPOT BSD-2608040231.A12 2608040231 £5.58 £6.70
